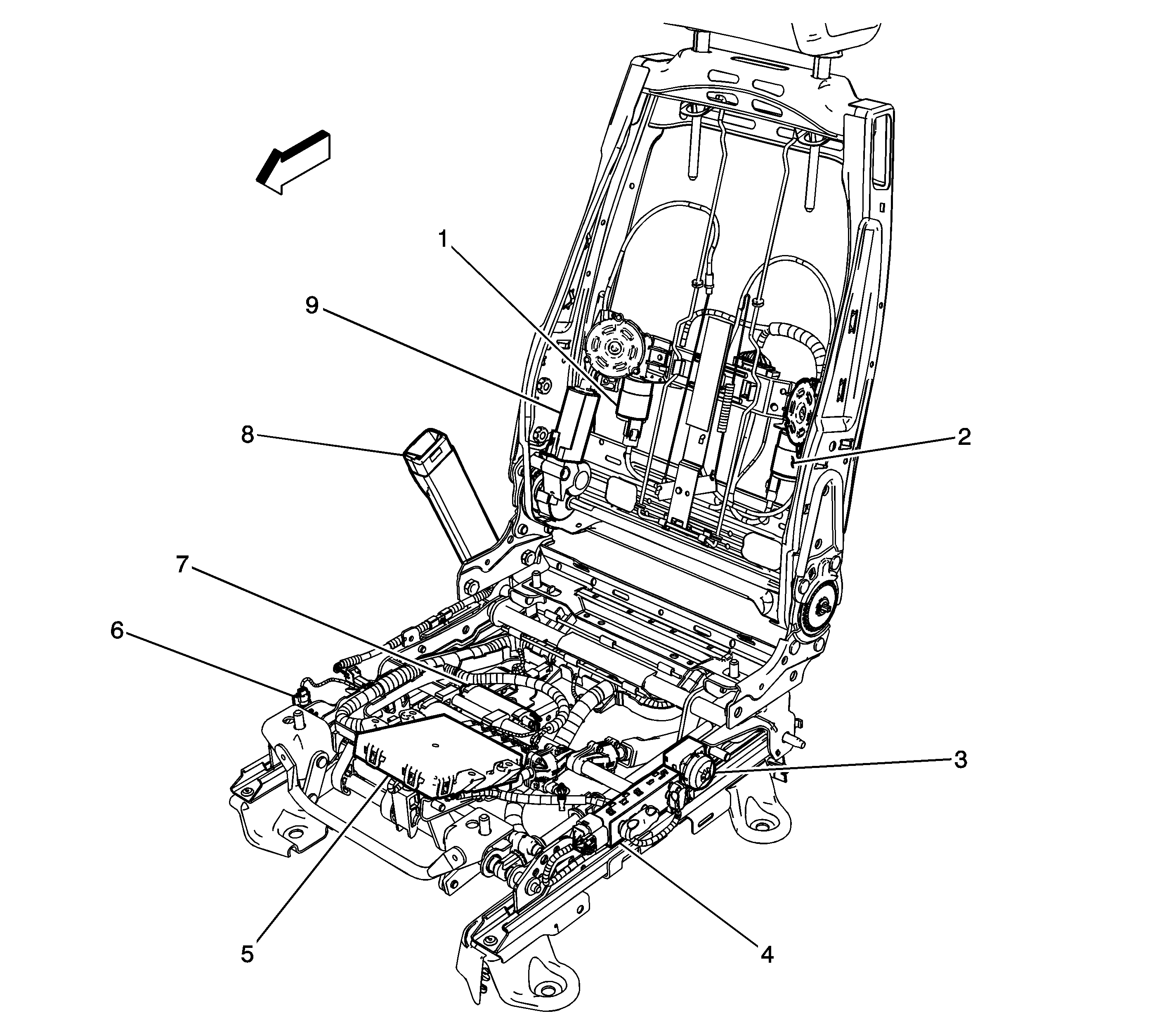

Figure 1:

Driver Seat
Object Number: 1714201 Size: LF
(1)Seat Recline Motor - Driver (AN3)
(2)Lumbar Adjuster Assembly - Driver (AN3)
(3)Seat Lumbar Switch - Driver (AN3)
(4)Seat Adjuster Switch - Driver
(5)Memory Seat Module (AN3)
(6)Inflatable Restraint Seat Position Sensor (SPS) - Left
(7)Seat Adjuster Assembly - Driver
(8)Seat Belt Buckle

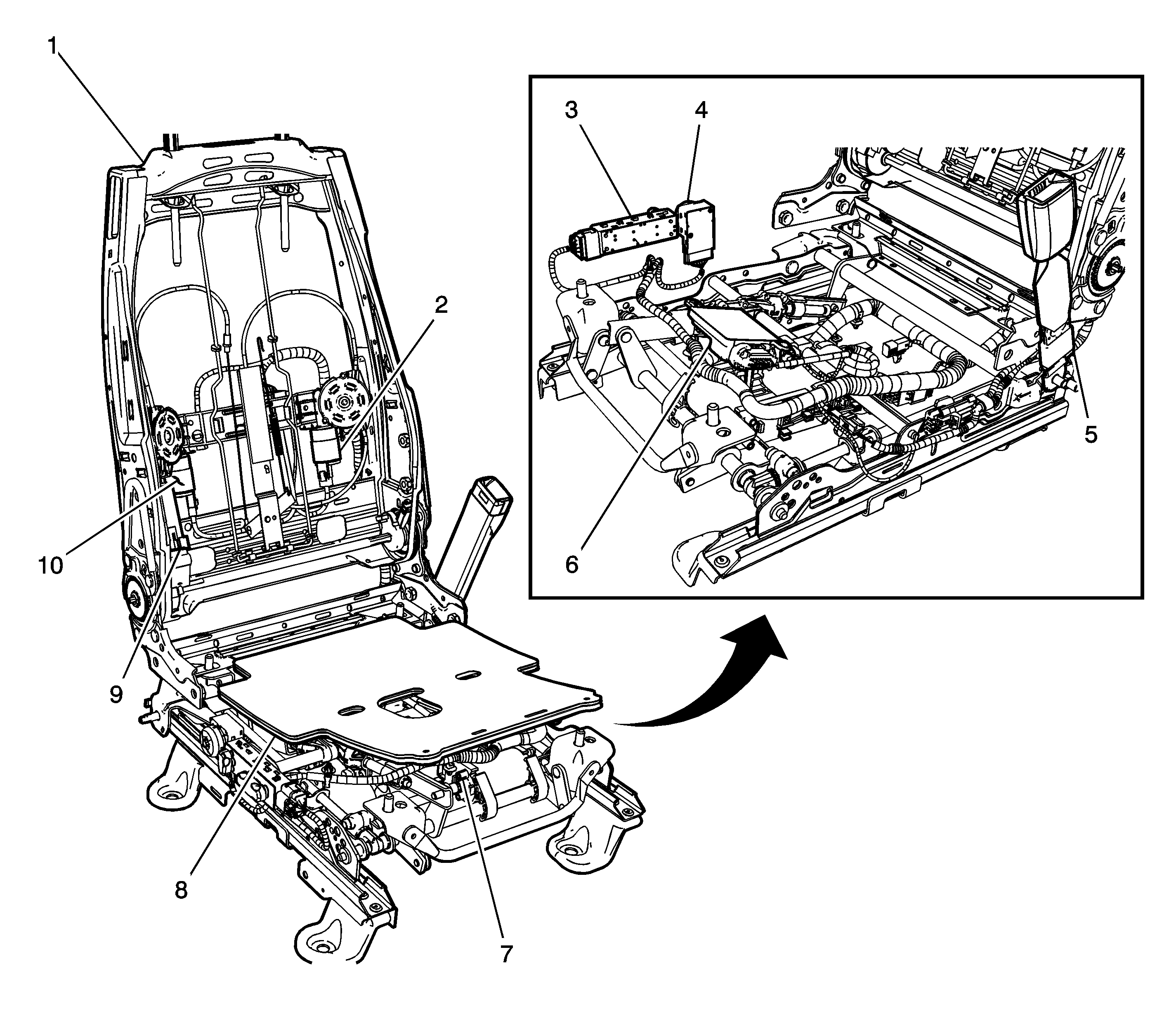

Figure 2:

Passenger Seat
Object Number: 1714192 Size: LF
(1)Seat Frame
(2)Lumbar Adjuster Assembly - Passenger (AN3)
(3)Seat Adjuster Switch - Passenger (AG2)
(4)Seat Lumbar Switch - Passenger (AN3)
(5)Seat Belt Buckle
(6)Inflatable Restraint Front Passenger Presence System (PPS) Module
(7)Seat Adjuster Assembly - Passenger (AG2)
(8)Inflatable Restraint Front Passenger Presence System (PPS) Sensor
(9)Seat Recline Motor - Passenger (AN3)
