Midgate Replacement. Chevrolet Chevy Suburban

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2008 🢒 Chevy Suburban - 2WD 🢒 Body Repair 🢒 Bolted Exterior Body Panels and Closures 🢒 Midgate Replacement

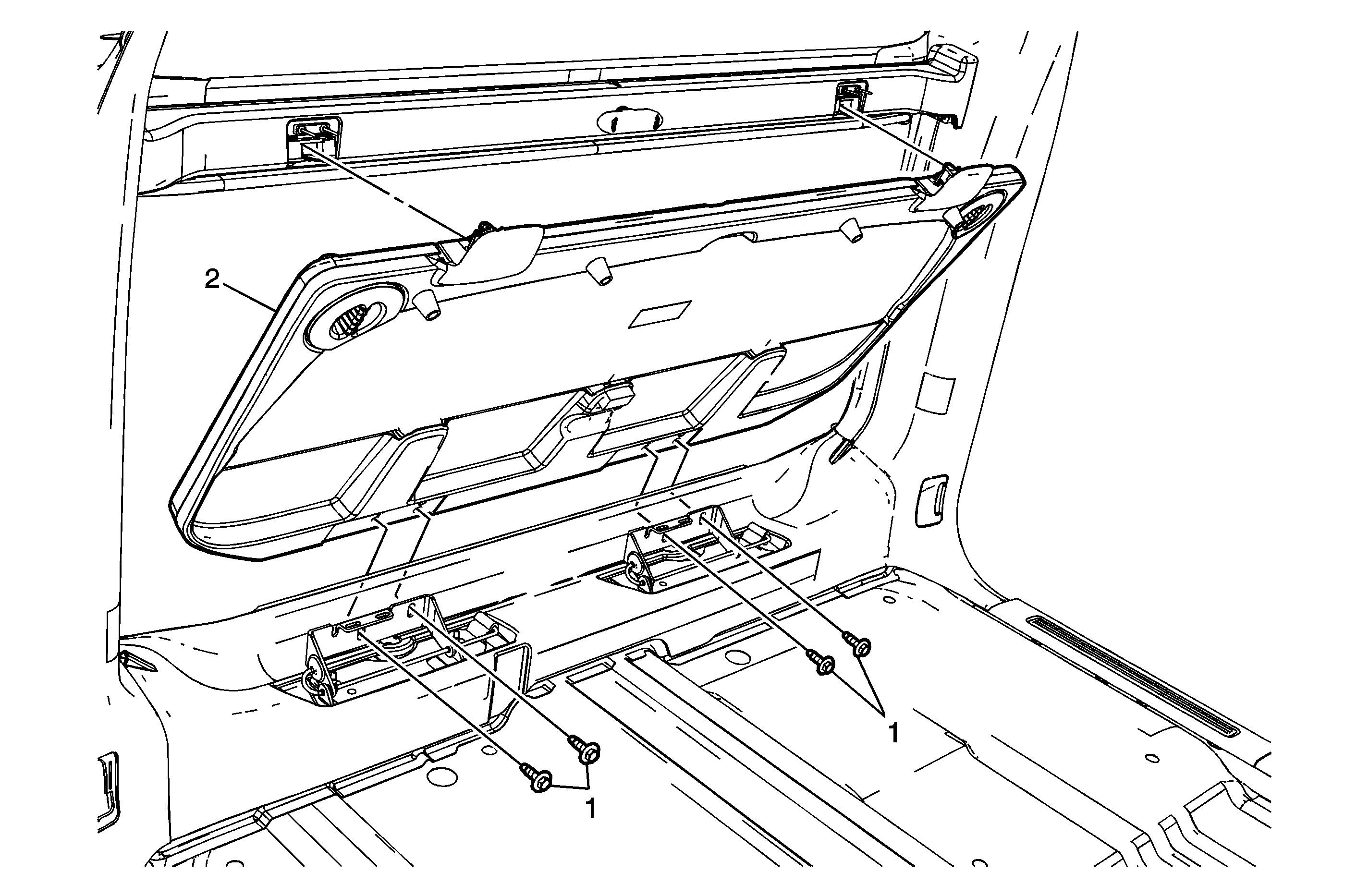

Callout	Component Name
Preliminary Procedure Remove the midgate hinge finish covers. Refer to Midgate Hinge Finish Cover Replacement .
1	Midgate Hinge Bolt (Qty: 4) Notice: Refer to Fastener Notice in the Preface section. Tighten 25 N·m (18 lb ft)
2	Midgate Assembly

Callout

Component Name

Remove the midgate hinge finish covers. Refer to Midgate Hinge Finish Cover Replacement .

Midgate Hinge Bolt (Qty: 4)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
25 N·m (18 lb ft)

Midgate Assembly
