Makes 🢒 Chevrolet 🢒 2002 🢒 Chevy Suburban - 4WD 🢒 Driveline/Axle 🢒 Transfer Case - NVG 236/246-NP8 (Two Speed Automatic) 🢒 Transfer Case Control Component Views

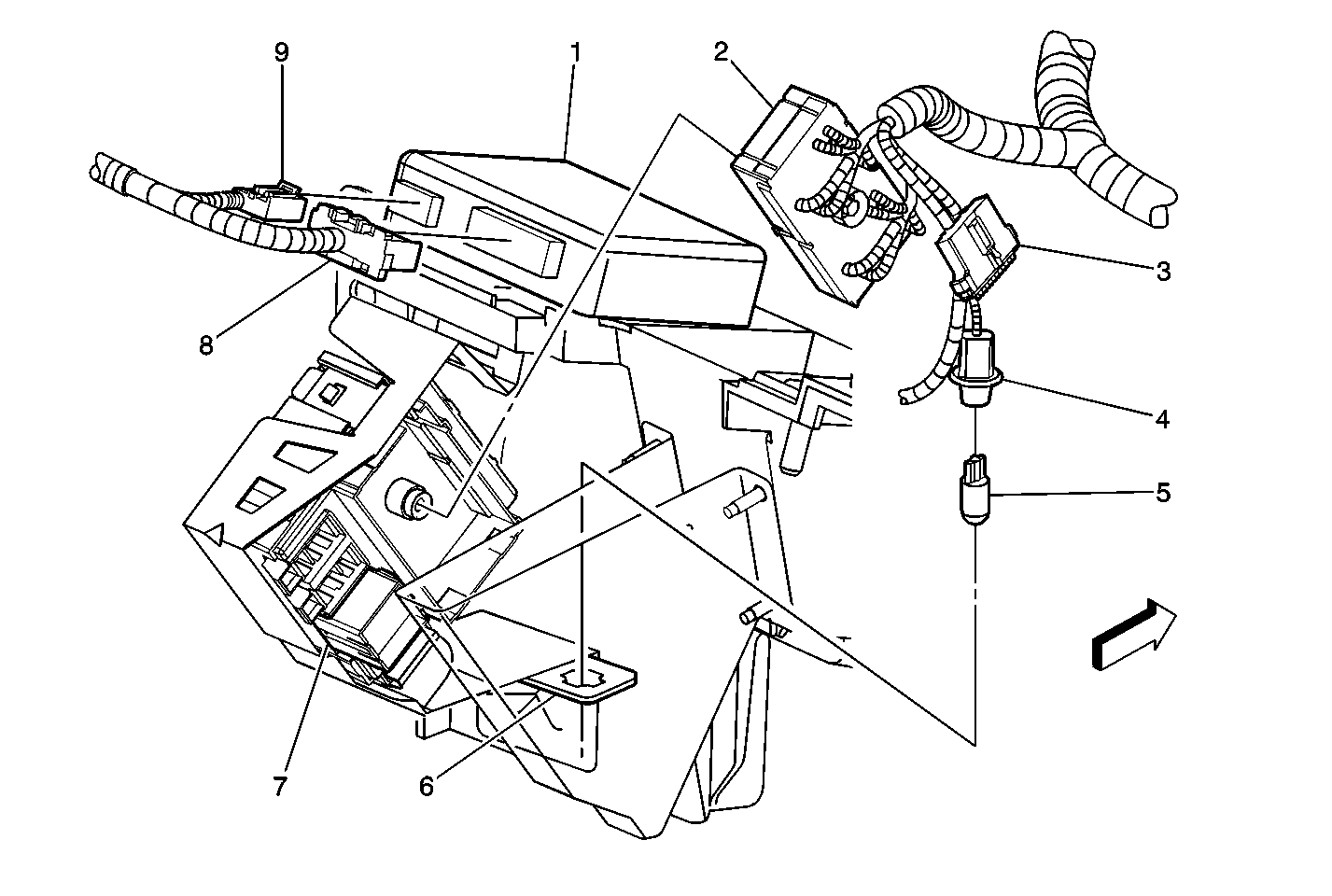

Figure 1:

Behind the Lower Left of the I/P Components
Object Number: 310123 Size: MF
(1)Transfer Case Shift Control Module
(2)Fuse Block Connector
(3)Splice Pack 205 (SP205)
(4)Courtesy Lamp Socket
(5)Bulb
(6)Courtesy Lamp IP Bracket
(7)Fuse Block
(8)Transfer Case Shift Control Connector - C1
(9)Transfer Case Shift Control Connector - C2

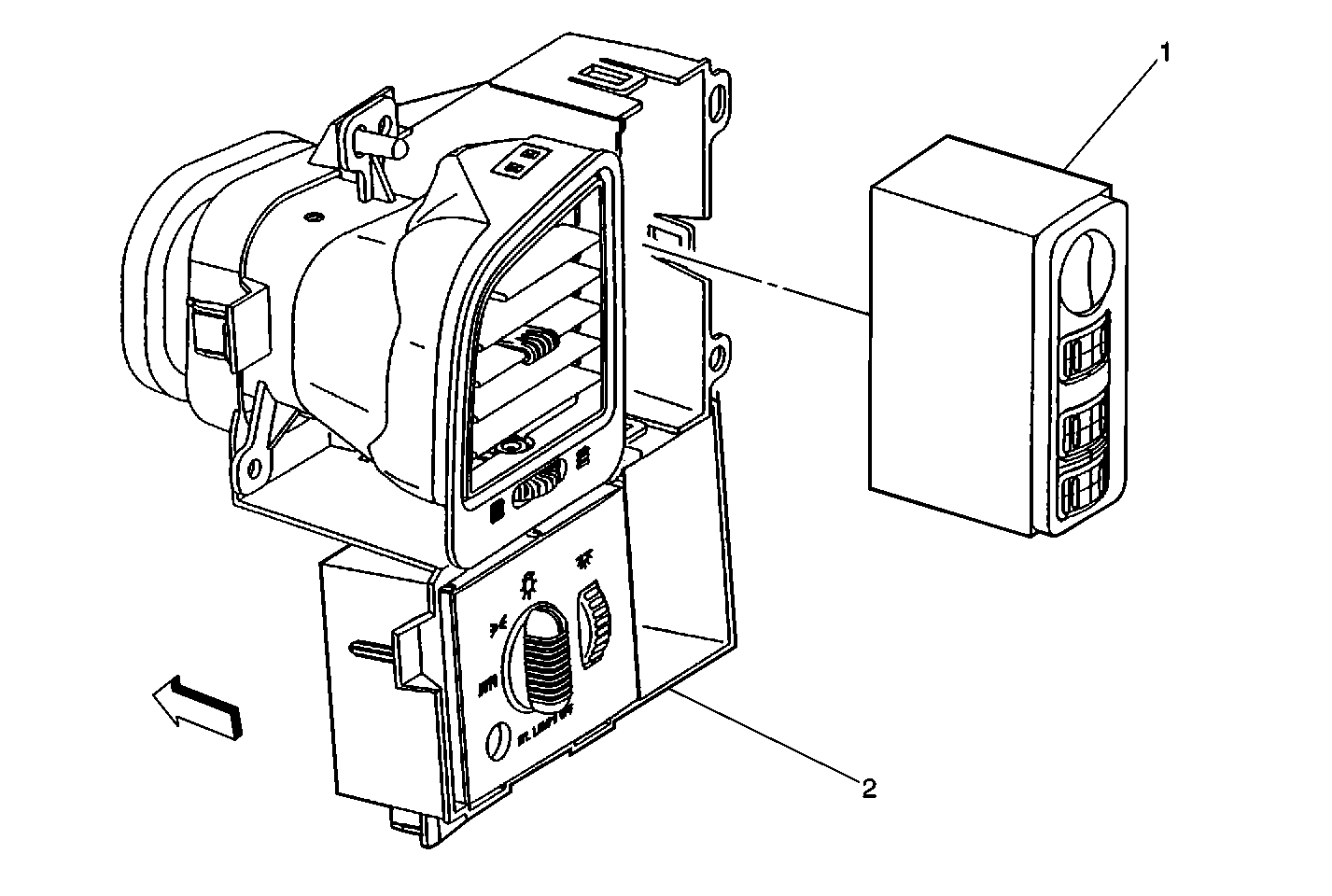

Figure 2:

Transfer Case Shift Control Switch
Object Number: 349756 Size: MF
(1)Transfer Case Shift Control Switch
(2)Instrument Panel Switch and Deflector Housing

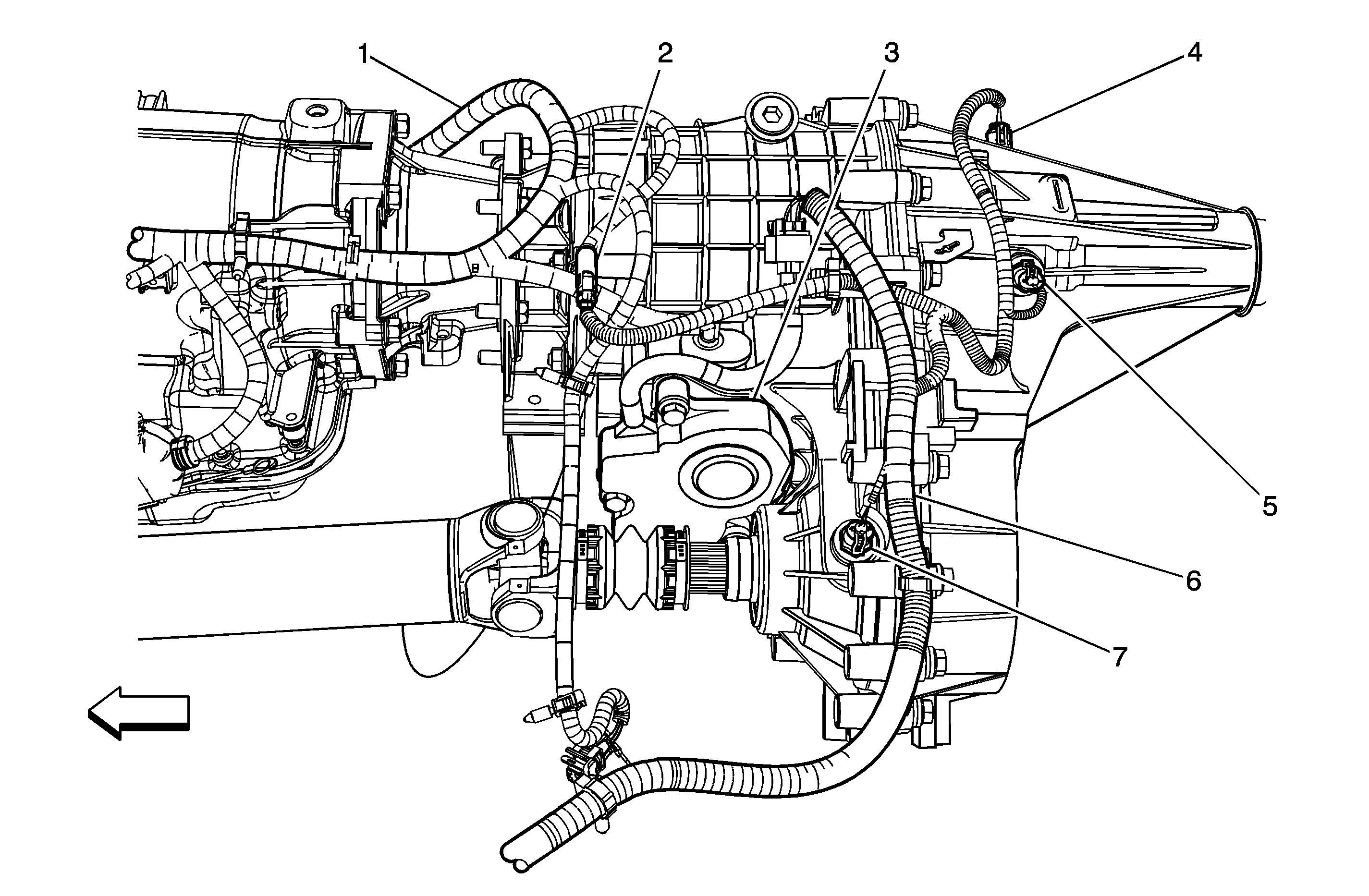

Figure 3:

Transfer Case (NVG 236/246 NP8)
Object Number: 1587663 Size: MF
(1)Engine Harness
(2)C350 Transfer Case Harness to Engine Harness
(3)Transfer Case Encoder Motor
(4)Vehicle Speed Sensor (VSS)
(5)Propshaft Speed Sensor-Rear
(6)Transfer Case Harness
(7)Propshaft Speed Sensor-Front

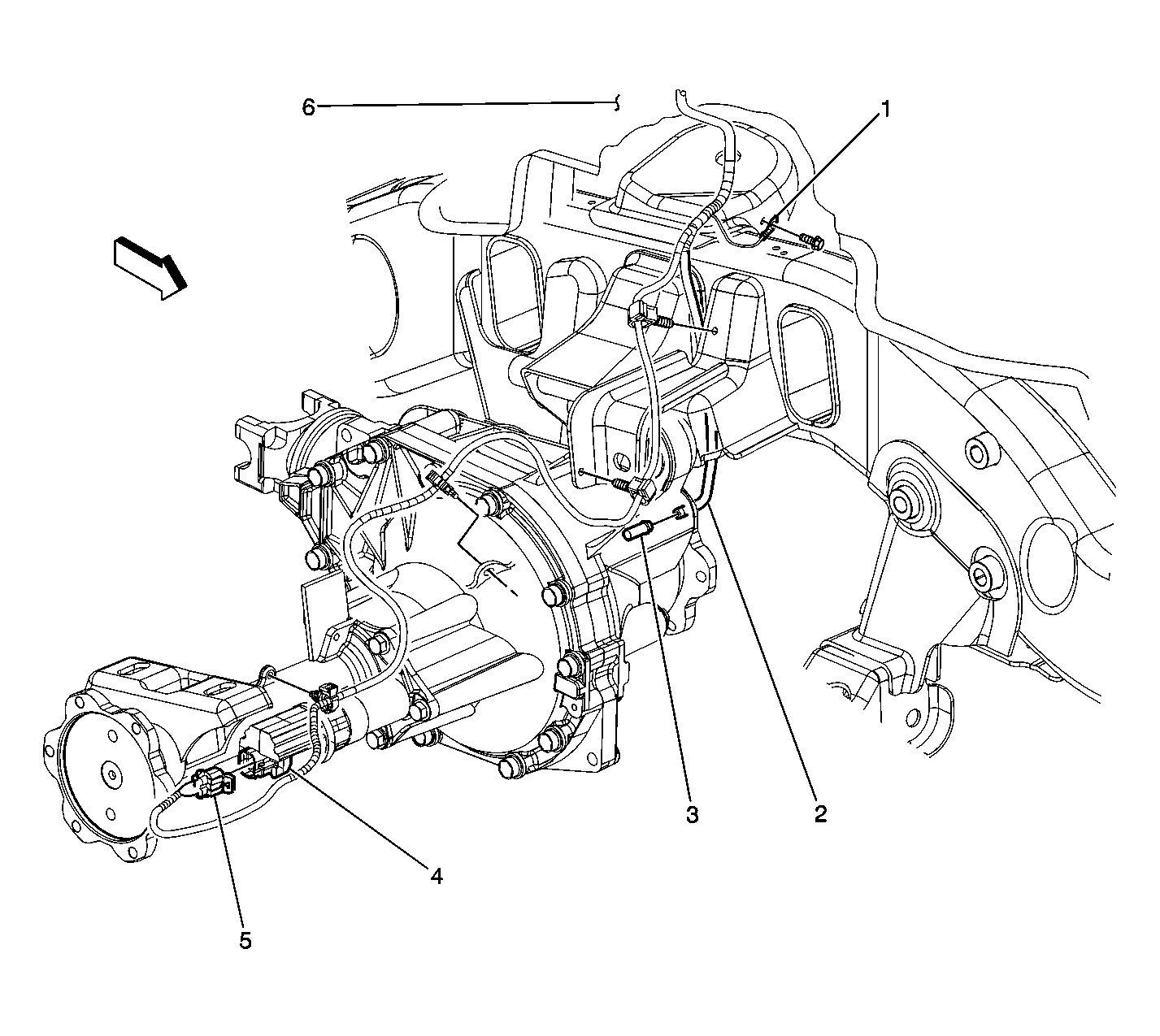

Figure 4:

Front Drive Axle Harness Routing (K25 Series)
Object Number: 310212 Size: LF
(1)Ground 110 (G110)
(2)Vent Tube
(3)Vent Tube Connection
(4)Front Axle Actuator
(5)Front Axle Actuator Connector
(6)Left Inner Fender

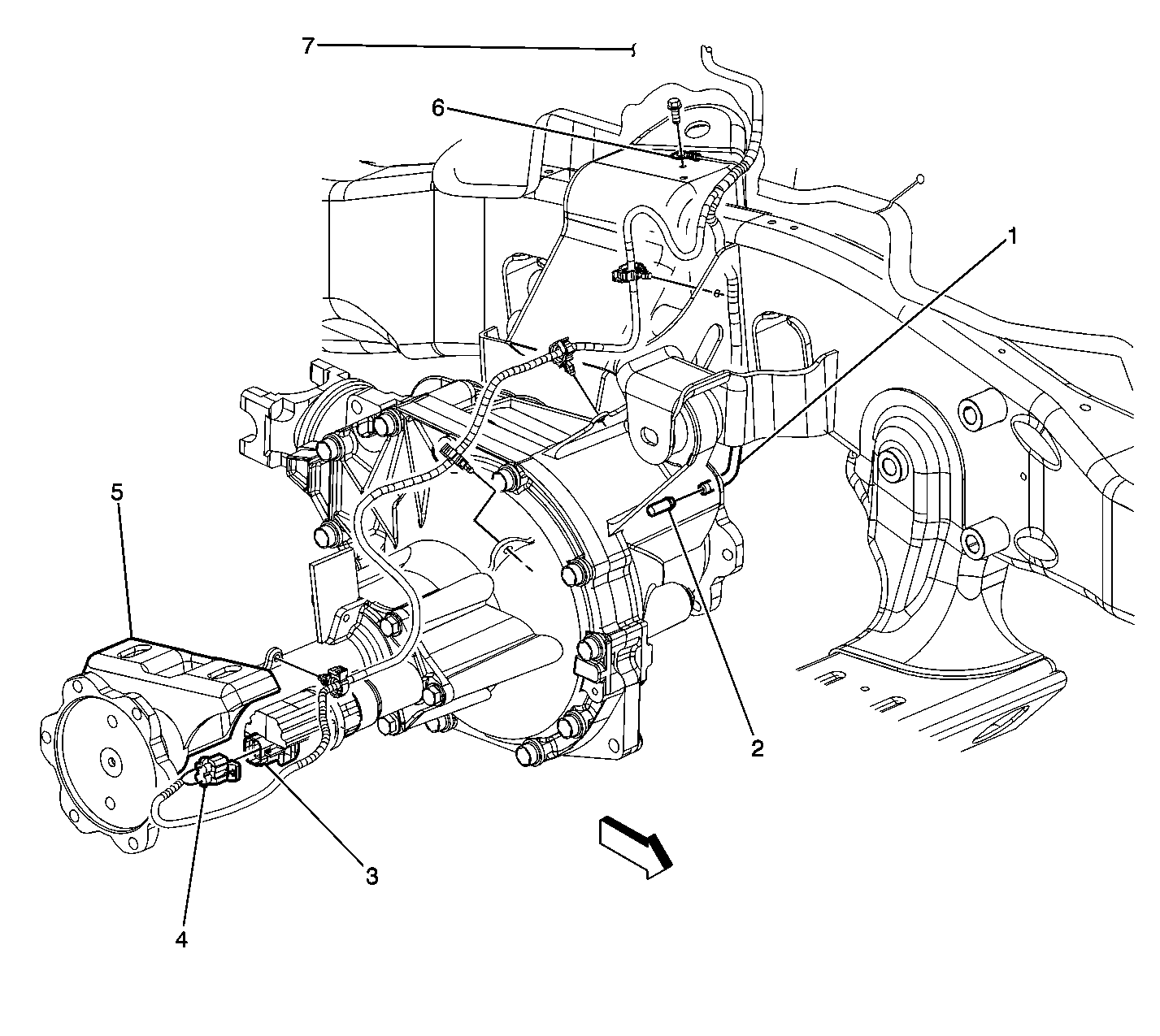

Figure 5:

Front Drive Axle Harness Routing (K15 Series)
Object Number: 310214 Size: LF
(1)Vent Tube
(2)Vent Tube Connection
(3)Front Axle Actuator
(4)Front Axle Actuator Connector
(5)Front Drive Axle Assembly (Mount)
(6)Ground 110 (G110)
(7)Left Inner Fender
