Door Lock/Indicator Schematics. Chevrolet Chevy Suburban

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2003 🢒 Chevy Suburban - 4WD 🢒 Body and Accessories 🢒 Doors 🢒 Door Lock/Indicator Schematics

Figure 1:	Driver Door Lock Controls Master Electrical Component List Power Door Locks Description and Operation Front Passenger Door Lock Controls SP205 - 1 of 2
Figure 2:	Front Passenger Door Lock Controls Master Electrical Component List Power Door Locks Description and Operation Door Lock Relay Controls Driver Door Lock Controls SP205 - 1 of 2 Rear Key Switches Rear Key Switches
Figure 3:	Door Lock Relay Controls Master Electrical Component List Power Door Locks Description and Operation Rear Door Lock Actuators Front Passenger Door Lock Controls FLASH Rear Door Lock Actuators Rear Door Lock Actuators G200 - 1 of 3 G200 - 1 of 3

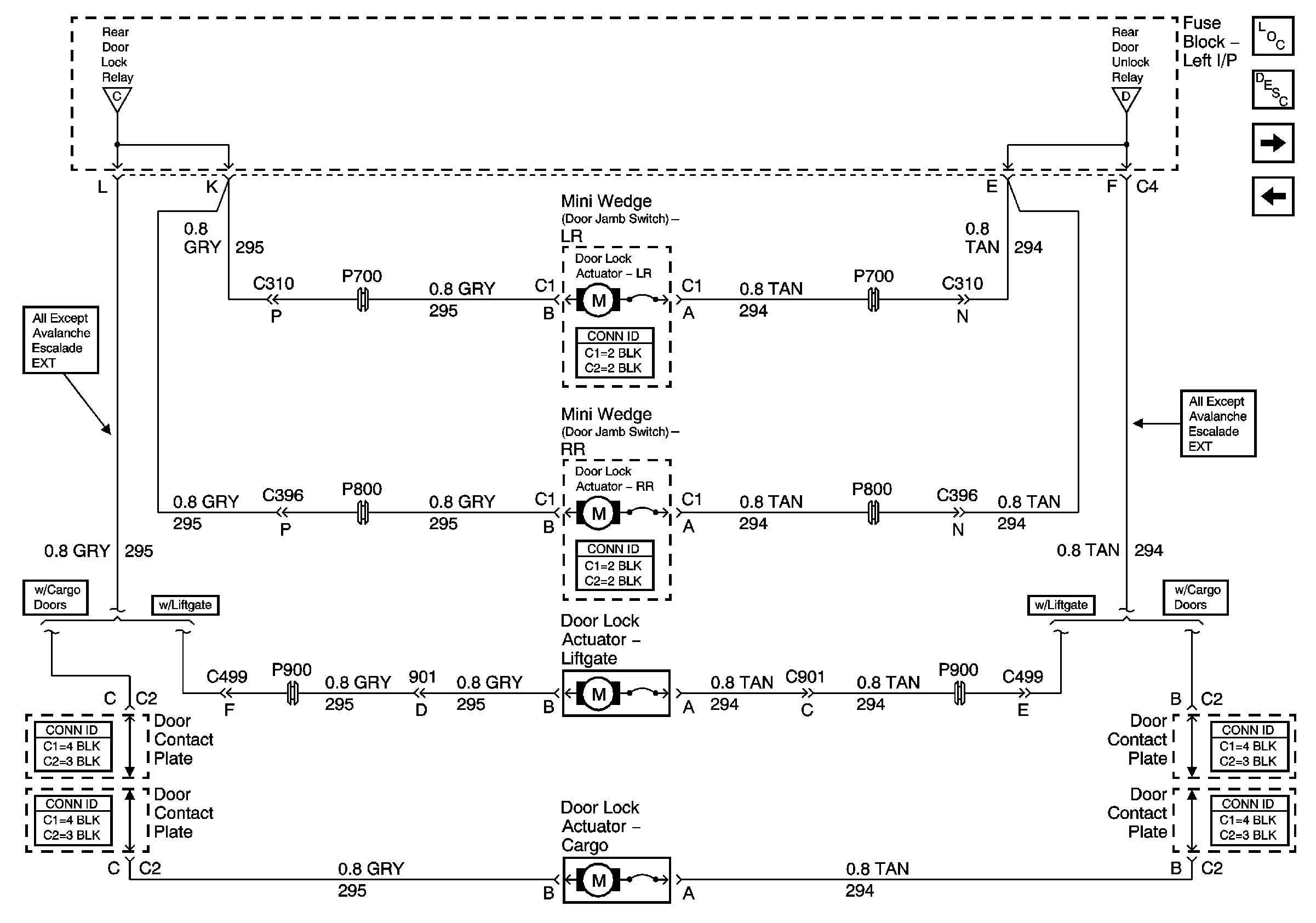

Figure 4:	Rear Door Lock Actuators Master Electrical Component List Power Door Locks Description and Operation Rear Key Switches Door Lock Relay Controls Door Lock Relay Controls Door Lock Relay Controls

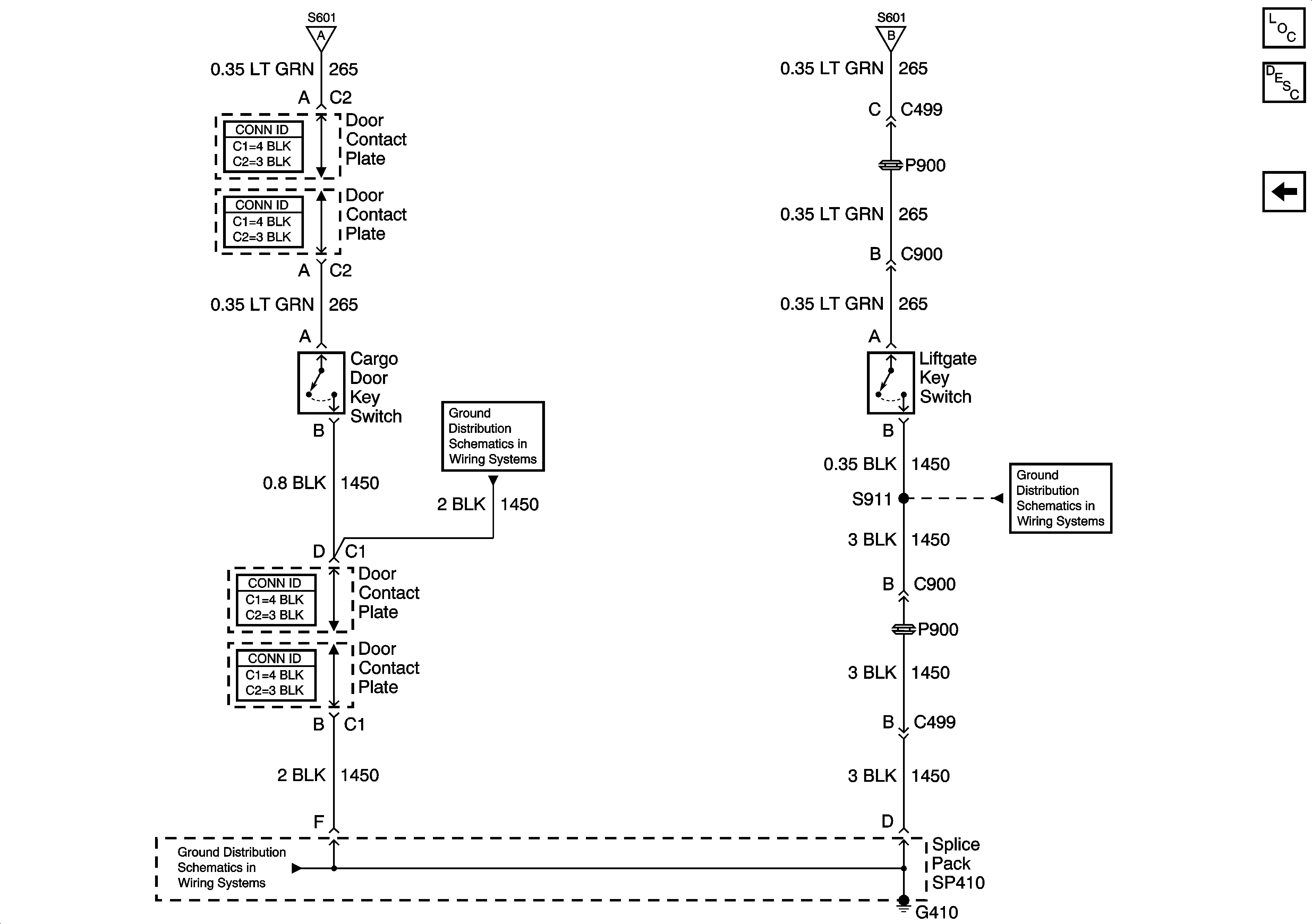

Figure 5:	Rear Key Switches and Rear Cargo Door Lock Switch Master Electrical Component List Power Door Locks Description and Operation Rear Door Lock Actuators Front Passenger Door Lock Controls Front Passenger Door Lock Controls G410 - 3 Of 3 G410 - 2 Of 3 G410 - 1 Of 3
