Makes 🢒 Chevrolet 🢒 2007 🢒 Chevy Suburban - 4WD 🢒 Driver Information and Entertainment 🢒 Cellular, Entertainment, and Navigation 🢒 Entertainment/Communication Component Views
Figure 1:

Front of the I/P (Except Z75)
Object Number: 1714203 Size: LF
(1)Turn Signal Multifunction Switch
(2)Inflatable Restraint Steering Wheel Module Coil
(3)Instrument Panel Cluster (IPC)
(4)Tow/Haul Switch
(5)Driver Information Center (DIC) Switch
(6)Ambient Light/Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (CJ3)
(7)HVAC Control Module
(8)Auxiliary Power Outlet - Front 2
(9)I/P Multifunction Switch Assembly
(10)Auxiliary Power Outlet - Front 1
(11)Radio
(12)Transfer Case Shift Control Switch (NP8)
(13)Headlamp and Panel Dimmer Switch
Figure 2:

Front of the I/P (Z75)
Object Number: 1732568 Size: LF
(1)Instrument Panel Cluster (IPC)
(2)Driver Information Center (DIC) Switch
(3)Ambient Light/Sunload Sensor Assembly (CJ2)
(4)Speaker - Center
(5)Analog Clock
(6)Radio
(7)Traction Control / Rear Object Detection Switch
(8)HVAC Control Module
(9)I/P Multifunction Switch Assembly
(10)Auxiliary Power Outlet - Front 1
(11)Noise Compensation Microphone (UQA w/Y91 all w/UQS)
(12)Transfer Case Shift Control Switch (NP8)
(13)Fuse Block - I/P
(14)Headlamp and Panel Dimmer Switch
Figure 3:

Behind the I/P
Object Number: 1732559 Size: LF
(1)I/P Trim
(2)Fuse Block - I/P
(3)Body Control Module (BCM)
(4)Speaker - Subwoofer (UQA)
(5)Vehicle Communication Interface Module (VCIM) (UE1)
(6)Digital Radio Receiver (U2K)

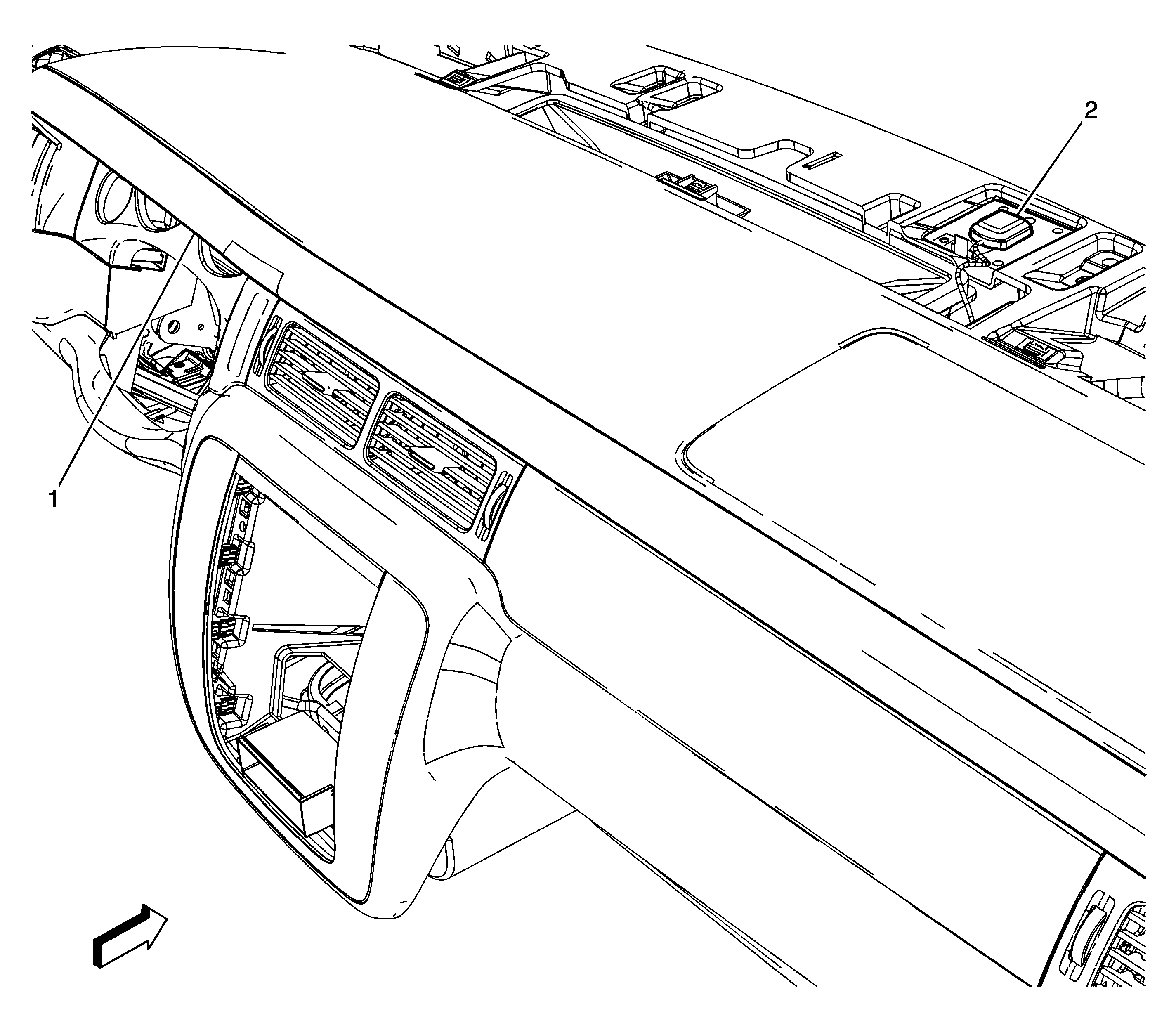

Figure 4:

Top of the I/P
Object Number: 1739425 Size: LF
(1)I/P Trim
(2)Navigation Antenna Module (U3U/U3R/UVB)

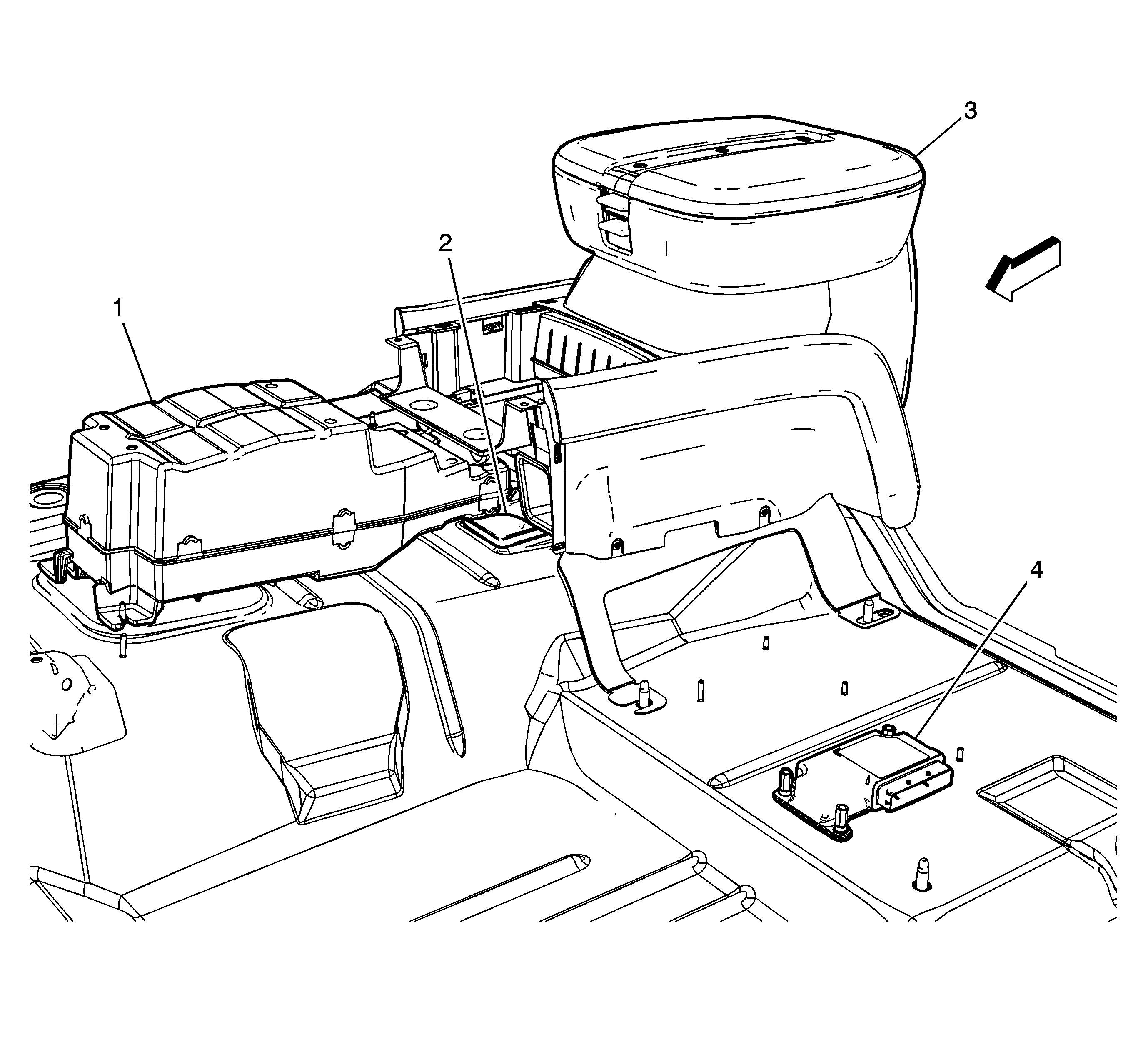

Figure 5:

Near the Console Assembly
Object Number: 1823487 Size: LF
(1)Speaker - Subwoofer (UQS)
(2)Inflatable Restraint Vehicle Rollover Sensor (ASF)
(3)Console
(4)Inflatable Restraint Sensing and Diagnostic Module (SDM)

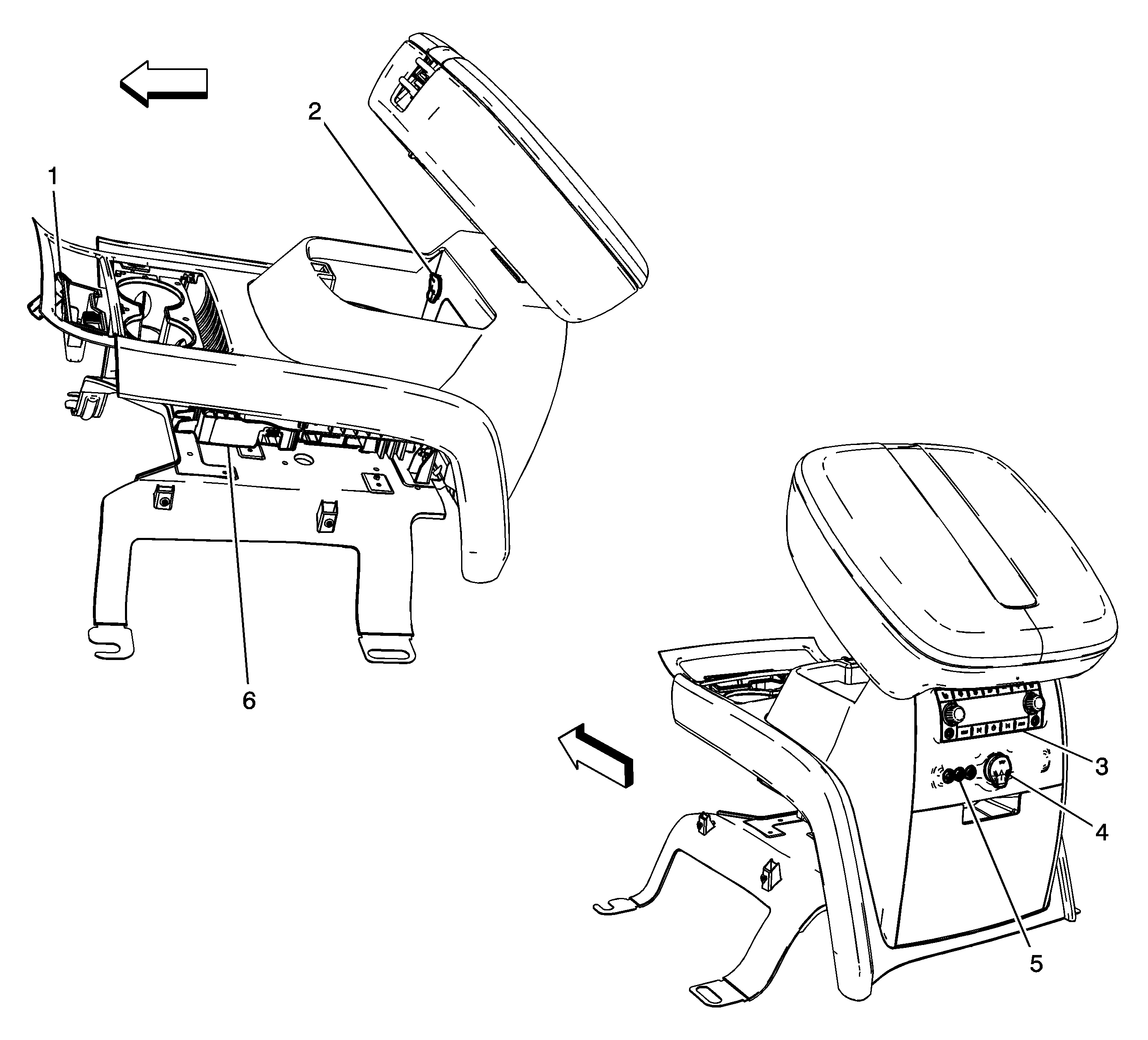

Figure 6:

Floor Console (D07)
Object Number: 1823485 Size: LF
(1)Auxiliary Power Outlet - Front 1 (Z75)
(2)Auxiliary Power Outlet - Bin
(3)Rear Seat Audio (RSA) Controller (UK6)
(4)Auxiliary Power Outlet - Console
(5)Audio/Video Adapter (U42)
(6)Audio Amplifier (UQA/UQS)

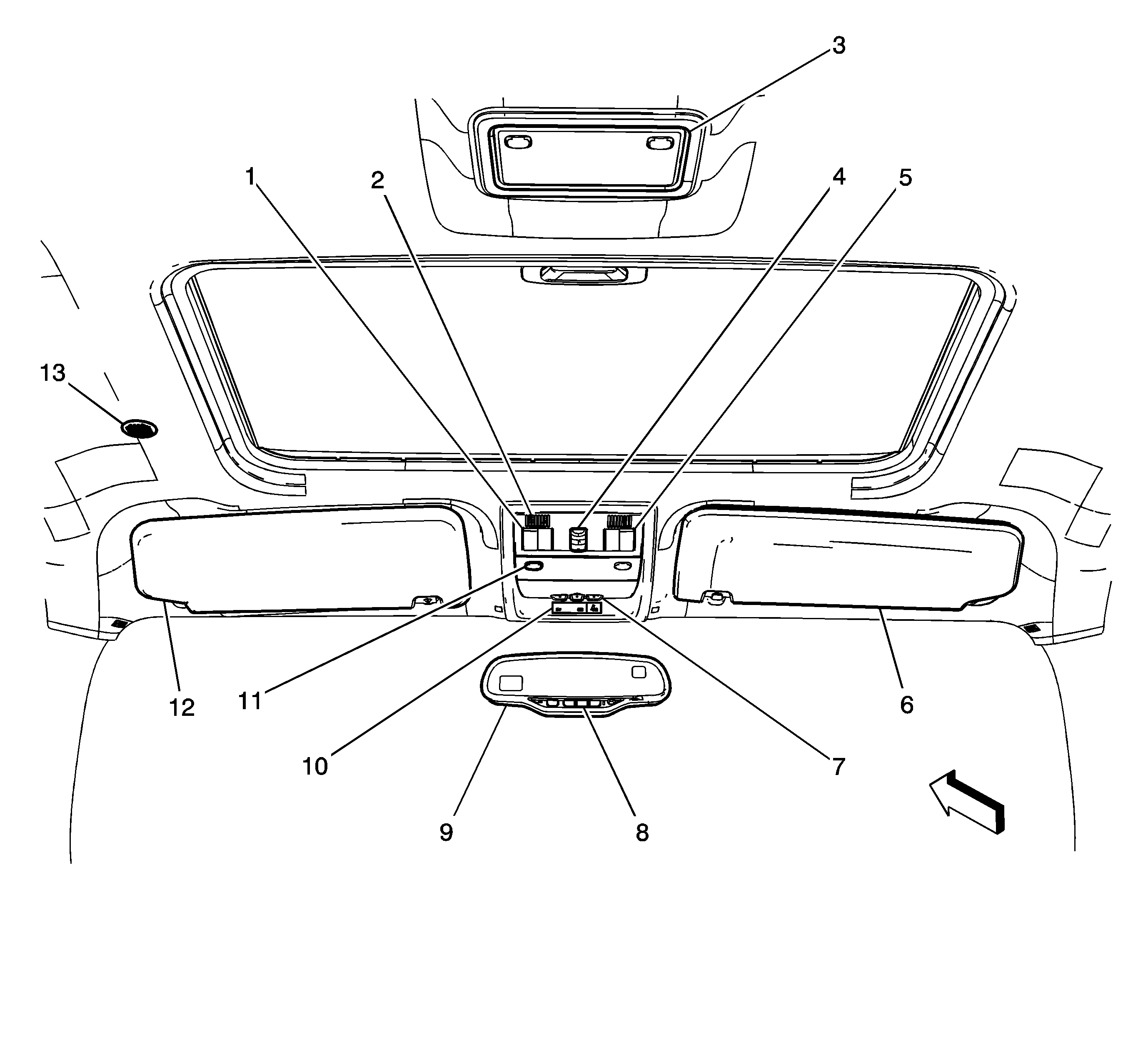

Figure 7:

Top Front of the Passenger Compartment
Object Number: 1714227 Size: LF
(1)Sunroof Switch (CF5)
(2)Courtesy/Reading Lamps - Second Row
(3)Power Liftgate Switch (E61)
(4)Folding Seat Switch - Front (ARS)
(5)Garage Door Opener (UG1)
(6)Onstar Button Assembly (UE1)
(7)Inside Rearview Mirror (ISRVM)
(8)Inflatable Restraint Passenger Air Bag ON/OFF Indicator
(9)Courtesy/Reading Lamp - Front
(10)Inside Air Temperature Sensor - Front (CJ2)
Figure 8:

Above the Driver Door
Object Number: 1739414 Size: LF
(1)Windshield
(2)Cellular/Navigation Antenna (UE1) / Cellular/Navigation and Digital Radio Antenna (UE1 w/U2K)

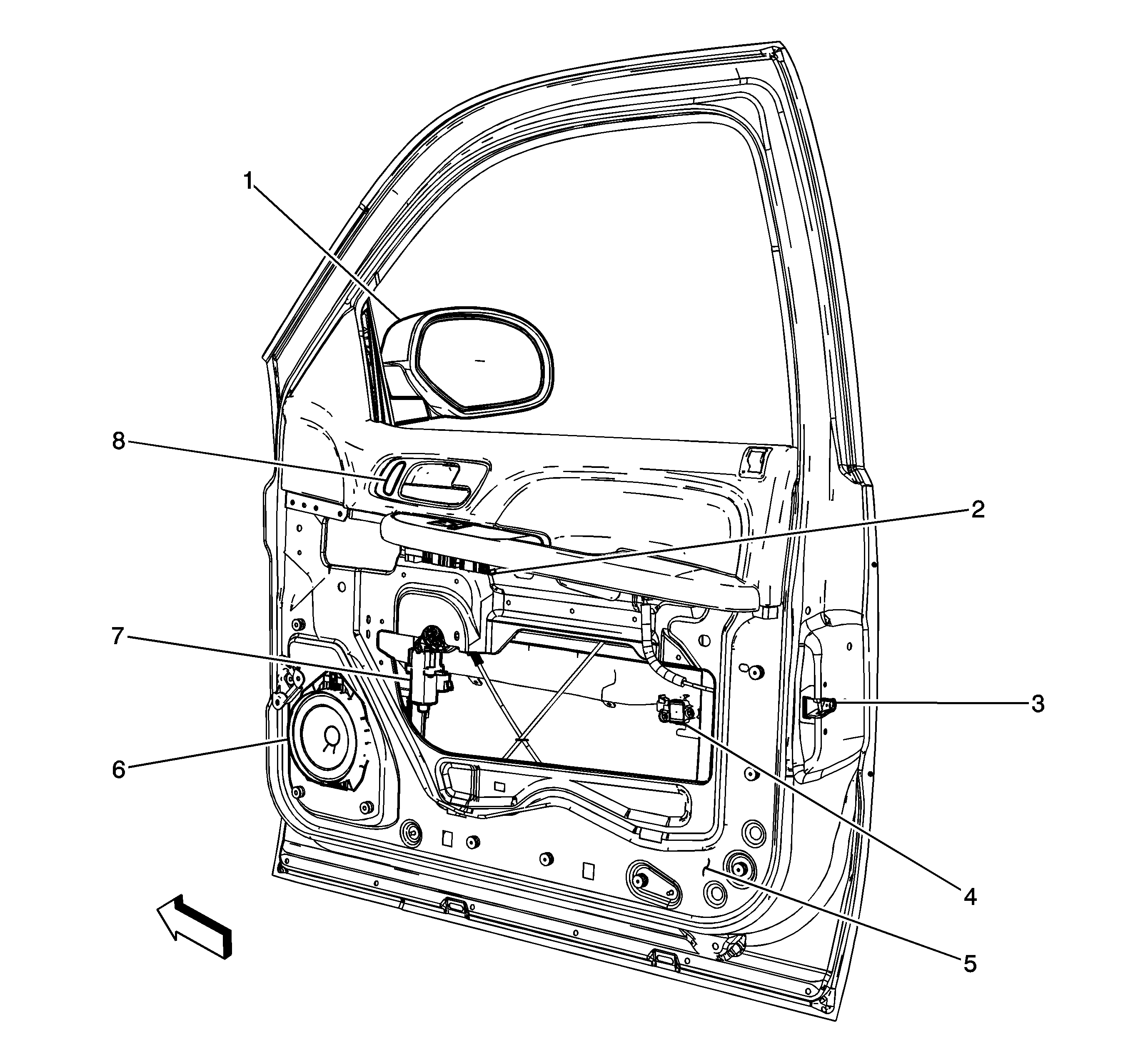

Figure 9:

Driver Door
Object Number: 1714202 Size: LF
(1)Door Frame
(2)Outside Rearview Mirror - Driver
(3)Memory/Heated Seat Switch (AN3 Except KB6) / Memory Seat Switch (KB6)
(4)Driver Door Switch (DDS)
(5)Speaker - Left Front Door
(6)Window Motor - Driver
(7)Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)
(8)Door Latch Assembly - Driver
Figure 10:

Passenger Door
Object Number: 1714232 Size: LF
(1)Outside Rearview Mirror - Passenger
(2)Passenger Door Switch (PDS)
(3)Door Latch Assembly - Passenger
(4)Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)
(5)Speaker - Right Front Door
(6)Window Motor - Passenger
(7)Heated Seat Switch (KA6)

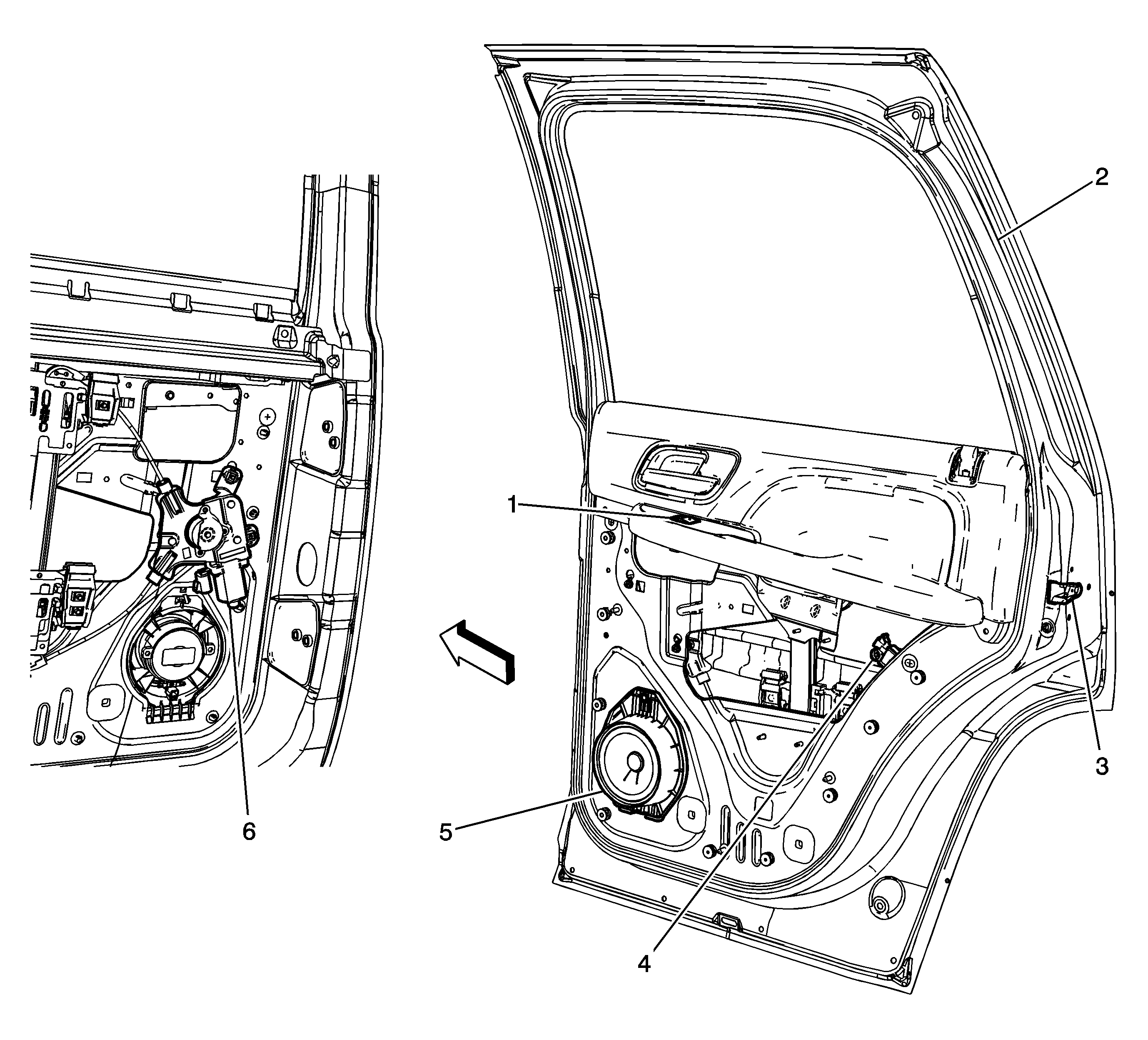

Figure 11:

Right Rear Door
Object Number: 1714215 Size: LF
(1)Window Switch - Right Rear
(2)Door Frame
(3)Door Latch Assembly - Right Rear
(4)Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (ASF)
(5)Speaker - Right Rear Door
(6)Window Motor - Right Rear

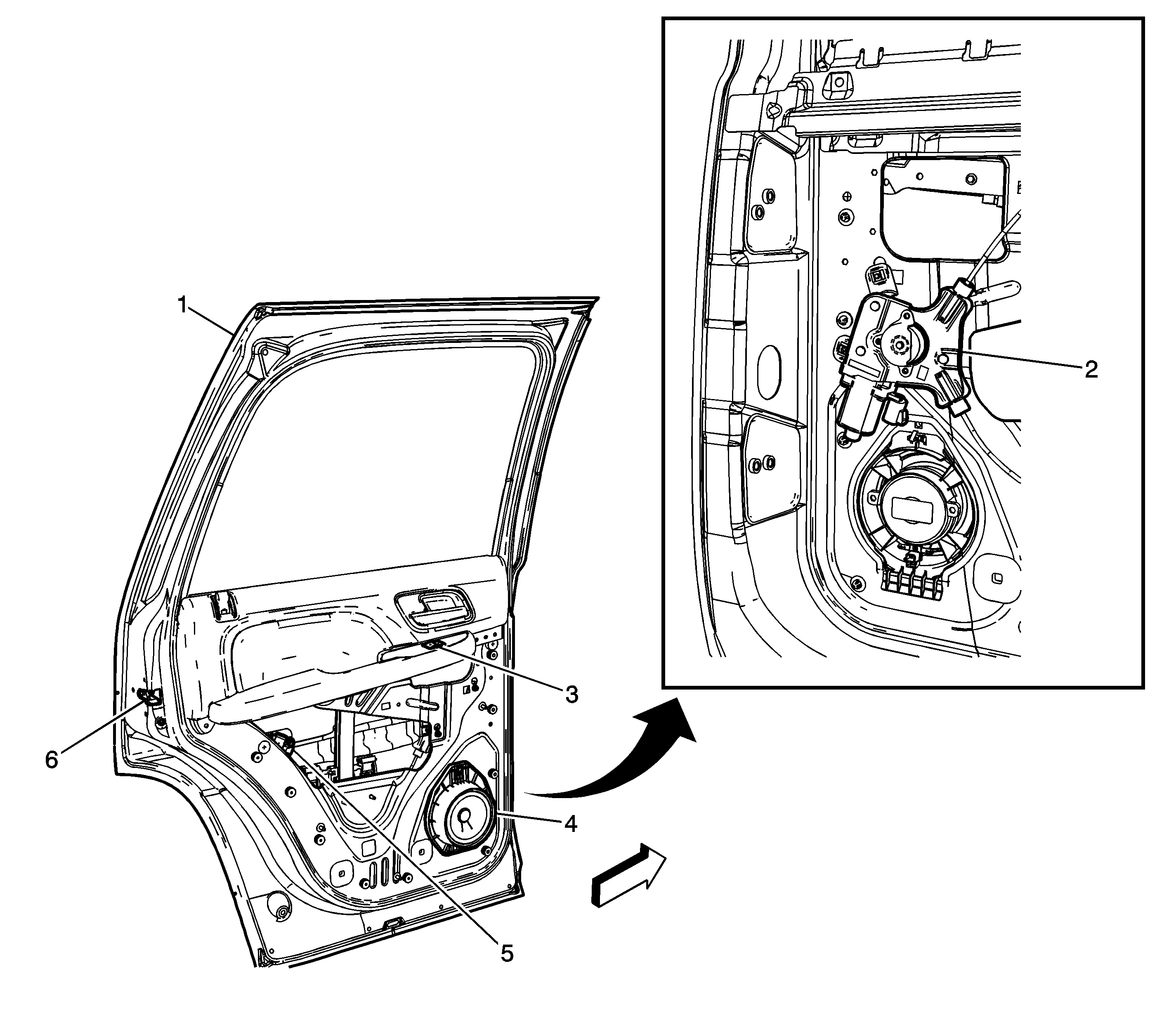

Figure 12:

Left Rear Door
Object Number: 1732576 Size: LF
(1)Door Frame
(2)Window Motor - Left Rear
(3)Window Switch - Left Rear
(4)Speaker - Left Rear Door
(5)Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (ASF)
(6)Door Latch Assembly - Left Rear
Figure 13:

Left Rear of the Passenger Compartment - E52
Object Number: 1714230 Size: LF
(1)Liftgate Trim
(2)Speaker - Left D-Pillar
(3)Left Rear Compartment Trim
Figure 14:

Right Rear of the Passenger Compartment (E52)
Object Number: 1714229 Size: LF
(1)Information Center Telltale Assembly (UD7)
(2)Speaker - Right D-Pillar
(3)Auxiliary Power Outlet (APO) - Rear

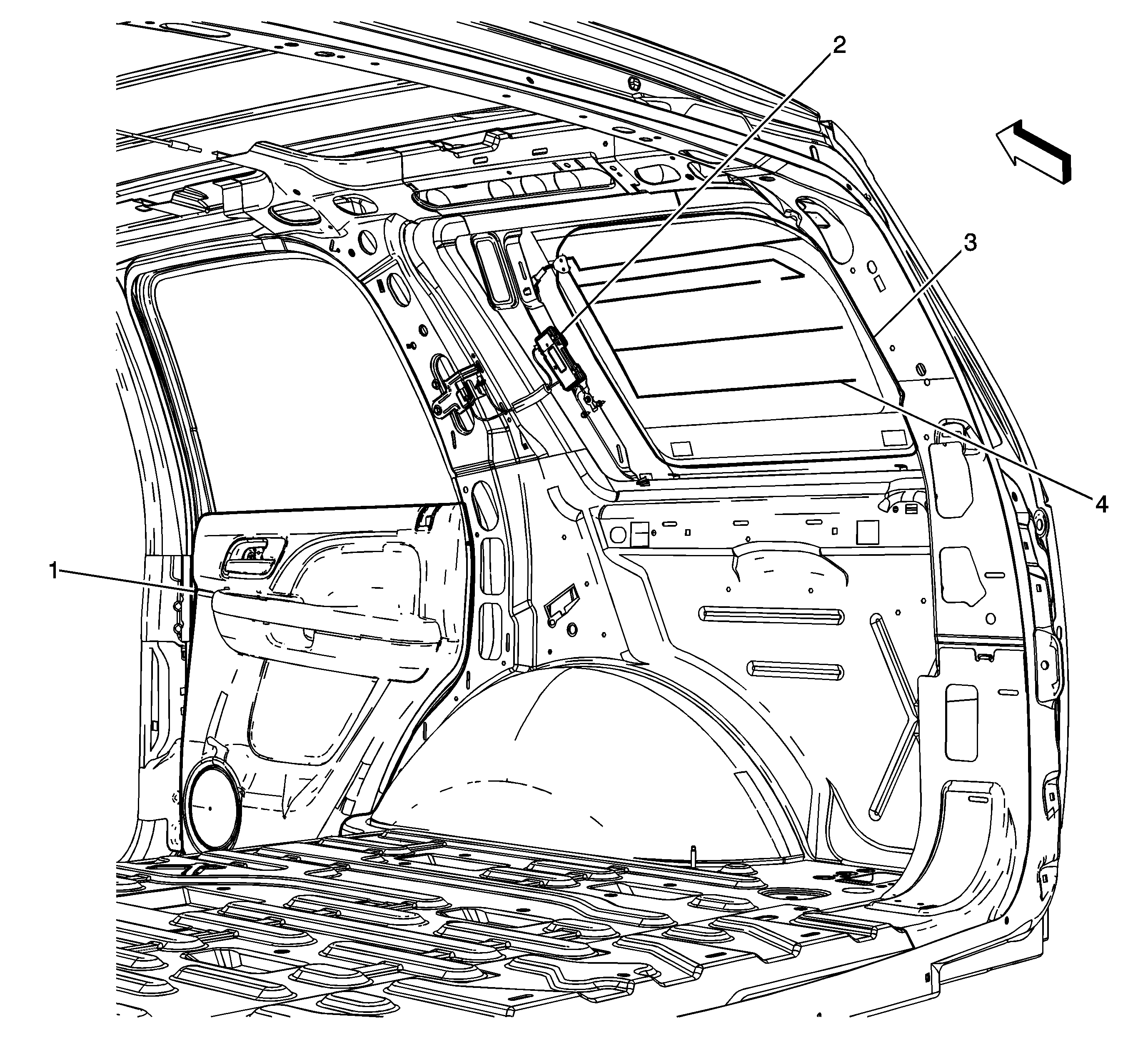

Figure 15:

Near the Right Rear Window (E52)
Object Number: 1739420 Size: LF
(1)Right Rear Door Panel
(2)Rear Window Antenna Module (U84)
(3)Right Rear Window
