Removal Procedure

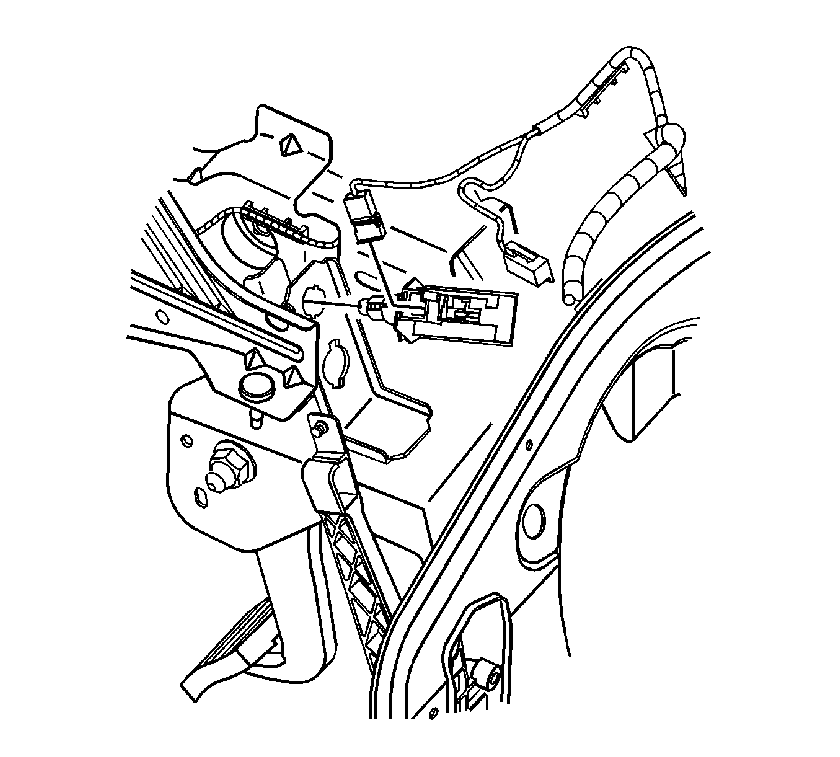

    Object Number: 877870 Size: SH
  1. Remove the stop lamp switch by grasping the switch and turning it counterclockwise while pulling toward the front of the vehicle.
  2. Disconnect the stop lamp switch electrical connector.

Installation Procedure

    Object Number: 877870 Size: SH
  1. Connect the stop lamp switch electrical connector.
  2. Insert the stop lamp switch into the retainer.
  3. Adjust the stop lamp switch. Refer to Stop Lamp Switch Adjustment .
