Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

1. Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
2. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
3. Move the window to the full up position.

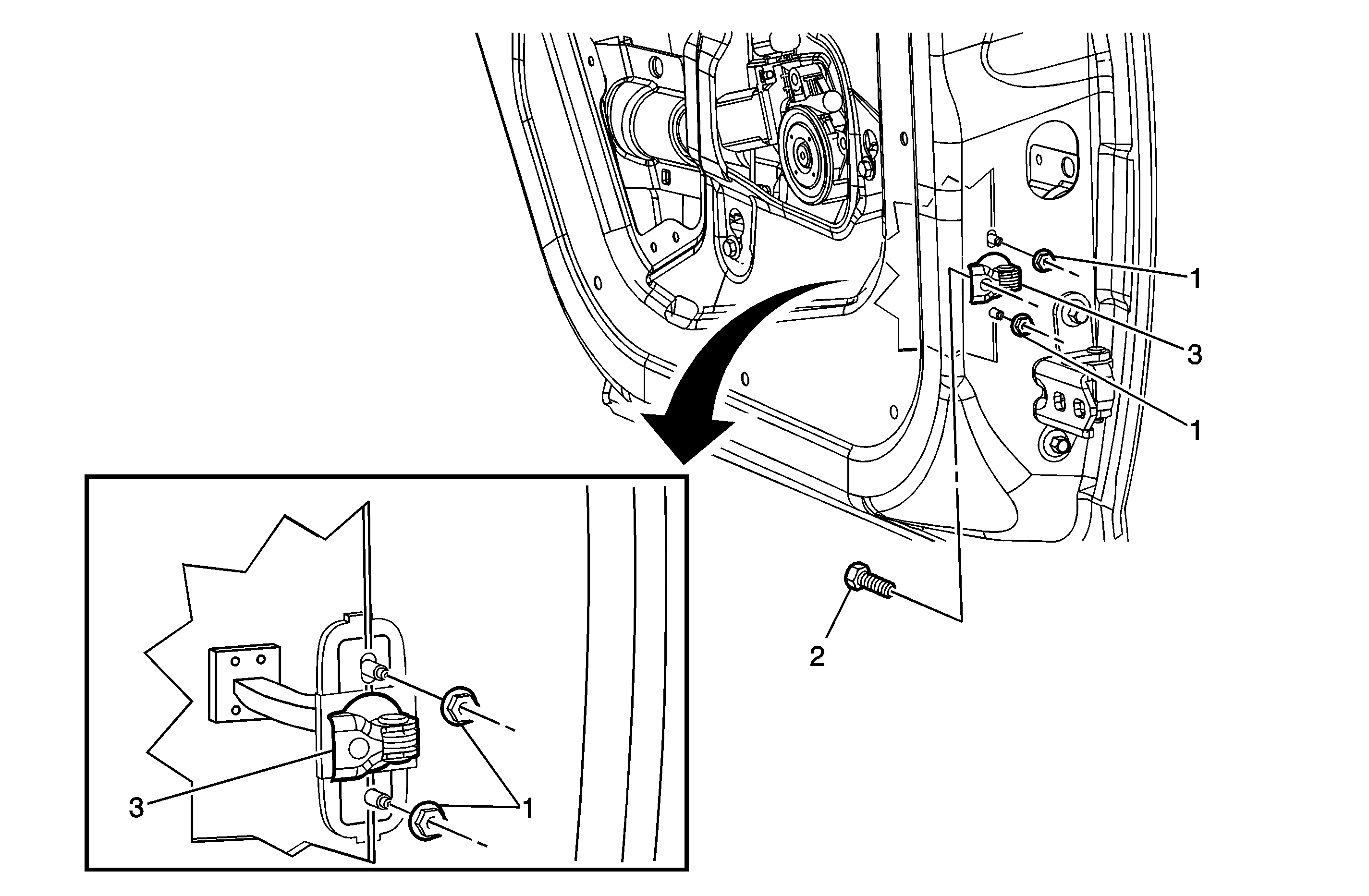

1

Nut, Rear Side Door Check Link (Qty: 2)

Tighten
10 N·m (89 lb in)

2

Bolt, Rear Side Door Check Link

Tighten
20 N·m (15 lb ft)

3

Link Assembly, Rear Side Door Check

Tip
Remove the check link from inside of the door.
