Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

1. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
2. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .

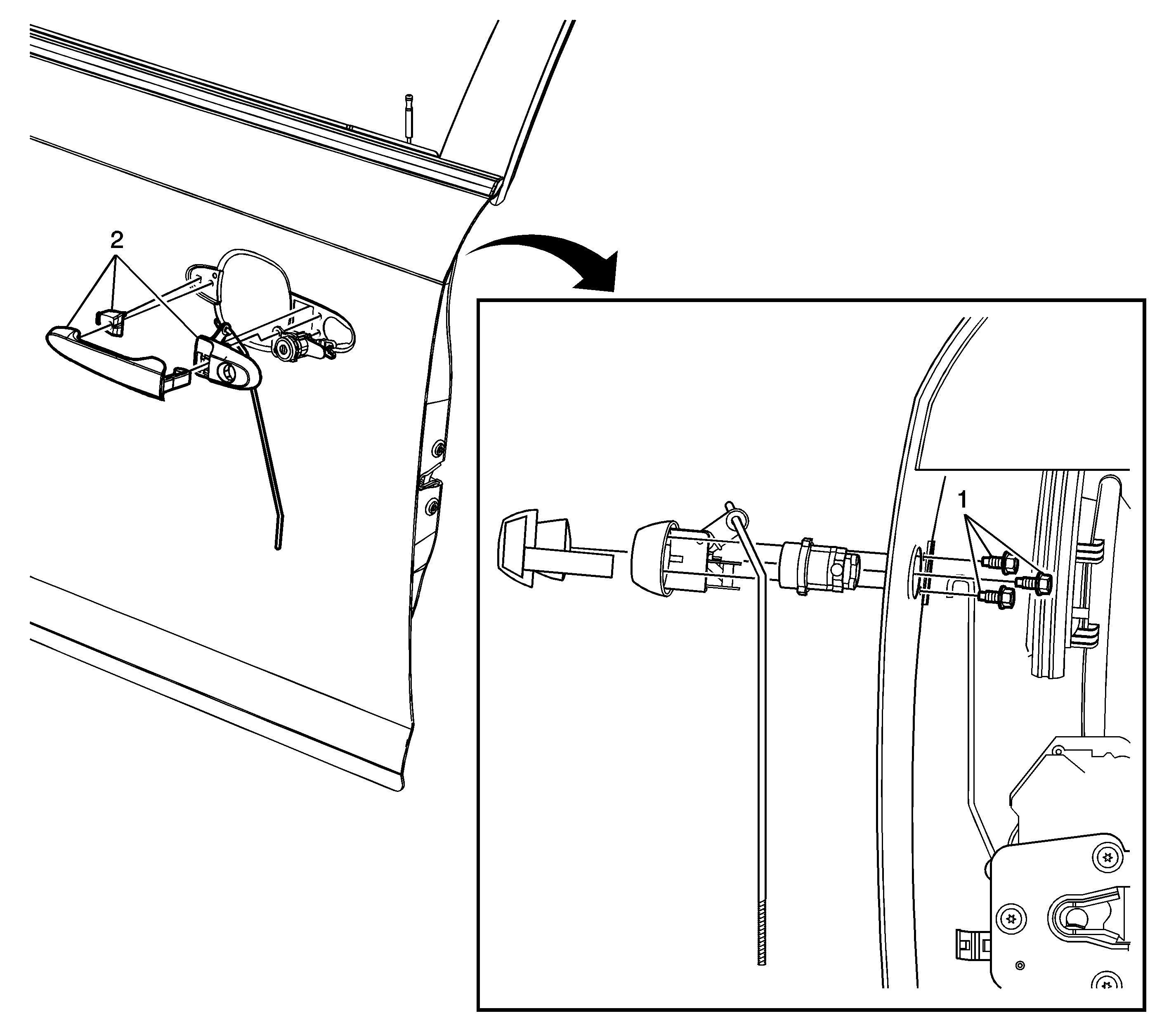

1

Screw, Front Side Door Outside Handle (Qty: 3)

Tighten
10 N·m (89 lb in)

2

Handle Assembly, Front Side Door Outside

Tip
Disconnect the outside handle rod from the lock assembly before removing the handle.
