Rear Side Door Outside Handle Replacement. Chevrolet Cobalt 2005

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Cobalt 🢒 Body 🢒 Doors 🢒 Rear Side Door Outside Handle Replacement

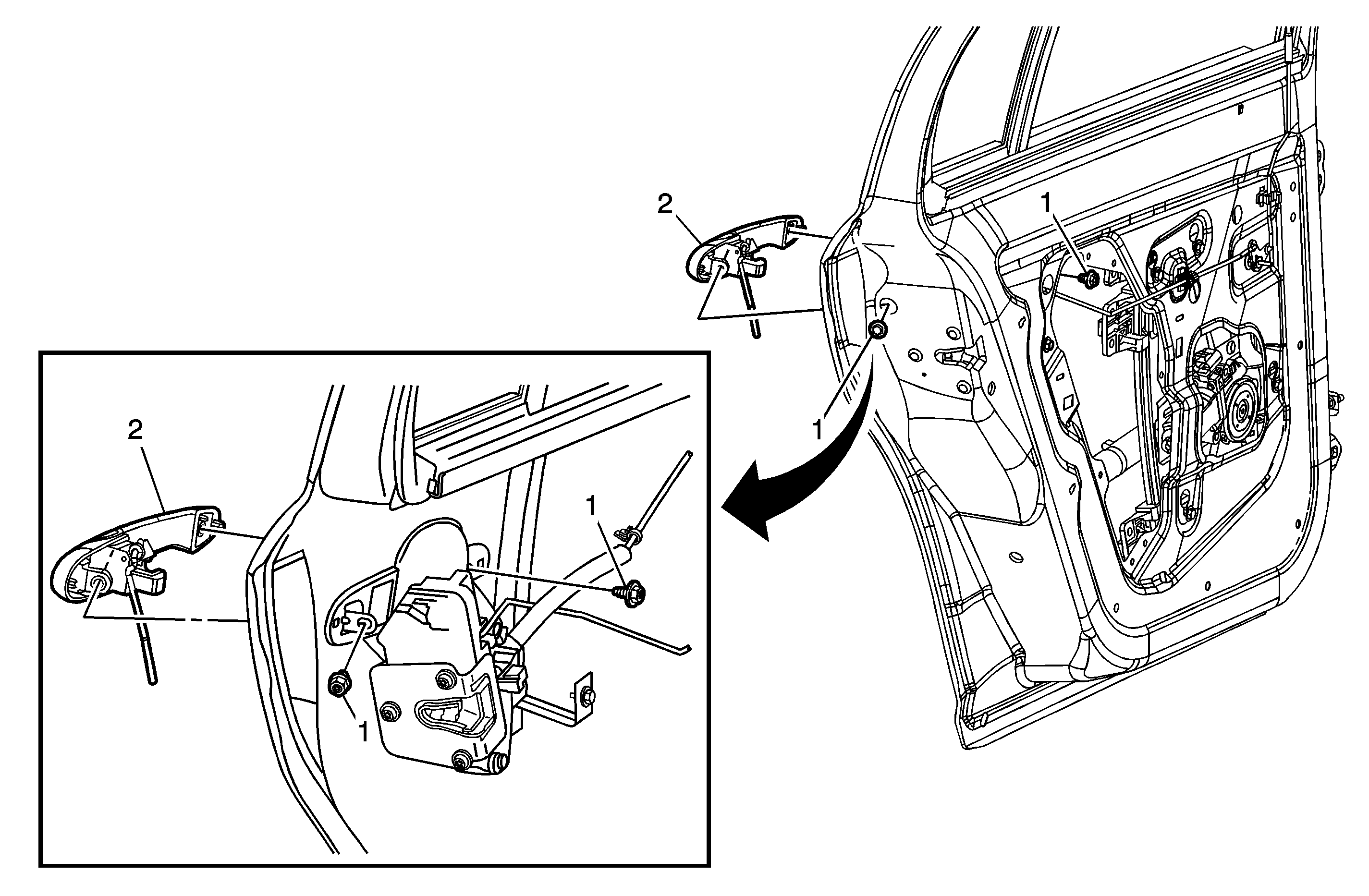

Callout	Component Name
Notice: Refer to Fastener Notice in the Preface section. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Screw, Rear Side Door Outside Handle (Qty: 2) Tighten 10 N·m (89 lb in)
2	Handle Assembly, Rear Side Door Outside Tip Disconnect the outside handle rod from the lock assembly before removing the handle.

Callout

Component Name

Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .

Screw, Rear Side Door Outside Handle (Qty: 2)

Tighten
10 N·m (89 lb in)

Handle Assembly, Rear Side Door Outside

Tip
Disconnect the outside handle rod from the lock assembly before removing the handle.
