Body Lock Pillar Garnish Lower Molding Replacement. Chevrolet Cobalt 2005

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Cobalt 🢒 Body 🢒 Seats 🢒 Body Lock Pillar Garnish Lower Molding Replacement

Body Lock Pillar Garnish Lower Molding Replacement Coupe

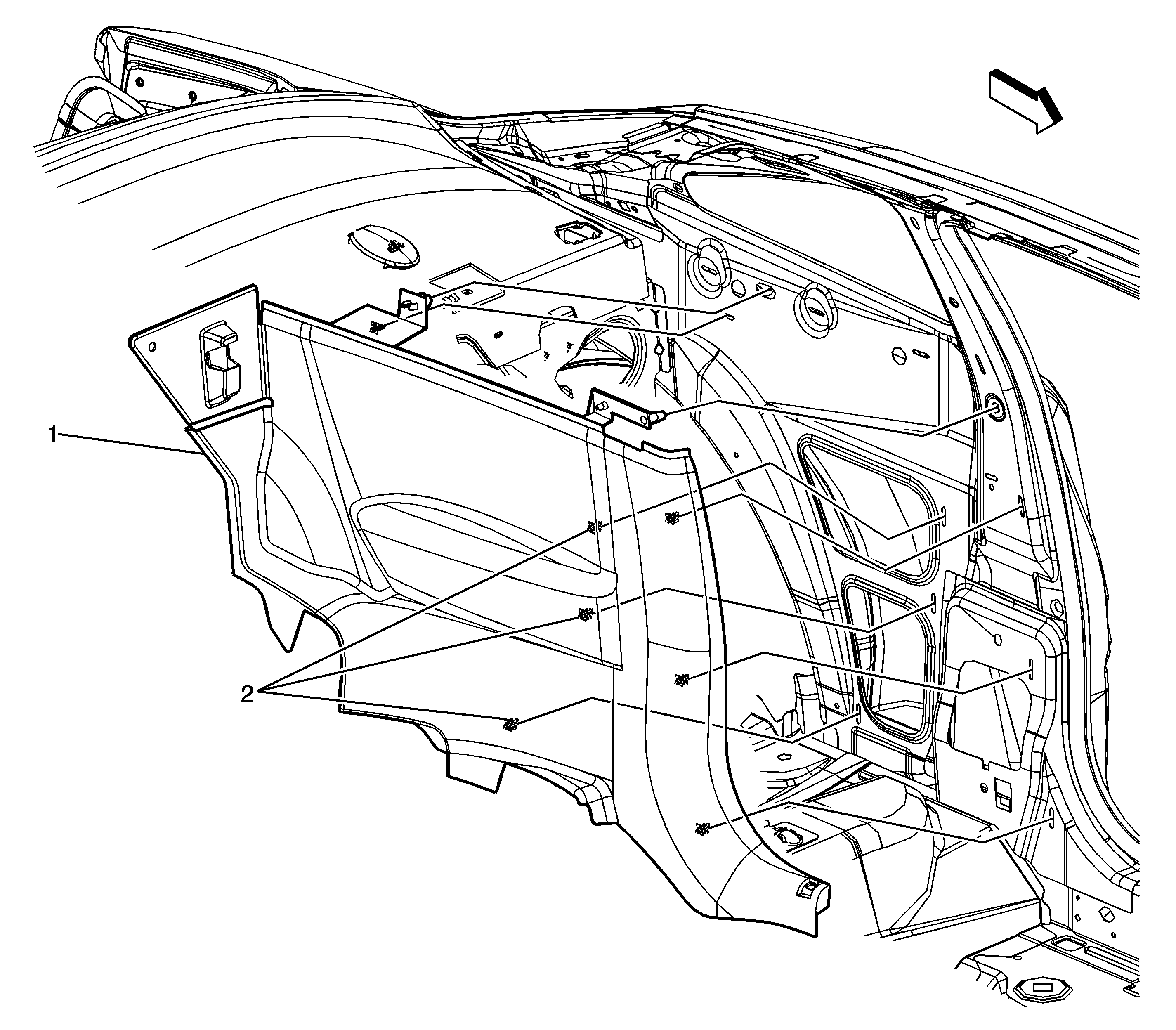

Callout	Component Name
Preliminary Procedures Remove the upper lock pillar garnish trim. Refer to Lock Pillar Upper Garnish Molding Replacement.
1	C Pillar Lower Panel Assembly
2	C Pillar Lower Retainer

Callout

Component Name

Remove the upper lock pillar garnish trim. Refer to Lock Pillar Upper Garnish Molding Replacement.

C Pillar Lower Panel Assembly

C Pillar Lower Retainer

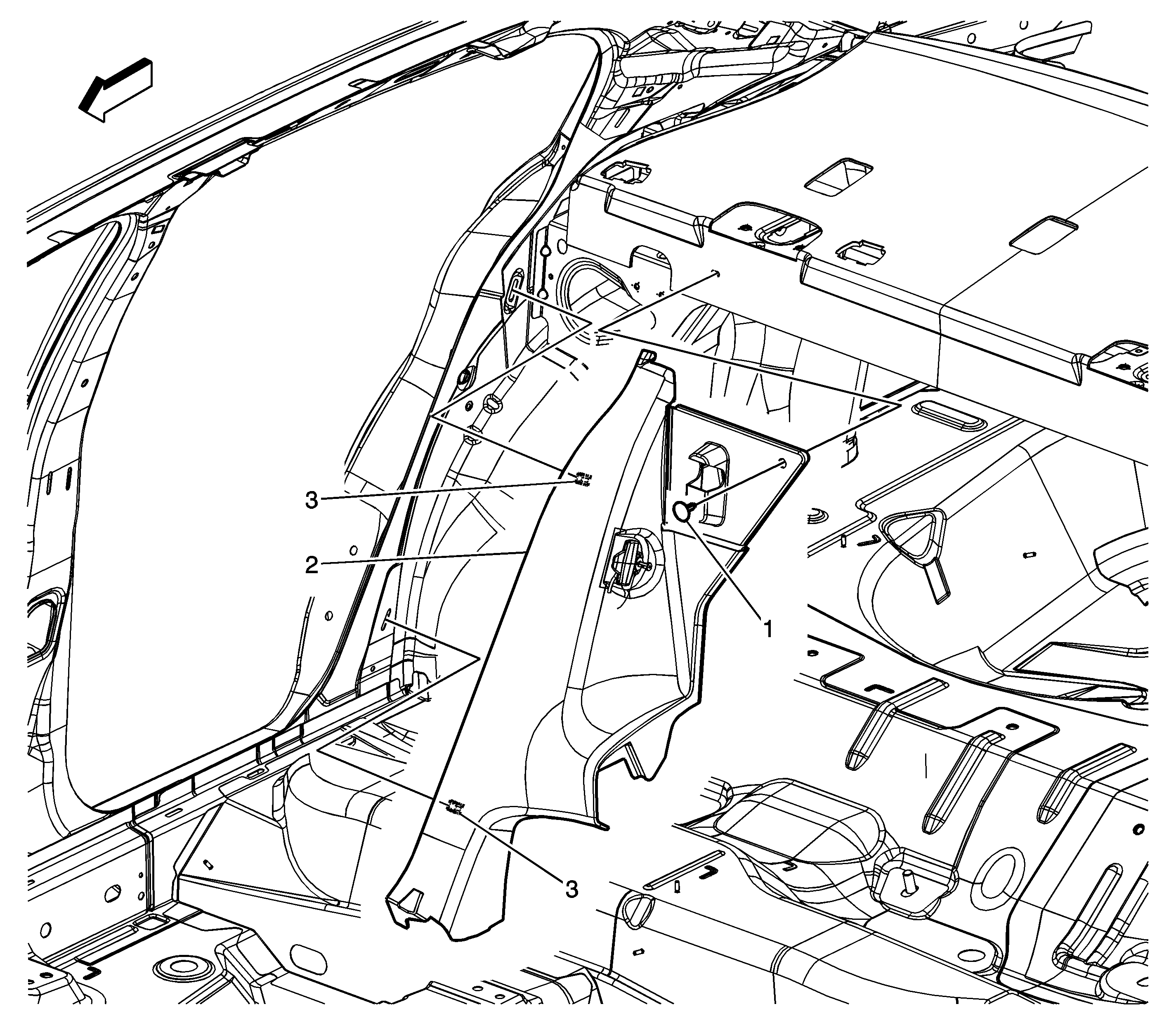

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement.
1	Lock Pillar Lower Panel Retainer
2	Lock Pillar Lower Panel Assembly
3	Lock Pillar Lower Panel Clip
