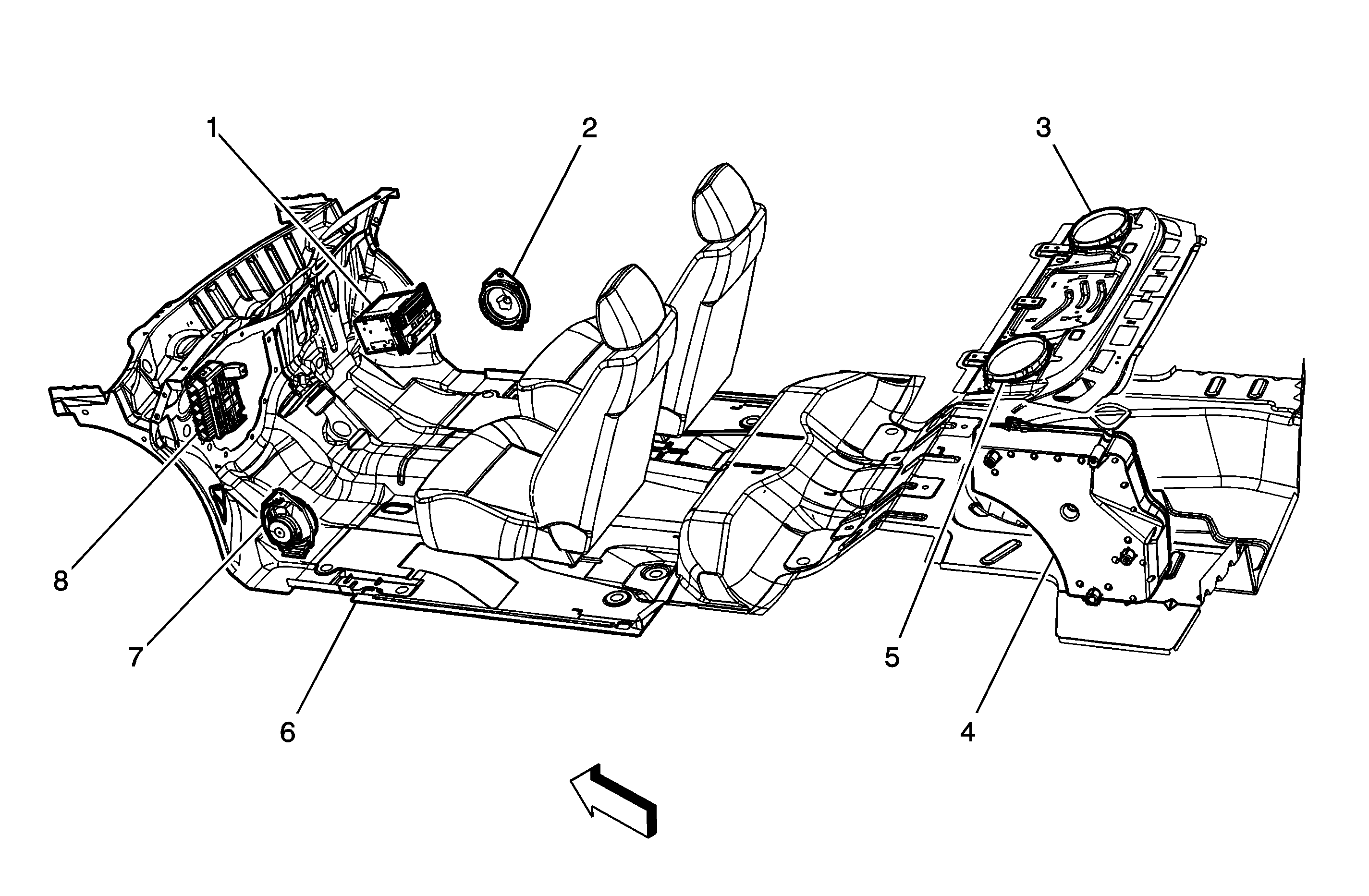

Figure 1:

Audio Amplifier, Radio, and Speakers
Object Number: 1543920 Size: MF
(1)Radio
(2)Speaker - Right Front Door
(3)Speaker - Right Rear
(4)Speaker - Subwoofer (UQ3)
(5)Speaker - Left Rear
(6)Floor Pan
(7)Speaker - Left Front Door
(8) Audio Amplifier (UQ3)
Figure 2:

Steering Wheel and Column - 4-Spoke Wheel
Object Number: 1543927 Size: LF
(1)Turn Signal/Multifunction Switch
(2)Inflatable Restraint Steering Wheel Module Coil
(3)Windshield Wiper/Washer Switch
(4)Steering Wheel
(5)Steering Wheel Controls - Right (UK3/K34)
(6)Horn Switches
(7)Steering Wheel Controls - Left (UK3/K34)
(8)Electronic Power Steering Control Module (EPS)
(9)Electronic Power Steering (EPS) Control Motor
(10)Ignition Switch
(11)Ignition Lock Cylinder Control Solenoid
Figure 3:

Driver Door Components
Object Number: 1549156 Size: LF
(1)Door Frame
(2)Outside Rearview Mirror - Driver (DG7)
(3)Speaker - Left Front Door Tweeter (UQ3)
(4)Window Motor (A31) - Driver
(5)Outside Rearview Mirror Switch (DG7)
(6)Door Lock Switch (AU3) - Driver
(7)Window Switch (A31) - Driver
(8)Inflatable Restraint Side Impact Module (SIS) - Left (ASF)
(9)Door Latch (AU3) - Driver
Figure 4:

Passenger Door Components
Object Number: 1549158 Size: LF
(1)Door Frame
(2)Door Latch (AU3) - Passenger
(3)Inflatable Restraint Side Impact Module (SIS) - Right (ASF)
(4)Door Lock Switch (AU3) - Passenger
(5)Window Switch (A31) - Passenger
(6)Speaker - Right Front Door Tweeter (UQ3)
(7)Outside Rearview Mirror - Passenger (DG7)
Figure 5:

Rear Compartments and Shelf Components
Object Number: 1543935 Size: LF
(1)G401 Coupe/Sedan
(2)G402 Coupe
(3)Digital Radio Receiver (U2K)
(4)Vehicle Communication Interface Module (VCIM) (UE1)
(5)G402 (Sedan)
(6)Rear Window Shelf
(7)Floor Pan
(8)Rear Compartment Coutesty Light
(9)Speaker - Left Rear

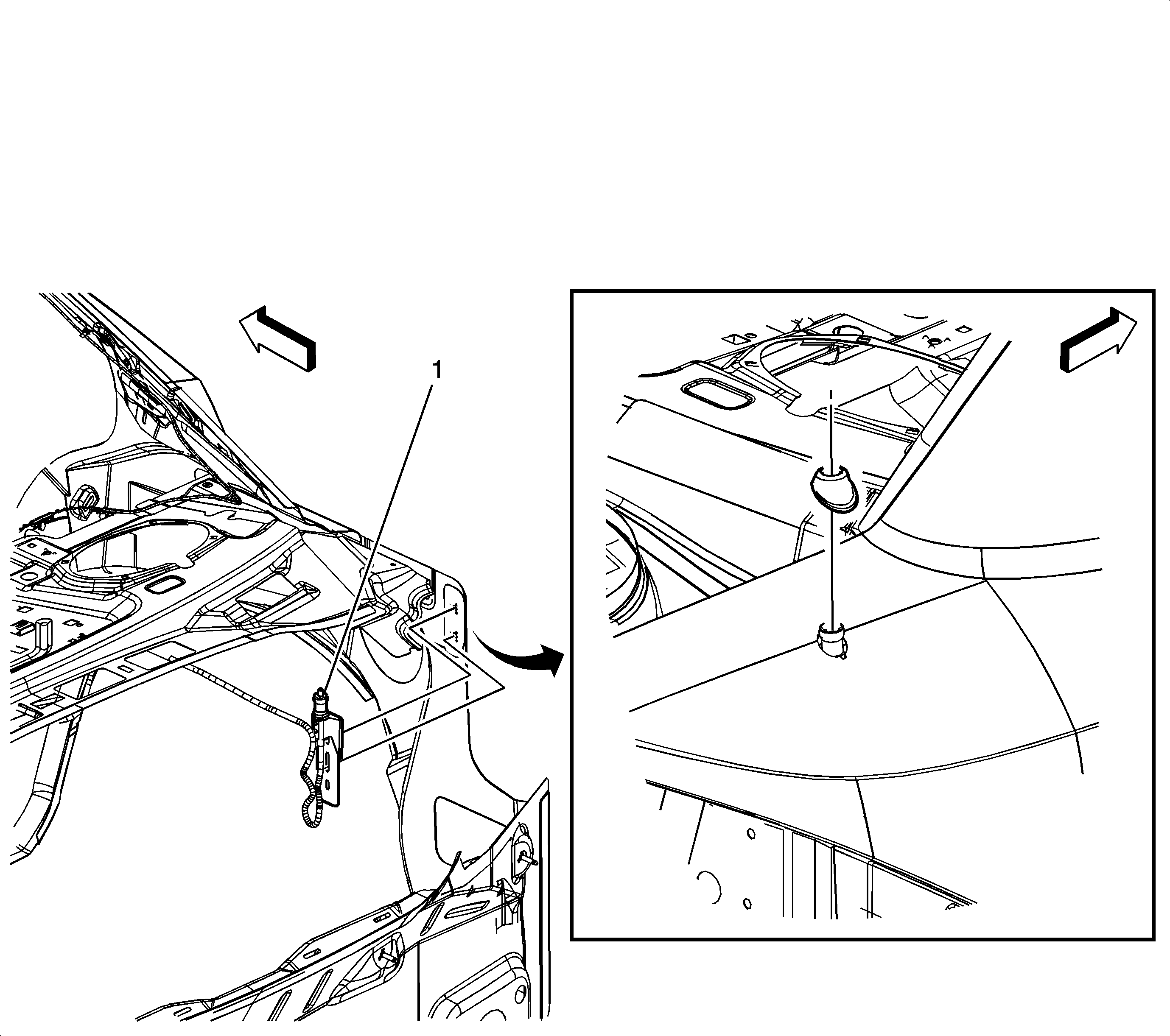

Figure 6:

Fixed Radio Antenna
Object Number: 1590593 Size: LF
(1)Fixed Radio Antenna
Figure 7:

Digital Radio /Cellular Telephone Antenna (UE1/U2K)
Object Number: 1590623 Size: LF
(1)Digital Radio /Cellular Telephone Antenna (UE1/U2K)
