| Table 1: | Heated Seat Switch - Driver (KA1) |
| Table 2: | Heated Seat Switch - Passenger (KA1) |
| Table 3: | Heated Seat Module - Driver (KA1) |
| Table 4: | Heated Seat Module - Passenger (KA1) |
| Table 5: | Heated Seat Element Driver Back (KA1) |
| Table 6: | Heated Seat Element Passenger Back (KA1) |
| Table 7: | Heated Seat Element Driver Cushion (KA1) |
| Table 8: | Heated Seat Element Passenger Cushion (KA1) |
| |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||||
Pin | Wire Color | Circuit No. | Function | ||||||
A | PK | 1501 | Driver Heated Seat High/Low Signal | ||||||
B | GY | 8 | Instrument Panel Lamp Supply Voltage (1) | ||||||
C | -- | -- | Not Used | ||||||
D | PK | 339 | Run/Crank Ignition 1 Voltage | ||||||
E | BK/WH | 651 | Signal Ground | ||||||
F | L-BU | 1462 | Heated Seat Switch Signal | ||||||
| |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||||
Pin | Wire Color | Circuit No. | Function | ||||||
A | PK/BK | 1503 | Passenger Heated Seat High/Low Signal | ||||||
B | GY | 8 | Instrument Panel Lamp Supply Voltage (1) | ||||||
C | -- | -- | Not Used | ||||||
D | PK | 339 | Run/Crank Ignition 1 Voltage | ||||||
E | BK/WH | 651 | Signal Ground | ||||||
F | L-BU/BK | 1505 | Passenger Heated Seat Switch Signal | ||||||
| |||||||||
|---|---|---|---|---|---|---|---|---|---|

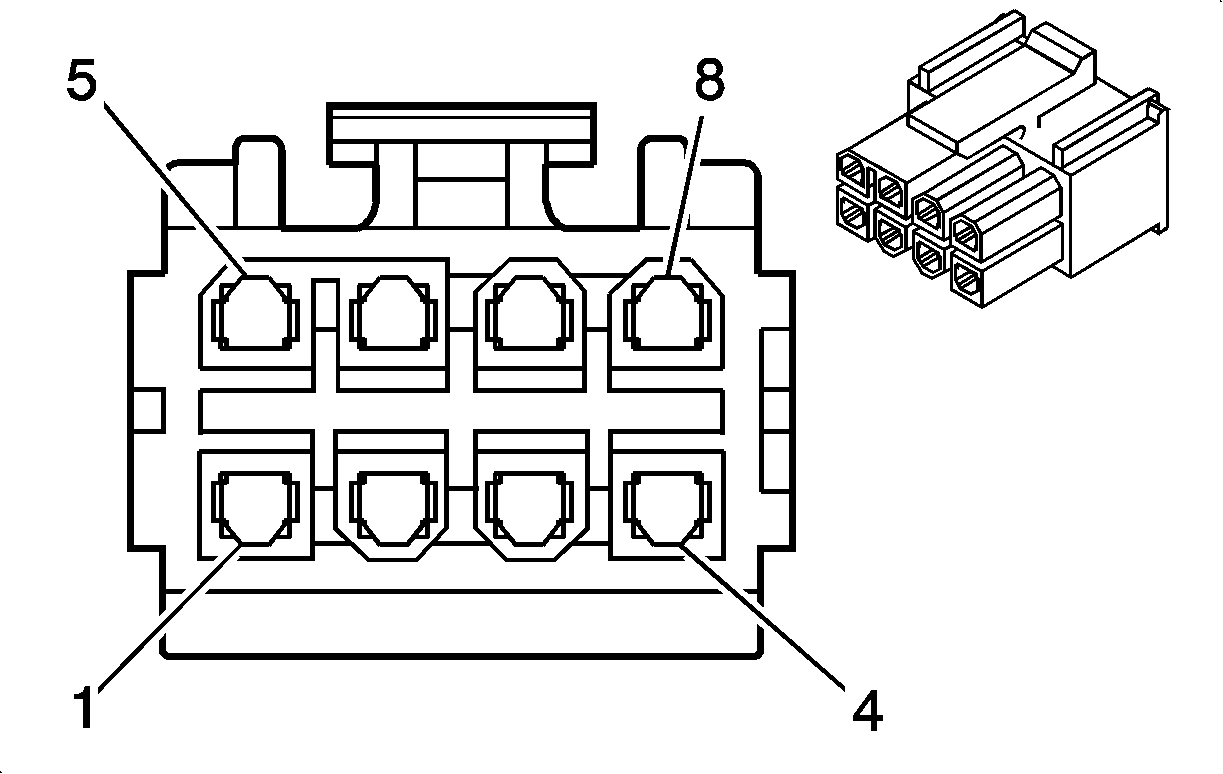

Connector Part Information |
| ||||||||
Pin | Wire Color | Circuit No. | Function | ||||||
1-2 | -- | -- | Not Used | ||||||
3 | PK | 1501 | Driver Heated Seat High/Low signal | ||||||
4 | BK | 1250 | Ground | ||||||
5 | RD/WH | 340 | Battery Positive Voltage | ||||||
6 | GY | 2079 | Heated Seat Cushion Temperature Sensor Signal | ||||||
7 | OG | -- | Heated Seat Cushion Element Control | ||||||
8 | L-BU | 1462 | Heated Seat Switch Signal | ||||||
|
| |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||||
Pin | Wire Color | Circuit No. | Function | ||||||
1-2 | -- | -- | Not Used | ||||||
3 | PK | 1501 | Driver Heated Seat High/Low signal | ||||||
4 | BK | 1250 | Ground | ||||||
5 | RD/WH | 340 | Battery Positive Voltage | ||||||
6 | GY | 2079 | Heated Seat Cushion Temperature Sensor Signal | ||||||
7 | OG | -- | Heated Seat Cushion Element Control | ||||||
8 | L-BU | 1462 | Heated Seat Switch Signal | ||||||
| |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||||
Pin | Wire Color | Circuit No. | Function | ||||||
A | BK | 2424 | Driver Heated Seat Back Element Control | ||||||
B | BK | 2432 | Driver Heated Seat Back Element Supply Voltage | ||||||
|
| |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||||
Pin | Wire Color | Circuit No. | Function | ||||||
A | BK | 2424 | Passenger Heated Seat Back Element Control | ||||||
B | BK | 2432 | Passenger Heated Seat Back Element Supply Voltage | ||||||
| |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||||
Pin | Wire Color | Circuit No. | Function | ||||||
A | RD | 2077 | Heated Seat Cushion Element Supply Voltage | ||||||
B | BK | 2278 | Heated Seat Cushion Element Control | ||||||
|
| |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||||
Pin | Wire Color | Circuit No. | Function | ||||||
A | RD | 2077 | Heated Seat Cushion Element Supply Voltage | ||||||
B | BK | 2078 | Heated Seat Cushion Element Control | ||||||
