Power and Grounding Component Views. Chevrolet Cobalt 2005

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Cobalt 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - 4T40-E/4T45-E 🢒 Power and Grounding Component Views

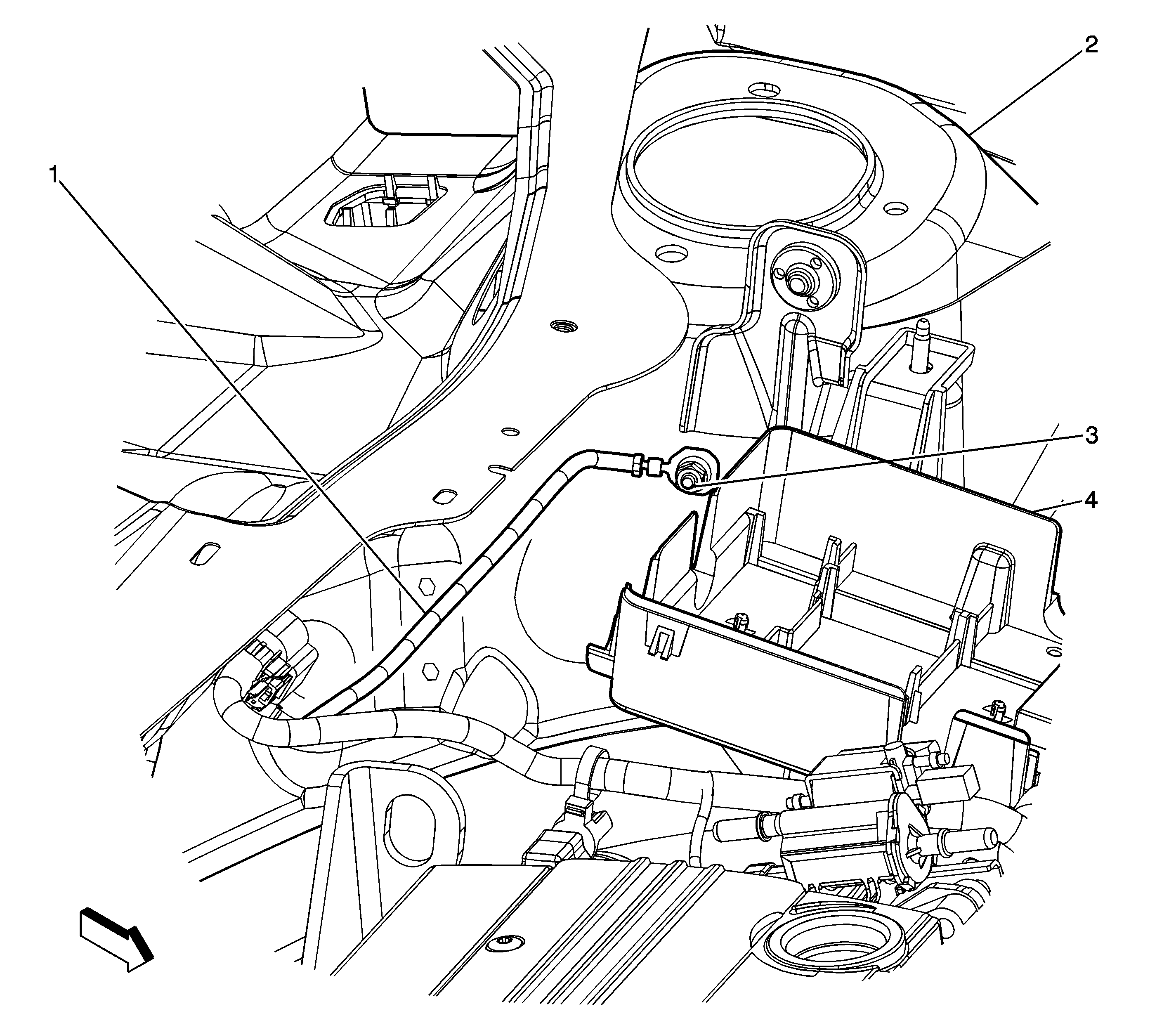

Figure 1:


(1)	LF Strut Tower
(2)	G101
(3)	Fuse Block - Underhood Bracket

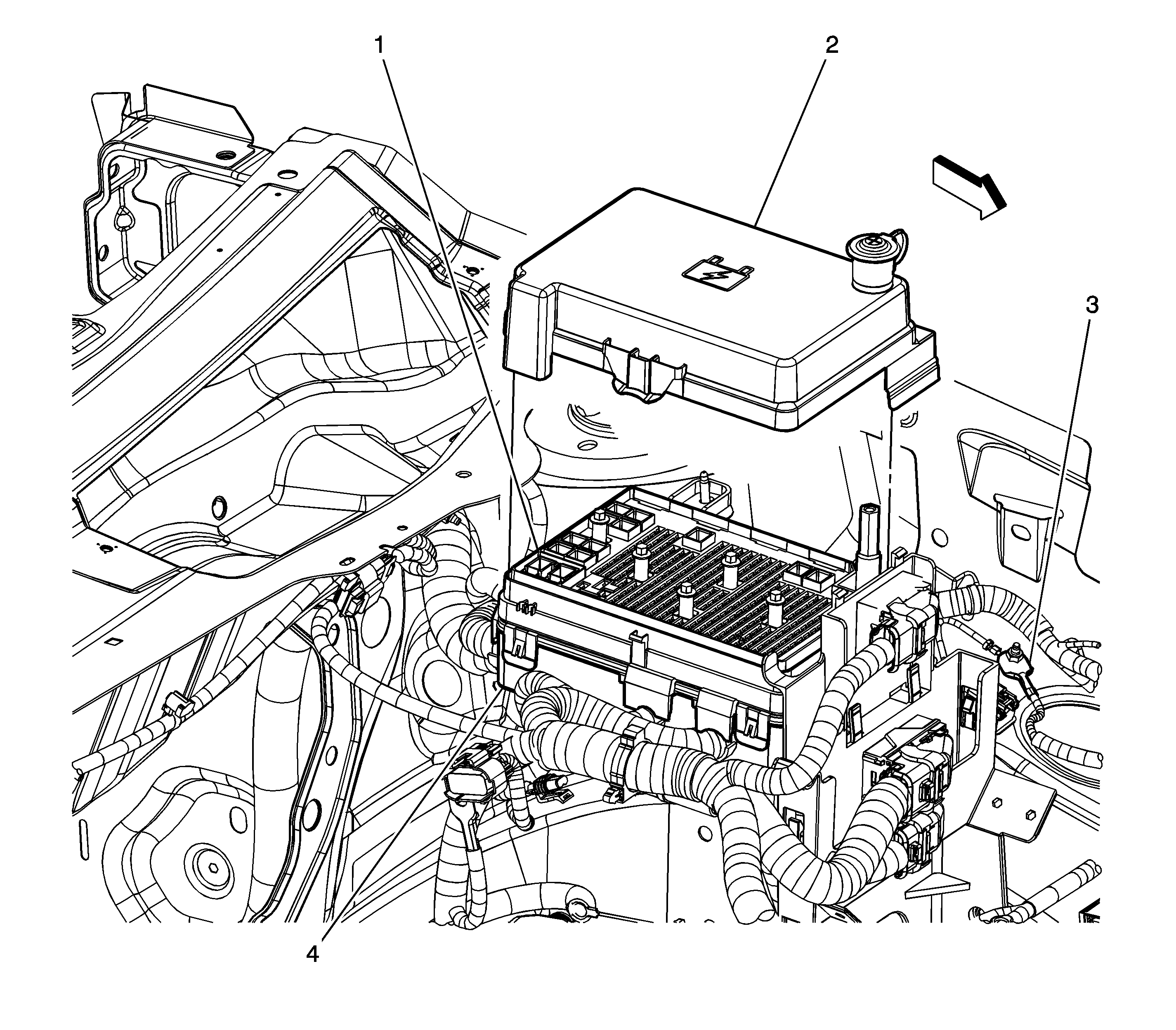

Figure 2:

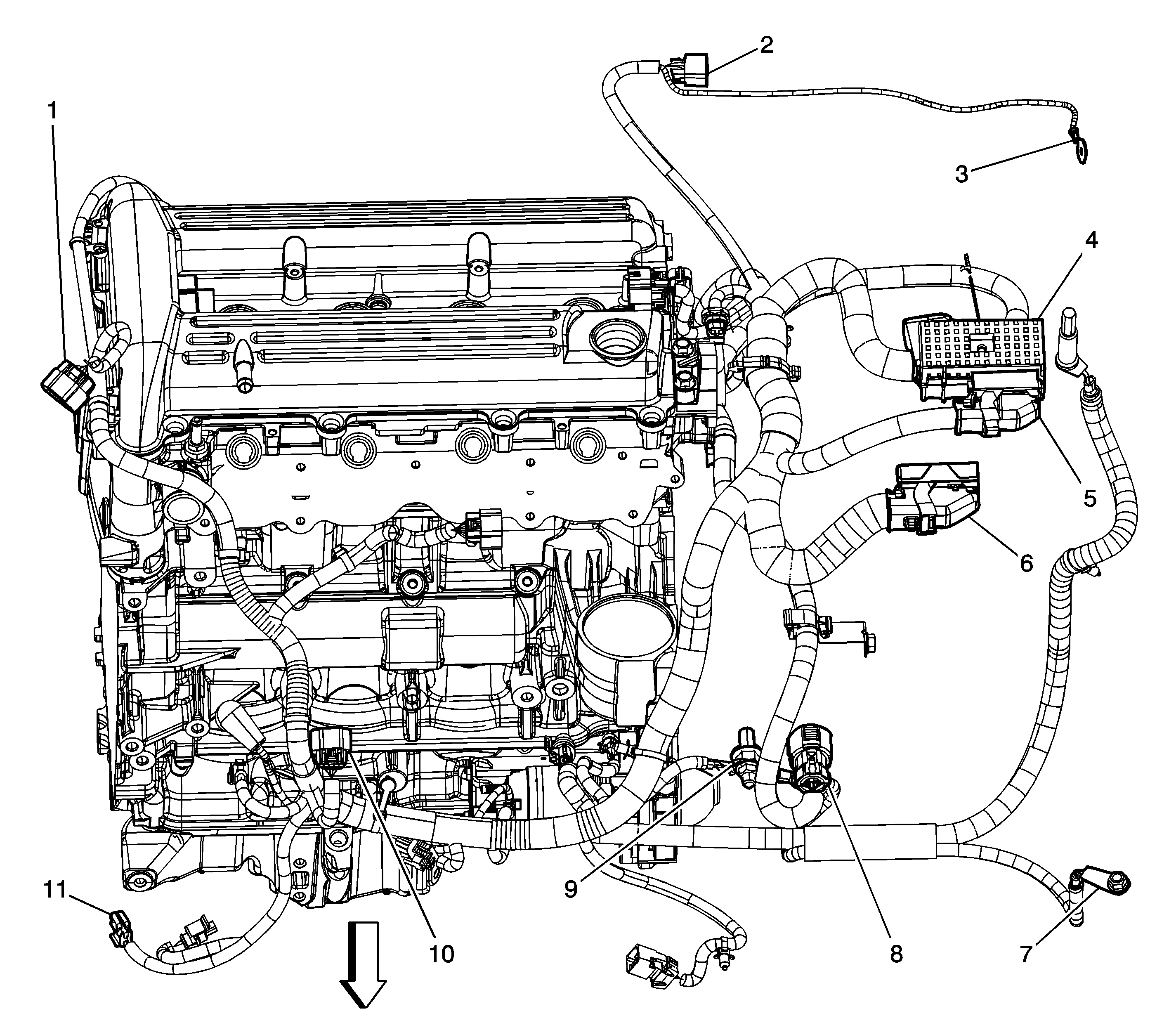

Figure 3:


(1)	Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
(2)	C101
(3)	G109
(4)	Fuse Block - Underhood C1
(5)	Transmission Control Module (TCM) C1
(6)	Engine Control Module (ECM) C2
(7)	G103
(8)	C100
(9)	G105
(10)	C160
(11)	Air Compressor Clutch Connector

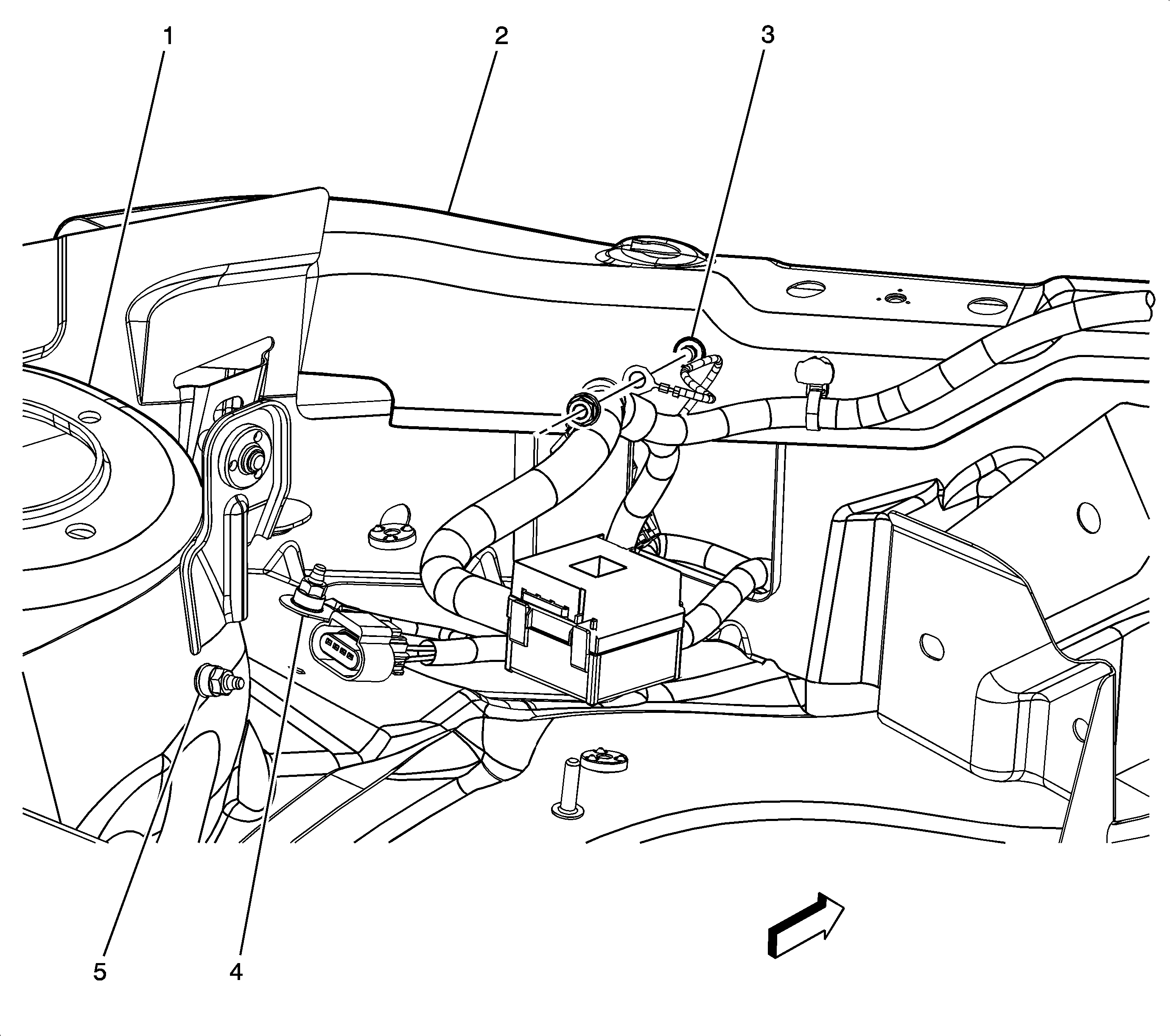

Figure 4:

Figure 5:

Figure 6:


(1)	Engine Harness
(2)	LF Strut Tower
(3)	G109
(4)	Fuse Block - Underhood Bracket

Figure 7:


(1)	PRNDL Lamp
(2)	Floor Pan
(3)	A/T Shift Lock Control Solenoid (MN5)
(4)	Inflatable Restraint Sensing and Diagnostic Module (SDM)
(5)	G306
(6)	Park Brake Switch
(7)	G301

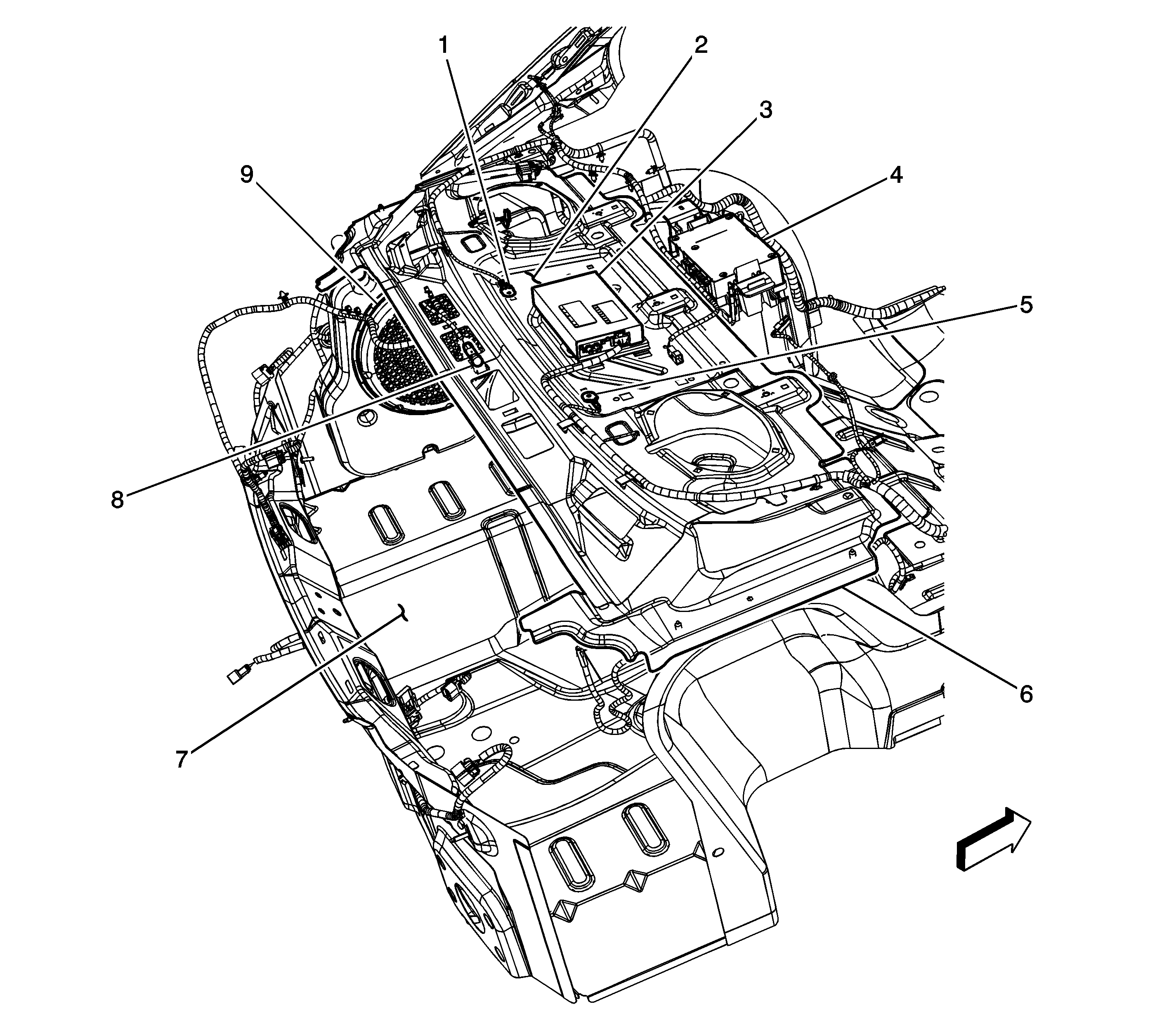

Figure 8:


(1)	G401 Coupe/Sedan
(2)	G402 Coupe
(3)	Digital Radio Receiver (U2K)
(4)	Vehicle Communication Interface Module (VCIM) (UE1)
(5)	G402 (Sedan)
(6)	Rear Window Shelf
(7)	Floor Pan
(8)	Rear Compartment Coutesty Light
(9)	Speaker - Left Rear

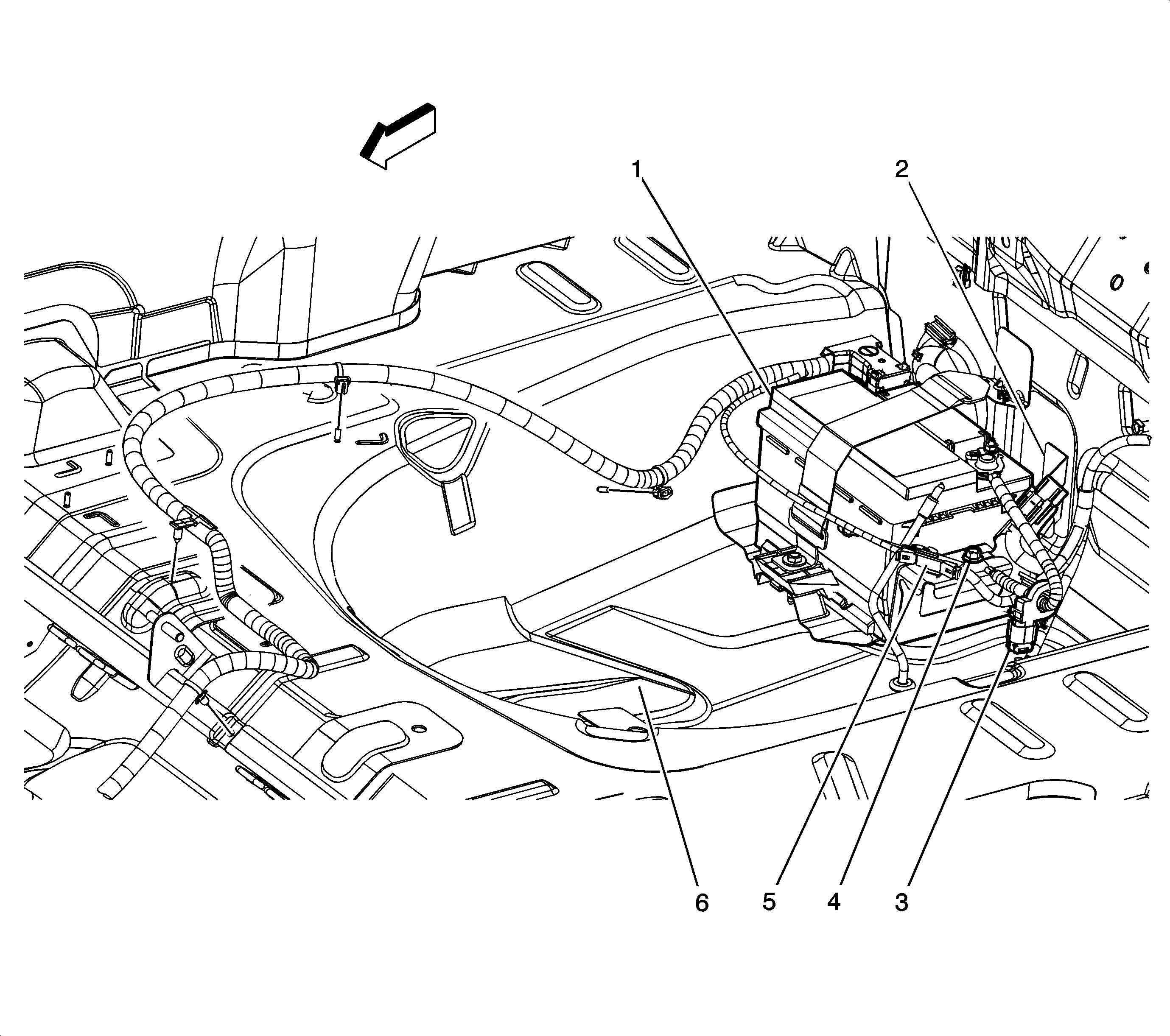

Figure 9:

Figure 10:


(1)	Turn Signal/Multifunction Switch
(2)	Inflatable Restraint Steering Wheel Module Coil
(3)	Windshield Wiper/Washer Switch
(4)	Steering Wheel
(5)	Steering Wheel Controls - Right (UK3/K34)
(6)	Horn Switchs
(7)	Steering Wheel Controls - Left (UK3/K34)
(8)	Electronic Power Steering Control Module (EPS)
(9)	Electronic Power Steering (EPS) Control Module Motor
(10)	Ignition Switch
(11)	Ignition Lock Cylinder Control Solenoid

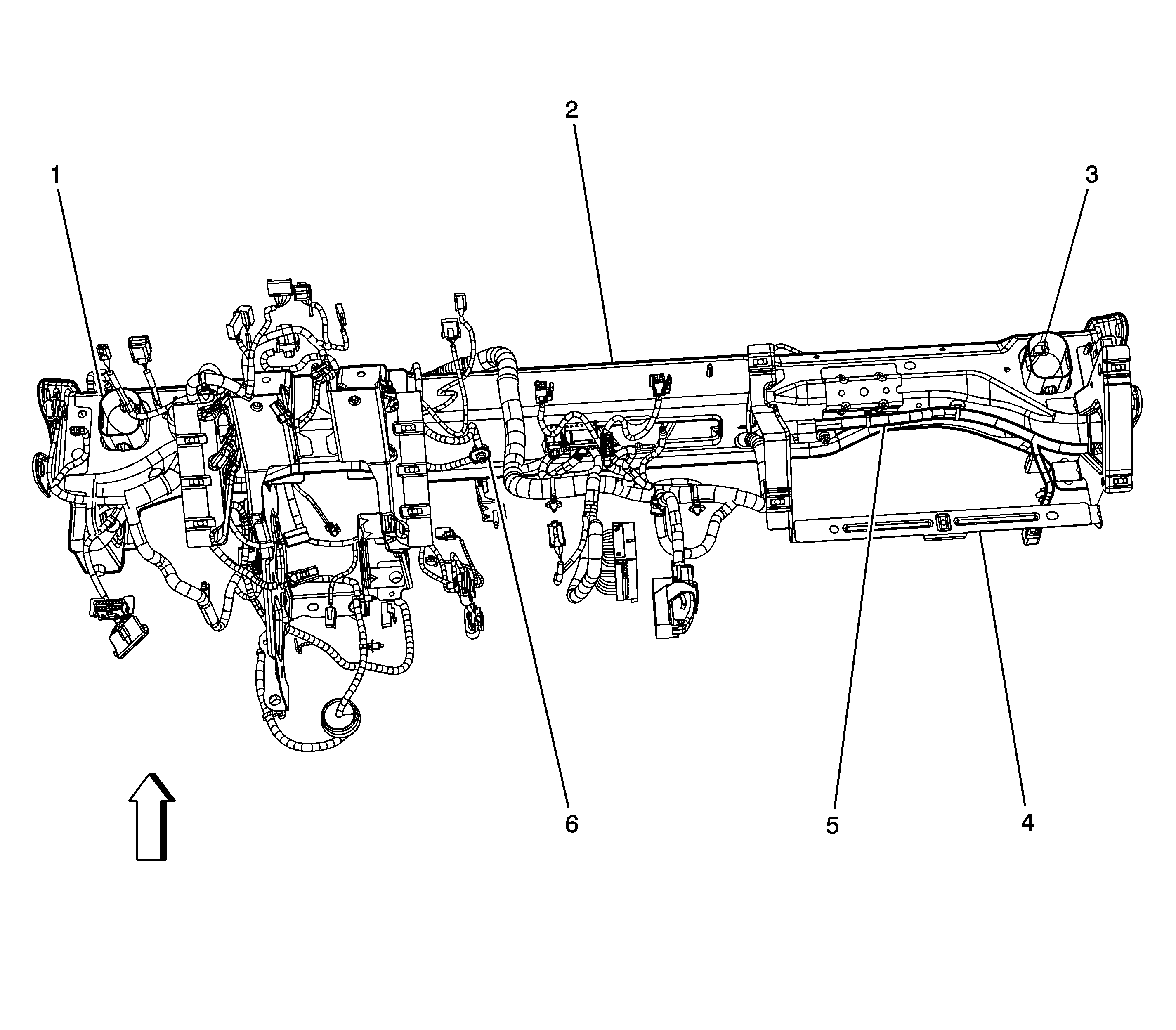

Figure 11:
