Makes 🢒 Chevrolet 🢒 2005 🢒 Cobalt 🢒 Restraints 🢒 SIR 🢒 SIR Component Views

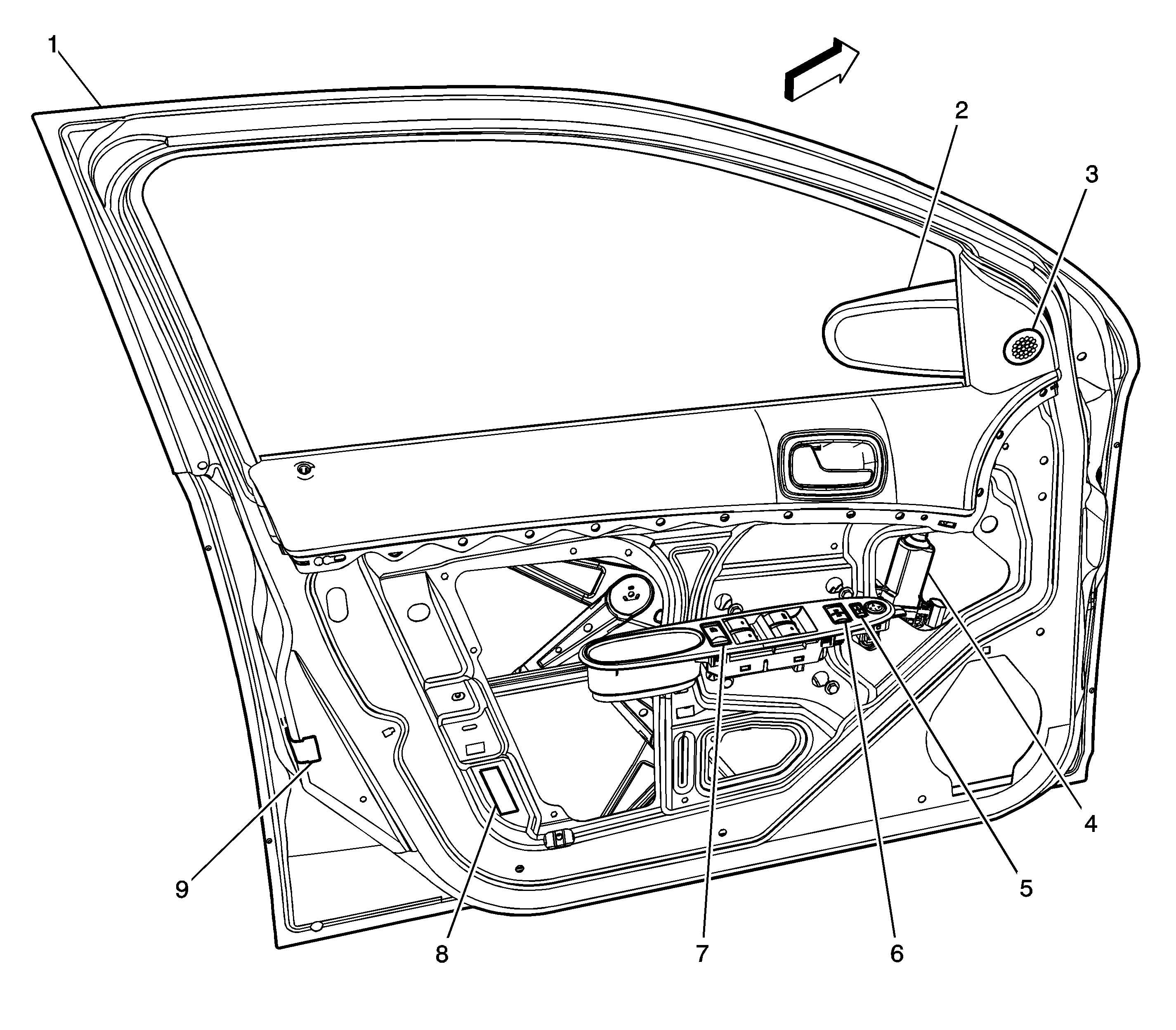

Figure 1:

Driver Door Components
Object Number: 1549156 Size: LF
(1)Door Frame
(2)Outside Rearview Mirror - Driver (DG7)
(3)Speaker - Left Front Door Tweeter (UQ3)
(4)Window Motor (A31) - Driver
(5)Outside Rearview Mirror Switch (DG7)
(6)Door Lock Switch (AU3) - Driver
(7)Window Switch (A31) - Driver
(8)Inflatable Restraint Side Impact Module (SIS) - Left (ASF)
(9)Door Latch (AU3) - Driver

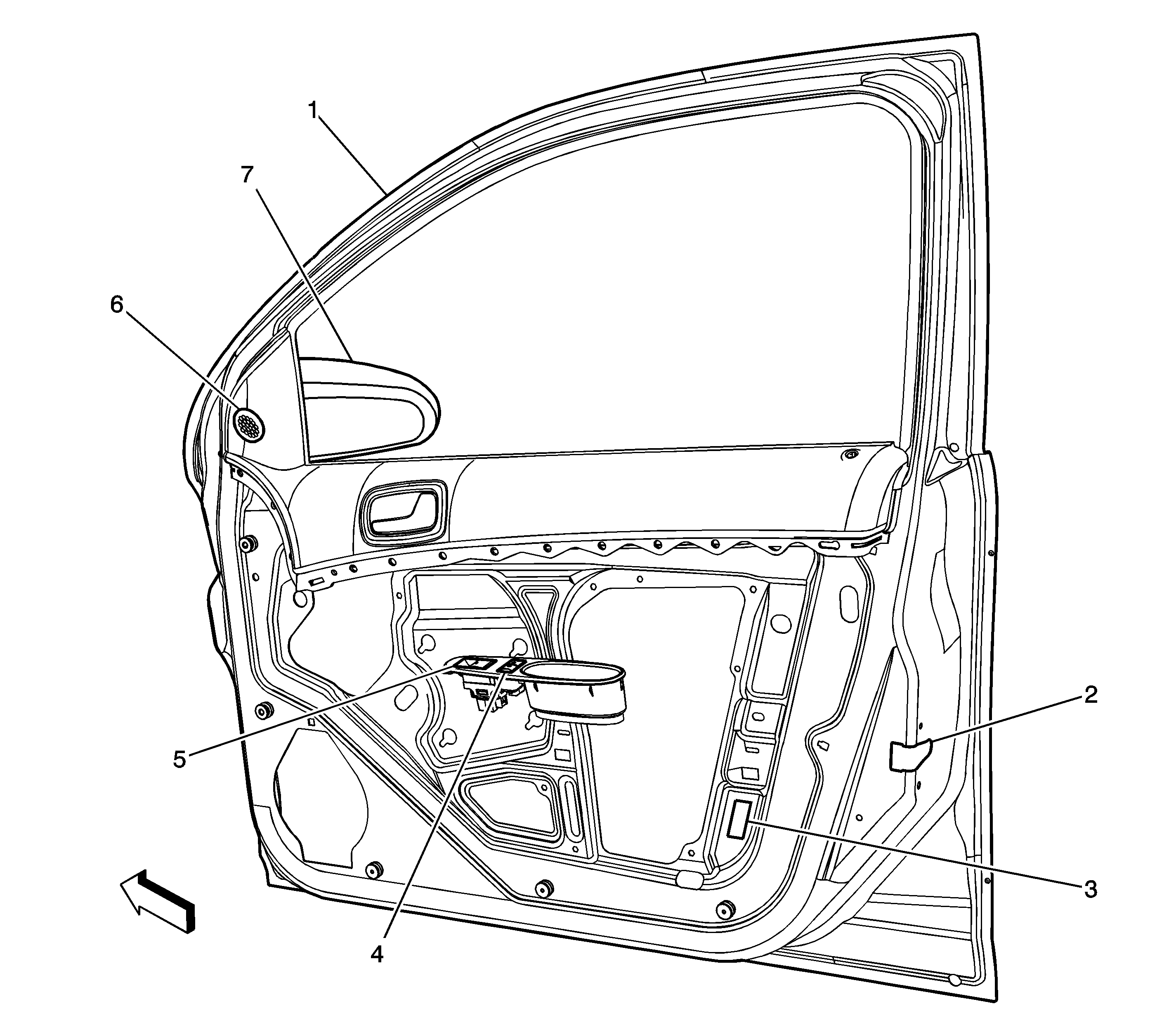

Figure 2:

Passenger Door Components
Object Number: 1549158 Size: LF
(1)Door Frame
(2)Door Latch (AU3) - Passenger
(3)Inflatable Restraint Side Impact Module (SIS) - Right (ASF)
(4)Door Lock Switch (AU3) - Passenger
(5)Window Switch (A31) - Passenger
(6)Speaker - Right Front Door Tweeter (UQ3)
(7)Outside Rearview Mirror - Passenger (DG7)

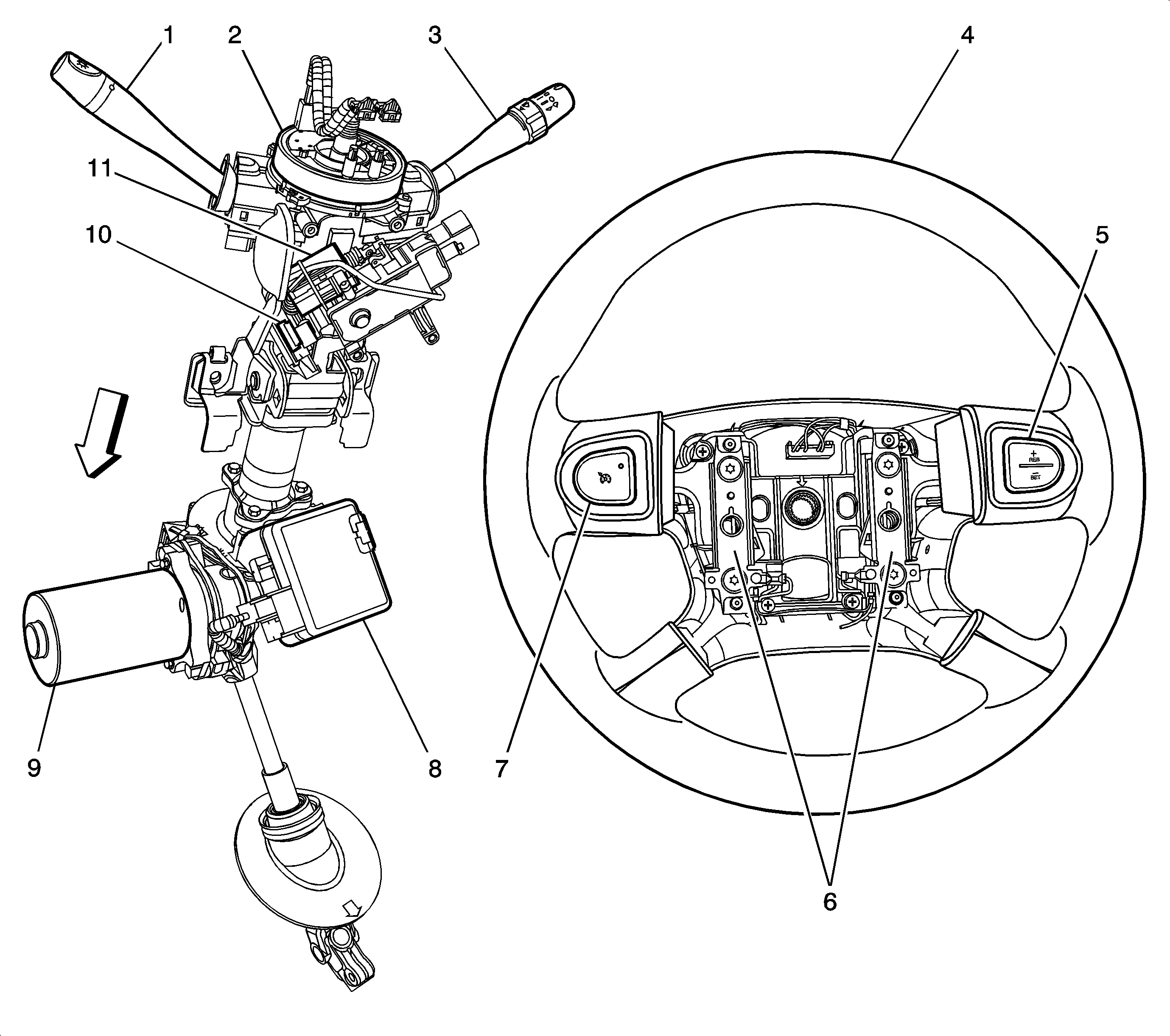

Figure 3:

Steering Wheel and Column - 4-Spoke Wheel
Object Number: 1543927 Size: LF
(1)Turn Signal/Multifunction Switch
(2)Inflatable Restraint Steering Wheel Module Coil
(3)Windshield Wiper/Washer Switch
(4)Steering Wheel
(5)Steering Wheel Controls - Right (UK3/K34)
(6)Horn Switches
(7)Steering Wheel Controls - Left (UK3/K34)
(8)Electronic Power Steering Control Module (EPS)
(9)Electronic Power Steering (EPS) Control Motor
(10)Ignition Switch
(11)Ignition Lock Cylinder Control Solenoid

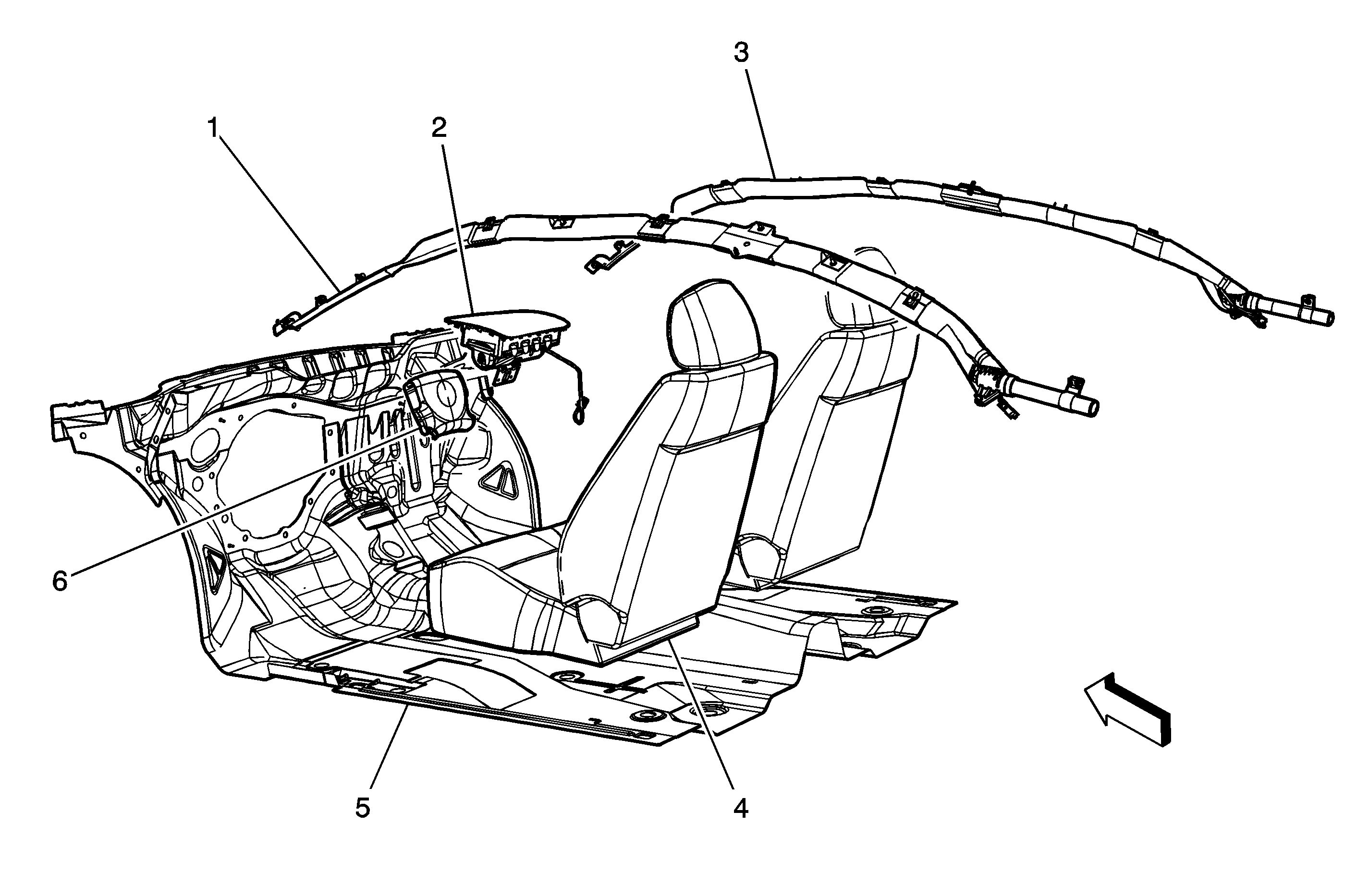

Figure 4:

Air Bags
Object Number: 1543925 Size: MF
(1)Inflatable Restraint Roof Rail Module - Left (ASF)
(2)Inflatable Restraint I/P Module
(3)Inflatable Restraint Roof Rail Module - Right (ASF)
(4)Driver Seat
(5)Floor Pan
(6)Inflatable Restraint I/P Module

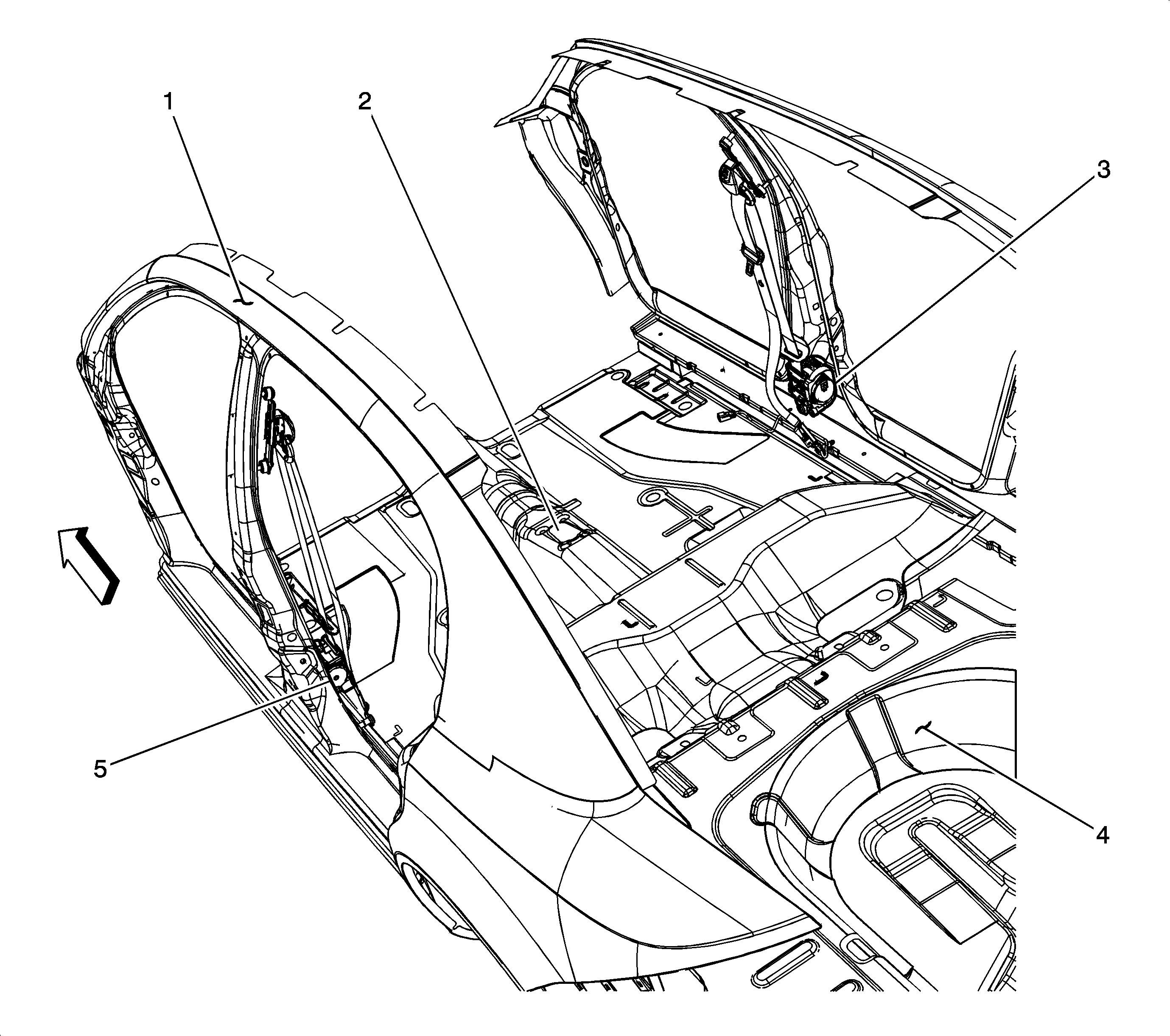

Figure 5:

Seat Belt Pretensioners - Sedan
Object Number: 1546075 Size: LF
(1)Left Body Panel
(2)Inflatable Restraint Sensing and Diagnostic Module (SDM)
(3)Seat Belt Pretentioner - Right Front
(4)Floor Panel
(5)Seat Belt Pretentioner - Left Front

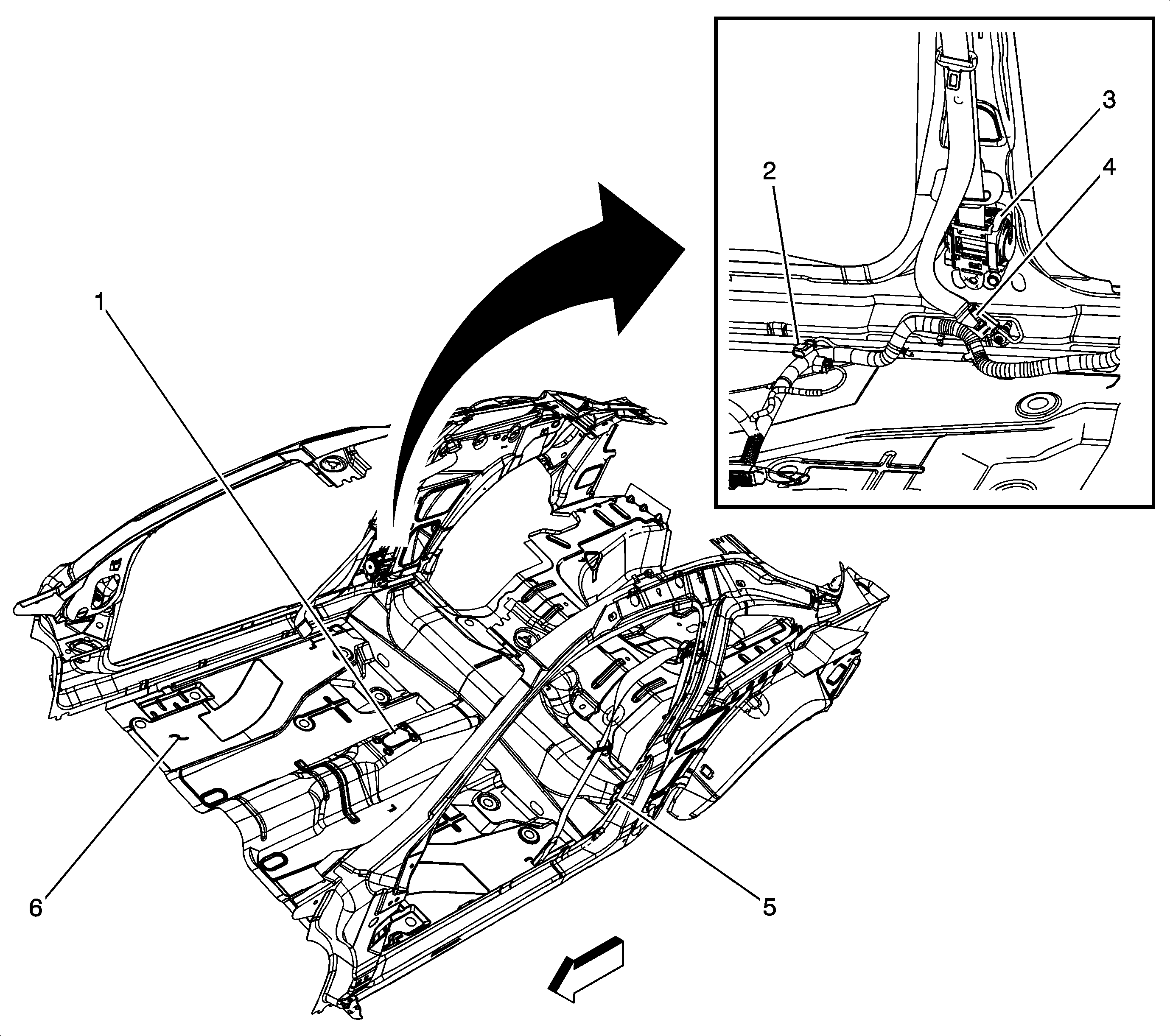

Figure 6:

Seat Belt Pretensioners - Coupe
Object Number: 1546076 Size: LF
(1)Inflatable Restraint Sensing and Diagnostic Module (SDM)
(2)Seat Belt Tension Sensor Pigtail Connector
(3)Seat Belt Pretensioner - Right Front
(4)Seat Belt Tension Sensor
(5)Seat Belt Pretensioner - Left Front
(6)Floor Panel

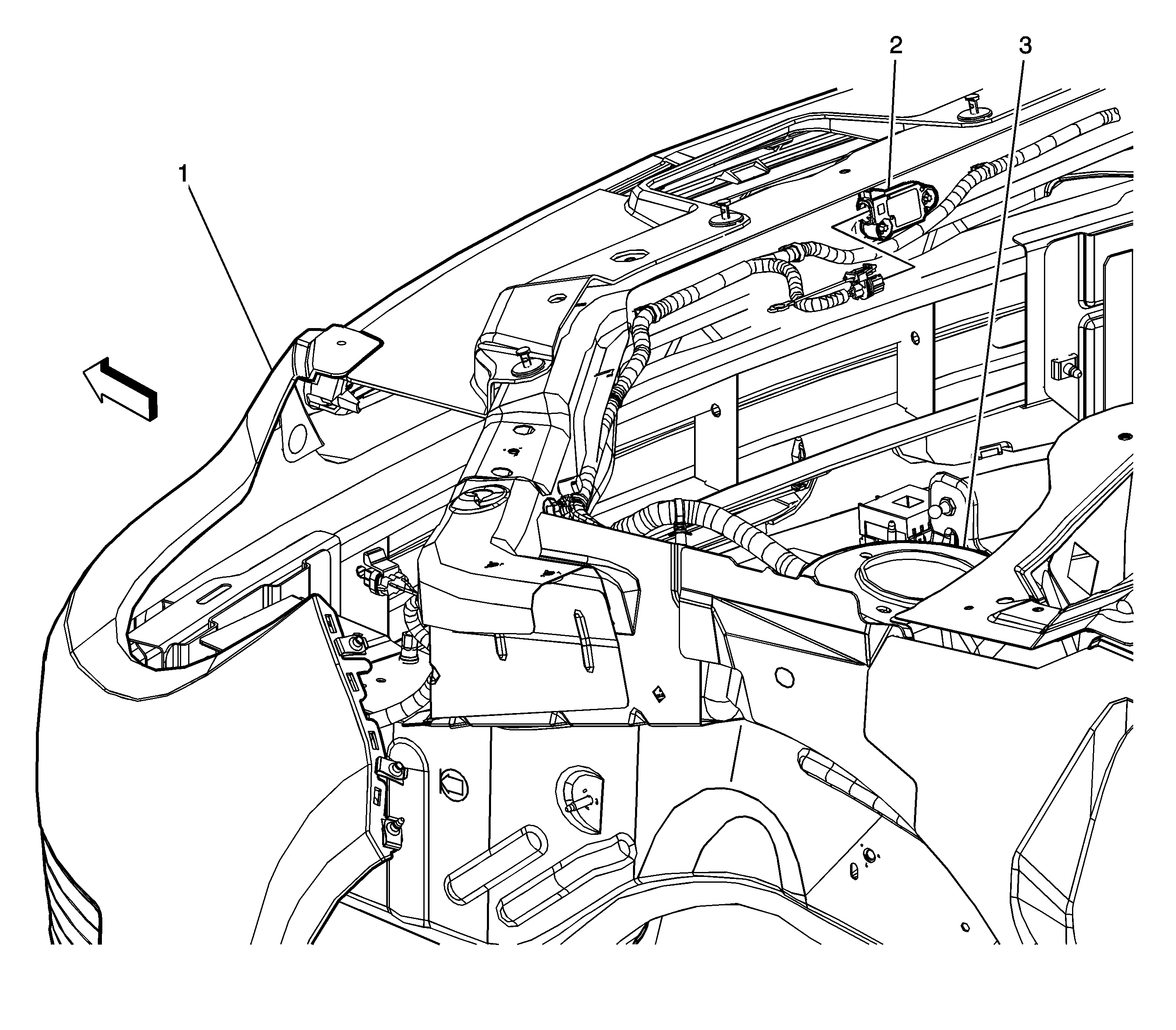

Figure 7:

Front End Sensor
Object Number: 1549127 Size: LF
(1)Front Fascia
(2)Inflatable Restraint Front End Sensor
(3)Left Front Strut Tower
