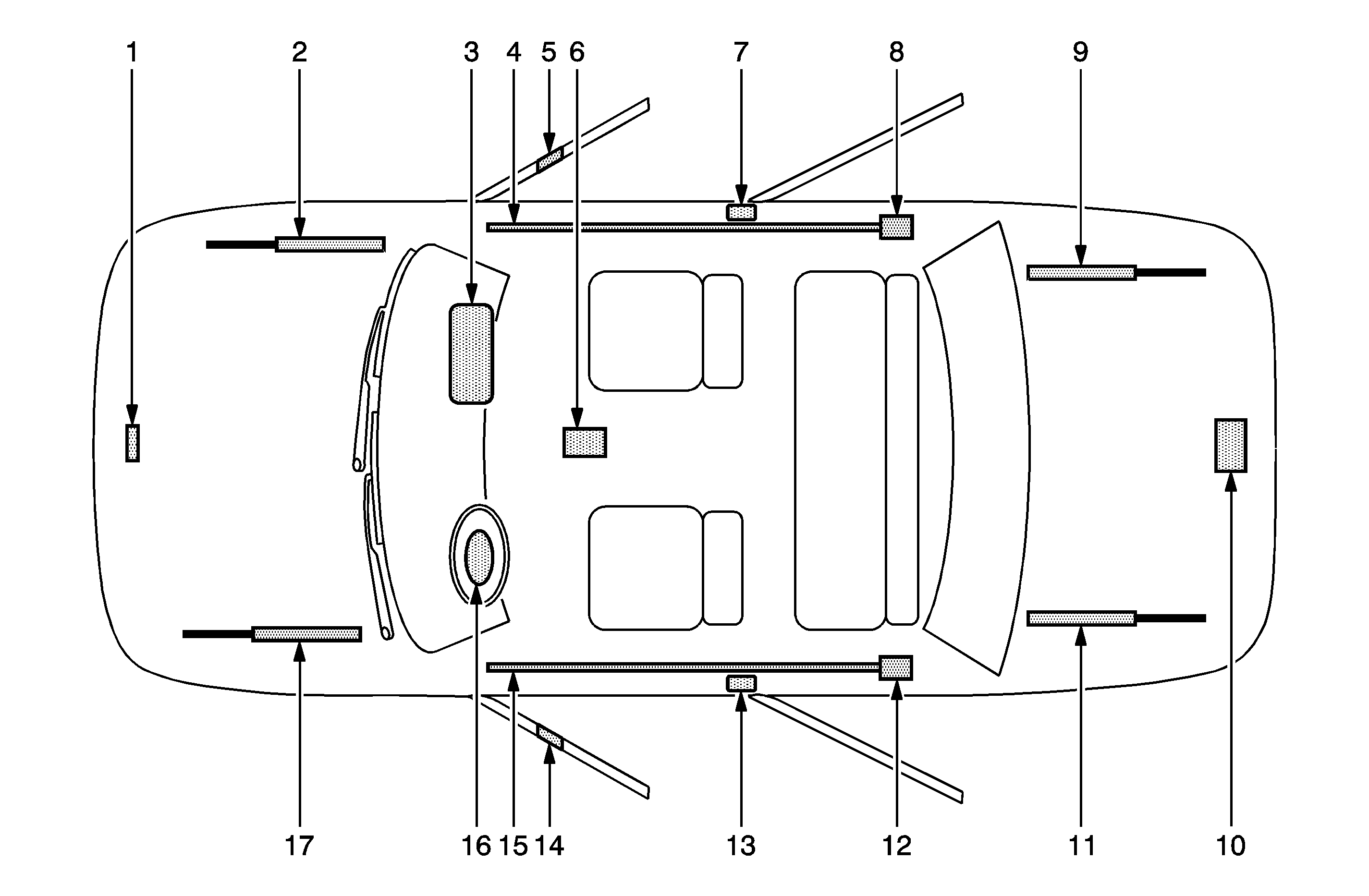

| (1) | Front End Sensor--Located under the hood at the front of the vehicle |
| (2) | Front Hood Assist Rod--A gas shock located under the front hood on the passenger side |
| (3) | I/P Air Bag--Located at the top right under the instrument panel |
| (4) | Roof Rail Air Bag--Located under the headliner, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| (5) | Side Impact Sensor (SIS)--Located behind door panel on the passenger front door |
| (6) | Sensing and Diagnostic Module (SDM)--Located underneath the vehicle carpet under the center console |
| (7) | Seat Belt Retractor Pretensioner--Located under the trim near the bottom of the center pillar on the passenger side of vehicle |
| (8) | Inflator Module for Roof Rail Air Bag--Located behind the garnish molding on the upper rear pillar |
| (9) | Rear Hood Assist Rod--A gas shock located under the rear truck lid on the passenger side |
| (10) | Vehicle Battery--Located in the trunk under the carpet |
| (11) | Rear Hood Assist Rod--A gas shock located under the rear truck lid on the driver side |
| (12) | Inflator Module for Roof Rail Air Bag--Located behind garnish molding on the upper rear pillar |
| (13) | Seat Belt Retractor Pretensioner--Located under the trim near the bottom of the center pillar on the driver side of vehicle |
| (14) | Side Impact Sensor (SIS)--Located behind door panel on the driver front door |
| (15) | Roof Rail Air Bag--Located under the headliner, extending from the driver front windshield pillar to the driver rear windshield pillar |
| (16) | Steering Wheel Air Bag--Located on the steering wheel |
| (17) | Front Hood Assist Rod--A gas shock located under the front hood on the driver side |
