Left or Right Manual Mirror Control Inoperative (Replace Plastic Control Tower)
| Subject: | Left or Right Manual Mirror Control Inoperative (Replace Plastic Control Tower) |
| Models: | 2005 Chevrolet Cobalt |
| 2005 Pontiac Pursuit (Canada Only) |
Do This | Do Not Do This |
|---|---|
Replace the plastic control tower | Do not replace the mirror assembly |
Condition
Some customers may comment that the outside manual mirror control is inoperative.
Cause
This condition may be caused by a damaged plastic control tower which is unable to hold the adjustment in place.
Correction
Replace the plastic control tower following the procedure below:
- Remove the upper door trim.
- Remove the 3 nuts that retain the mirror to the door.
- Remove the mirror.

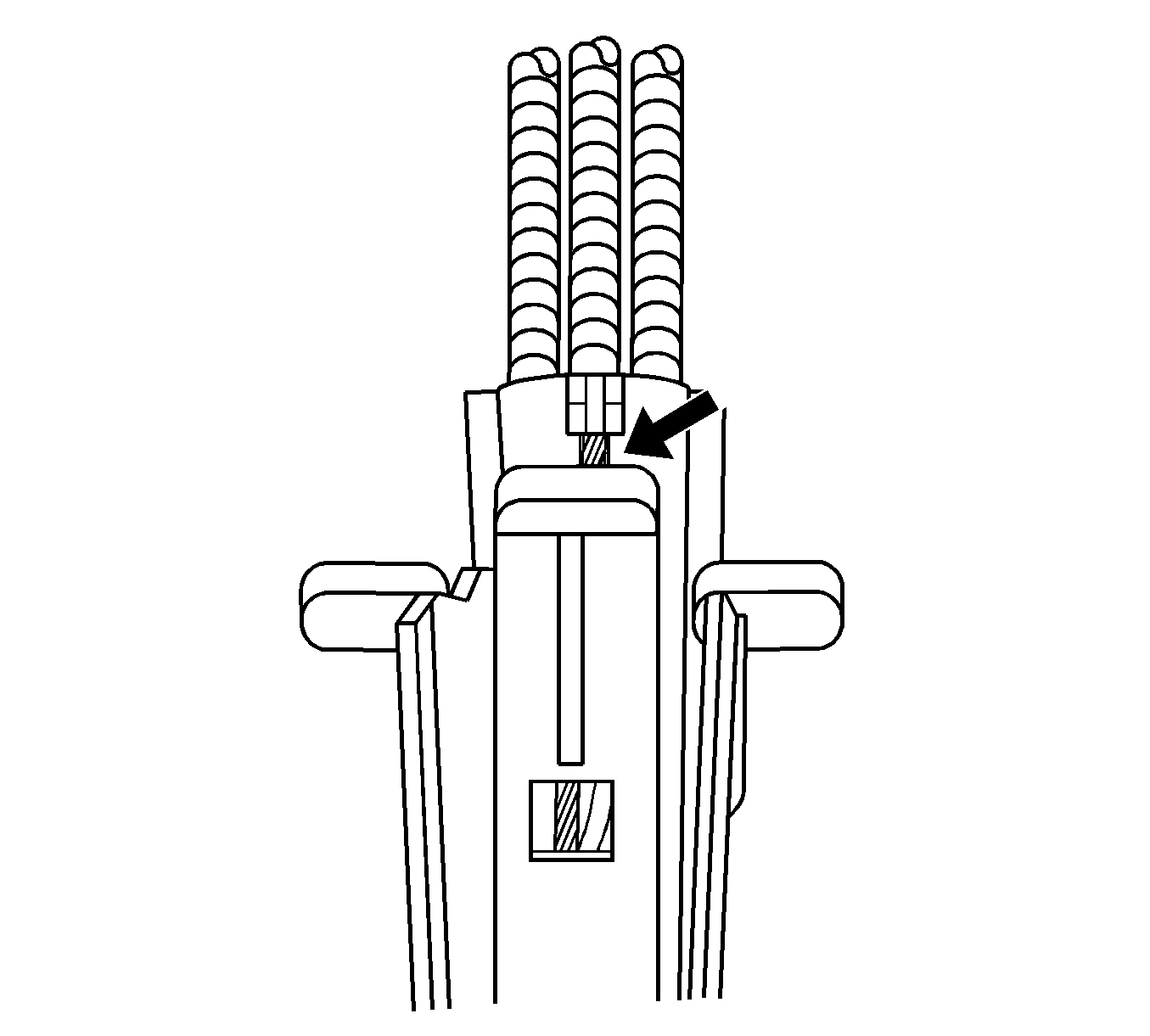

- Remove the plastic control tower from the cable by releasing the tab and pulling. Refer to the illustration above.
- Install the plastic control tower onto the cable.
- Install the mirror to the door.
- Install the 3 nuts that retain the mirror to the door.
- Install the upper door trim.
Tighten
Tighten the 3 nuts to 10 N·m (89 lb in).
Parts Information
Part Number | Description |
|---|---|
19121362 | Control Asm, O/S RR View Mirror (RH) |
19121363 | Control Asm, O/S RR View Mirror (LH) |
Warranty Information
For vehicles repaired under warranty, use:
Labor Operation | Description | Labor Time |
|---|---|---|
B4156 | Mirror, Outside Rear View - Left -- Replace (Manual Remote Control Mirror) | Use Published Labor Operation Time |
B4155 | Mirror, Outside Rear View - Right -- Replace (Manual Remote Control) Mirror | |
Add | To Replace Control Tower | 0.1 hr |
