Makes 🢒 Chevrolet 🢒 2007 🢒 Cobalt 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - 4T45-E 🢒 Engine Electrical Component Views
Figure 1:

Front Lower Left of the Engine (LSJ)
Object Number: 1550909 Size: LF
(1)A/C Compressor (C67)
(2)Generator
(3)A/C Refrigerant Pressure Sensor (C67)
(4)Starter
(5)Supercharger Intercooler Coolant Pump
(6)A/C Compressor Clutch (C67)
Figure 2:

Front Lower Left of the Engine (L61/LE5)
Object Number: 1550908 Size: LF
(1)Generator
(2)Fusible Link
(3)Starter Soleniod
(4)A/C Compressor Clutch (C67)

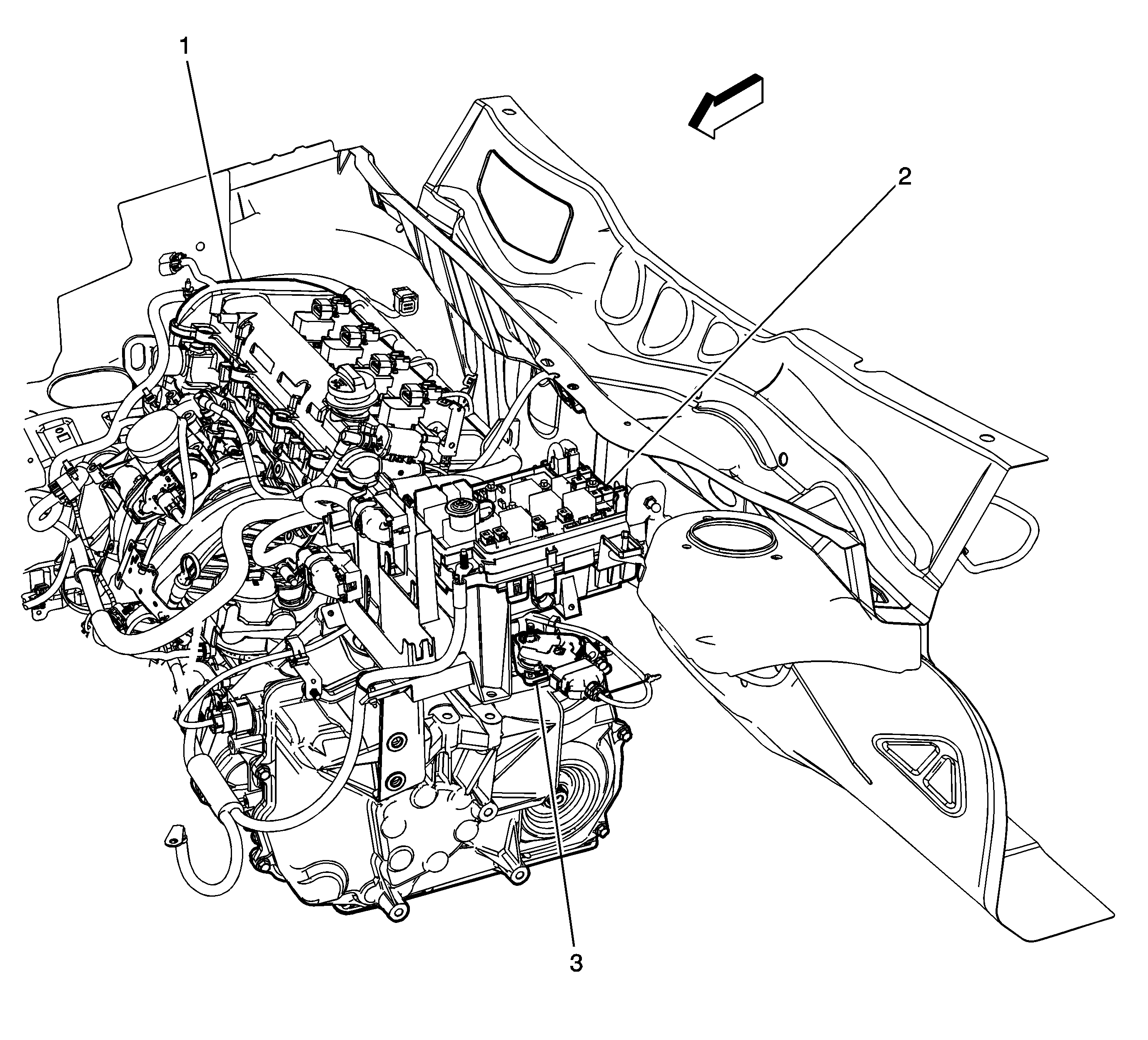

Figure 3:

Park Neutral Position (PNP) Switch
Object Number: 1856926 Size: LF
(1)Engine - L61
(2)Fuse Block - Underhood
(3)Park Neutral Position (PNP) Switch (MN5)
Figure 4:

Pedal Components
Object Number: 1543932 Size: LF
(1)Clutch Pedal Position (CCP) Switch (M86)
(2)Clutch Start Switch (M86)
(3)Stop Lamp/TCC Switch
(4)Cruise Control Cancel Switch
(5)Accelerator Pedal Position (APP) Sensor
(6)Floor Pan
Figure 5:

Right Lower Front of Engine - L61
Object Number: 1265624 Size: MF
(1)Starter
(2)Starter Solenoid
Figure 6:

Rear Floor Pan Components and G403
Object Number: 1549037 Size: LF
(1)Battery
(2) Fuse Holder 50A
(3)Battery Current Sensor
(4)G403
(5)C400
(6)Spare Tire Well
