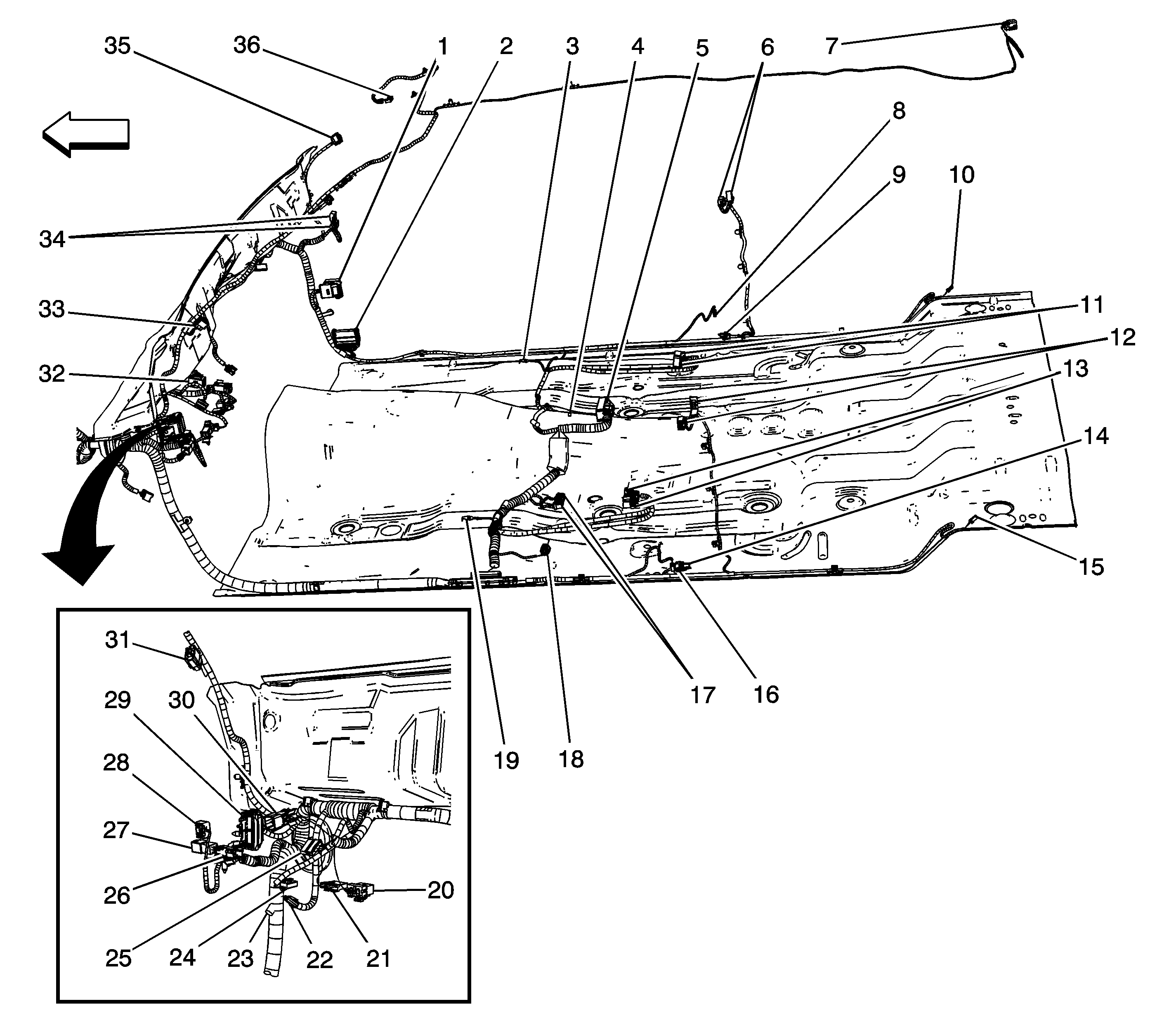

| (1) | Body Control
Module (BCM) C1 |
| (2) | C201 (I/P Harness
to Body Harness) |
| (3) | G301 |
| (4) | G302 |
| (5) | Inflatable
Restraint Sensing and Diagnostic Module (SDM) |
| (6) | C317 (A31)
or C317 (w/oA31) (Body Harness to RR Passenger Door Harness) |
| (7) | Cargo Lamp/Center
High Mounted Stop Lamp (CHMSL) |
| (8) | Door Jamb Switch -
Front Passenger |
| (9) | Seat Belt Pretensioner -
RF |
| (10) | Door Jamb
Switch - RR |
| (11) | C313 (Body
Harness to Passenger Seat Harness) |
| (12) | C316 (A31)
or C316 (w/oA31) (Body Harness to LR Passenger Door Harness) |
| (13) | C314 (Body
Harness to Driver Seat Harness) |
| (14) | Seat Belt
Pretensioner - LF |
| (15) | Door Jamb
Switch - LR |
| (16) | Door Jamb
Switch - Driver |
| (17) | Transfer Case
Shift Control Module C1, C2 |
| (18) | G Sensor |
| (19) | G300 |
| (20) | Stop Lamp
Switch |
| (21) | TCC Brake/Cruise
Release Switch |
| (22) | Park Brake
Switch |
| (23) | S303 |
| (24) | Clutch Switch |
| (25) | Clutch Start
Switch |
| (26) | C208 (I/P
Harness to Body Harness) |
| (27) | C202 (Driver
Door Harness to Body Harness) |
| (28) | C209 (Body
Harness to Driver Door Harness) |
| (29) | C200 (I/P
Harness to Body Harness) |
| (30) | C275 (Body
Harness to Steering Wheel Harness) |
| (31) | Inflatable
Restraint Roof Rail Module - Left |
| (32) | Accelerator
Pedal Position (APP) Sensor |
| (33) | C310 (Dome
Lamp Harness to Body Harness) |
| (34) | C210 and C211
(A31) (Body Harness to Passenger Door Harness) |
| (35) | Inflatable
Restraint Roof Rail Module - Right |
| (36) | Inside Rearview
Mirror |
