SMU - Revised Pressure Relief Valve Replacement. Chevrolet Colorado Pickup

Subject:

Revised Pressure Relief Valve Replacement

Models:

2004-2006 Chevrolet Colorado

2004-2006 GMC Canyon

This bulletin is being issued to revise the Pressure Relief Valve Replacement procedure in the Body Rear End sub-section of the Service Manual. Please replace the current information in the Service Manual with the following information.

The following information has been updated within SI. If you are using a paper version of this Service Manual, please make a reference to this bulletin on the affected page.

Callout	Component Name
Preliminary Procedure Remove rear inner trim panel. Refer to Trim Panel Replacement - Body Rear Corner - Lower.

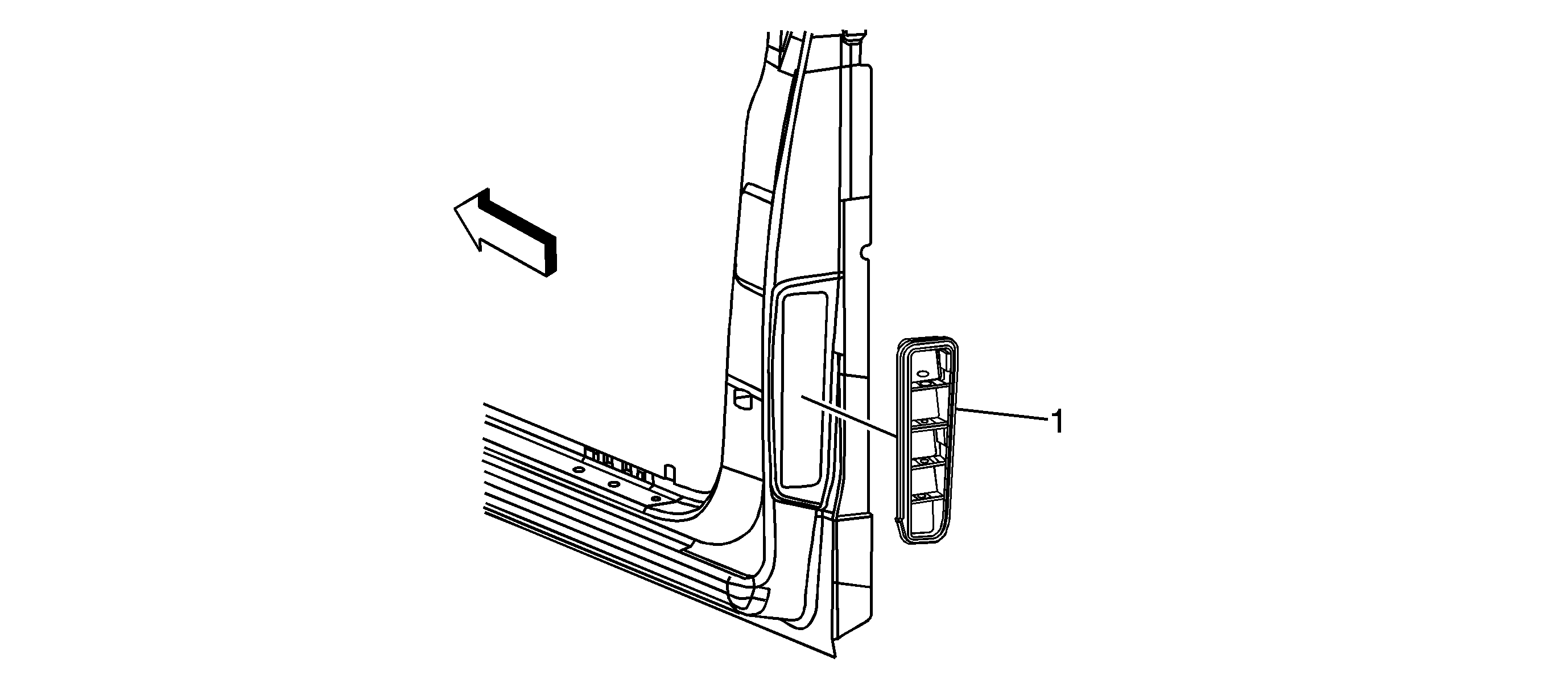

1	Pressure Relief Valve. Tip Release integral tabs from inside of valve (Qty) 6.

Callout

Component Name

Preliminary Procedure

Remove rear inner trim panel. Refer to Trim Panel Replacement - Body Rear Corner - Lower.

Pressure Relief Valve.

Tip
Release integral tabs from inside of valve (Qty) 6.
