Engine Controls Schematics. Chevrolet Corsica 1996

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1996 🢒 Corsica 🢒 Engine 🢒 Engine Controls - 2.2L 🢒 Engine Controls Schematics

Figure 1:	Power, Ground, MIL, and DLC Engine Controls Components Powertrain Control Module (PCM) General Description Ignition Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 2:	Ignition Controls Engine Controls Components Electronic Ignition (EI) System Fuel Controls Power, Ground, MIL, and DLC OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 3:	Fuel Controls Engine Controls Components Fuel Metering System Components Engine Data Sensors Ignition Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 4:	Engine Data Sensors Engine Controls Components Information Sensors EVAP and EGR Controls Fuel Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 5:	EVAP and EGR Controls Engine Controls Components Exhaust Gas Recirculation (EGR) System Oxygen Sensors Engine Data Sensors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 6:	Oxygen Sensors Engine Controls Components Information Sensors IAC Valve, PNP, and Oil Level Switch EVAP and EGR Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice

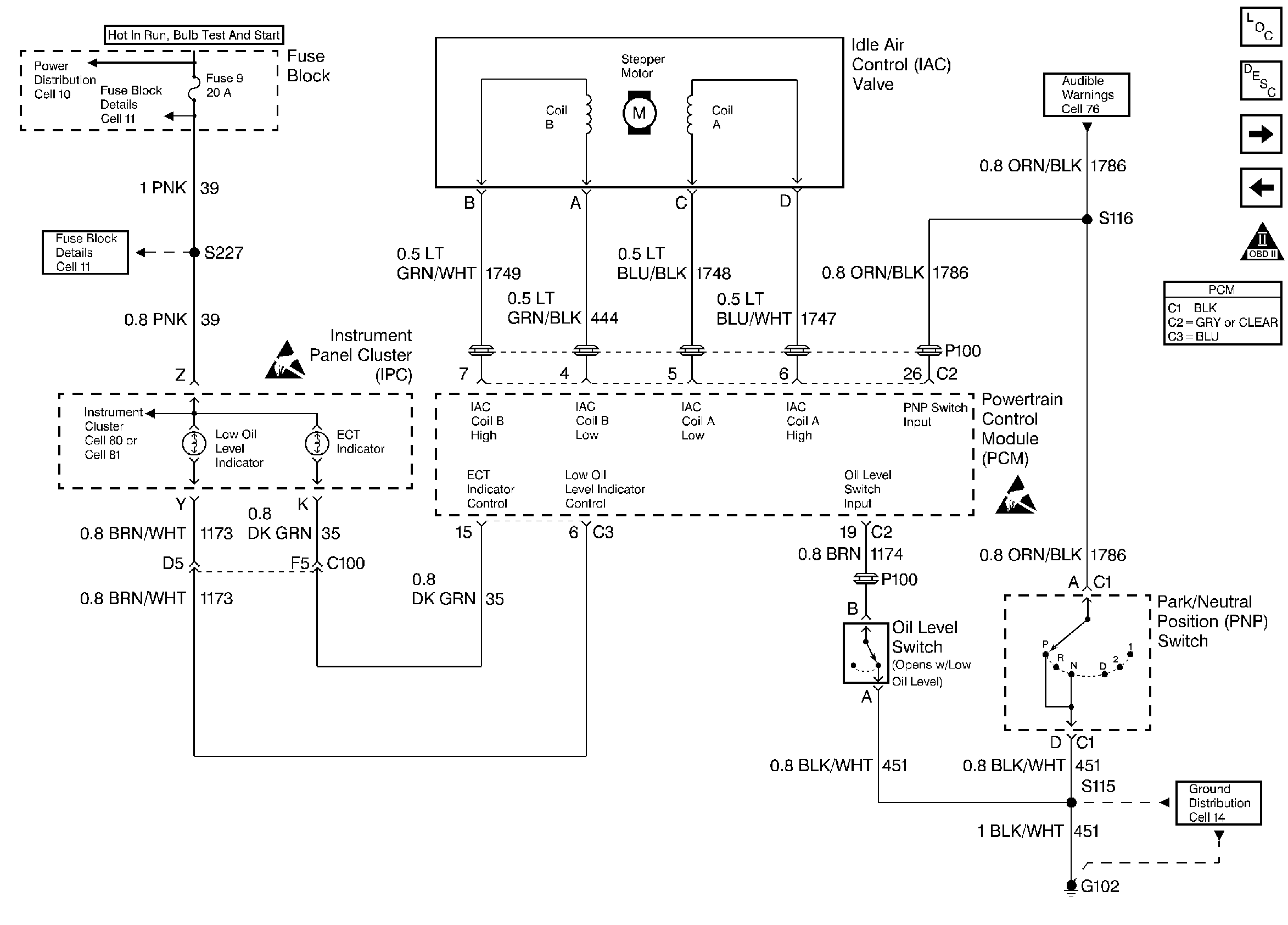

Figure 7:	IAC Valve, PNP, and Oil Level Switch Engine Controls Components Powertrain Control Module Inputs Diagnosis VSS and Cruise Control Oxygen Sensors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 8:	VSS and Cruise Control Engine Controls Components Powertrain Control Module Inputs Diagnosis Transaxle Controls IAC Valve, PNP, and Oil Level Switch OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 9:	Transaxle Controls Engine Controls Components Powertrain Control Module (PCM) General Description A/C Controls VSS and Cruise Control OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 10:	A/C Controls Engine Controls Components Powertrain Control Module Controlled Air Conditioning Cooling Fan Controls Transaxle Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 11:	Cooling Fan Controls Engine Controls Components Electric Cooling Fan A/C Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
