Engine Wiring. Chevrolet Corsica 1996

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1996 🢒 Corsica 🢒 Engine 🢒 Engine Electrical 🢒 Engine Wiring

Figure 1:

2.2L


(1)	Coolant Temperature Lead
(2)	TCC Switch Connection
(3)	Negative Battery Cable
(4)	Engine Harness Ground Leads
(5)	Transmission Mounting Stud
(6)	Low Oil Level Lead
(7)	Positive Battery Cable
(8)	Oxygen Sensor
(9)	Coolant Fan Lead

Figure 2:

2.2L


(1)	Oil Pressure Switch
(2)	VSS
(3)	Back-up Lamp Switch
(4)	Transmission Mount Bracket
(5)	Engine Wiring Harness

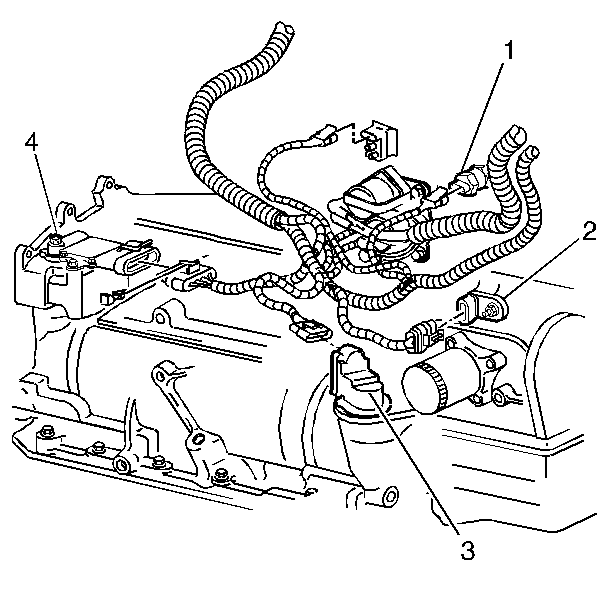

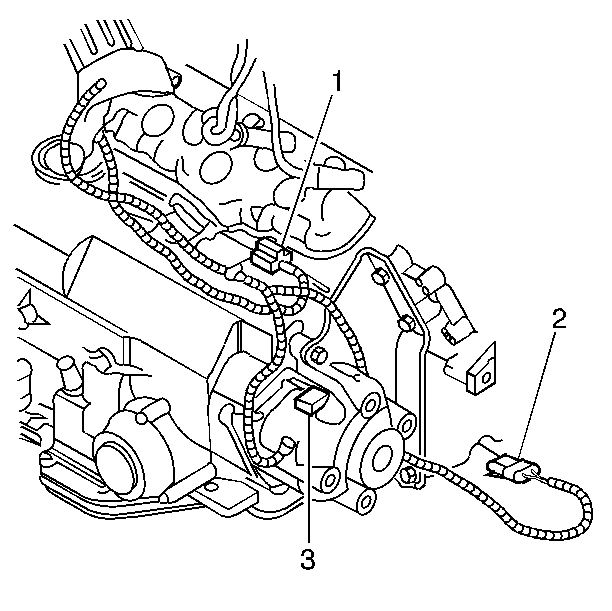

Figure 3:

2.2L


(1)	Canister Purge
(2)	Oil Pressure Switch
(3)	VSS
(4)	Back-up Lamp Switch

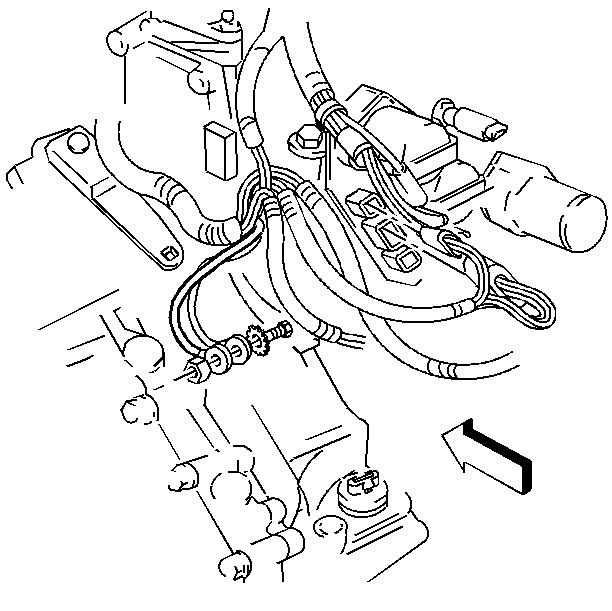

Figure 4:

2.2L

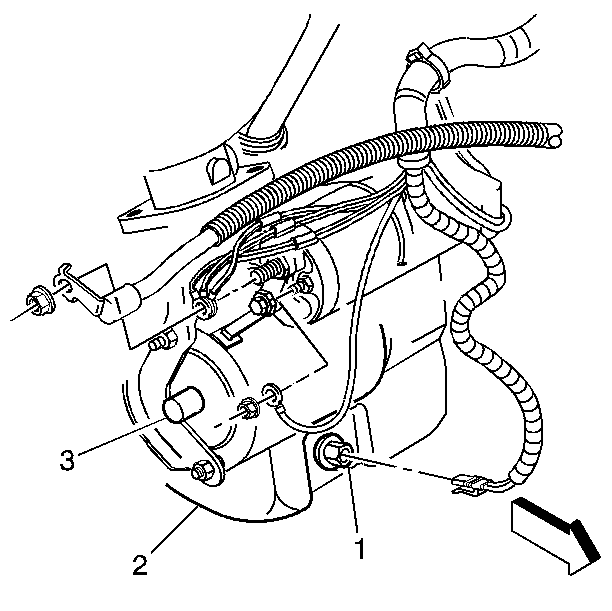

Figure 5:

Low Oil Level Sensor Wiring (2.2L)


(1)	Low Oil Level Sensor
(2)	Oil Pan
(3)	Starter Motor

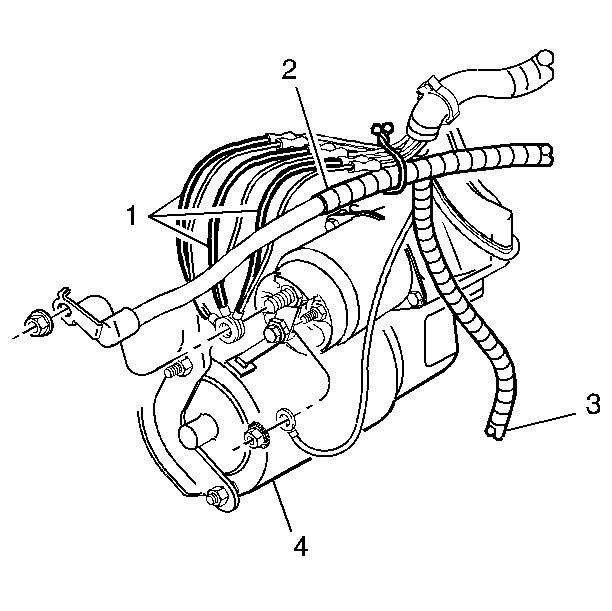

Figure 6:

Starter Motor Wiring (2.2L)


(1)	Fusible Links
(2)	Positive Battery Cable
(3)	Low Oil Level Sensor Lead
(4)	Starter Motor

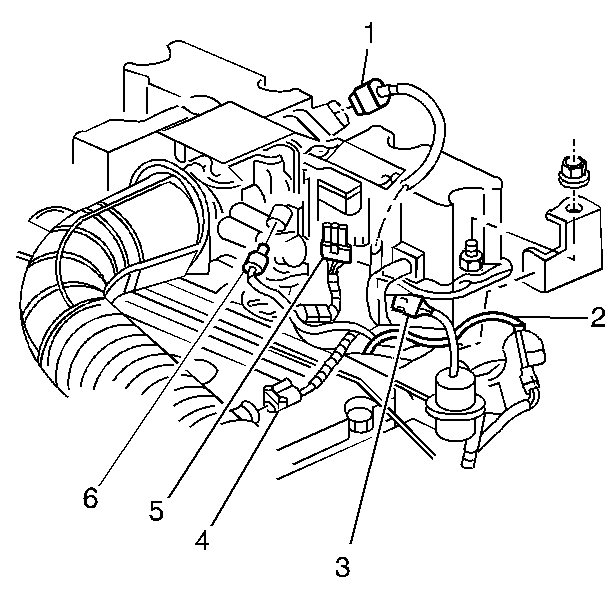

Figure 7:

TBI Wiring (2.2L)


(1)	IAC Motor Connection
(2)	Injector Harness Lead
(3)	EGR Solenoid Connection
(4)	MAT Sensor Connection
(5)	MAP Sensor Connection
(6)	TPS Sensor Connection

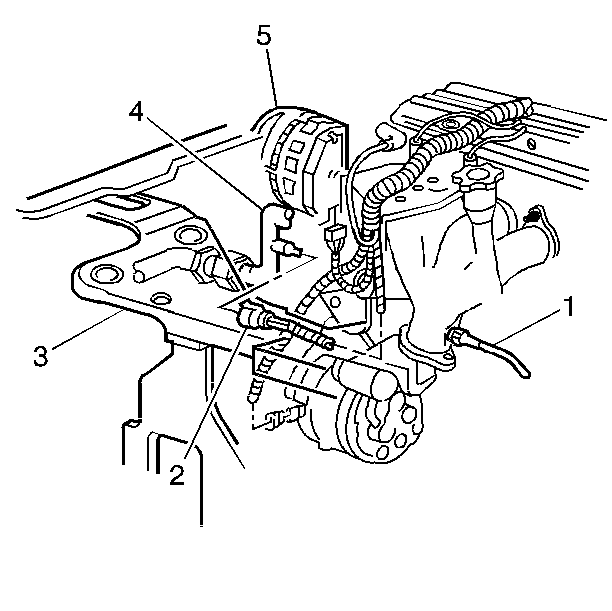

Figure 8:

A/C Compressor Wiring (2.2L)


(1)	Oxygen Sensor
(2)	A/C Transducer
(3)	Radiator Support
(4)	A/C Pipe
(5)	Generator

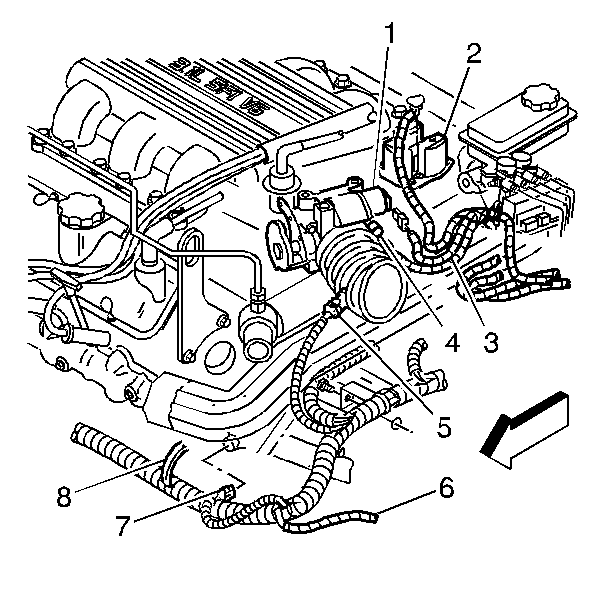

Figure 9:

3100


(1)	IAC Sensor
(2)	EGR Solenoid
(3)	EGR Solenoid Lead
(4)	TPS Connector
(5)	MAT Sensor
(6)	ABS Wheel Sensor Lead
(7)	TCC Connector
(8)	Coolant Fan Lead

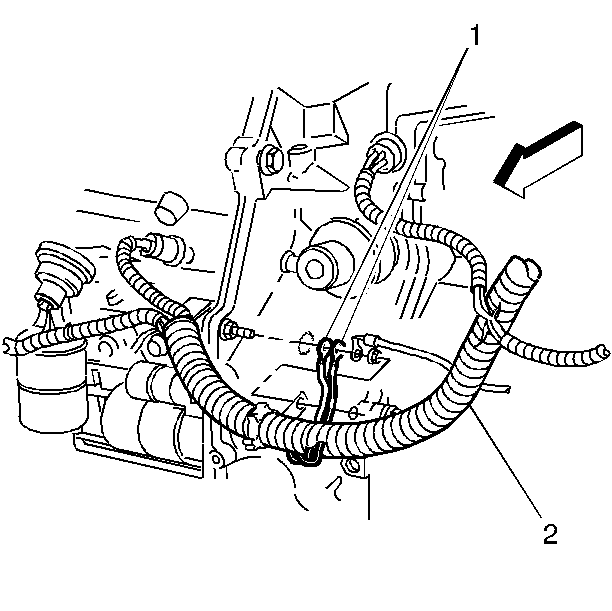

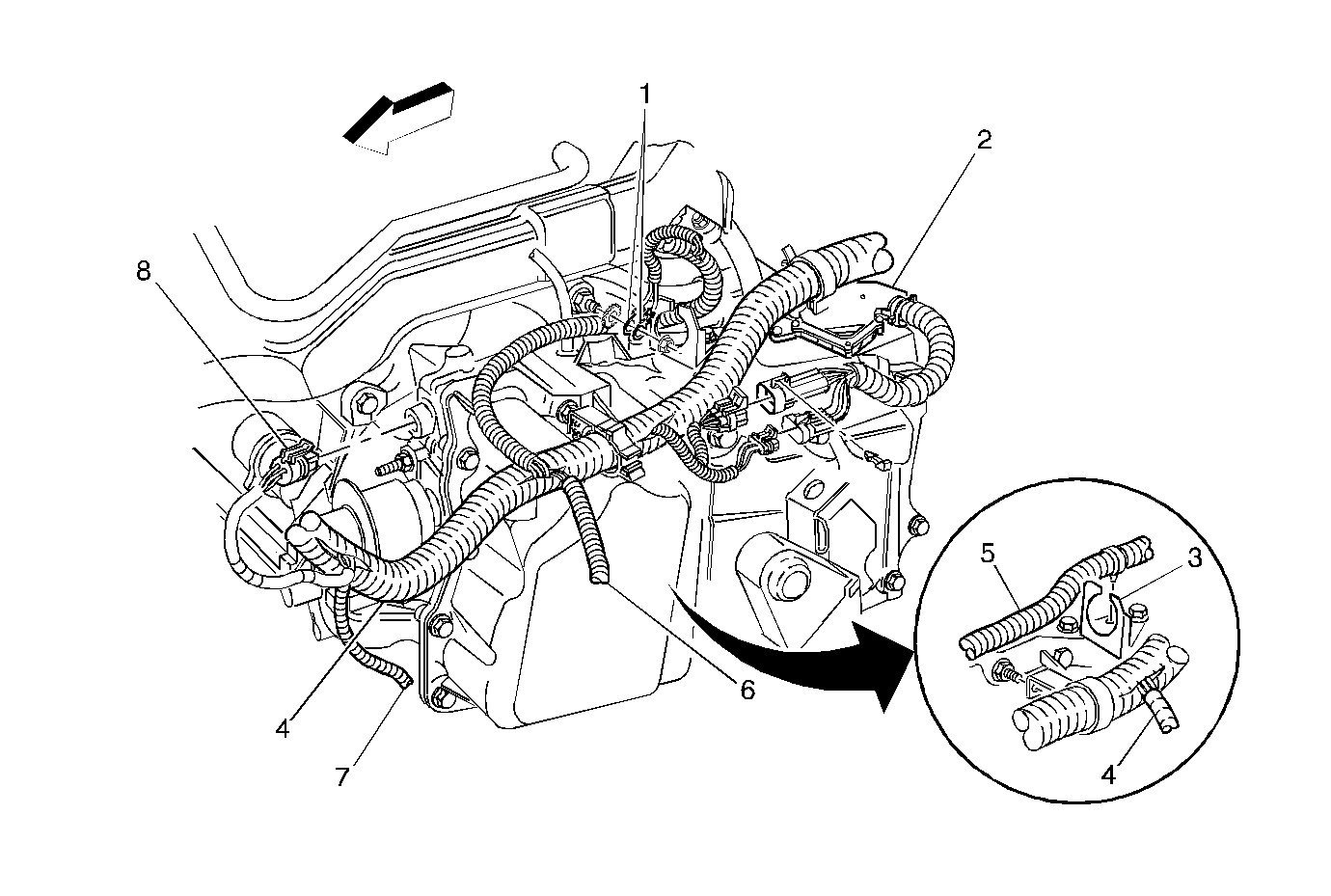

Figure 10:

3100


(1)	Engine Wiring Harness Ground Leads
(2)	Engine Wiring Harness

Figure 11:

3100


(1)	Ground Leads
(2)	Neutral Start Switch
(3)	Transmission Shift Cable Bracket
(4)	Engine Harness
(5)	Engine Harness Lead to Rear
(6)	MAT Sensor Lead
(7)	Front Left ABS Lead
(8)	TCC Connector

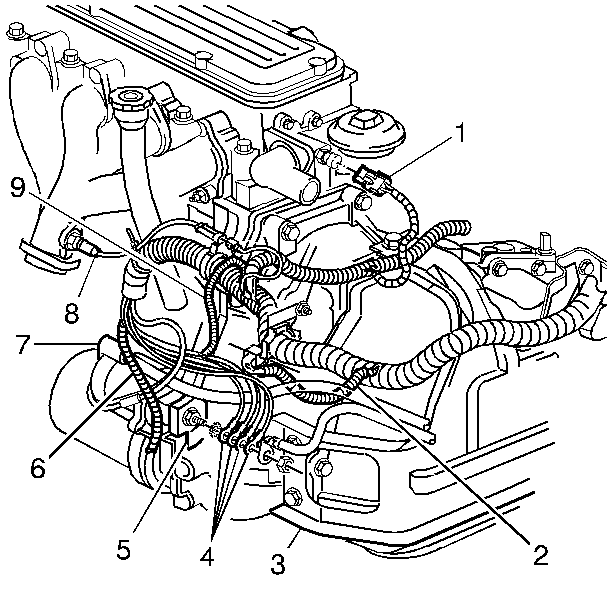

Figure 12:

Starter Harness Routing (L82)


(1)	Engine Wiring Harness
(2)	Oil Pressure Sensor
(3)	Starter Motor Assembly
(4)	Detonation Sensor
(5)	Oil Pan
(6)	A/C Compressor Clutch Connection
(7)	A/C Compressor
(8)	Water Pump
(9)	Crank Sensor Inter Connection

Figure 13:

3100


(1)	Crankshaft Sensor
(2)	Low Oil Level Sensor Lead
(3)	Vehicle Speed Sensor

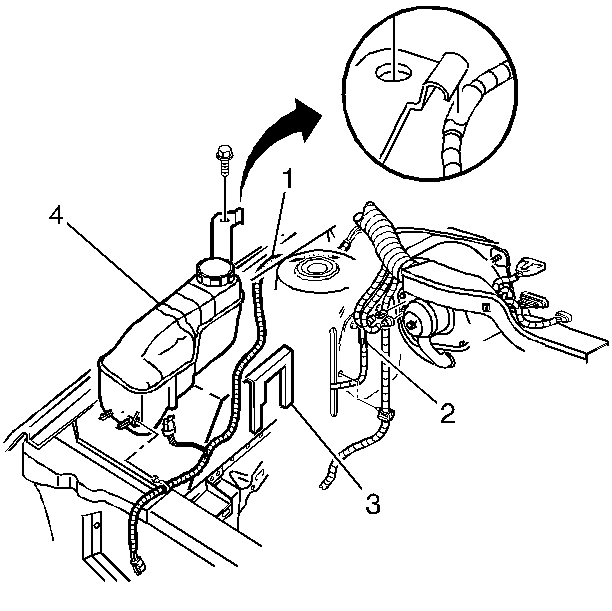

Figure 14:

3100


(1)	Engine Wiring Harness
(2)	SIR Lead
(3)	Body Bracket
(4)	Radiator Overflow Bottle

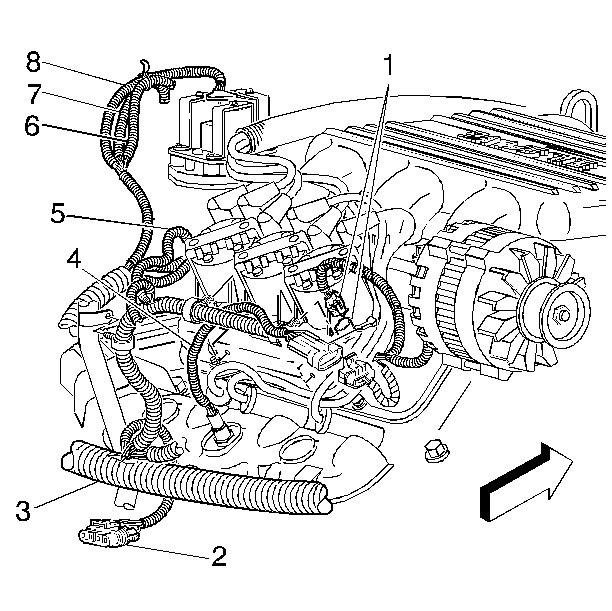

Figure 15:

3100


(1)	Right Coil Connection
(2)	Blower Motor Resistor Connector
(3)	Engine Wiring Harness
(4)	Oxygen Sensor
(5)	Left Coil Connection
(6)	TPS Lead
(7)	IAC Lead
(8)	EGR Solenoid Lead

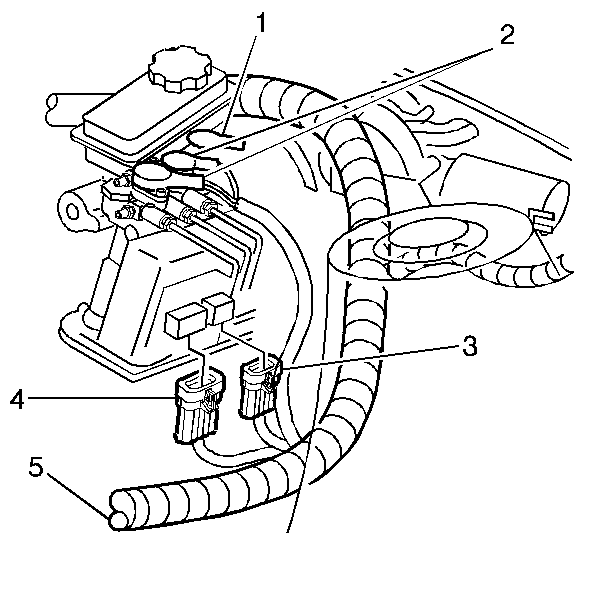

Figure 16:

Master Cylinder Wiring


(1)	Brake Pressure Lead
(2)	ABS Solenoid Lead
(3)	3-way ABS Motor Pack Lead
(4)	6-way ABS Motor Pack Lead
(5)	Engine Harness

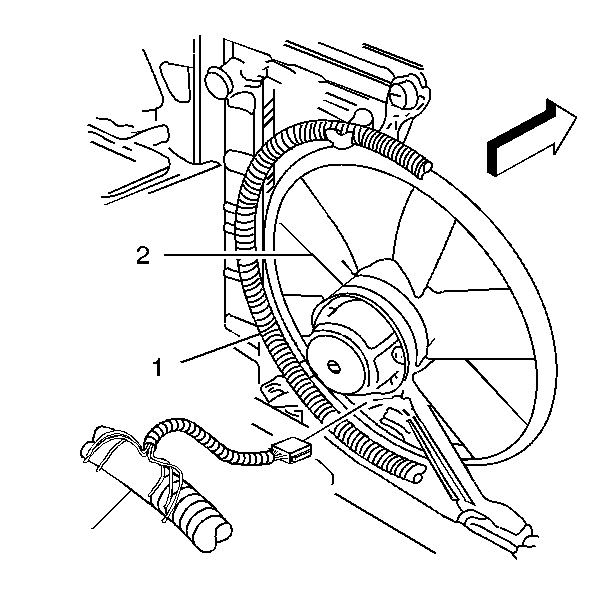

Figure 17:

Cooling Fan


(1)	A/C Line (L82 only)
(2)	Cooling Fan

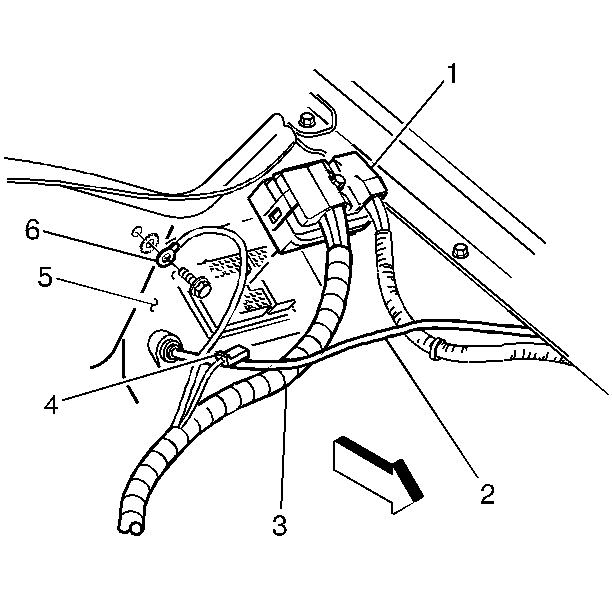

Figure 18:

Bulkhead Connector


(1)	Forward Lamp Harness Bulkhead Connector
(2)	Hood Release Cable
(3)	Engine Harness
(4)	Fuel Pump Primer Lead
(5)	F.O.D. (Left Side)
(6)	Ground Lead

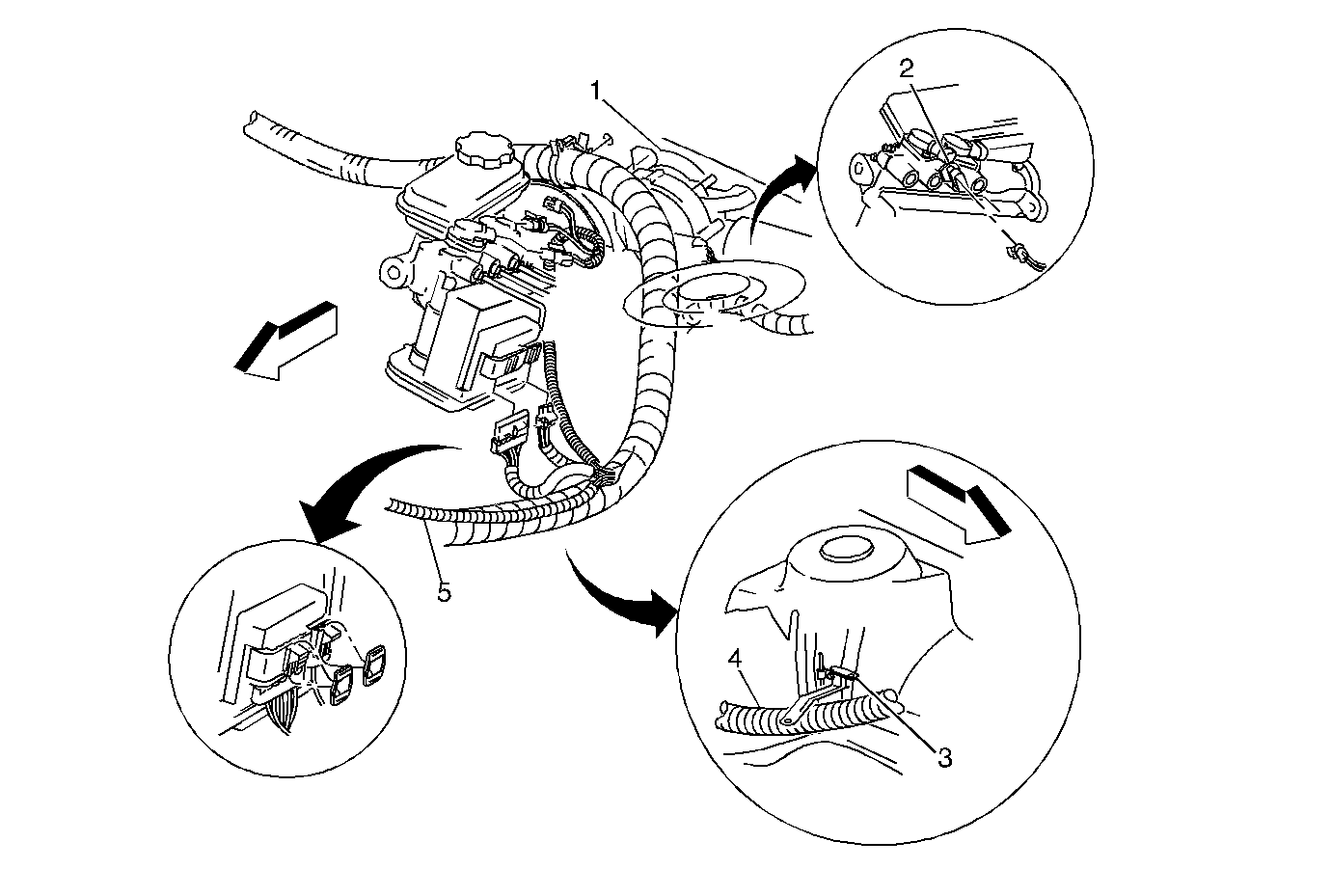

Figure 19:

ABS Motor Pack Wiring


(1)	Wiper Motor
(2)	Fluid Level Sensor
(3)	Air Cleaner Support
(4)	Engine Harness
(5)	EGR/IAC/TPS Branch (L82)
