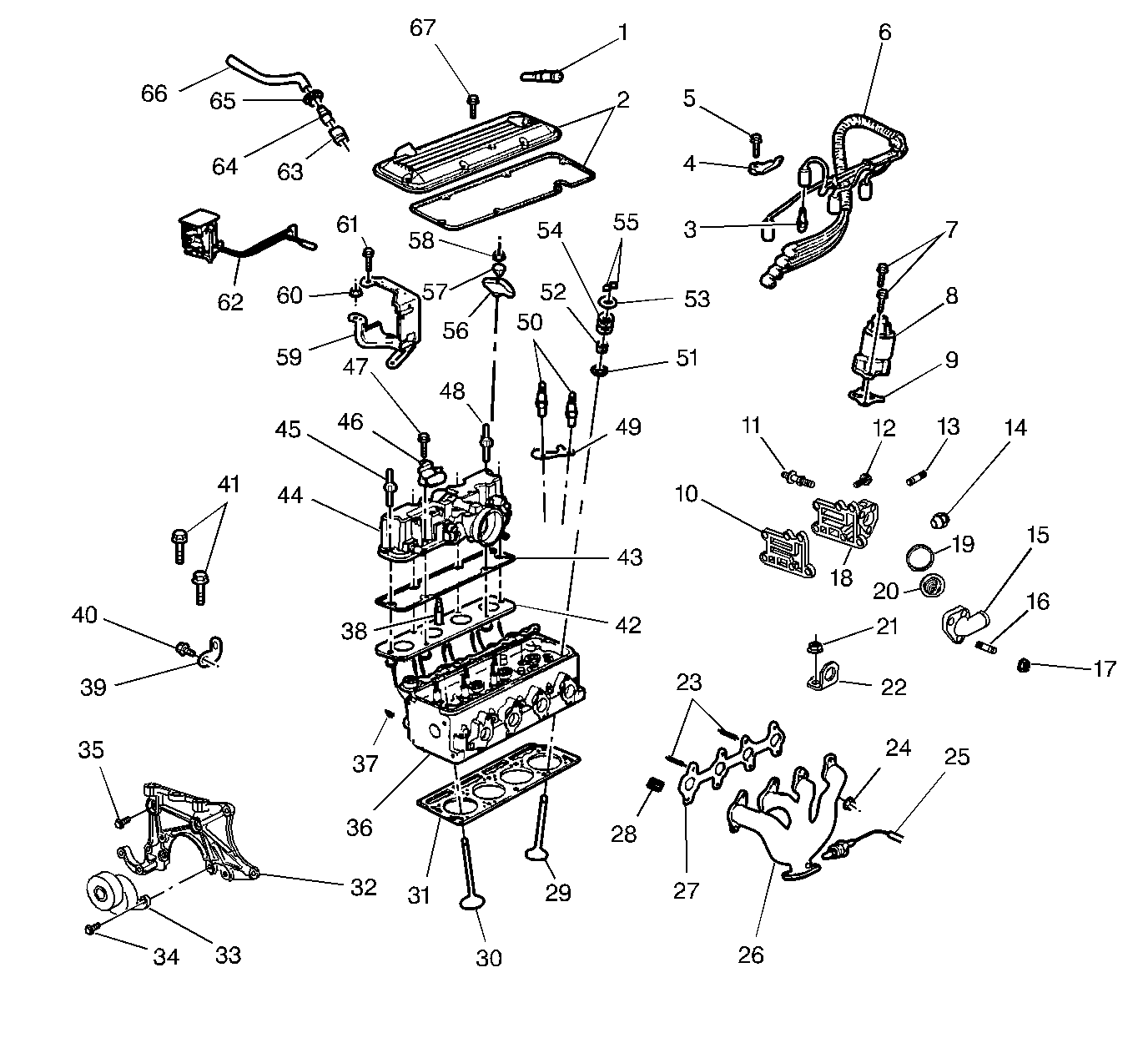

| (1) | Crankcase Vent
Tube |
| (2) | Valve Rocker Arm Cover and Gasket |
| (3) | Spark Plug |
| (4) | Spark Plug Wire Support |
| (5) | Spark Plug Wire Support Bolt |
| (6) | Spark Plug Wire Harness |
| (7) | EGR
Valve Bolt |
| (8) | EGR Valve |
| (9) | EGR Valve Gasket |
| (10) | EGR Adapter Gasket |
| (11) | Coolant Pipe Adapter |
| (12) | EGR Valve Adapter Bolt |
| (13) | Plug |
| (14) | Engine Coolant Temperature Sensor |
| (15) | Coolant
Outlet |
| (16) | Outlet Stud |
| (17) | Outlet Nut |
| (18) | Coolant Outlet Adapter |
| (19) | Thermostat Seal |
| (20) | Thermostat |
| (21) | Rear Engine Lift Bracket Nut |
| (22) | Rear Engine Lift Bracket |
| (23) | Exhaust Manifold
Stud |
| (24) | Exhaust Manifold Nut |
| (25) | Oxygen Sensor |
| (26) | Exhaust Manifold |
| (27) | Exhaust Manifold Gasket |
| (28) | Coolant Jacket Plug |
| (29) | Exhaust
Valve |
| (30) | Intake Valve |
| (31) | Cylinder Head Gasket |
| (32) | Drive Belt Tensioner Bracket |
| (33) | Drive Belt Tensioner |
| (34) | Drive Belt Tensioner Bolt |
| (35) | Drive Belt Tensioner
Bracket Bolt |
| (36) | Cylinder Head |
| (37) | Coolant Jacket Plug |
| (38) | EGR Valve Injector |
| (39) | Front Engine Lift Bracket |
| (40) | Front Engine Lift Bracket
Bolt |
| (41) | Cylinder Head Bolt |
| (42) | Lower Intake Manifold |
| (43) | Upper Intake Manifold Gasket |
| (44) | Upper Intake Manifold |
| (45) | Upper Intake Manifold Stud |
| (46) | EGR
Valve Solenoid |
| (47) | Upper Intake Manifold Bolt |
| (48) | Upper Intake Manifold Stud |
| (49) | Push Rod Guide |
| (50) | Valve Rocker Arm
Stud |
| (51) | Valve Spring Seat |
| (52) | Valve Stem Oil Seal |
| (53) | Spring Valve Retainer |
| (54) | Valve Spring |
| (55) | Valve Stem Key |
| (56) | Valve Rocker Arm |
| (57) | Valve Rocker Arm Ball |
| (58) | Valve Rocker Arm
Nut |
| (59) | Accelerator Bracket Cable |
| (60) | Accelerator Cable Bracket Nut |
| (61) | Accelerator Cable Bracket Bolt |
| (62) | Vacuum Harness |
| (63) | Crankcase
Vent Valve Grommet |
| (64) | Crankcase Vent Valve |
| (65) | Crankcase Vent ValveRetainer |
| (66) | Crankcase Vent Valve Hose |
| (67) | Bolt |
