Engine Controls Schematics. Chevrolet Corvette 1996

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1996 🢒 Corvette 🢒 Engine 🢒 Engine Controls - 4.3L (Caprice Only) and 5.7L 🢒 Engine Controls Schematics

Figure 1:	Power, Ground and MIL Engine Controls Components Powertrain Control Module (PCM) Data Link Connector - DLC OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 2:	Data Link Connector - DLC Engine Controls Components Powertrain Control Module (PCM) Distributor Ignition System Power, Ground and MIL OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 3:	Distributor Ignition System Engine Controls Components Distributor Ignition (DI) System Fuel Pump Data Link Connector - DLC OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 4:	Fuel Pump Engine Controls Components Fuel Supply Components Injectors Distributor Ignition System OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 5:	Injectors Engine Controls Components Fuel Supply Components Engine Data Sensors Fuel Pump OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 6:	Engine Data Sensors Engine Controls Components Information Sensors Heated Oxygen Sensors - HO2S Injectors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 7:	Heated Oxygen Sensors - HO2S Engine Controls Components Powertrain Control Module (PCM) Engine Data Sensors Engine Data Sensors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 8:	Engine Data Sensors Engine Controls Components Information Sensors Engine Data Sensors and Controlled Devices Heated Oxygen Sensors - HO2S OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 9:	Engine Data Sensors and Controlled Devices Engine Controls Components Information Sensors AIR and IAC Engine Data Sensors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 10:	AIR and IAC Engine Controls Components Powertrain Control Module (PCM) One to Four Upshift System Engine Data Sensors and Controlled Devices OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 11:	One to Four Upshift System Engine Controls Components Powertrain Control Module (PCM) Transmission Controls AIR and IAC OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

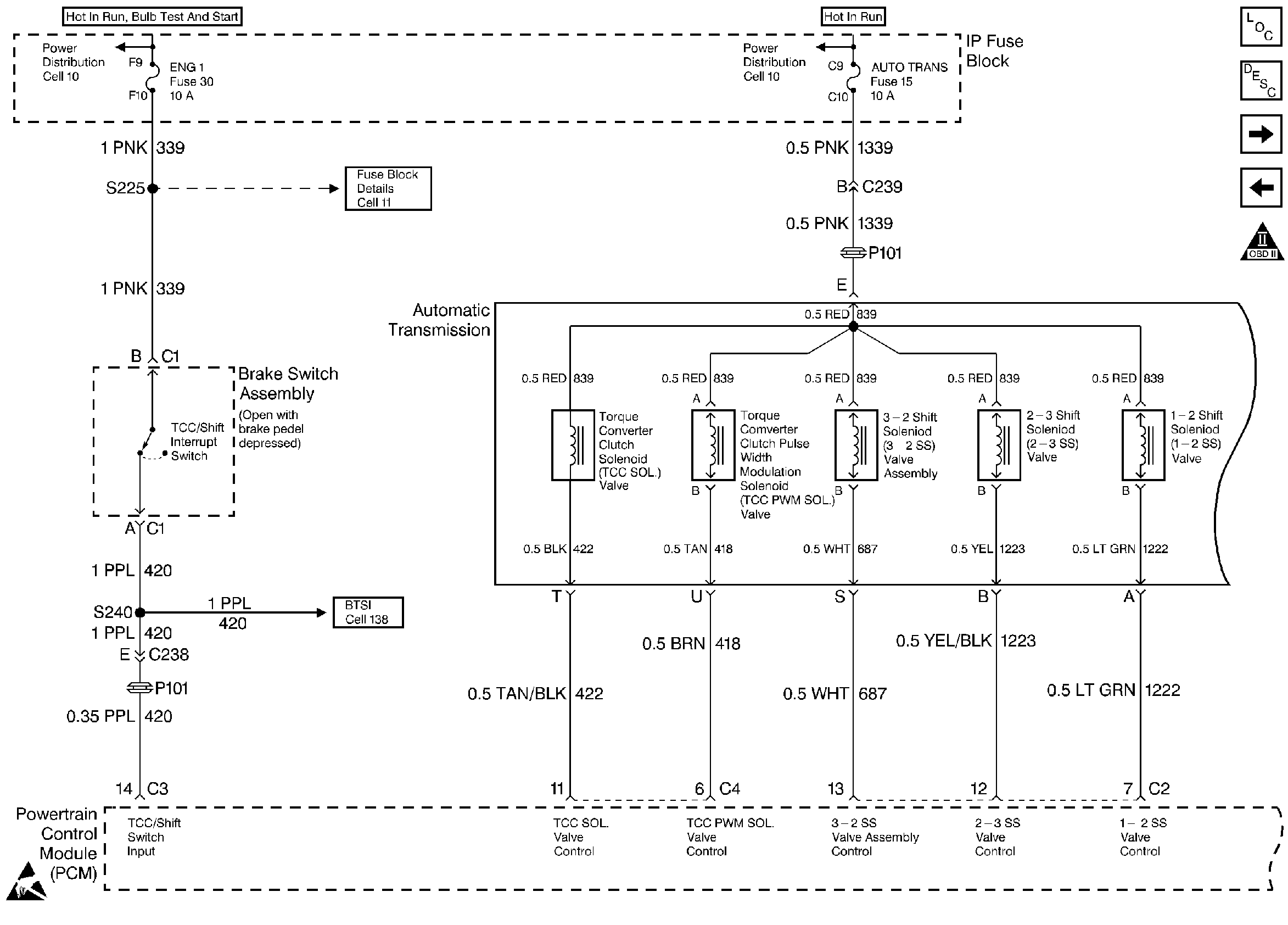

Figure 12:	Transmission Controls Engine Controls Components Powertrain Control Module (PCM) Transmission Controls One to Four Upshift System OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 13:	Transmission Controls Engine Controls Components Powertrain Control Module (PCM) A/C Compressor Clutch Controls - C60 Transmission Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 14:	A/C Compressor Clutch Controls - C60 Engine Controls Components Air Conditioning (A/C) Clutch Circuit A/C Compressor Clutch Controls - C68 Transmission Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 15:	A/C Compressor Clutch Controls - C60 Engine Controls Components Air Conditioning (A/C) Clutch Circuit A/C Compressor Clutch Controls - C68 Transmission Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 16:	A/C Compressor Clutch Controls - C68 Engine Controls Components Air Conditioning (A/C) Clutch Circuit Fan Controls A/C Compressor Clutch Controls - C60 OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 17:	Fan Controls Engine Controls Components Electric Cooling Fan A/C Compressor Clutch Controls - C68 OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
