Suspension Controls Schematics. Chevrolet Corvette 1998

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1998 🢒 Corvette 🢒 Suspension 🢒 Real Time Damping (RTD) 🢒 Suspension Controls Schematics

Suspension Controls Schematics Rear Mounted EBTCM/BPMV

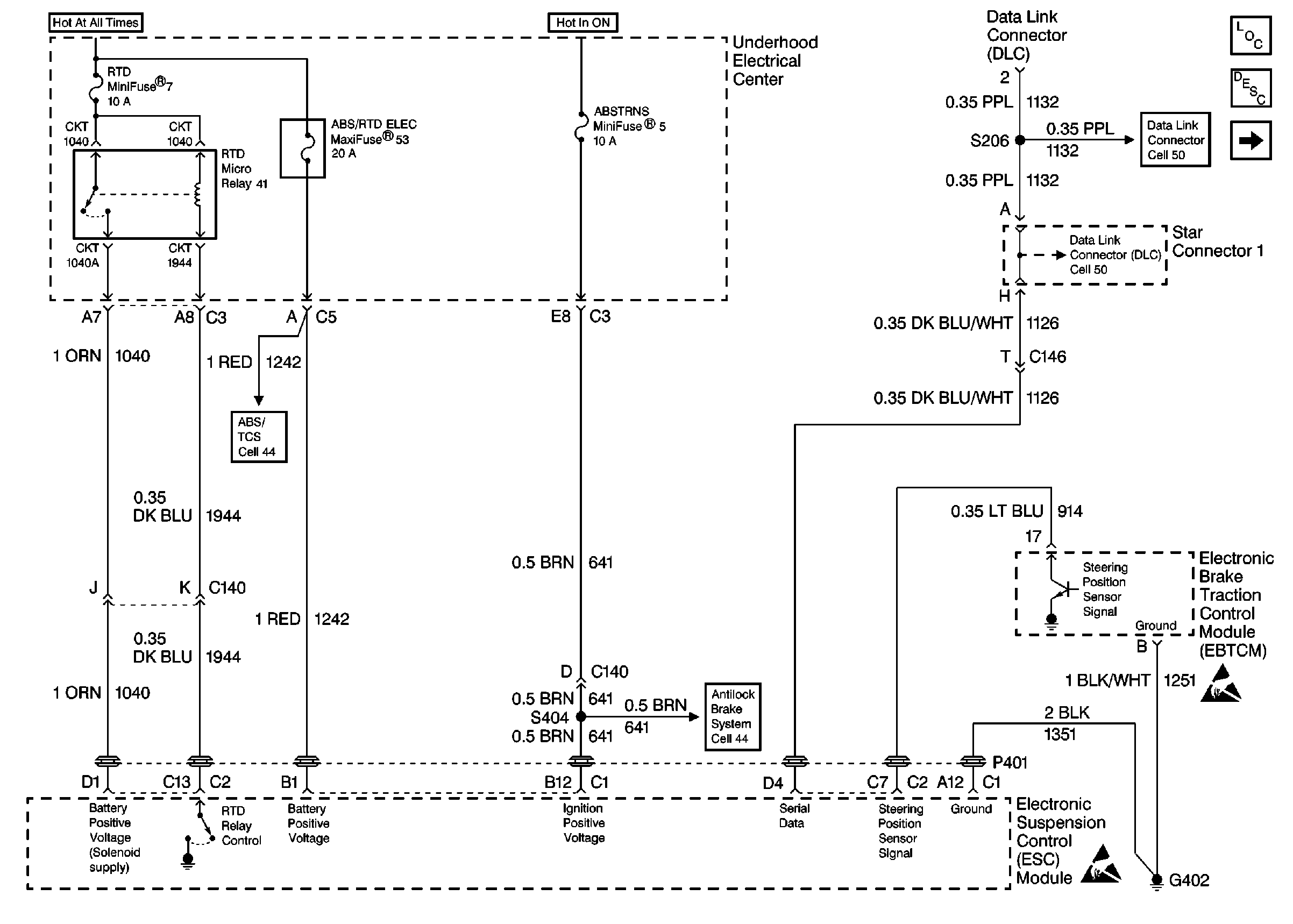

Figure 1:	Cell 43: Power, Ground and DLC

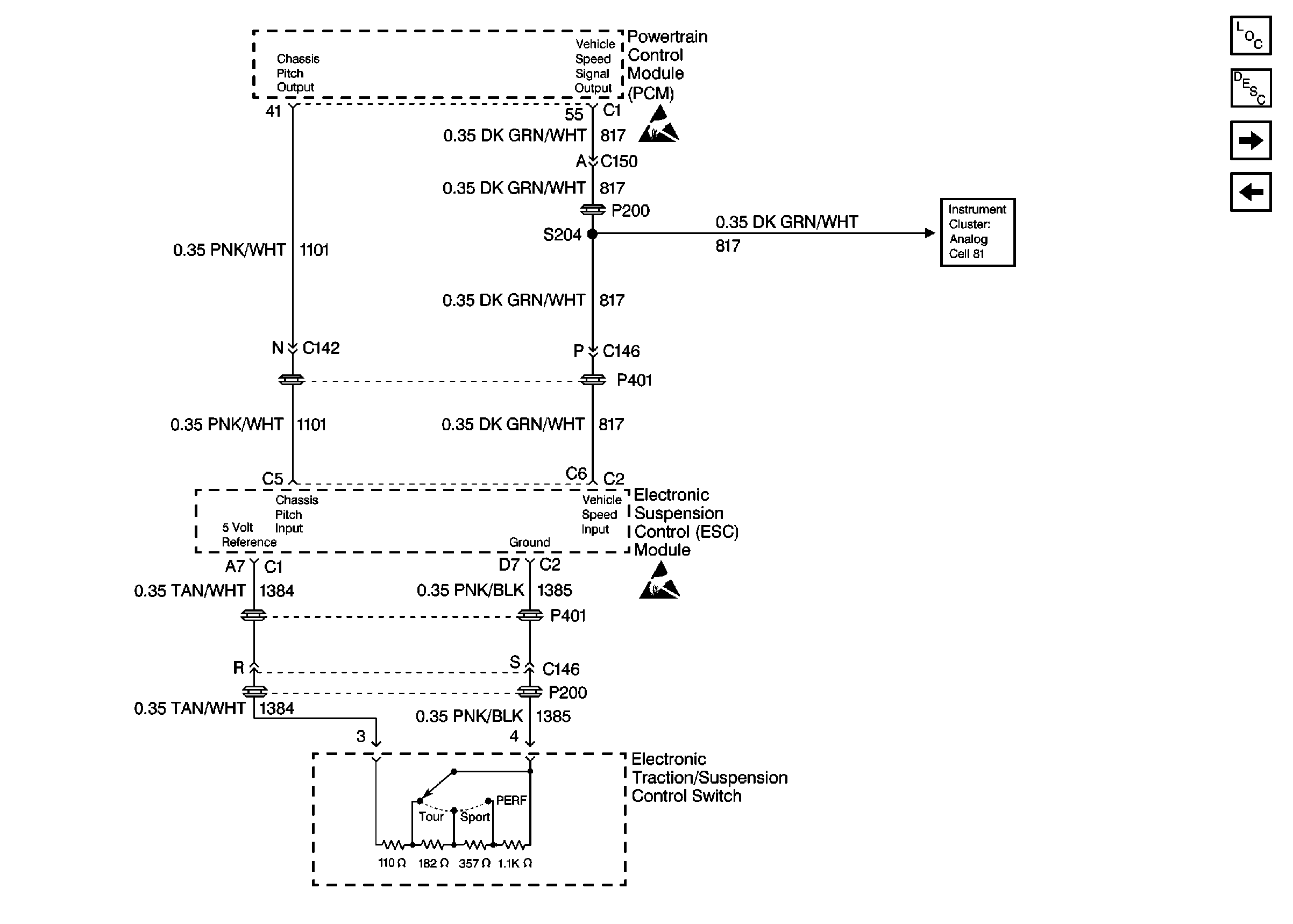

Figure 2:	Cell 43: Suspension Control Switch Input

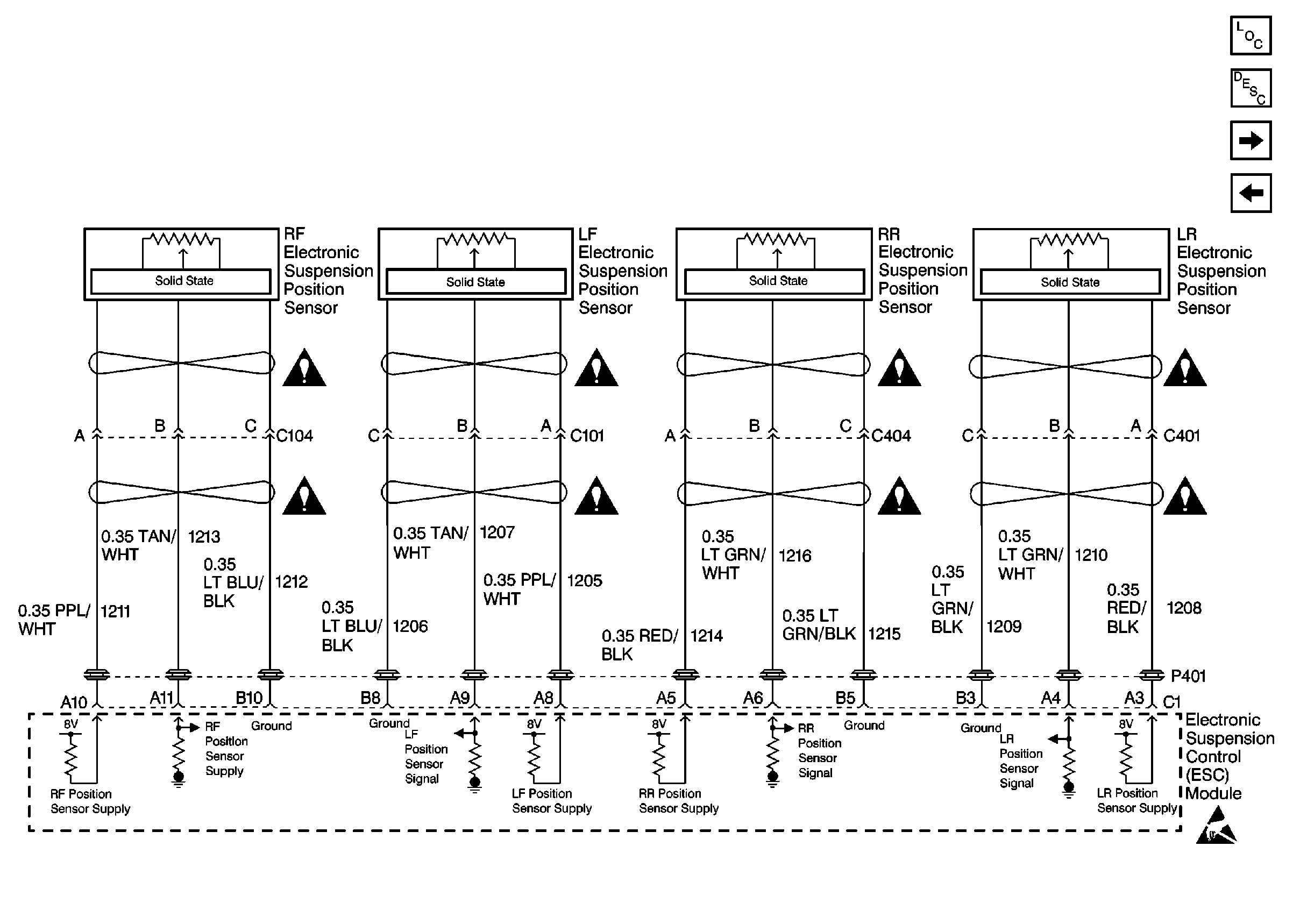

Figure 3:	Cell 43: Sensor Input

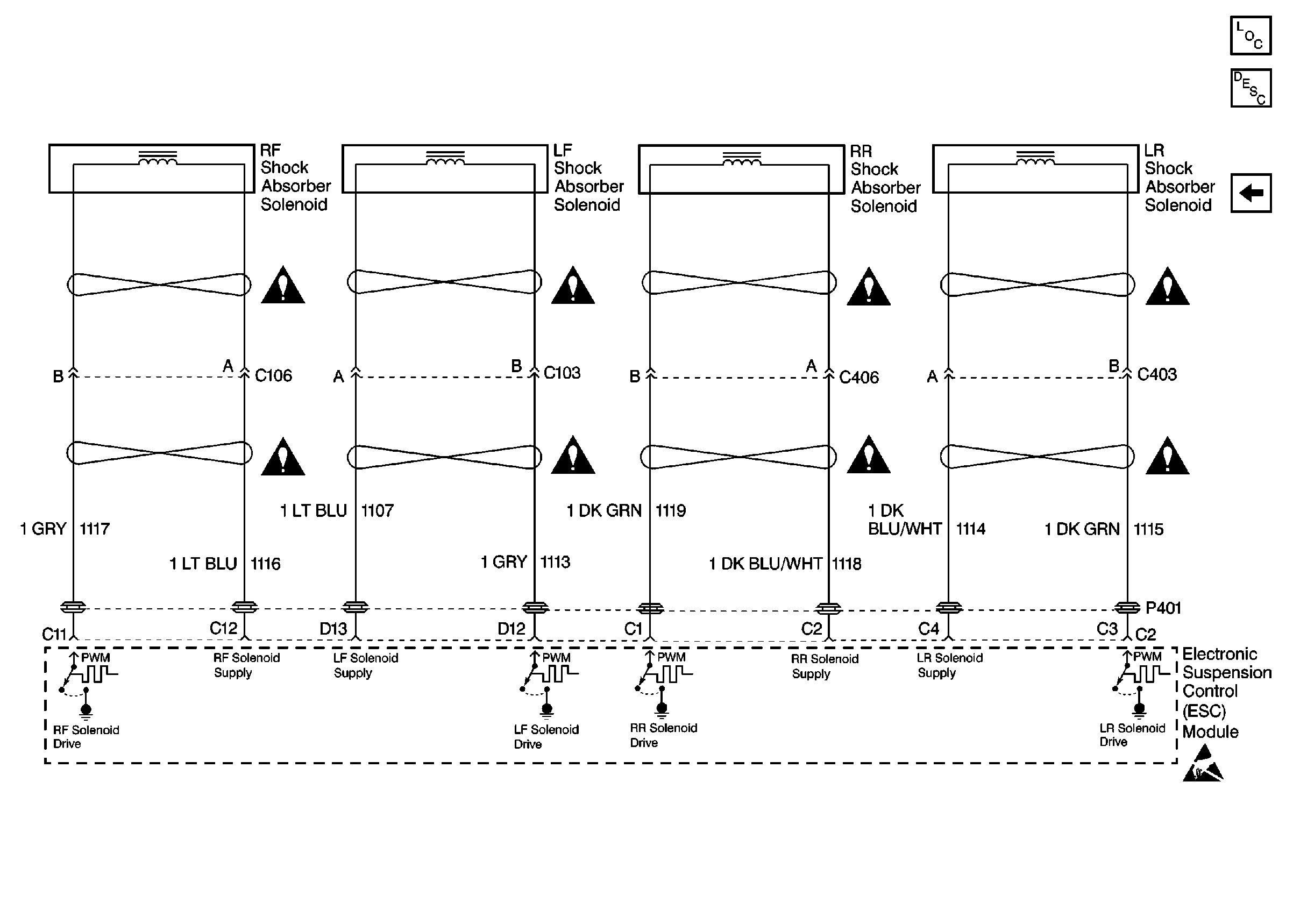

Figure 4:	Cell 43: Solenoid Control System

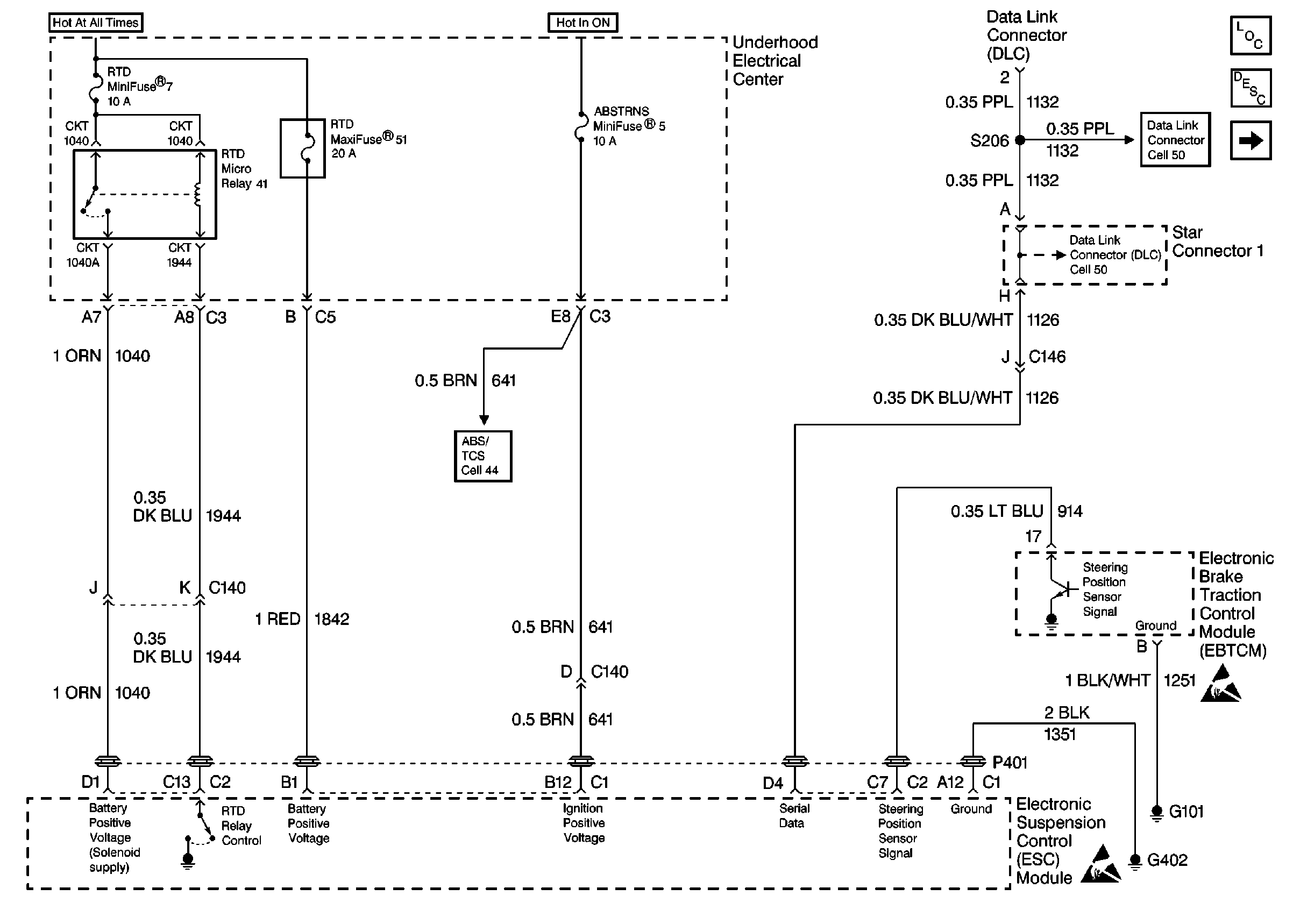

Figure 1:	Cell 43: Power, Ground and DLC

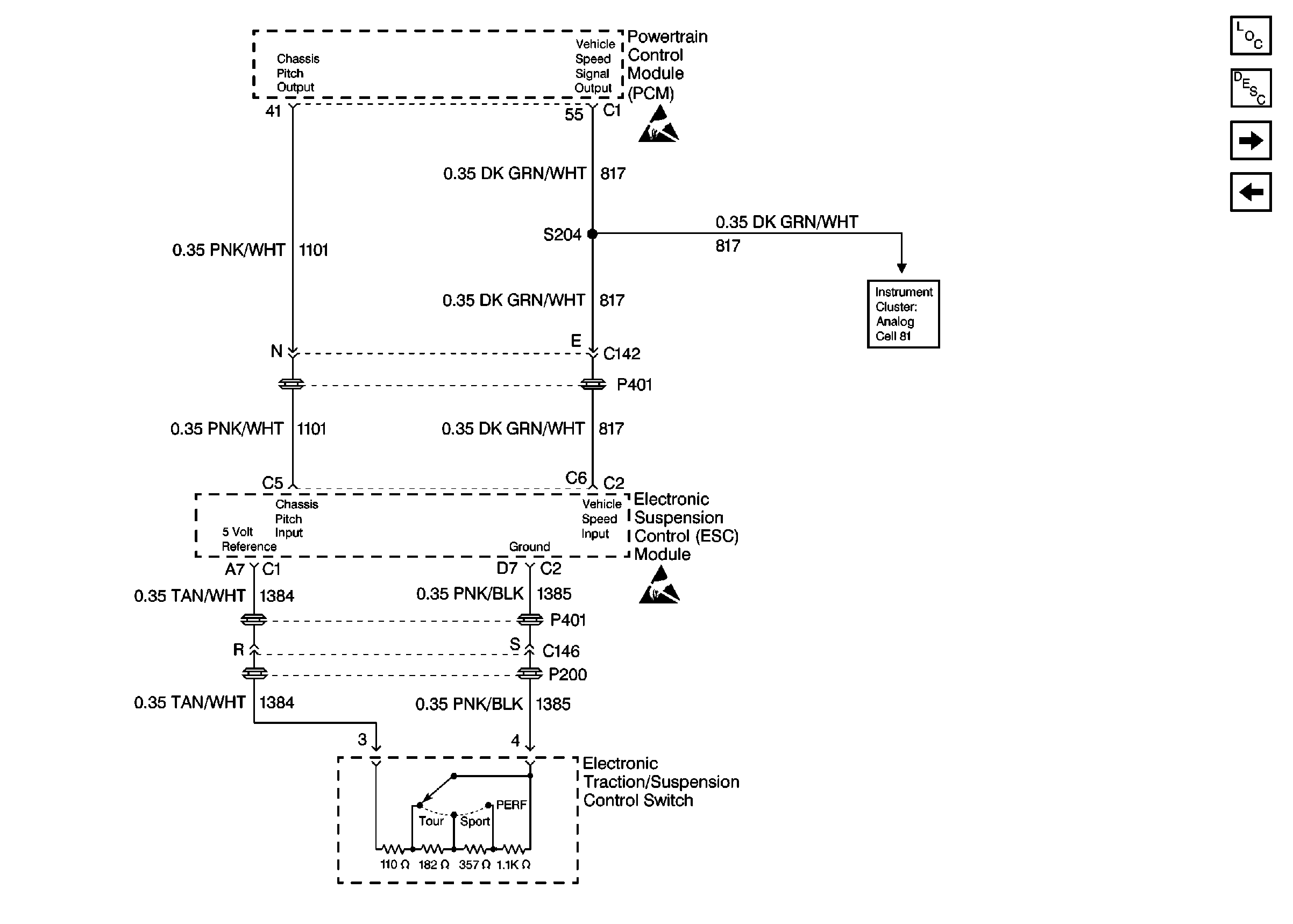

Figure 2:	Cell 43: Suspension Control Switch Input
Figure 3:	Cell 43: Sensor Input
Figure 4:	Cell 43: Solenoid Control System
