ABS/TCS Schematics Front Mounted EBTCM/BPMV

Figure 1:

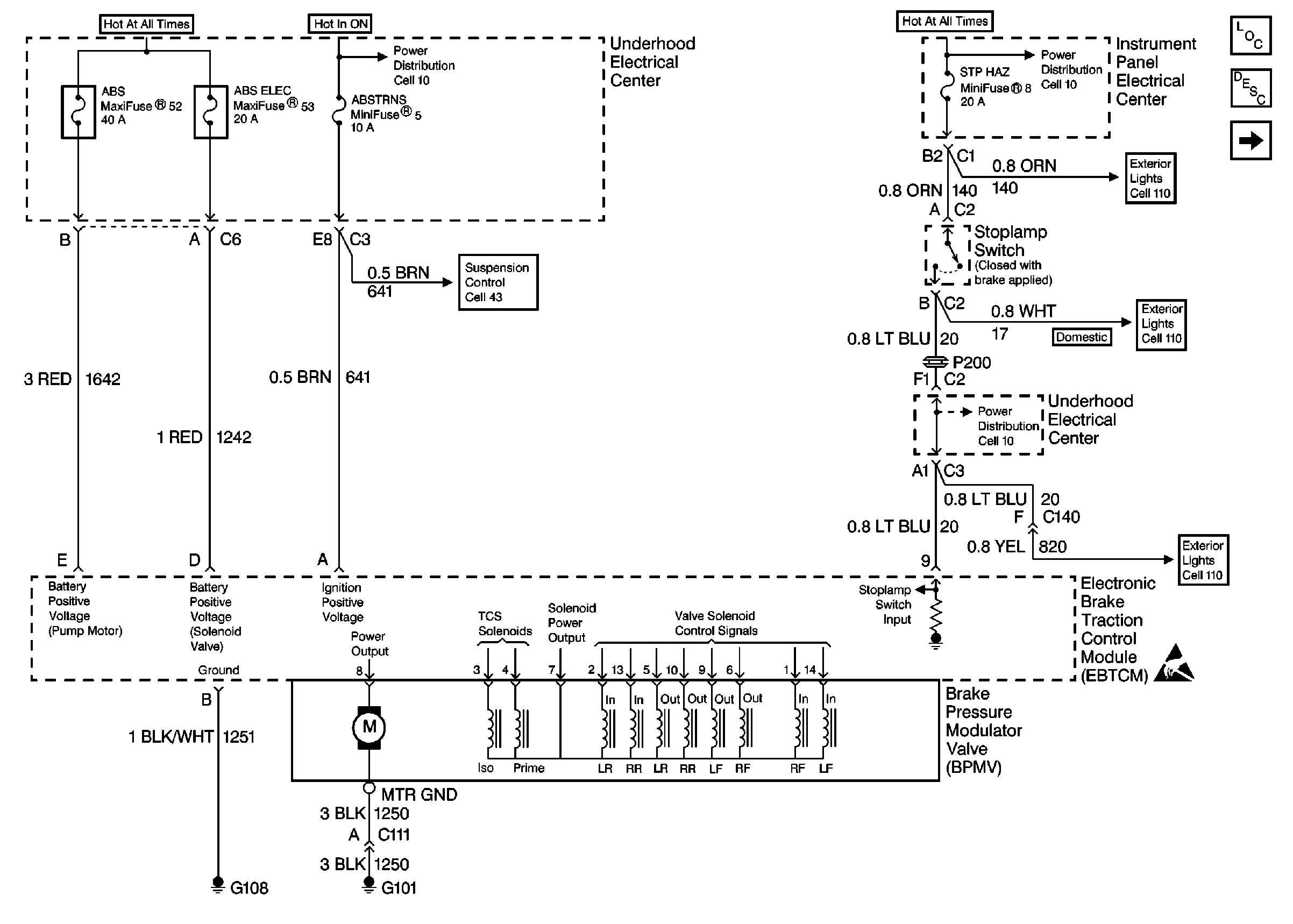

Cell 44: Power and Ground
Object Number: 316590 Size: FS

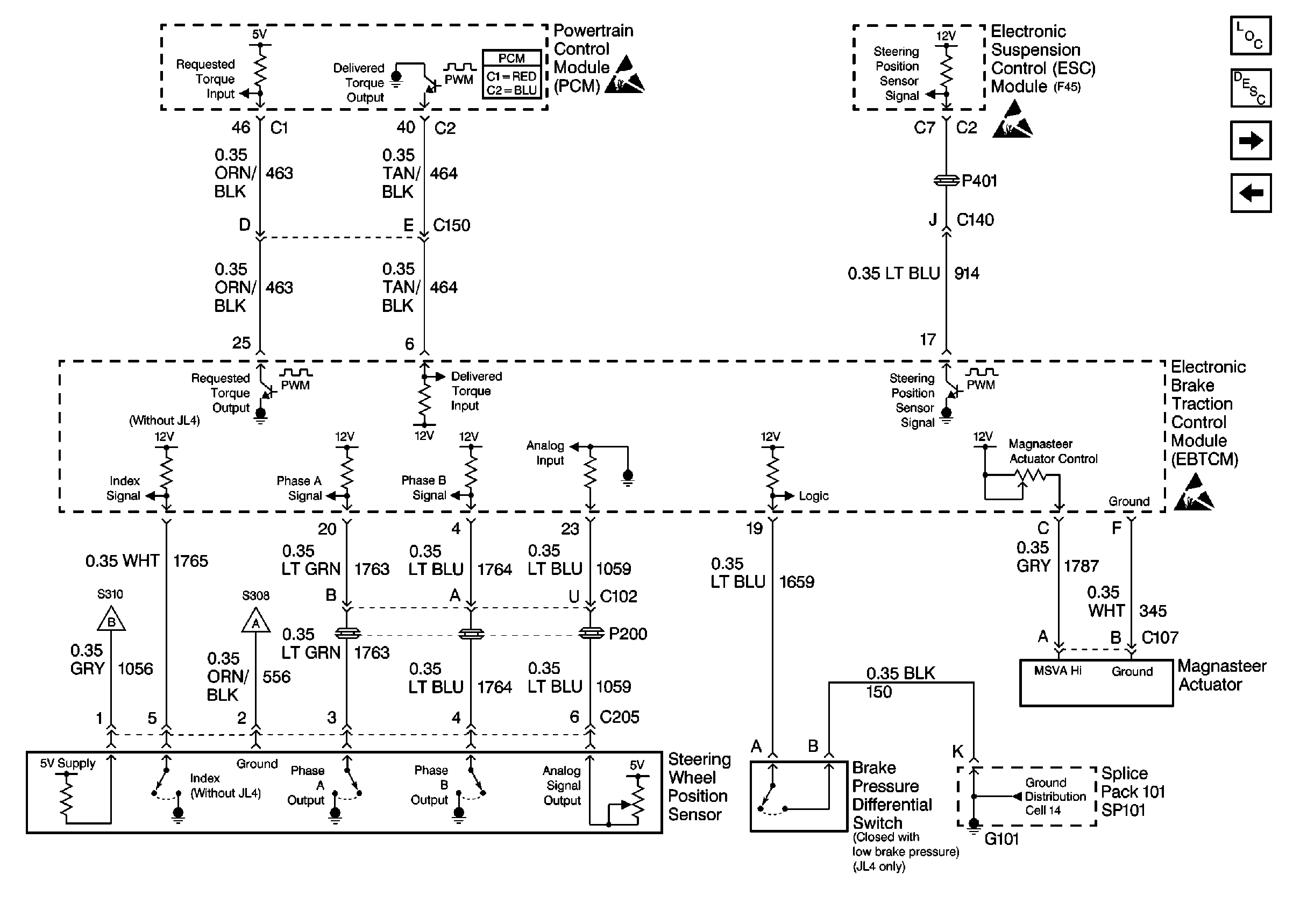

Figure 2:

Cell 44: Magnasteer System
Object Number: 316591 Size: FS

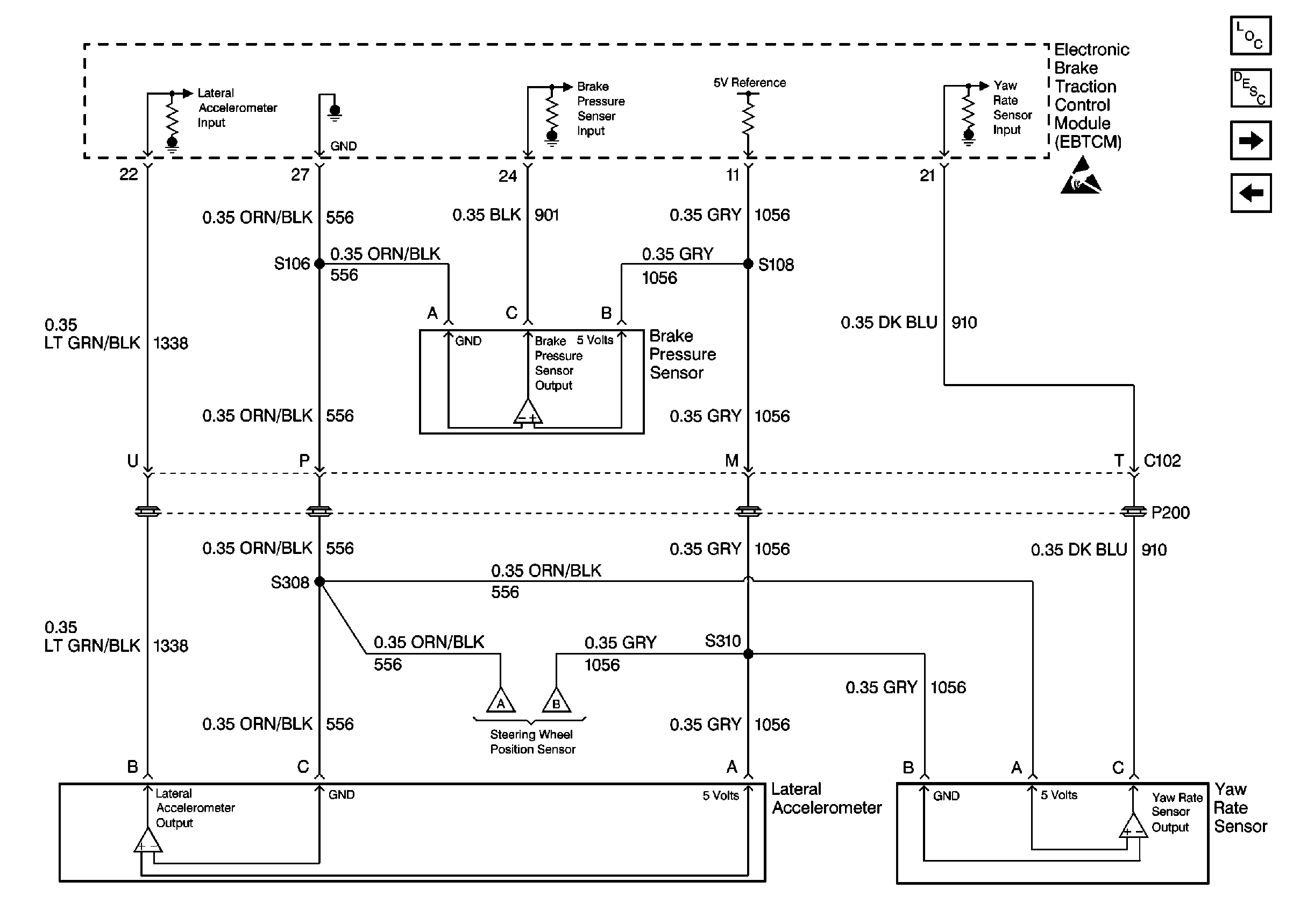

Figure 3:

Cell 44: Miscellaneous Sensor Inputs
Object Number: 316594 Size: FS

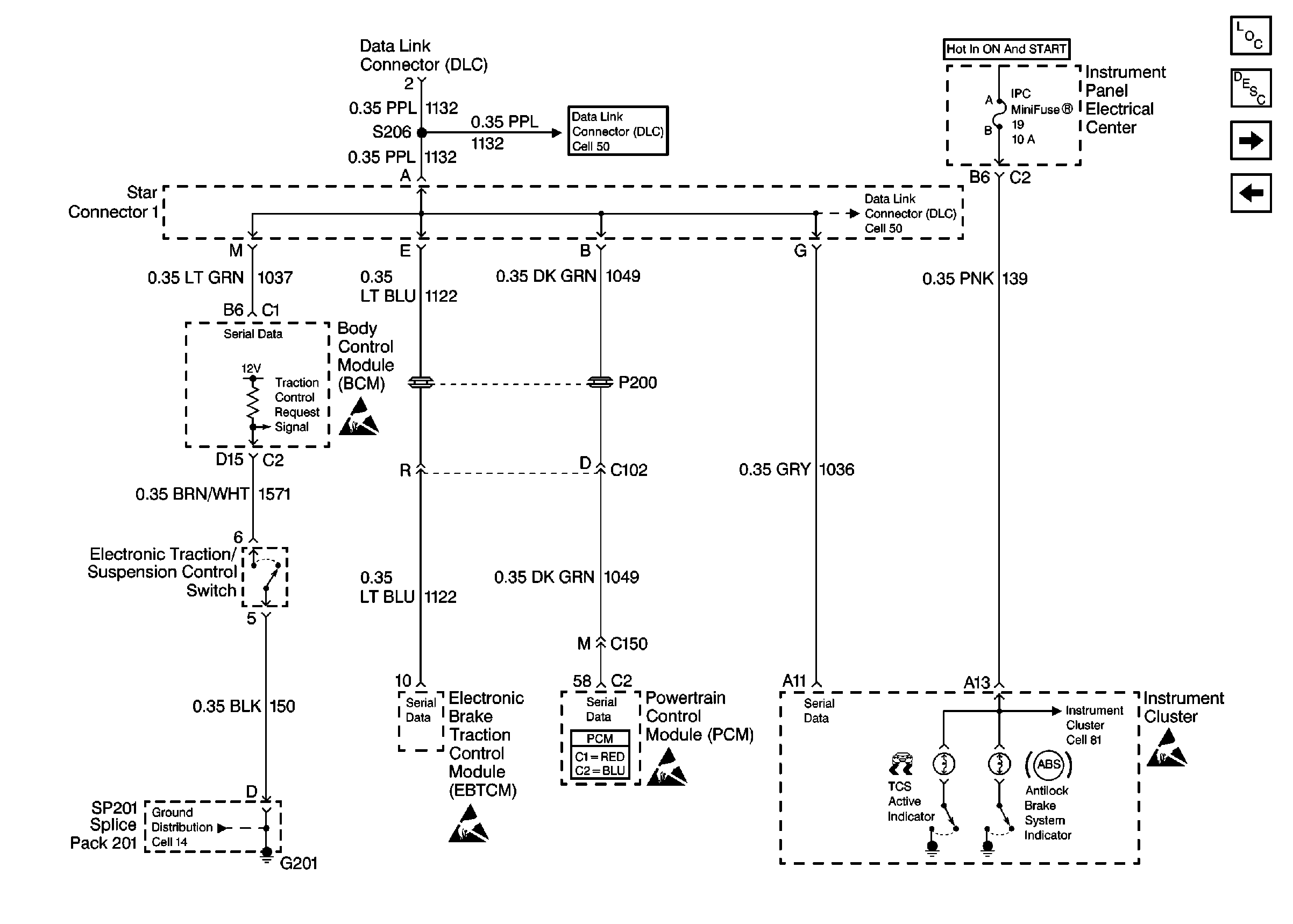

Figure 4:

Cell 44: Data Link Connector (DLC)
Object Number: 316595 Size: FS

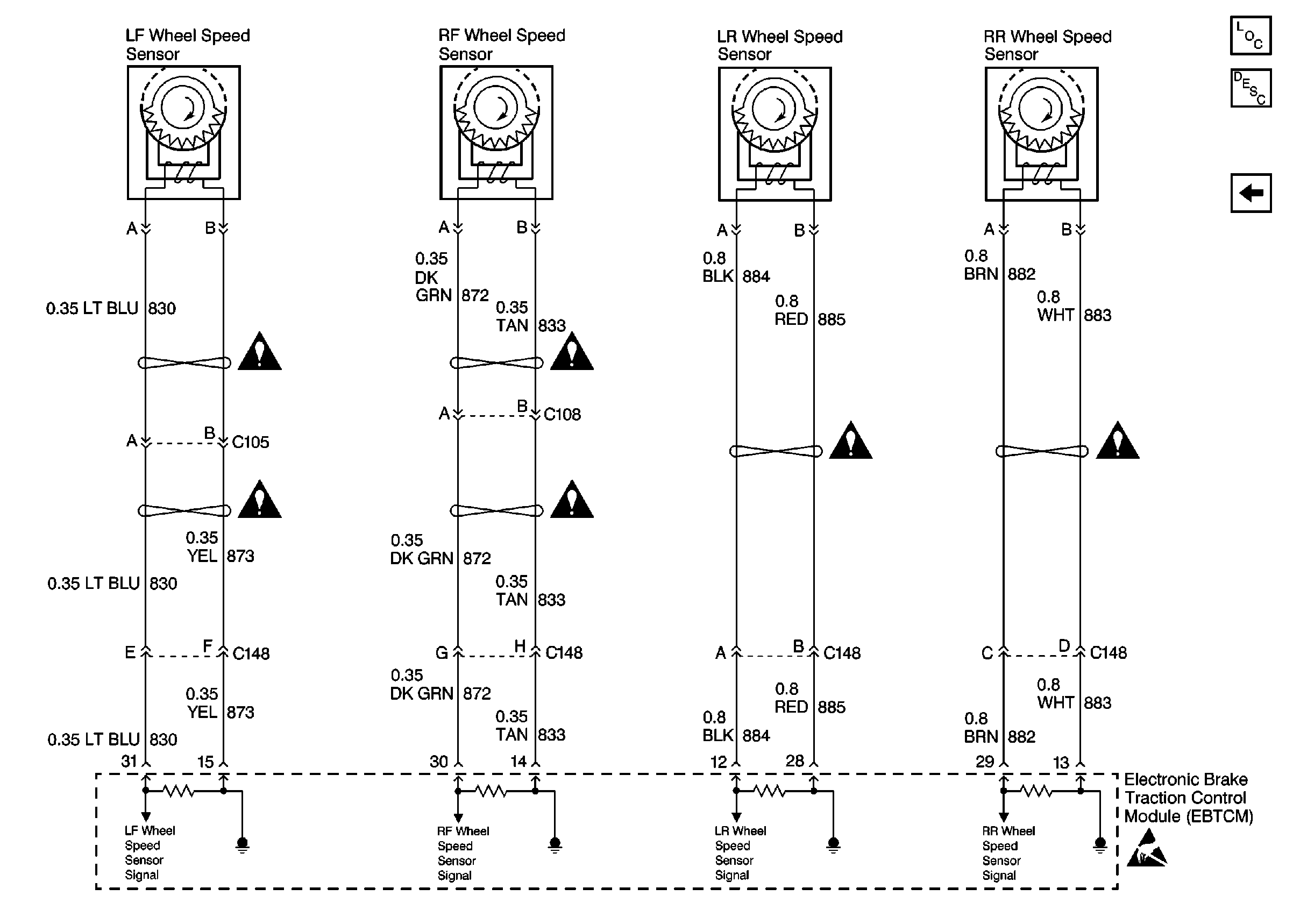

Figure 5:

Cell 44: Wheel Speed Sensors
Object Number: 316597 Size: FS
Master Electrical Component List

ABS/TCS Schematics Rear Mounted EBTCM/BPMV

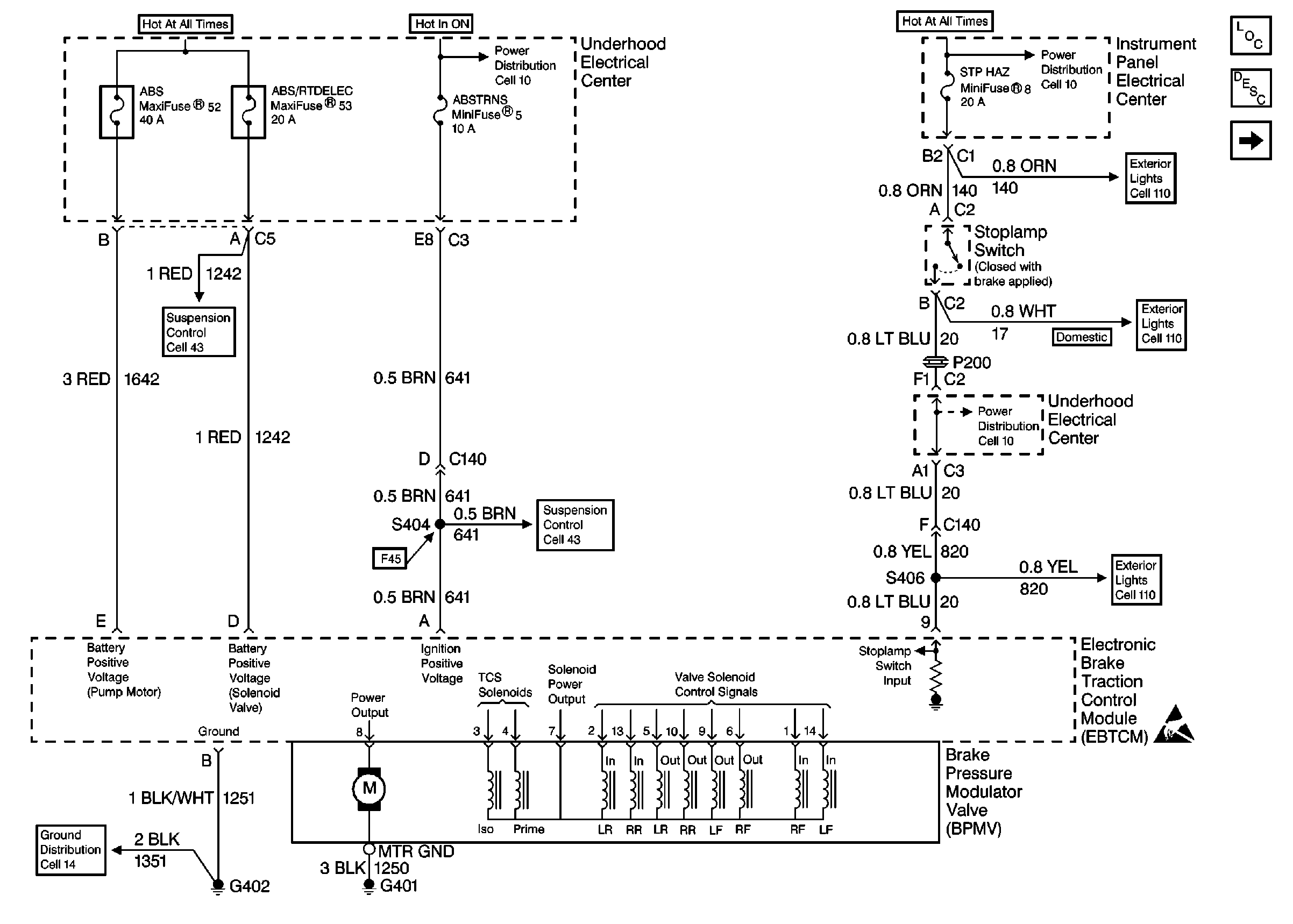

Figure 1:

Cell 44: Power and Ground
Object Number: 316599 Size: FS

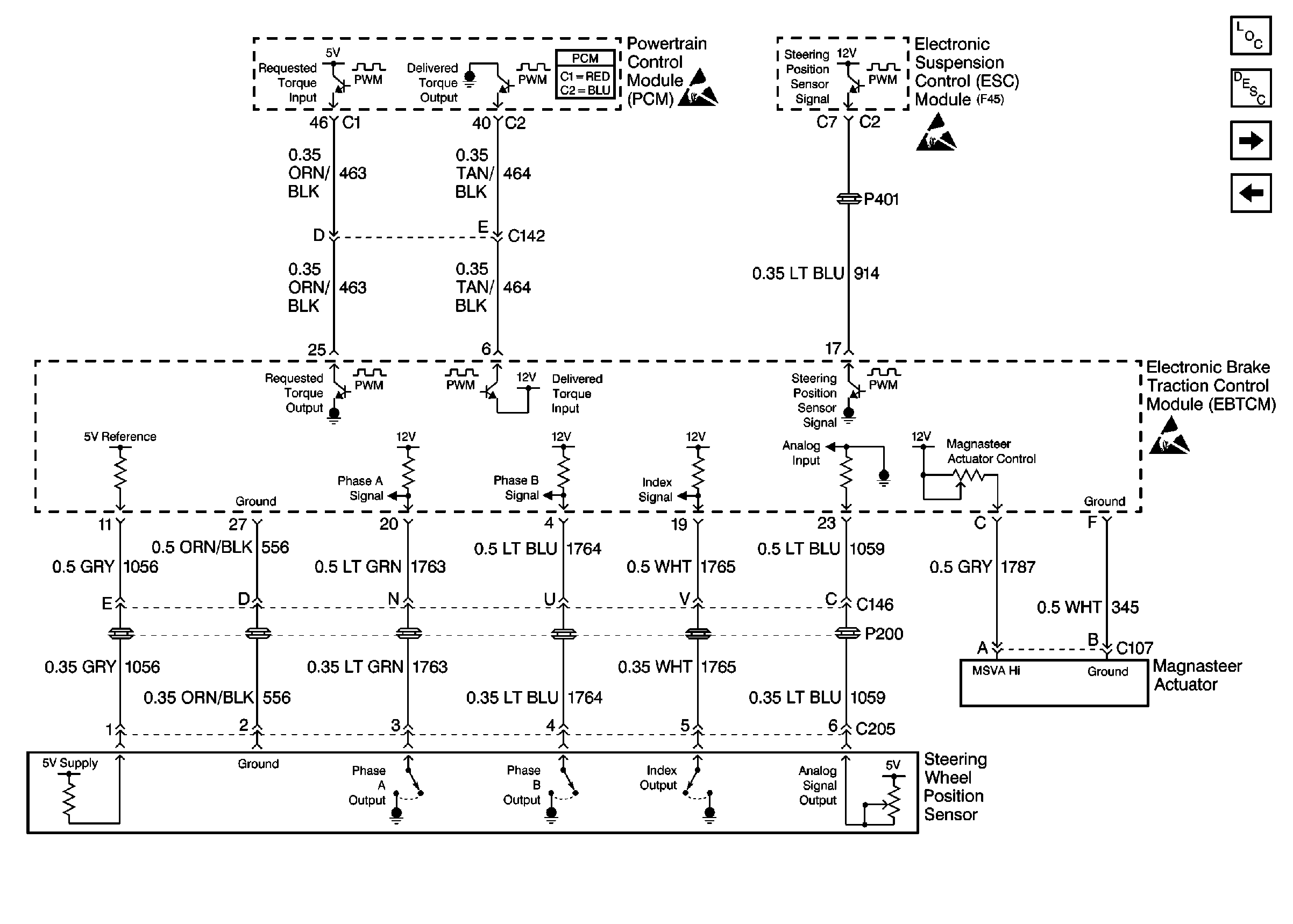

Figure 2:

Cell 44: Magnasteer System
Object Number: 316600 Size: FS

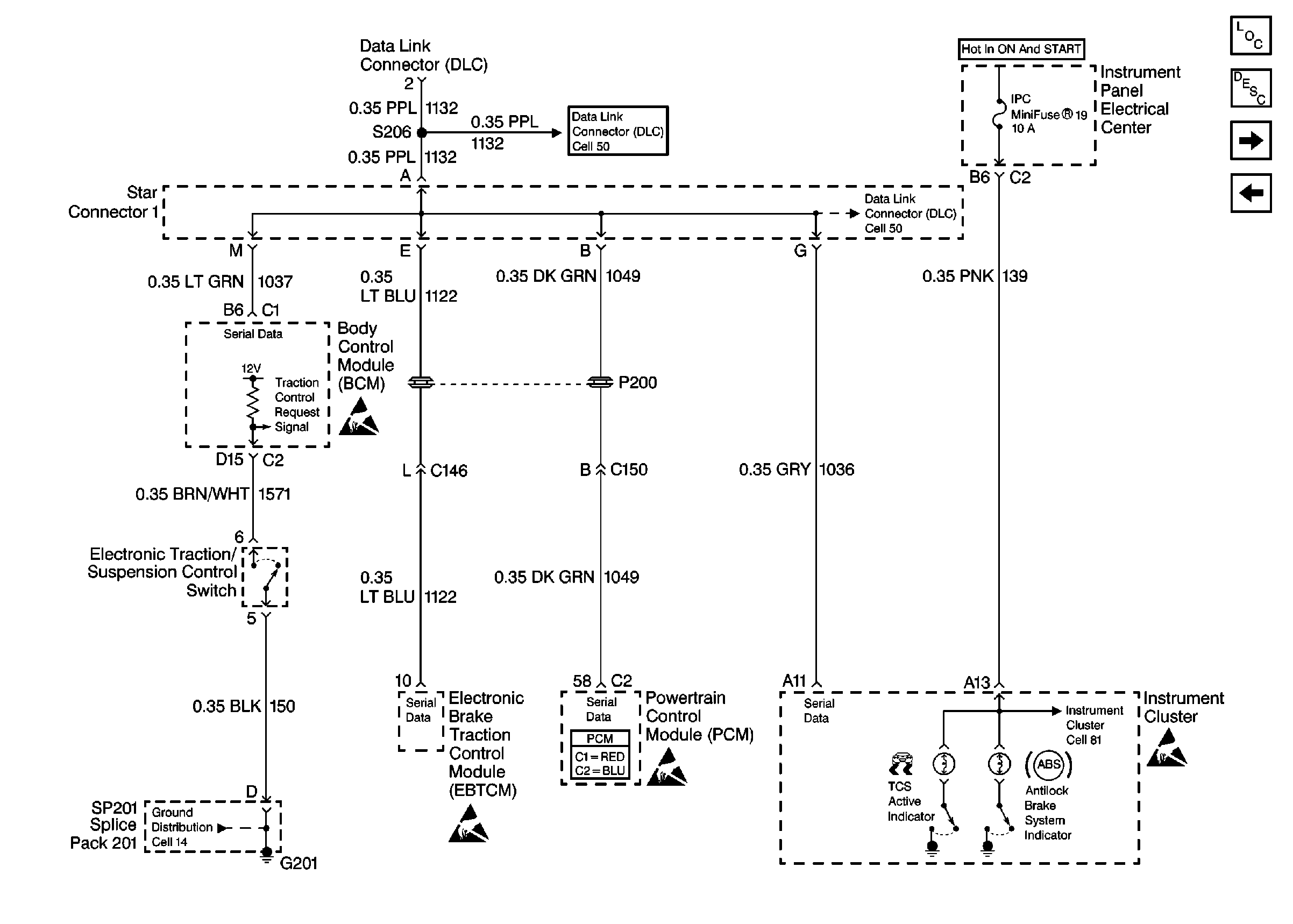

Figure 3:

Cell 44: Data Link Connector (DLC)
Object Number: 316602 Size: FS

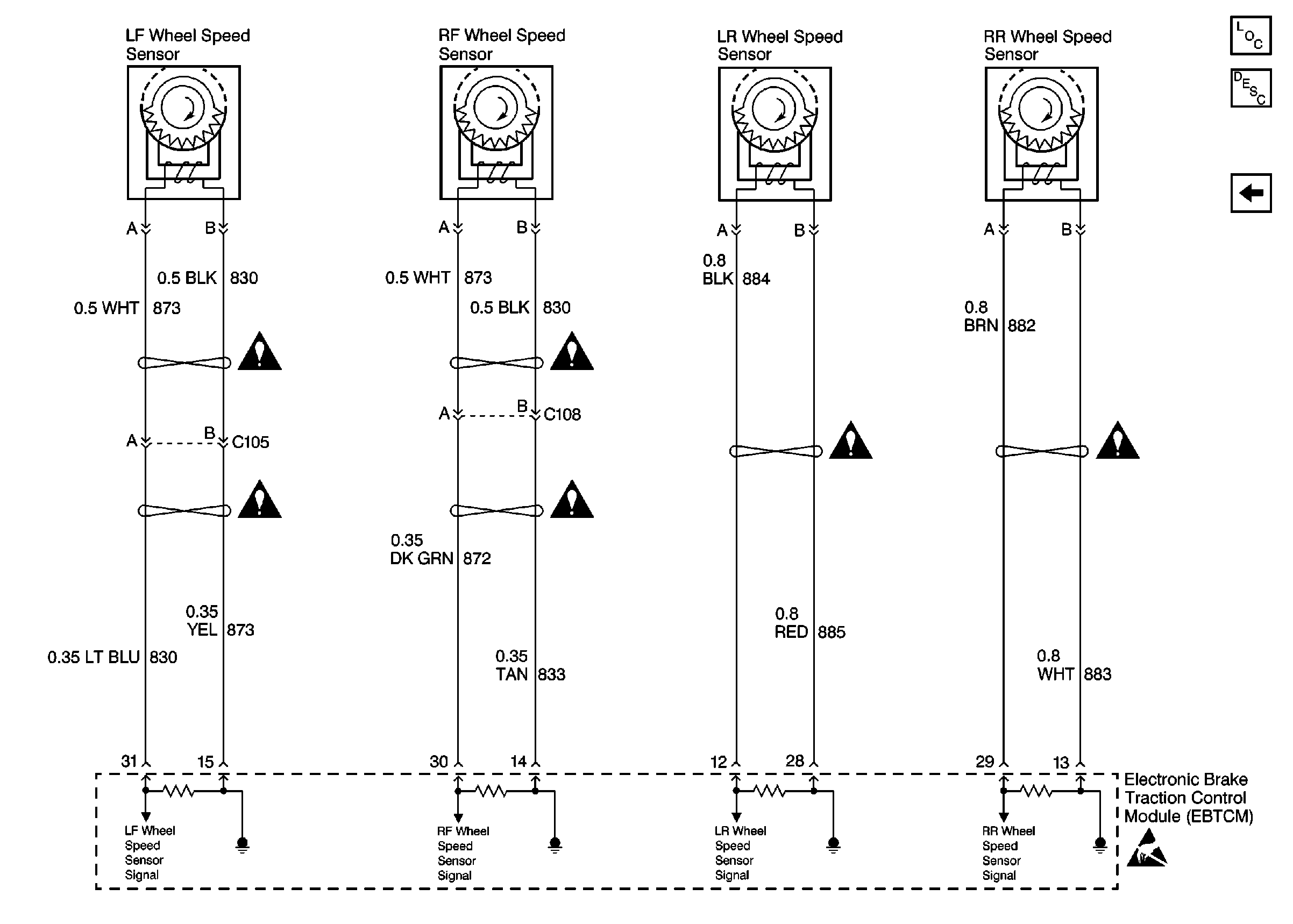

Figure 4:

Cell 44: Wheel Speed Sensors
Object Number: 316603 Size: FS
