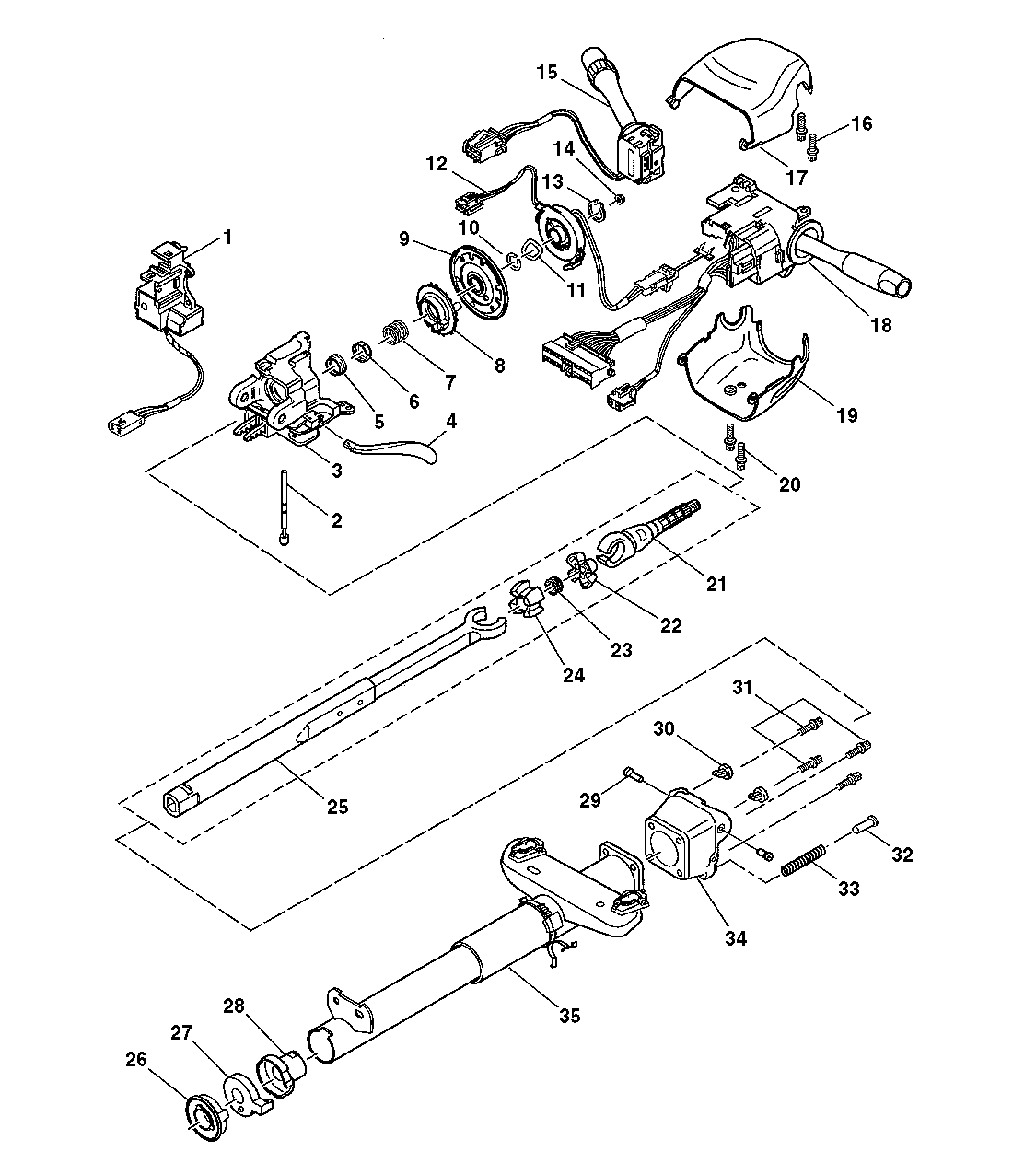

| (1) | Electric Column Lock |
| (2) | Anti-Rotation Pin Assembly |
| (3) | Steering
Column Housing |
| (4) | Tilt Lever |
| (5) | Inner Race |
| (6) | Inner Race Seat |
| (7) | Upper Bearing
Inner Race Spring |
| (8) | Cancel with Horn Tower Cam Assembly |
| (9) | Shaft Lock Shield
Assembly |
| (10) | Retaining Ring |
| (11) | Wave Washer |
| (12) | Sir Coil Assembly |
| (13) | Snap Ring |
| (14) | Flange
Prevailing Torque Nut |
| (15) | Pivot and Pulse Switch Assembly |
| (16) | Torx Head Screw |
| (17) | Steering
Column Upper Shroud |
| (18) | T/S and Multi-Function Switch Assembly |
| (19) | Steering
Column Lower Shroud |
| (20) | Torx Head Screw |
| (21) | Race and Upper Shaft Assembly |
| (22) | Centering
Sphere |
| (23) | Joint Preload Spring |
| (24) | Centering Sphere |
| (25) | Steering Column Shaft Assembly |
| (26) | Sensor Retainer |
| (27) | Hi Res Steering Wheel Position Sensor |
| (28) | Bearing Assembly
Adapter |
| (29) | Pivot Pin |
| (30) | Tilt Bumper |
| (31) | Support Screw |
| (32) | Spring
Guide |
| (33) | Tilt Spring |
| (34) | Steering Column Housing Support |
| (35) | Steering Column Jacket Assembly |
