Body Control System Schematics. Chevrolet Corvette 1998

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1998 🢒 Corvette 🢒 Body and Accessories 🢒 Body Control System 🢒 Body Control System Schematics

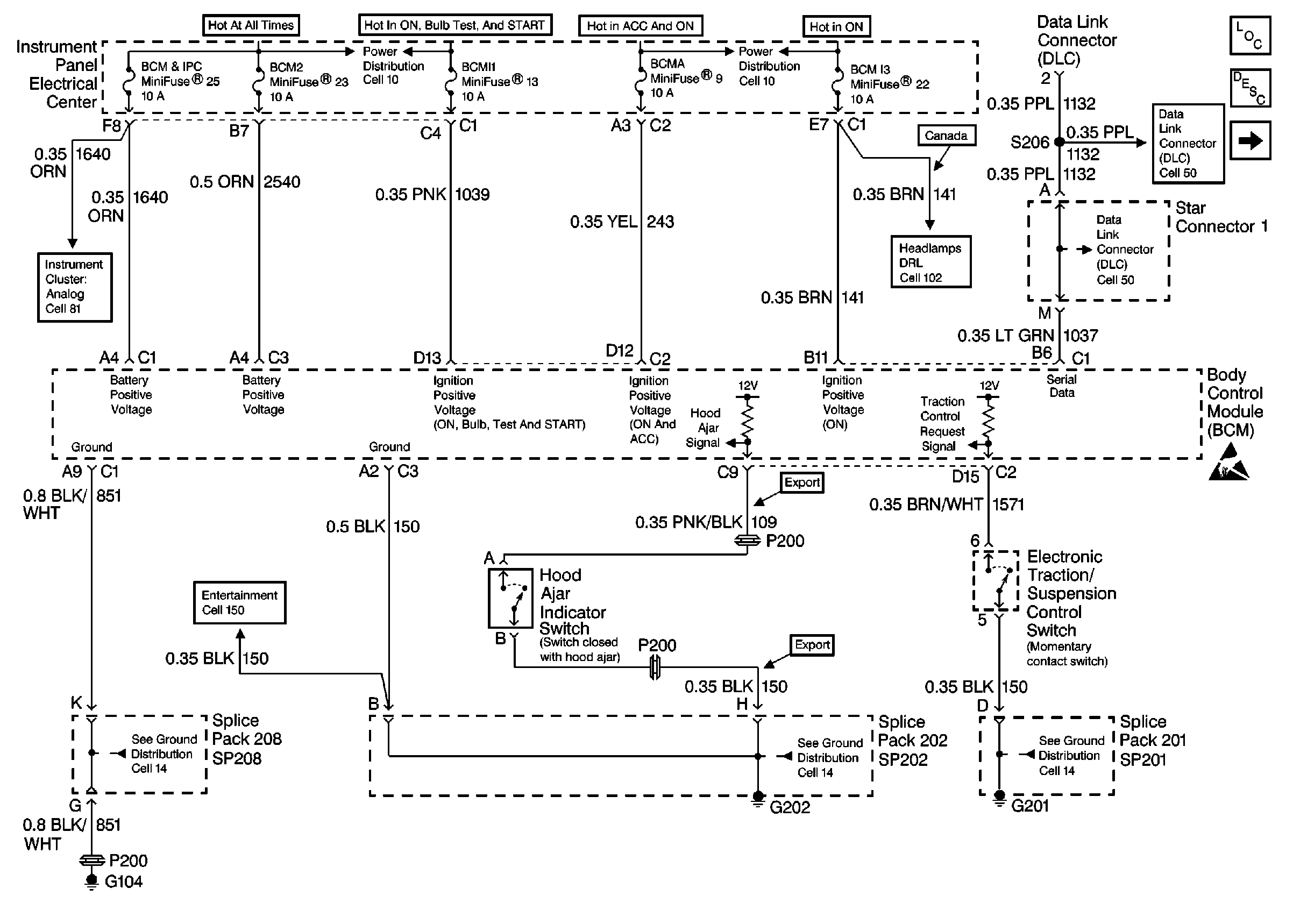

Figure 1:	Cell 51: Power, Ground and DLC

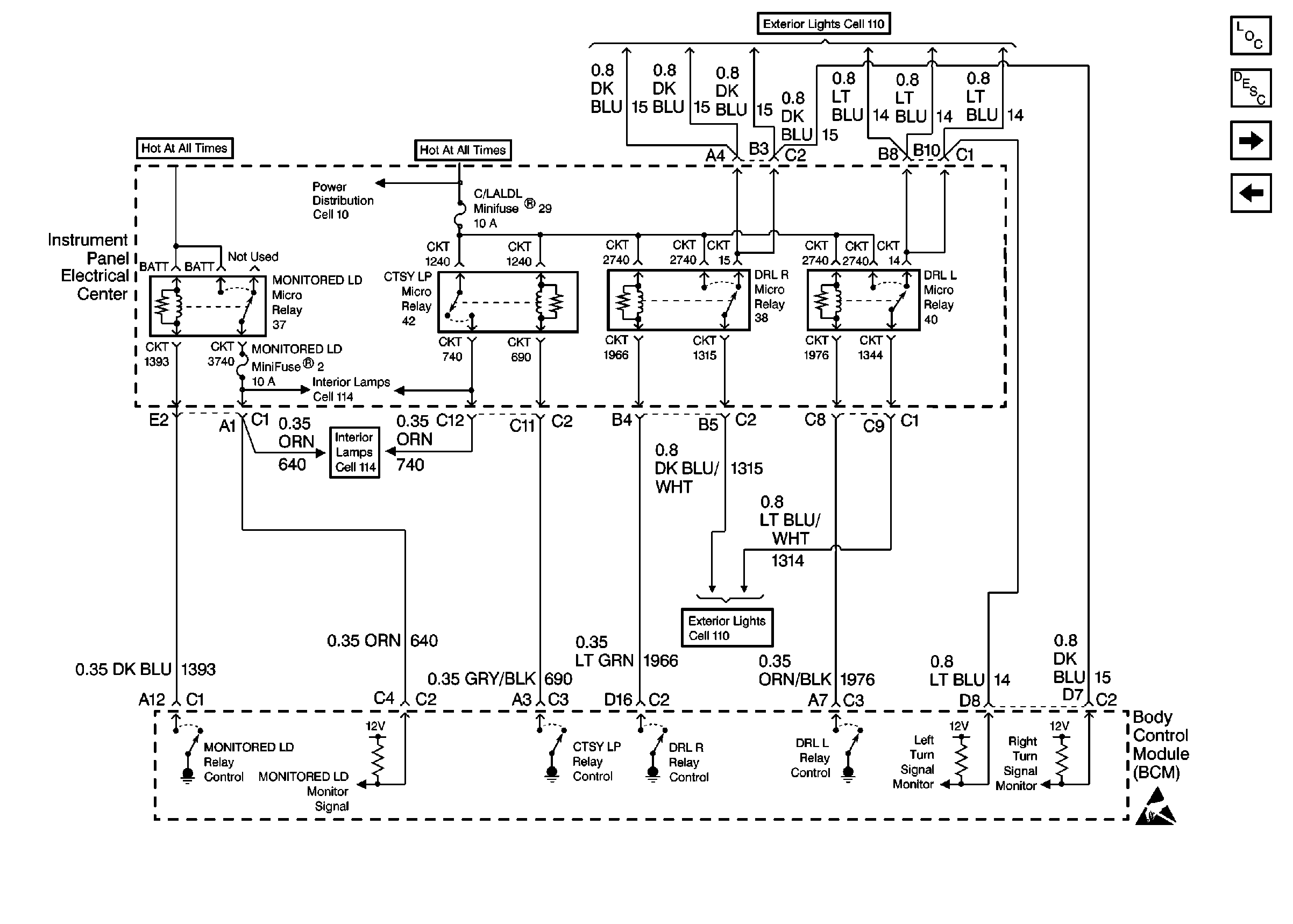

Figure 2:	Cell 51: Lamp Relay and Monitored Relay Control

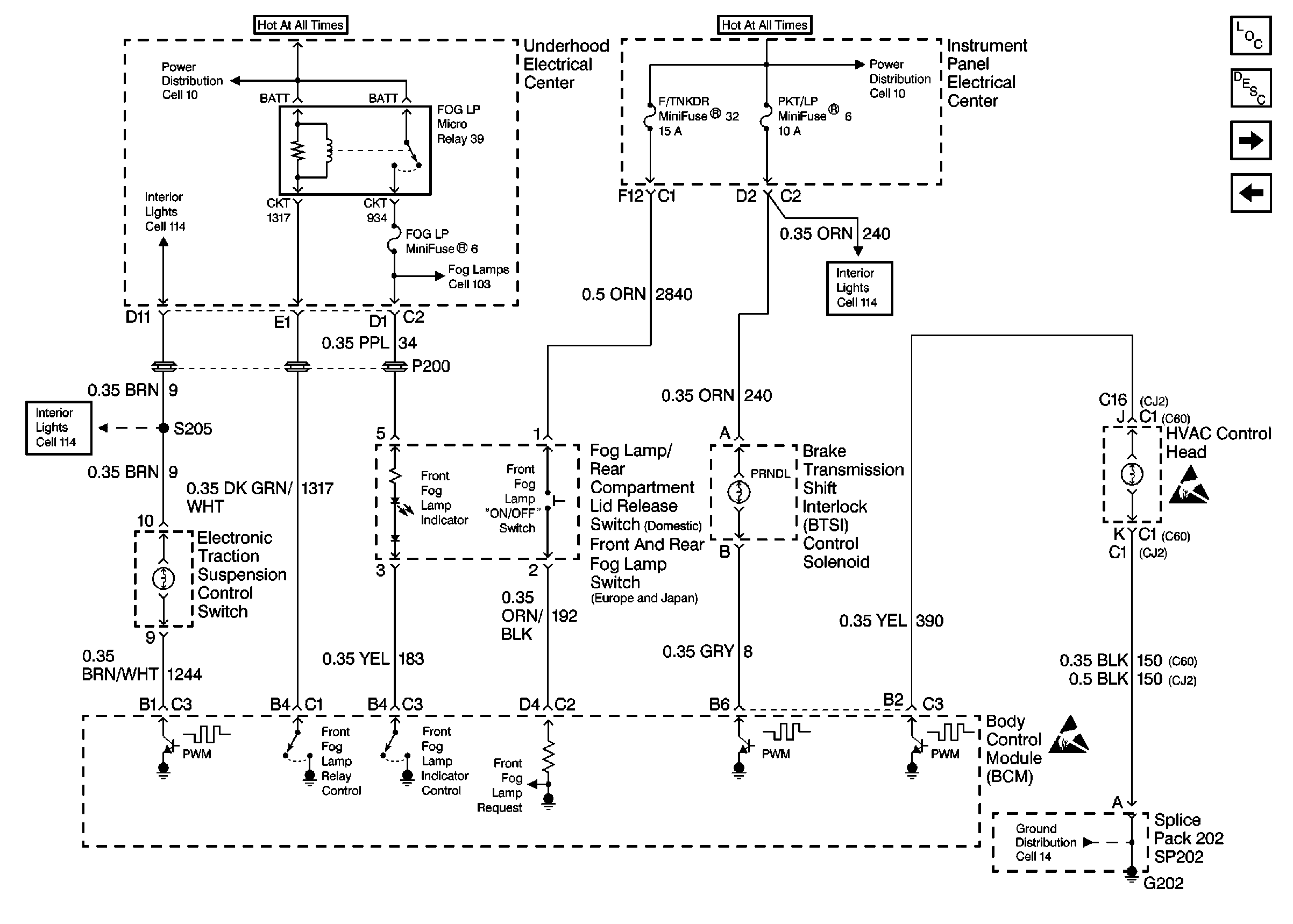

Figure 3:	Cell 51: Fog Lamp Circuit

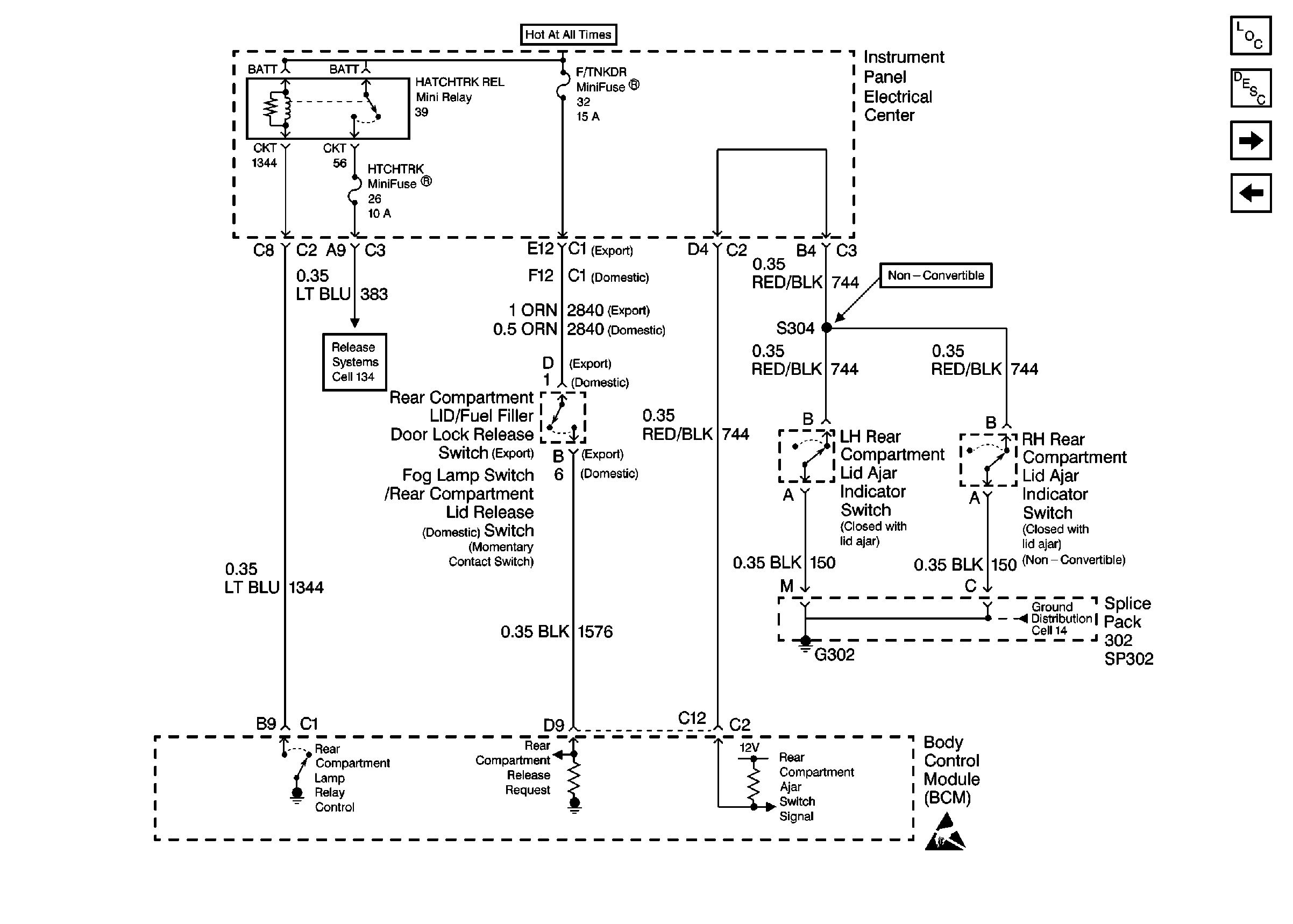

Figure 4:	Cell 51: Fuel Door and Hatch Control

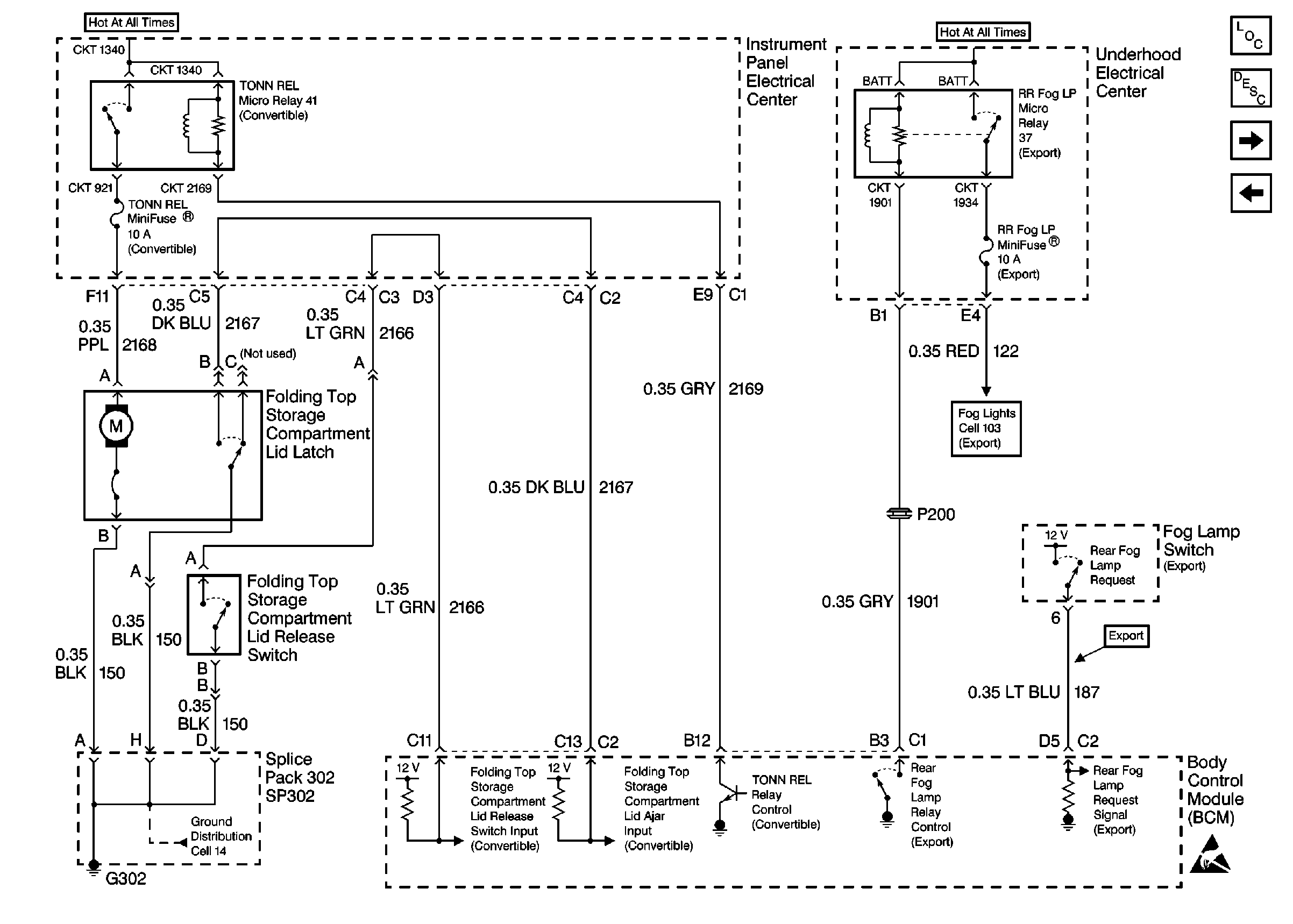

Figure 5:	Cell 51: Folding Top and Rear Fog Lamp Control

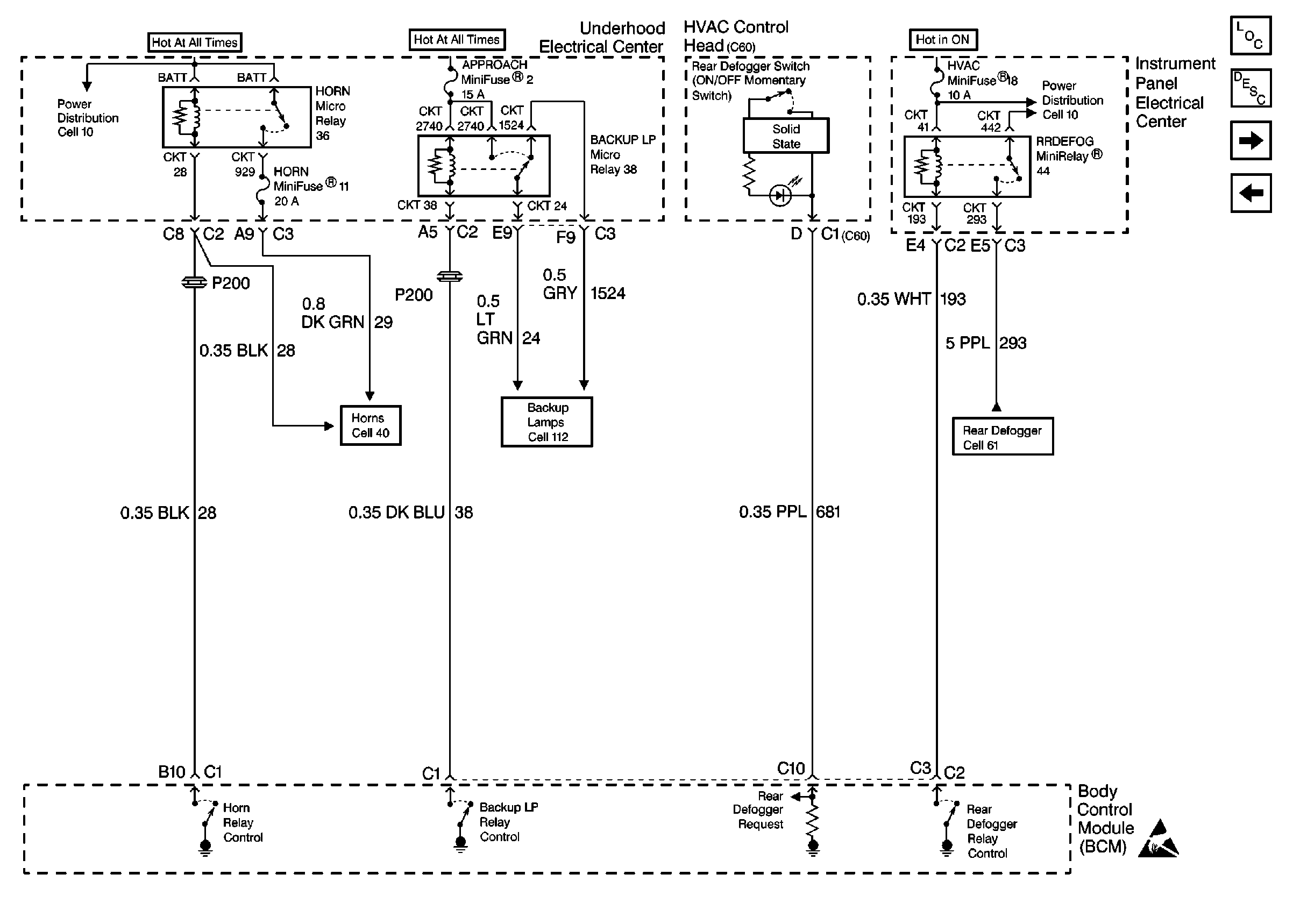

Figure 6:	Cell 51: Horn, Backup and Rear Defogger System

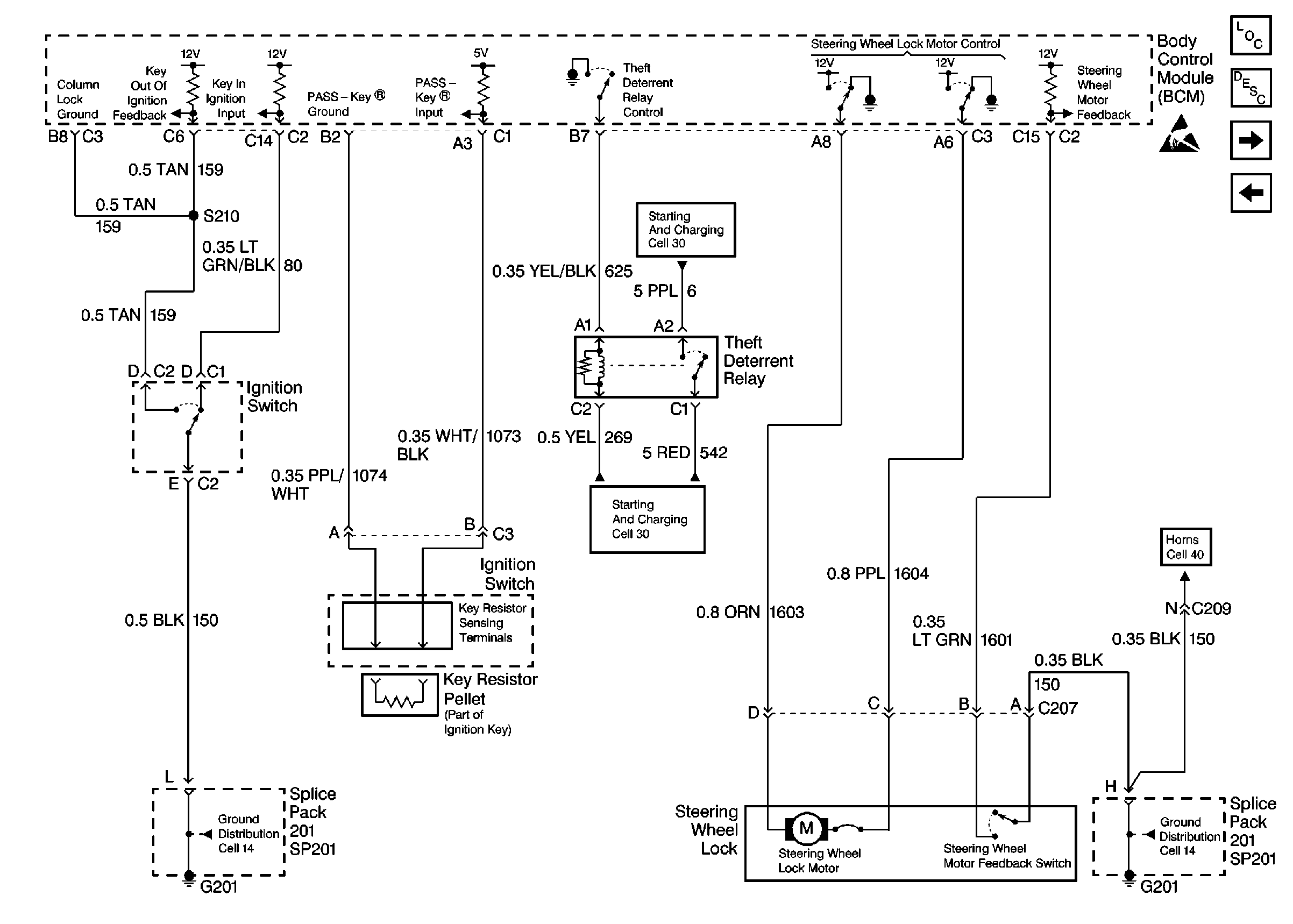

Figure 7:	Cell 51: Ignition Switch and Steering Wheel Lock Control

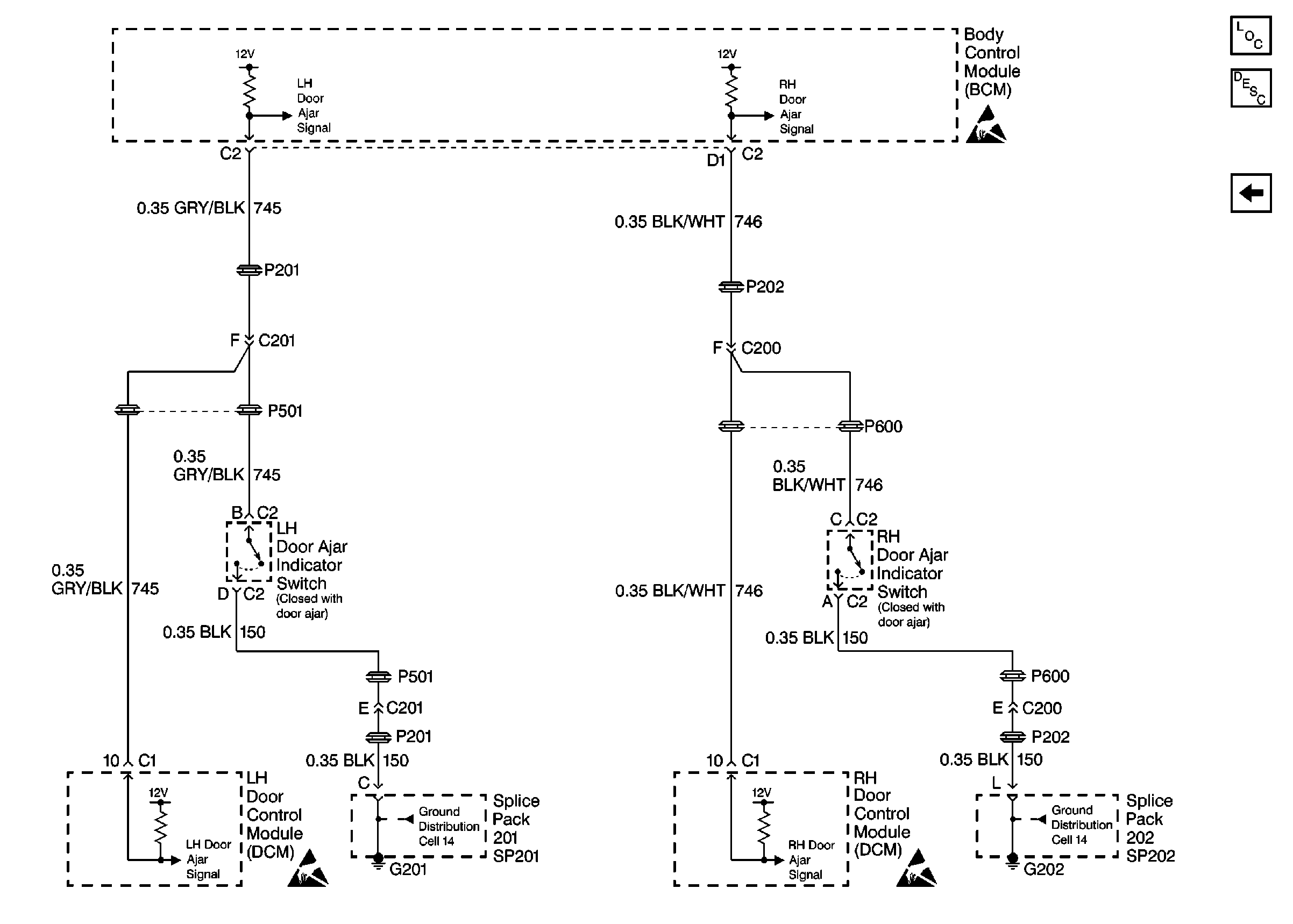

Figure 8:	Cell 51: Door Ajar Switches
