Theft Deterrent System Schematics. Chevrolet Corvette 1998

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1998 🢒 Corvette 🢒 Body and Accessories 🢒 Theft Deterrent 🢒 Theft Deterrent System Schematics

Theft Deterrent System Schematics Rear Mounted EBTCM/BPMV

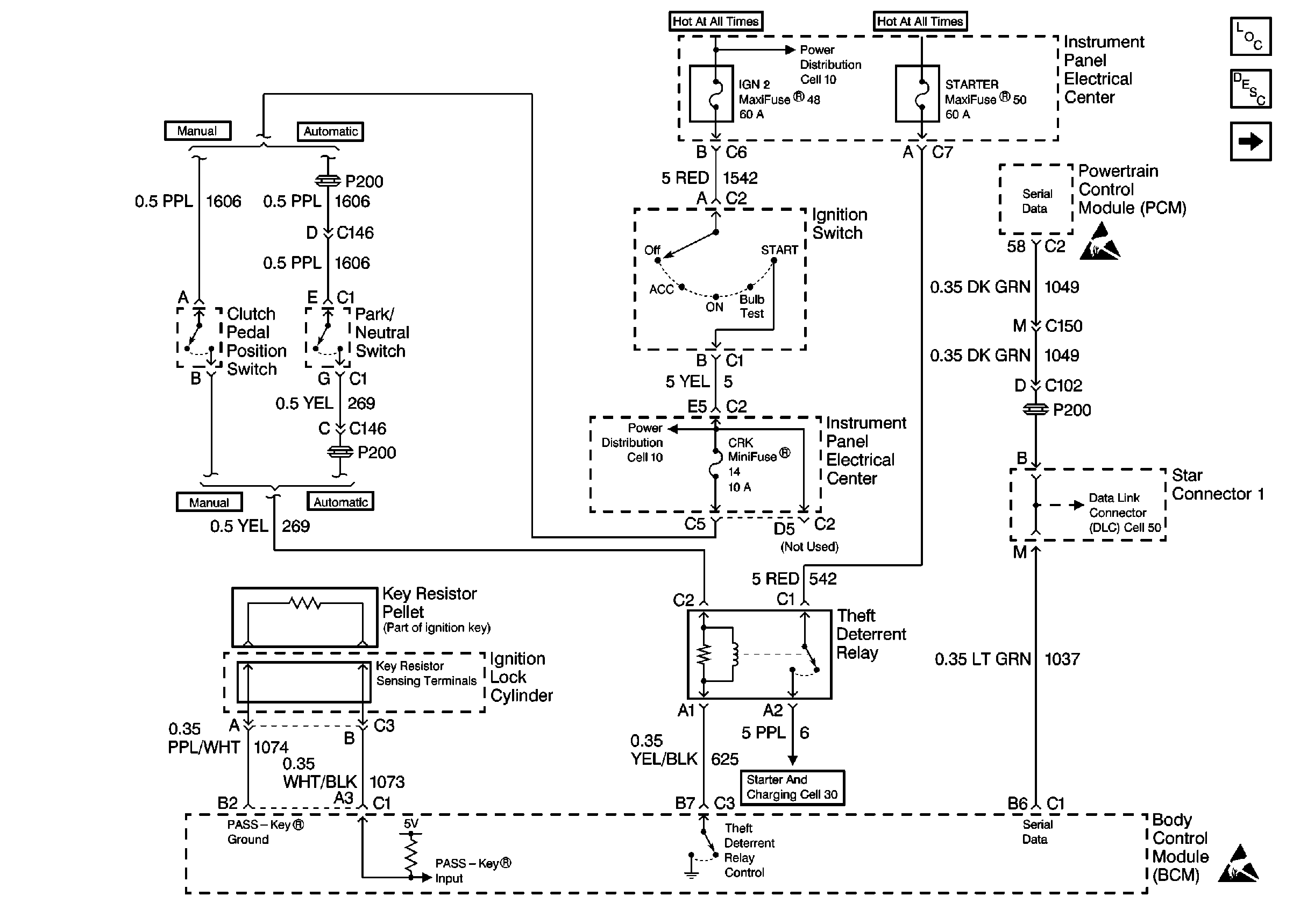

Figure 1:	Cell 133: Theft Relay and Key Input Systems

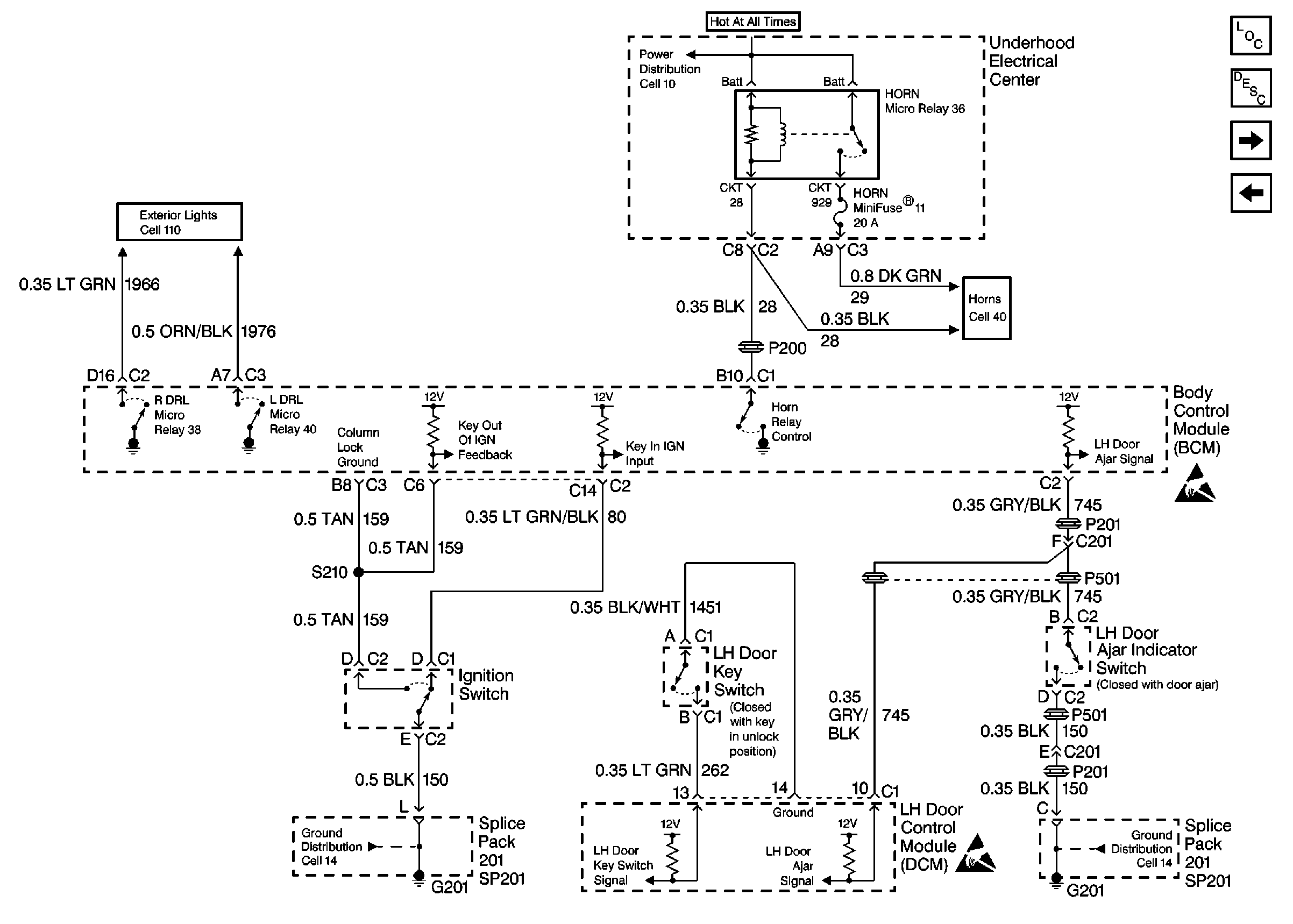

Figure 2:	Cell 133: Horn Control and LH Door Ajar Input
Figure 3:	Cell 134: RH Door Adjar Input

Figure 1:	Cell 133: Theft Relay and Key Input Systems
Figure 2:	Cell 133: Horn Control and LH Door Ajar Input
Figure 3:	Cell 133: RH Door Adjar Input
