Release Systems Schematics. Chevrolet Corvette 1999

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1999 🢒 Corvette 🢒 Body and Accessories 🢒 Body Rear End 🢒 Release Systems Schematics

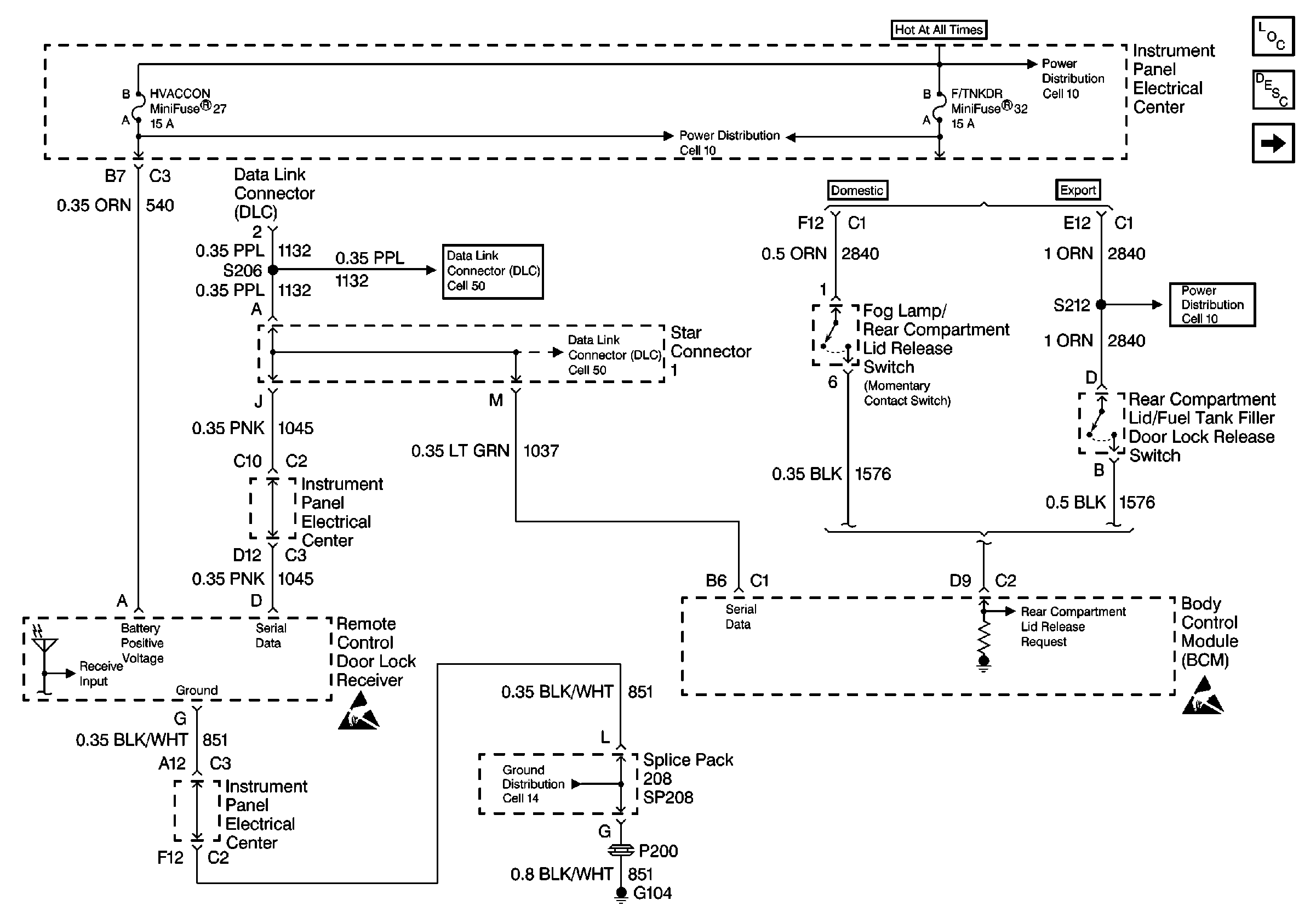

Figure 1:	Cell 134: Power, Ground and DLC Body Rear End Components Cell 134: Rear Compartment Lid Release (Hardtop/Convertible) Cell 10: I/P Fuses 32, 26, Relay 39 Handling ESD Sensitive Parts Notice Cell 10: I/P Fuses 51, 27, 17, Relay 41 Class 2 Serial Data Cell 50 Class 2 Serial Data Cell 50 Handling ESD Sensitive Parts Notice Cell 14: SP102, SP208, G104 Cell 10: I/P Fuses 32, 26, Relay 39

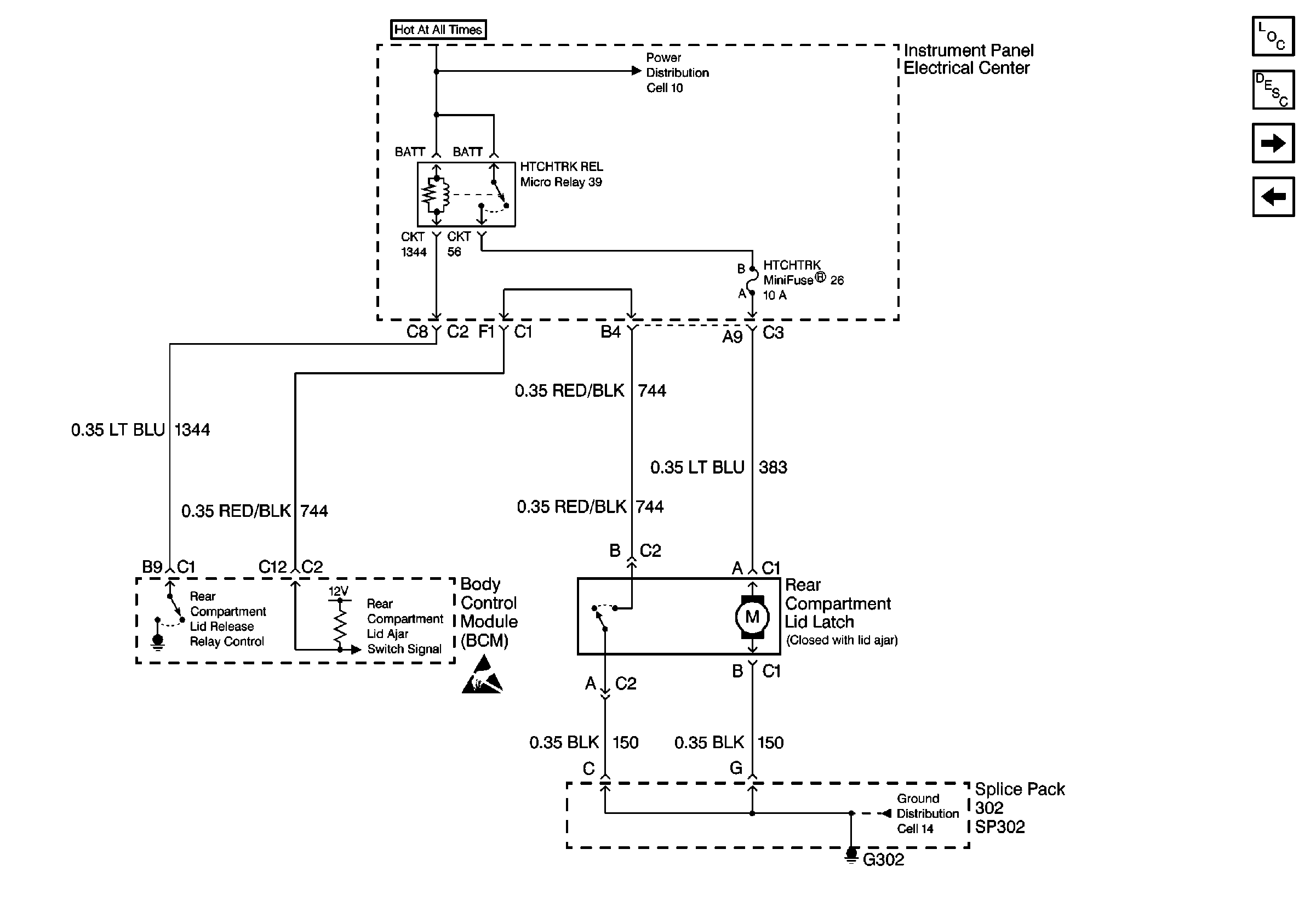

Figure 2:	Cell 134: Rear Compartment Lid Release (Hardtop/Convertable) Body Rear End Components Cell 134: Rear Compartment Lid Release (Coupe) Cell 134: Power, Ground and DLC Cell 14: SP302, G302 Handling ESD Sensitive Parts Notice Cell 10: I/P Fuses 32, 26, Relay 39

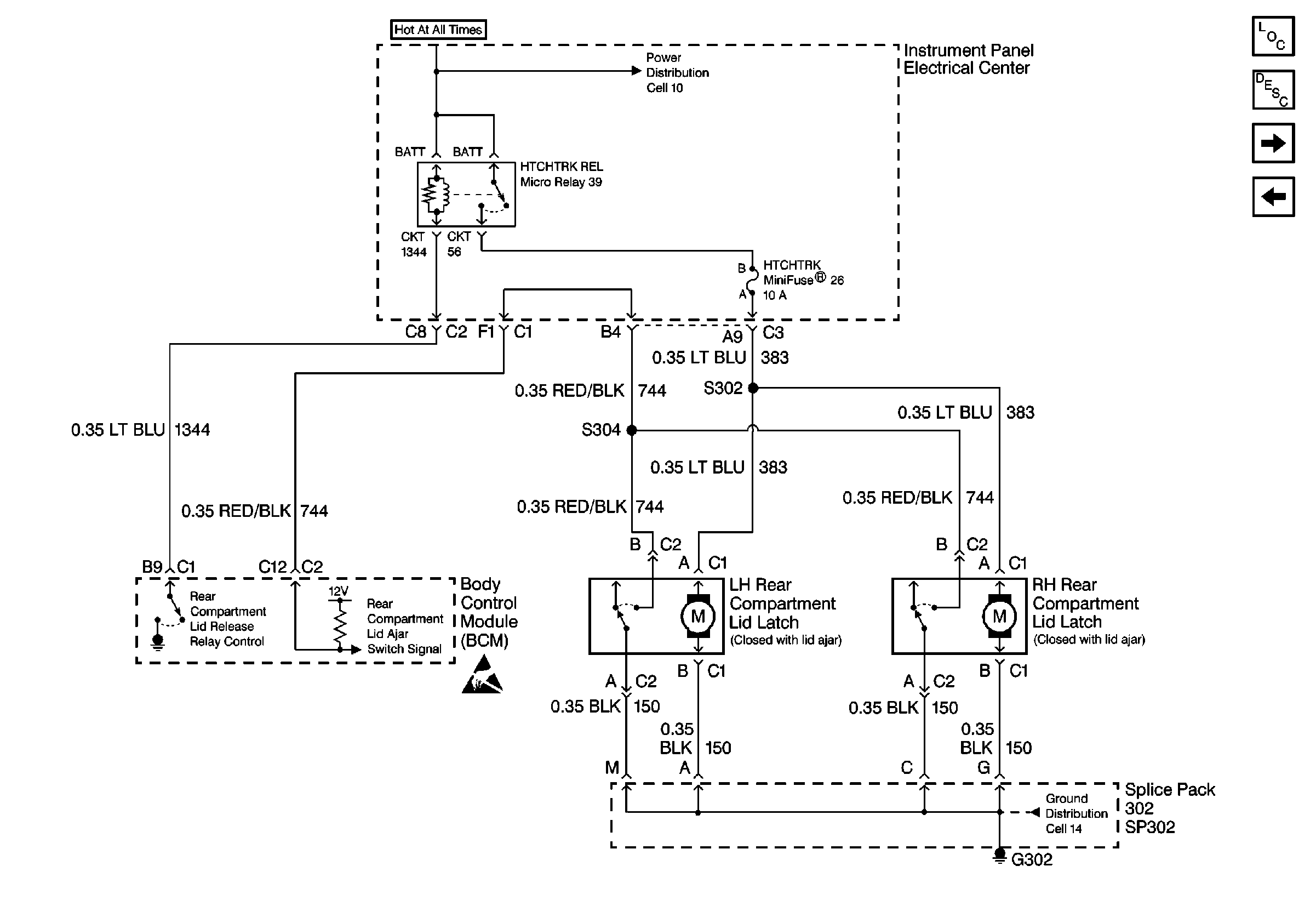

Figure 3:	Cell 134: Rear Compartment Lid Release (Coupe) Body Rear End Components Cell 134: Folding Top Control Cell 134: Rear Compartment Lid Release (Hardtop/Convertible) Cell 14: SP302, G302 Handling ESD Sensitive Parts Notice Cell 10: I/P Fuses 32, 26, Relay 39

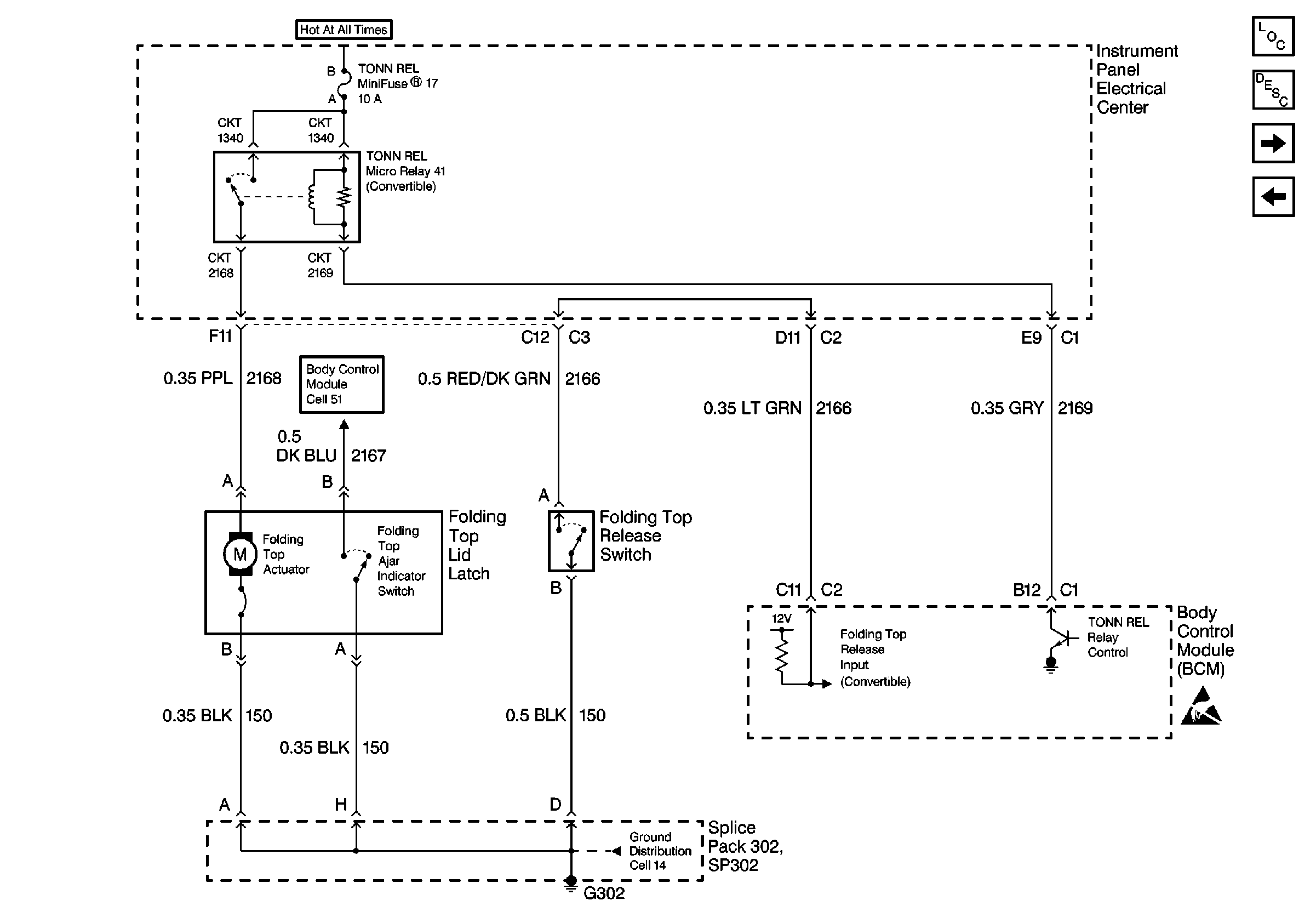

Figure 4:	Cell 134: Folding Top Control Body Rear End Components Cell 134: Fuel Tank Filler Door Release Cell 134: Rear Compartment Lid Release (Coupe) Handling ESD Sensitive Parts Notice Cell 14: SP302, G302 Cell 51: Hood Ajar Indicator Switch

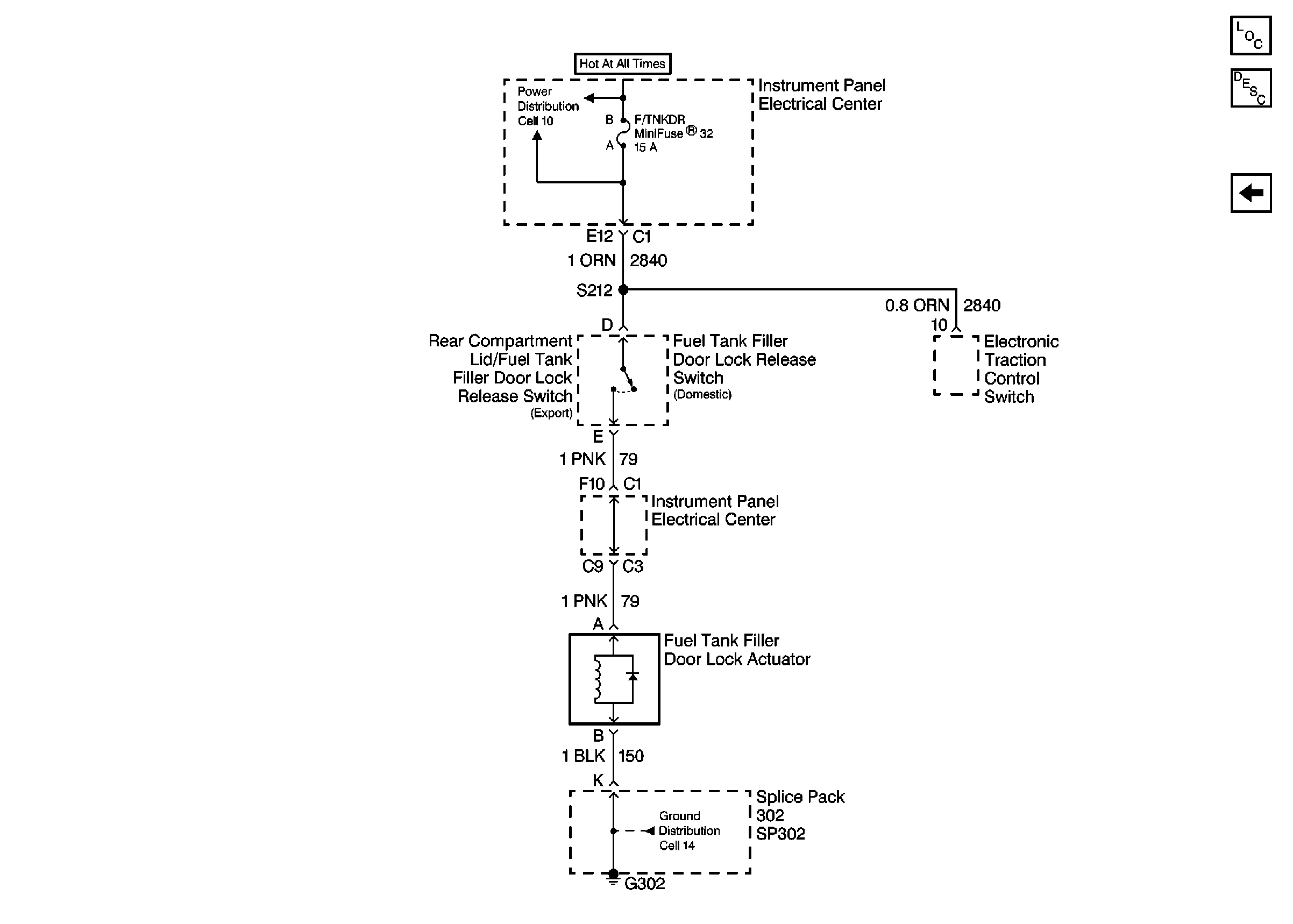

Figure 5:	Cell 134: Fuel Tank Filler Door Release Body Rear End Components Cell 134: Folding Top Control Cell 14: SP302, G302 Cell 10: I/P Fuses 32, 26, Relay 39
