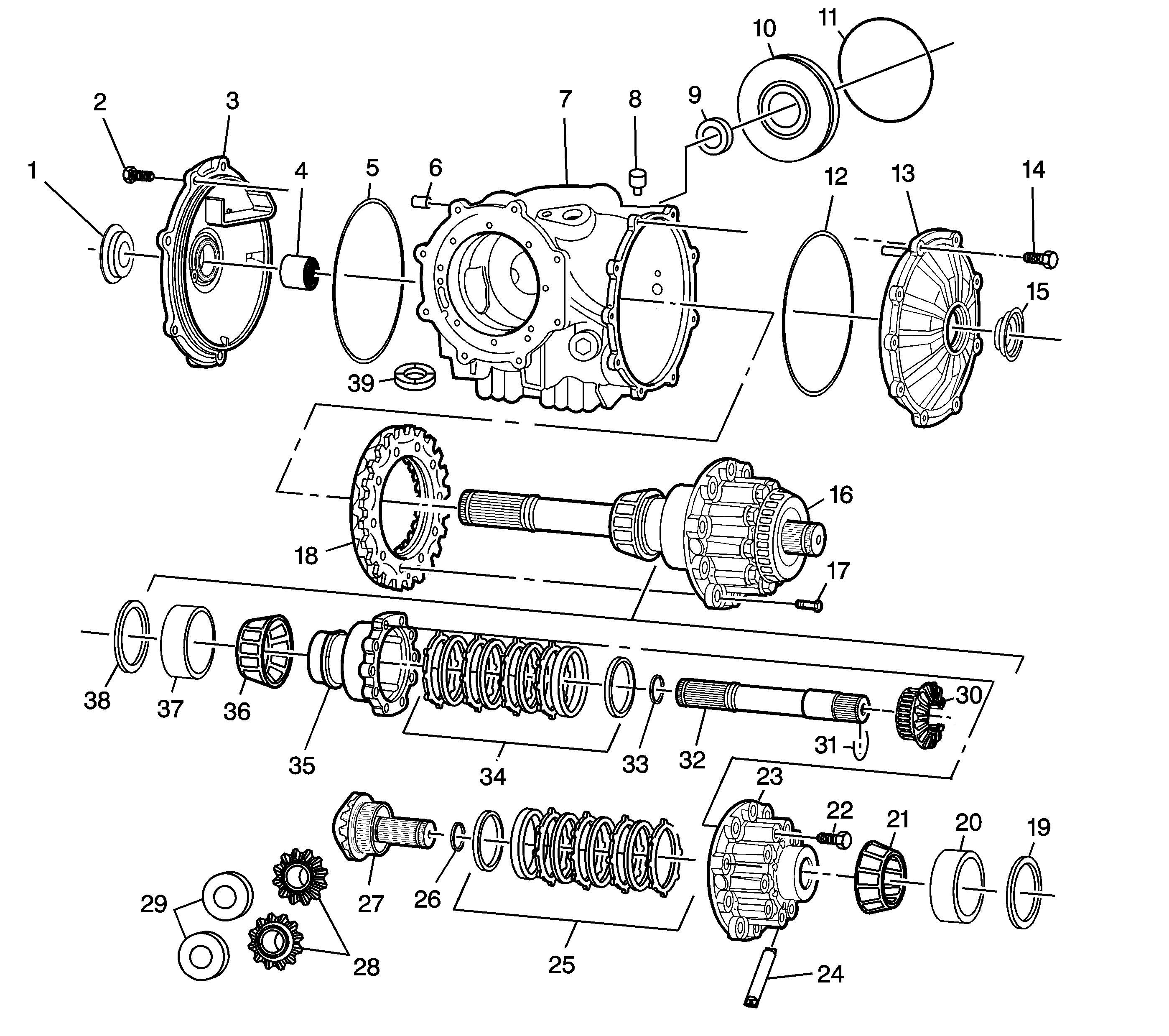

| (1) | Output
Shaft Oil Seal - Left |
| (2) | Bolt |
| (3) | Cover -
Left |
| (4) | Bearing |
| (5) | O-ring |
| (6) | Dowel |
| (7) | Carrier |
| (8) | Vent |
| (9) | Oil Seal - Automatic Transmission Only |
| (10) | Cover -
Automatic Transmission Only |
| (11) | O-ring -
Automatic Transmission Only |
| (12) | O-ring |
| (13) | Cover - Right |
| (14) | Bolt |
| (15) | Output Shaft Oil Seal - Right |
| (16) | Differential Case Assembly |
| (17) | Bolt |
| (18) | Ring
Gear |
| (19) | Shim(s) |
| (20) | Race |
| (21) | Bearing |
| (22) | Bolt |
| (23) | Differential Case - Right |
| (24) | Cross Pin |
| (25) | Clutch Pack - Right |
| (26) | C-Clip |
| (27) | Gear and Output Shaft - Right |
| (28) | Side Gears |
| (29) | Side Gear Washers |
| (30) | Gear - Left |
| (31) | C-Clip |
| (32) | Output Shaft - Left |
| (33) | C-Clip |
| (34) | Clutch Pack - Left |
| (35) | Differential Case - Left |
| (36) | Bearing |
| (37) | Race |
| (38) | Shim(s) |
| (39) | Magnet |
