Ground Distribution Schematics. Chevrolet Corvette 2000

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Corvette 🢒 Brakes 🢒 Antilock Brake System 🢒 Ground Distribution Schematics

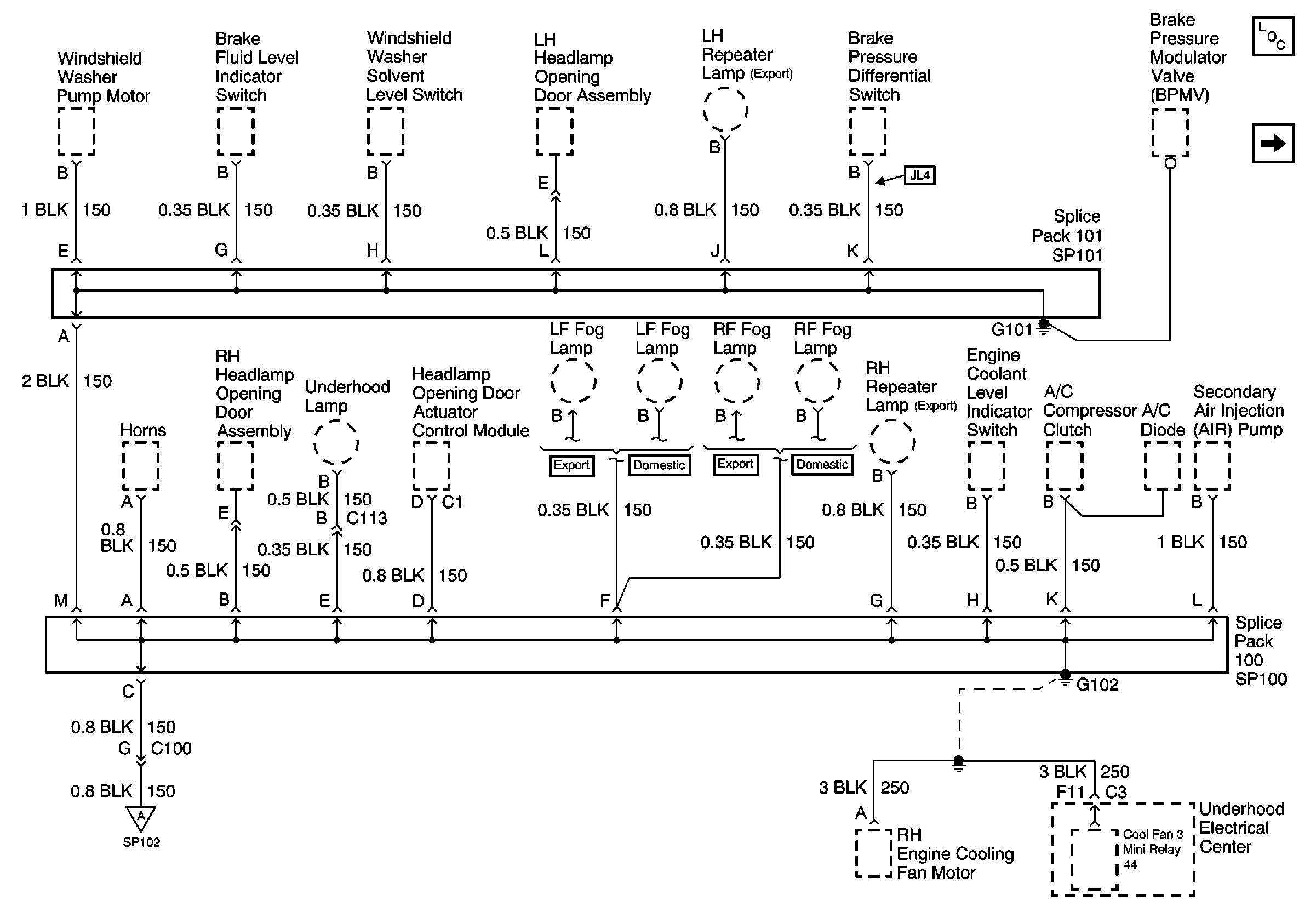

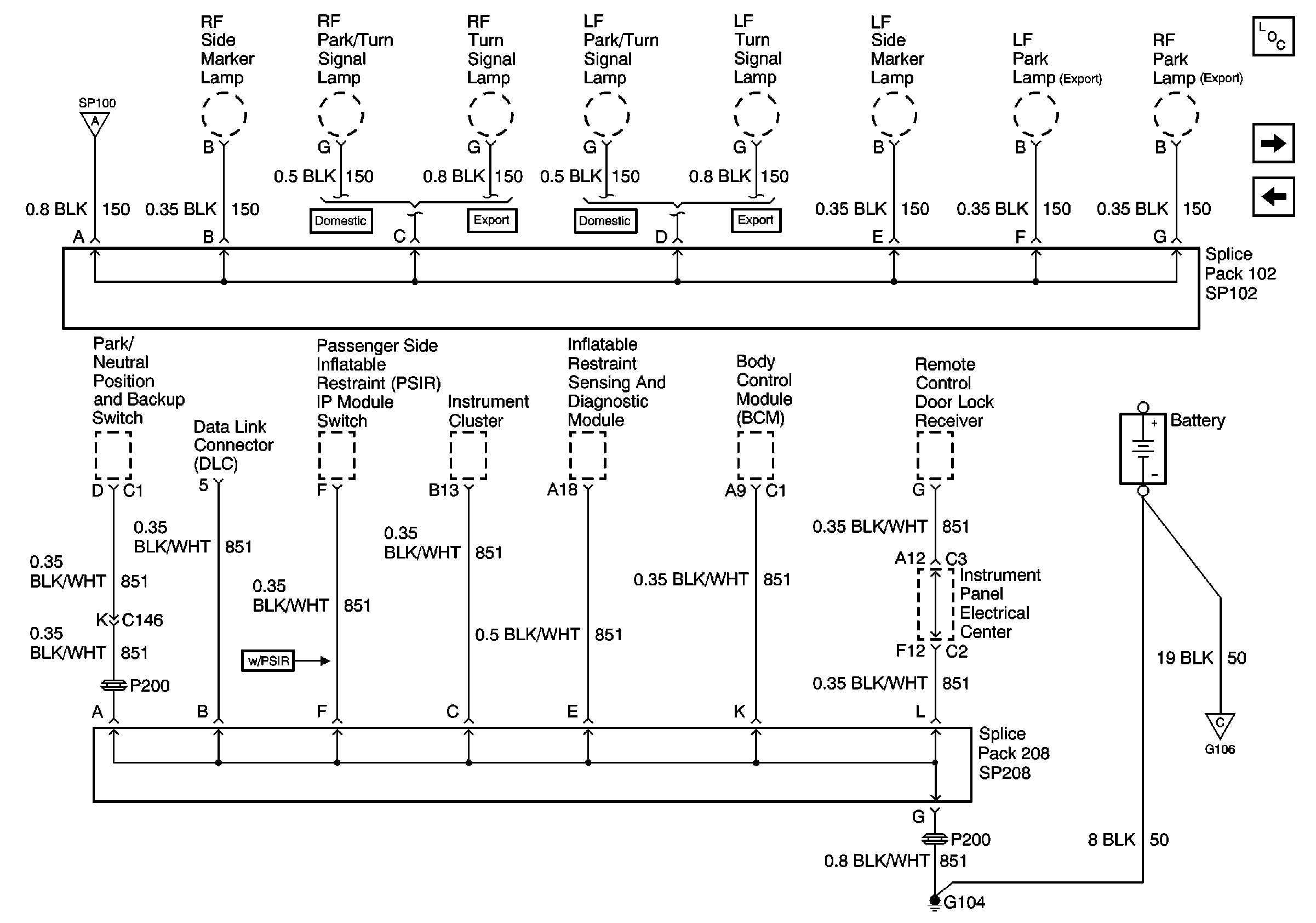

Figure 1:	SP101, SP100, G101, G102 Power and Grounding Components SP102, SP208, G104 SP102, SP208, G104

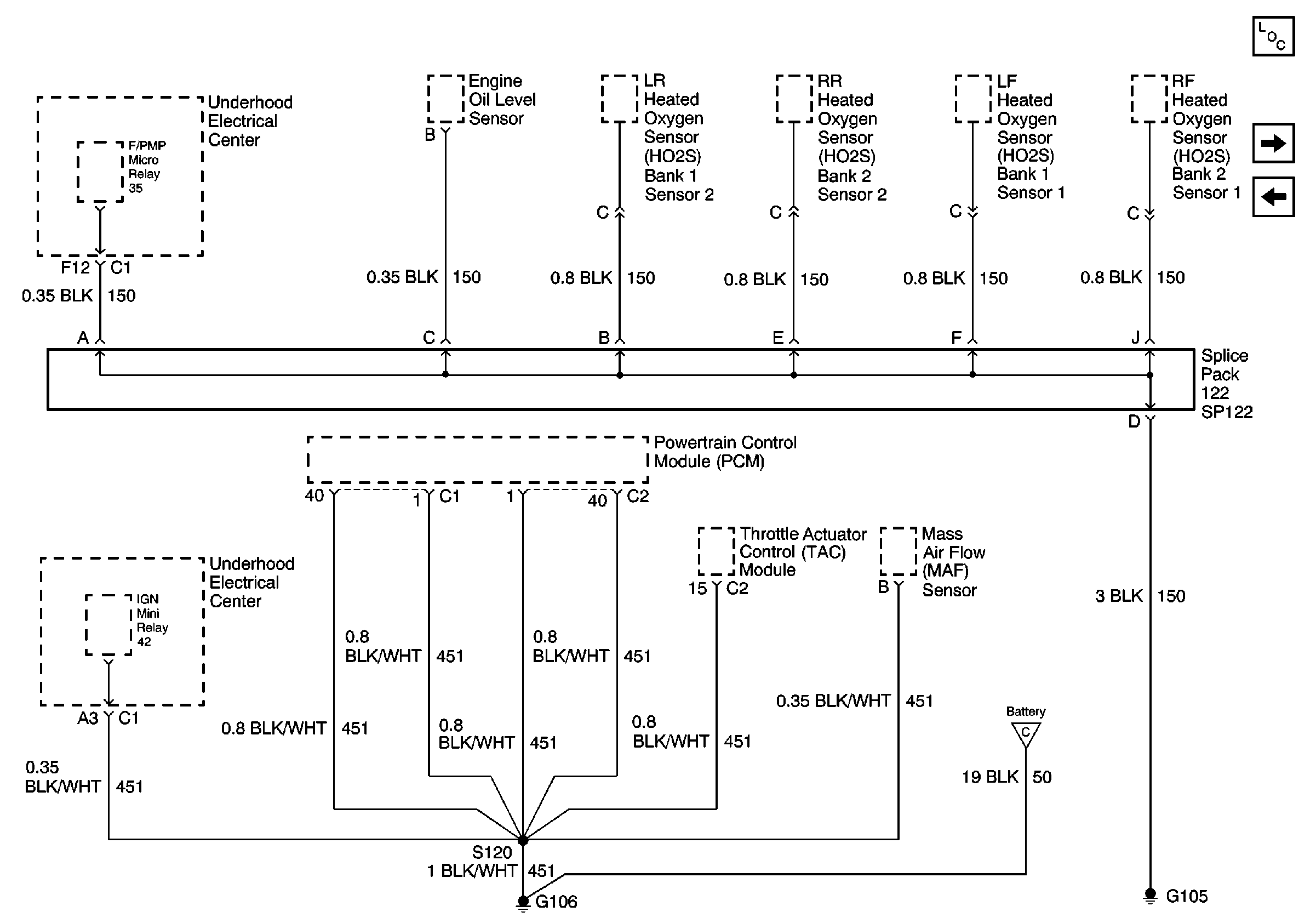

Figure 2:	SP102, SP208, G104 Power and Grounding Components SP122, G106, G105 SP101, SP100, G101, G102 SP101, SP100, G101, G102 SP122, G106, G105

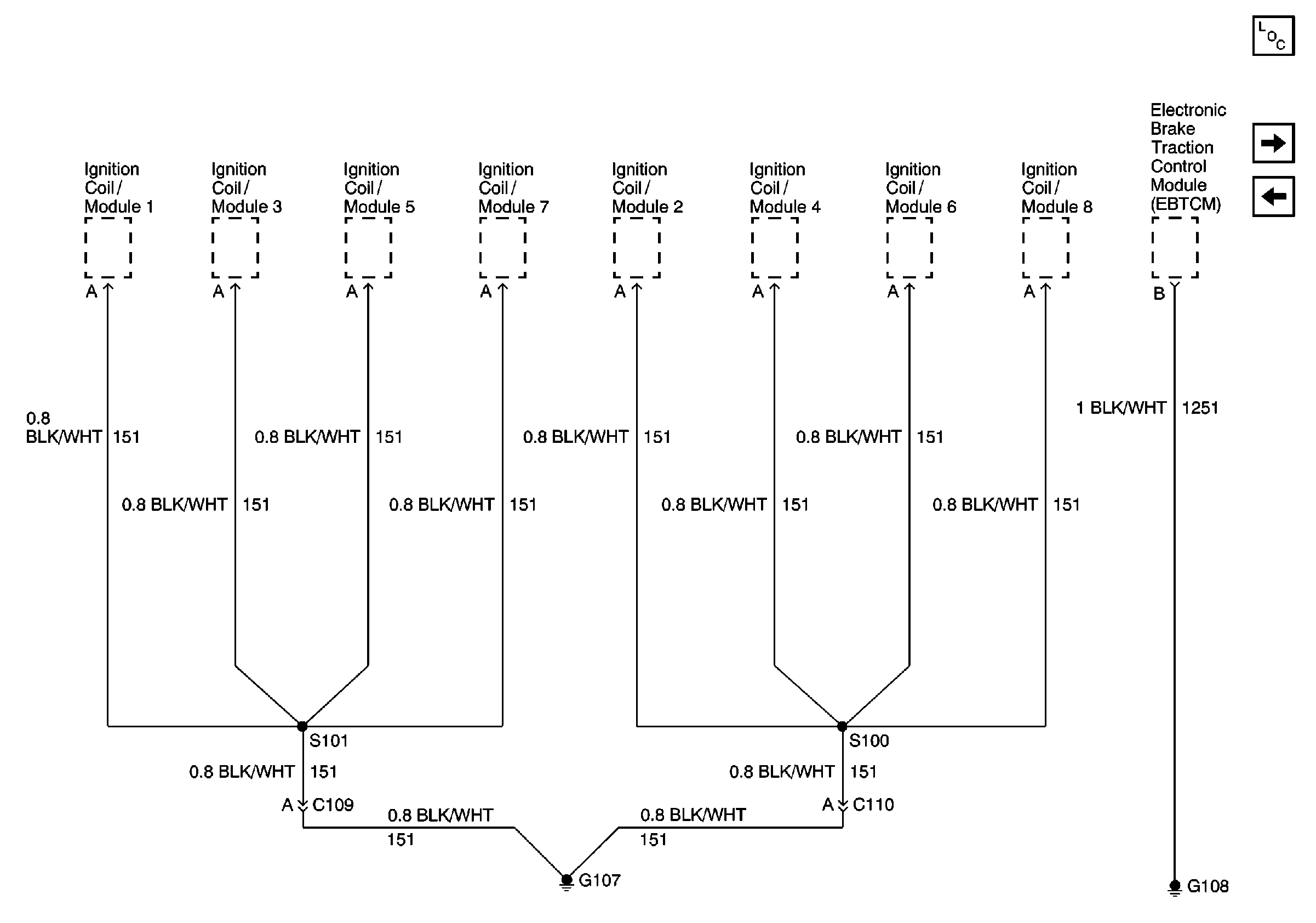

Figure 3:	SP122, G106, G105 Power and Grounding Components G107, G108 SP102, SP208, G104 SP102, SP208, G104

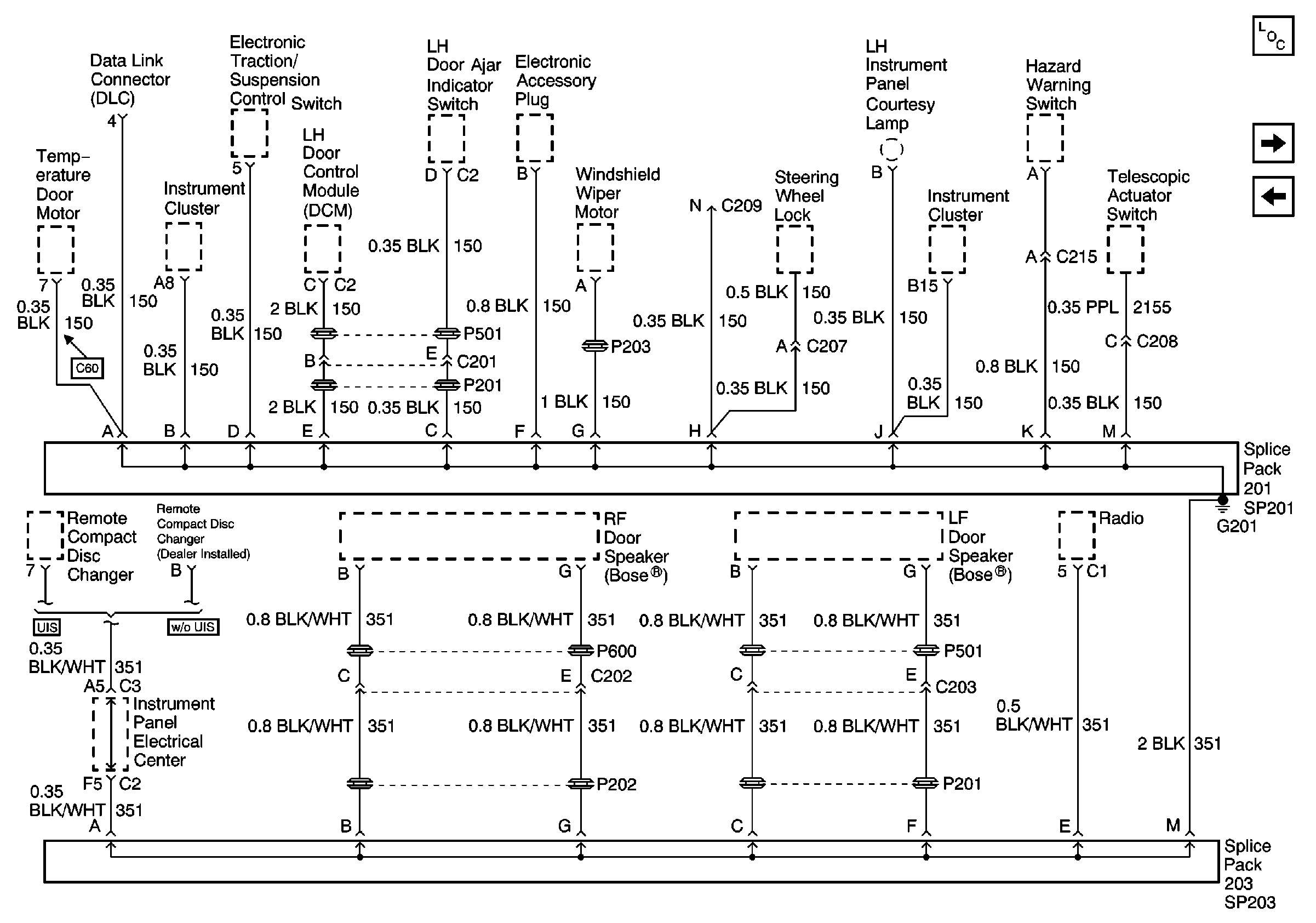

Figure 4:	G107, G108 Power and Grounding Components SP201, SP203, G201 SP122, G106, G105
Figure 5:	SP201, SP203, G201 Power and Grounding Components SP202, G202 G107, G108

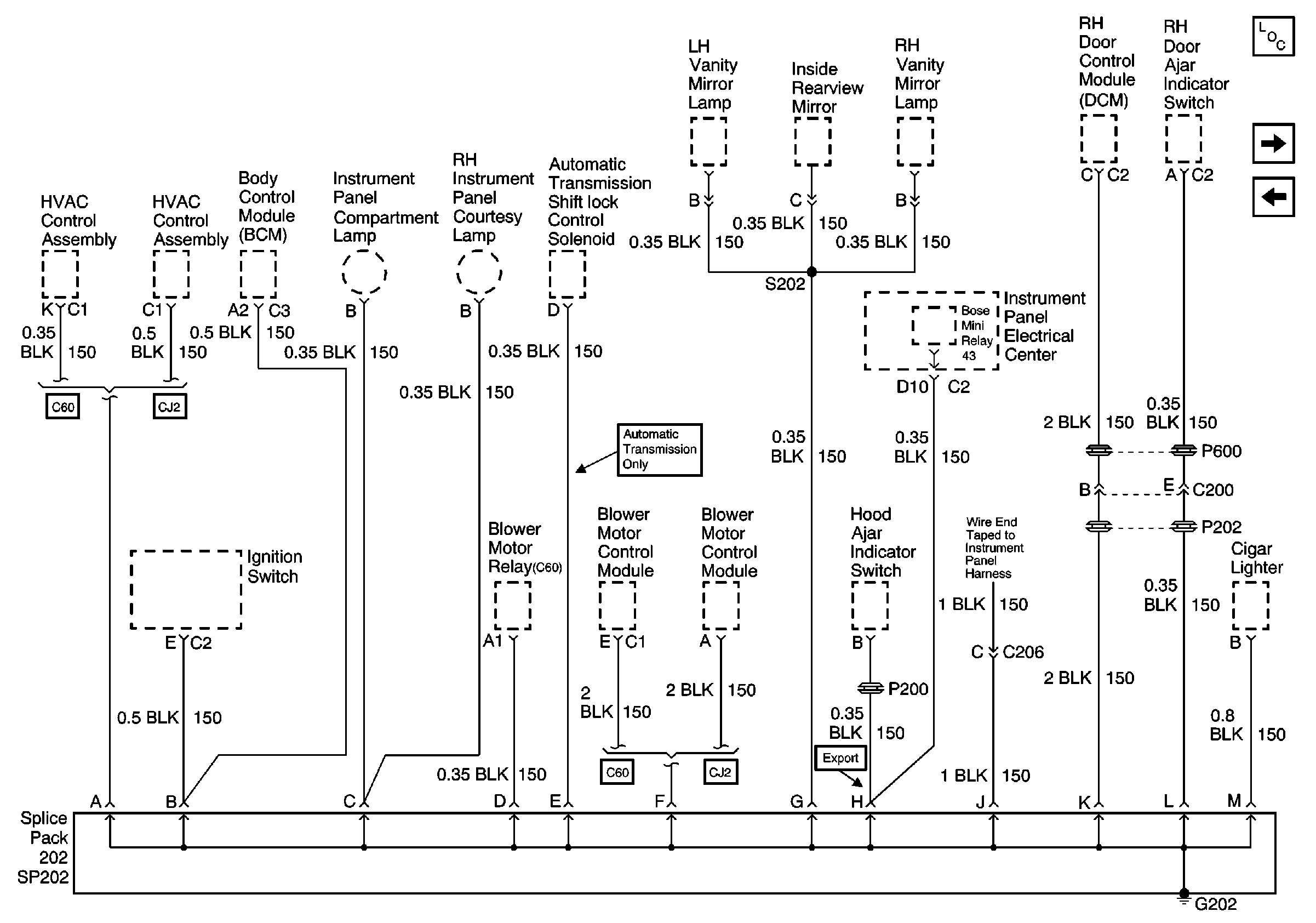

Figure 6:	SP202, G202 Power and Grounding Components G205 SP201, SP203, G201

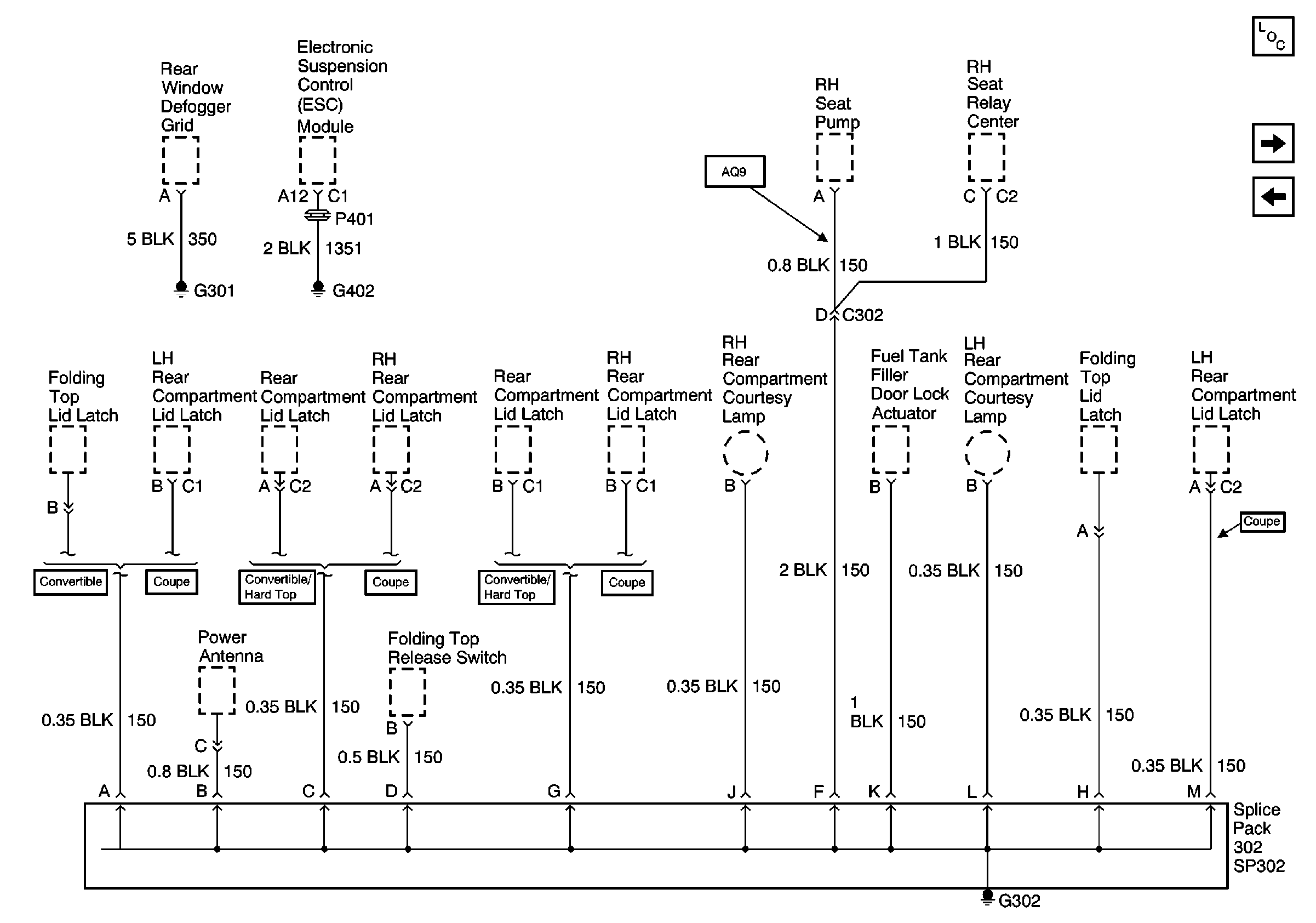

Figure 7:	G205 Power and Grounding Components SP302, G302 SP202, G202
Figure 8:	SP302, G302 Power and Grounding Components SP400, G401 G205

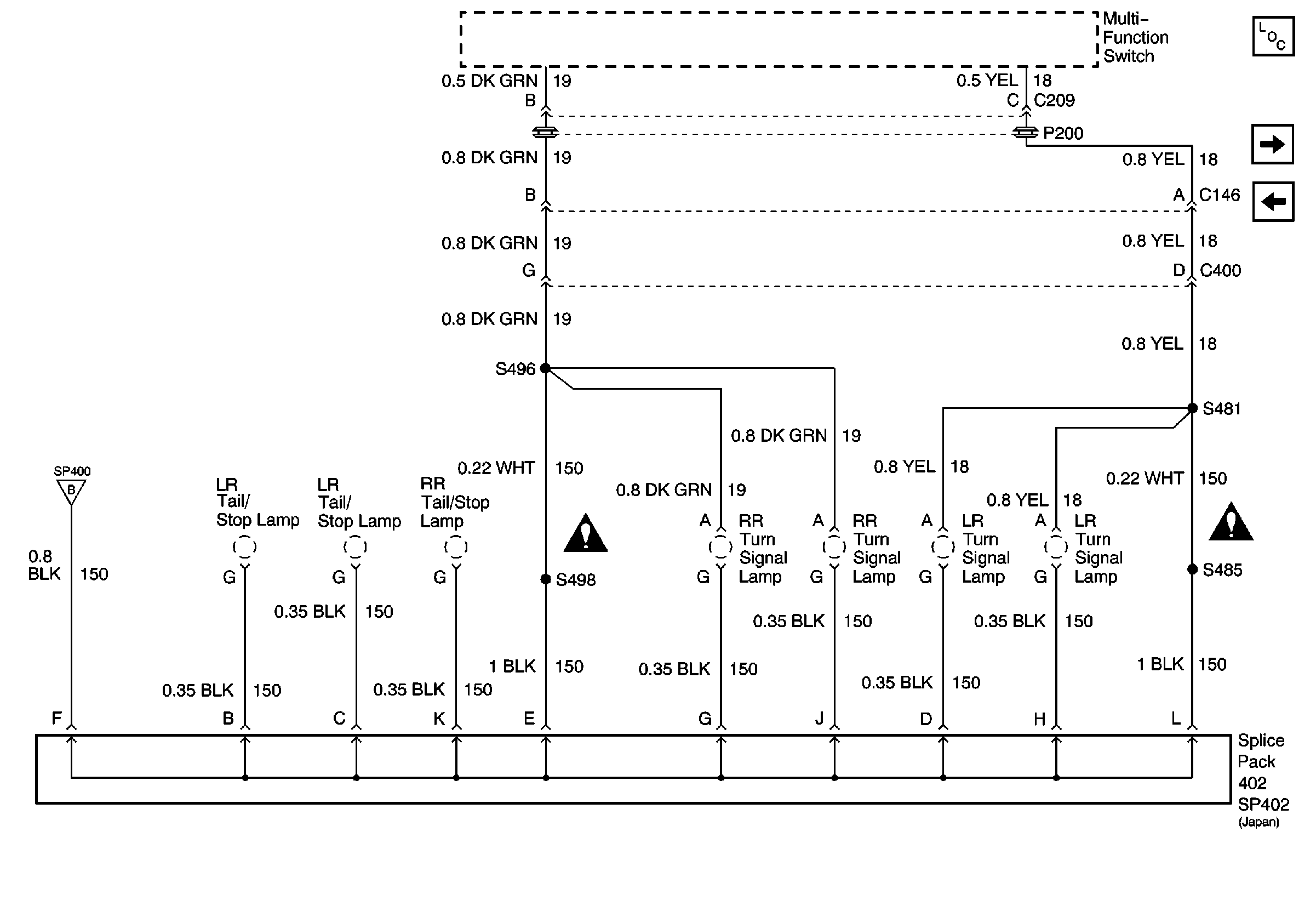

Figure 9:	SP400, G401 Power and Grounding Components SP402 (Japan) SP302, G302 SP402 (Japan)

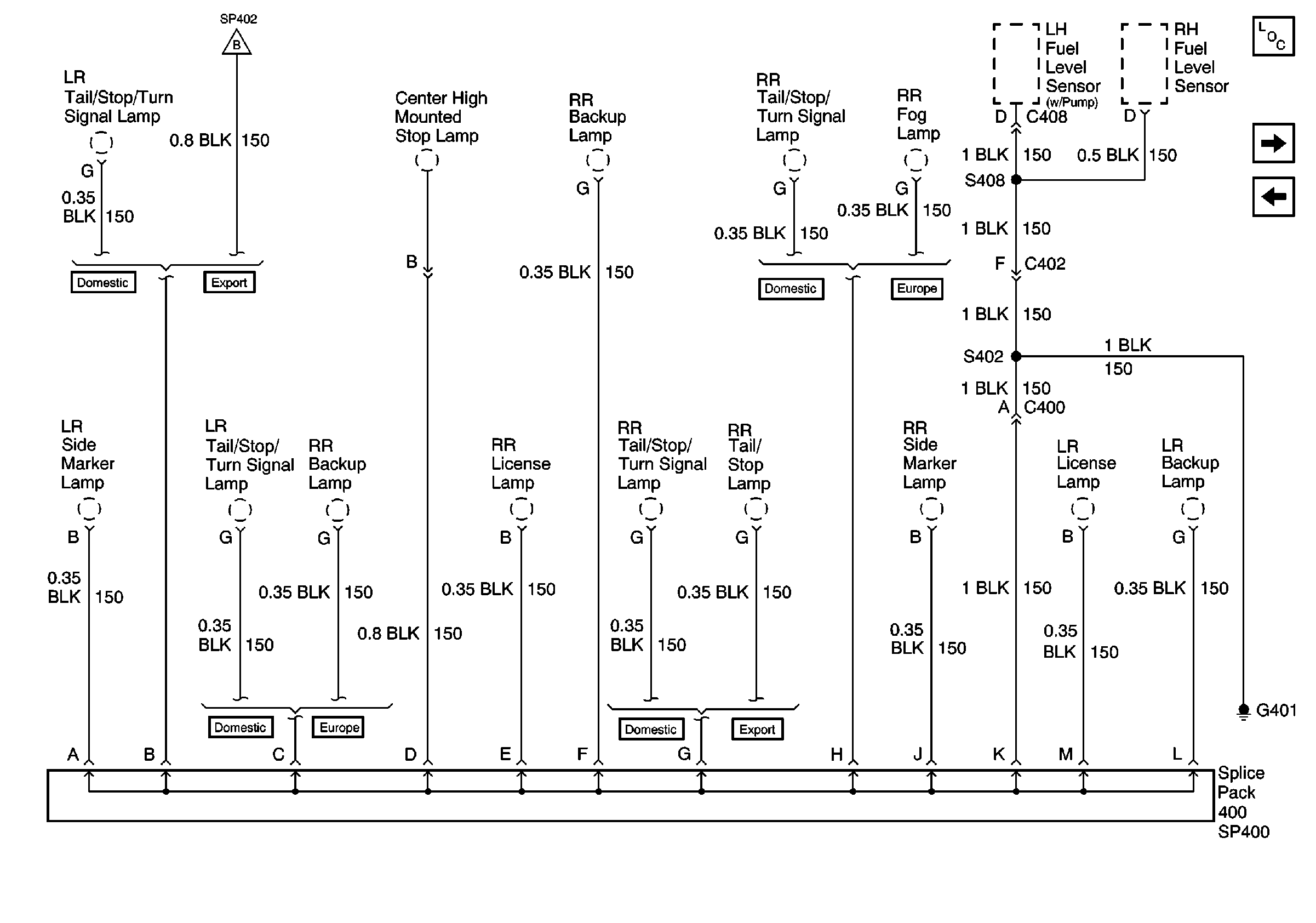

Figure 10:	SP402 (Japan) Power and Grounding Components SP402 (Europe) SP400, G401 SP400, G401 Power and Grounding Schematic Icons Power and Grounding Schematic Icons

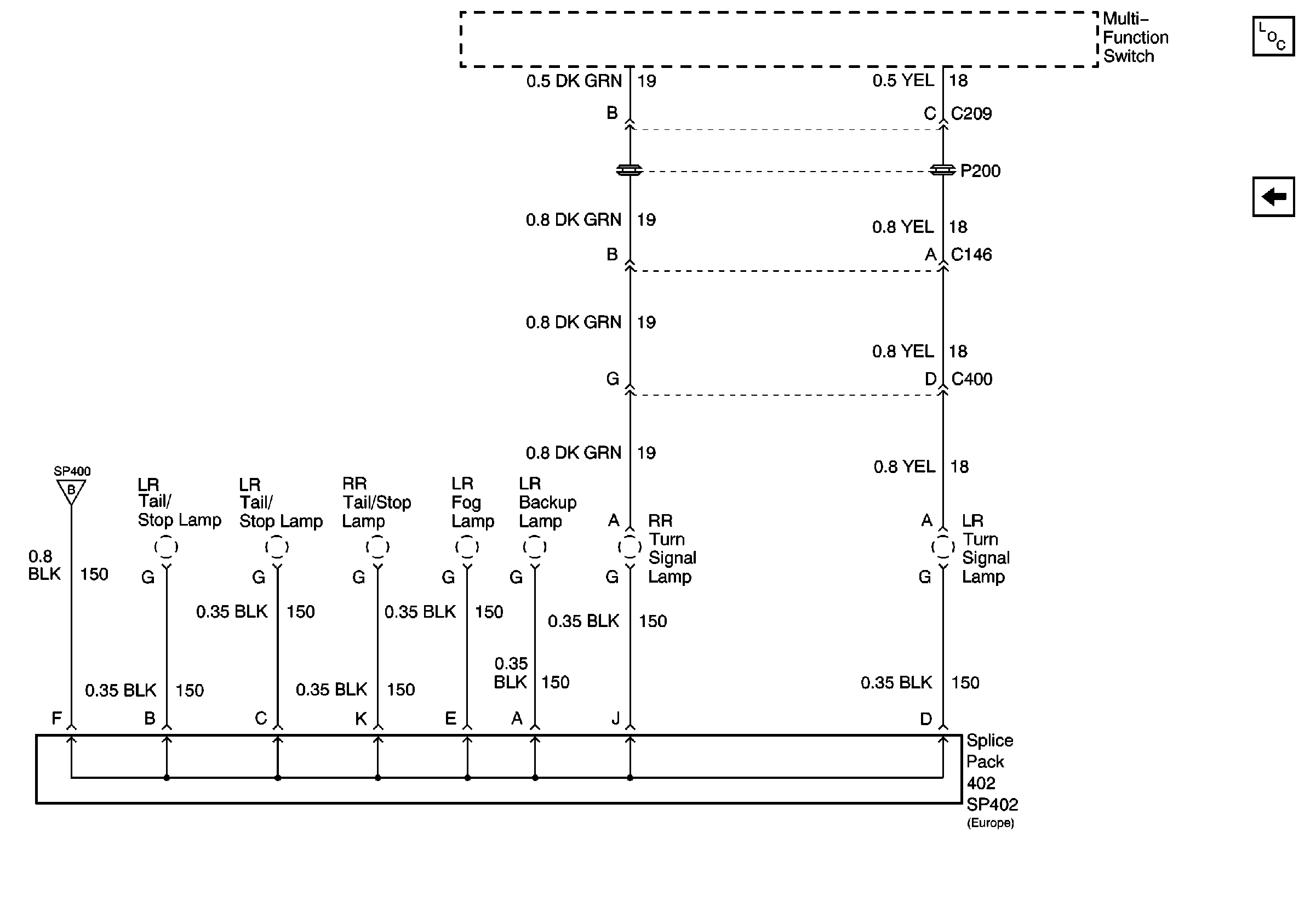

Figure 11:	SP402 (Europe) Power and Grounding Components SP402 (Japan) SP400, G401
