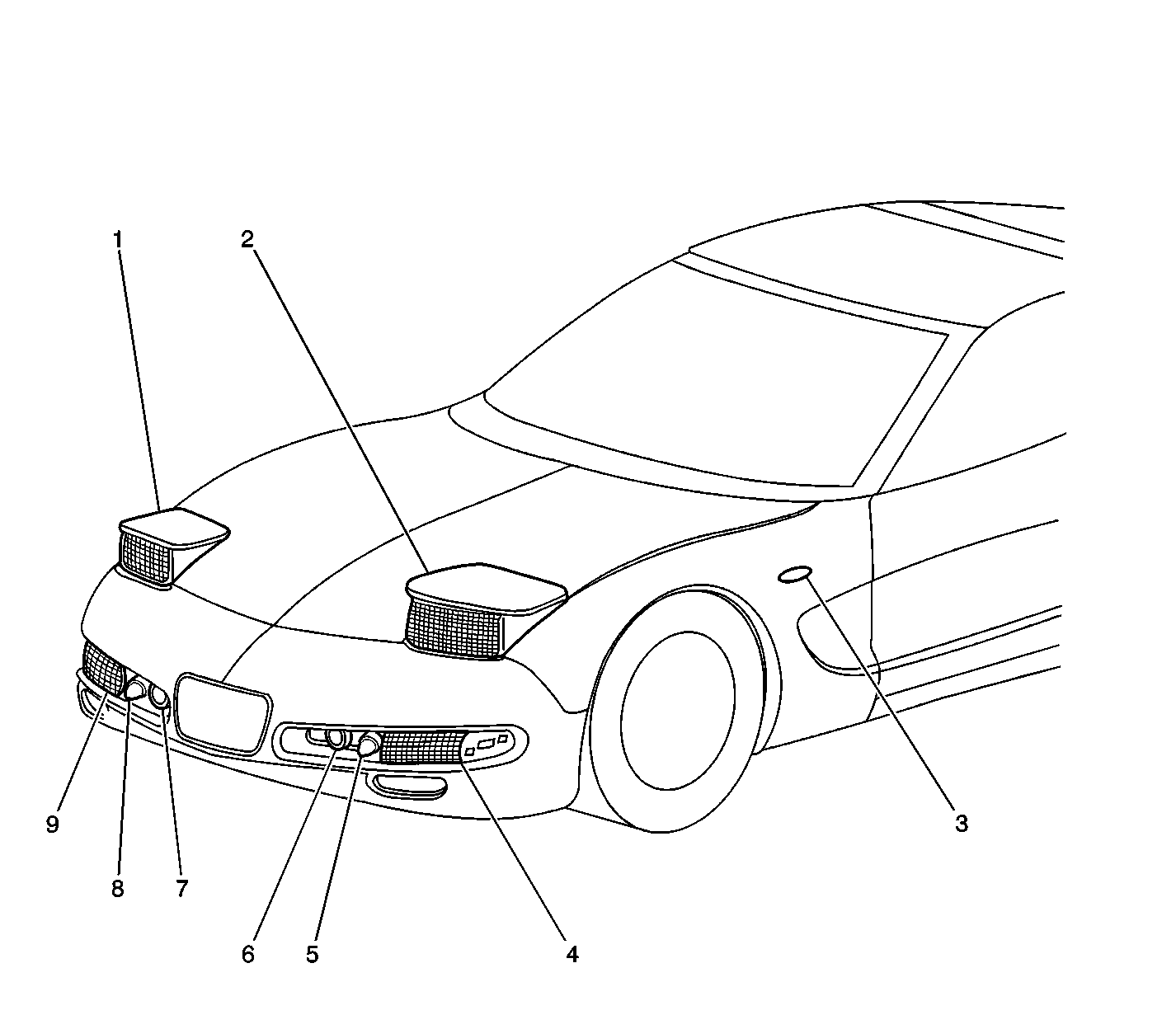

Figure 1:

Outside Front End of the Vehicle
Object Number: 531011 Size: LF
(1)RH Headlamp Opening Door Assembly
(2)LH Headlamp Opening Door Assembly
(3)LH Repeater Lamp (Export)
(4)LF Park/Turn Signal Lamp (Domestic) LF Turn Signal lamp (export)
(5)LF Park Lamp (Export)
(6)LF Fog Lamp
(7)RF Fog Lamp
(8)RF Park Lamp (Export)
(9)RF Park/Turn Signal Lamp (Domestic) RF Turn Signal Lamp (Export)

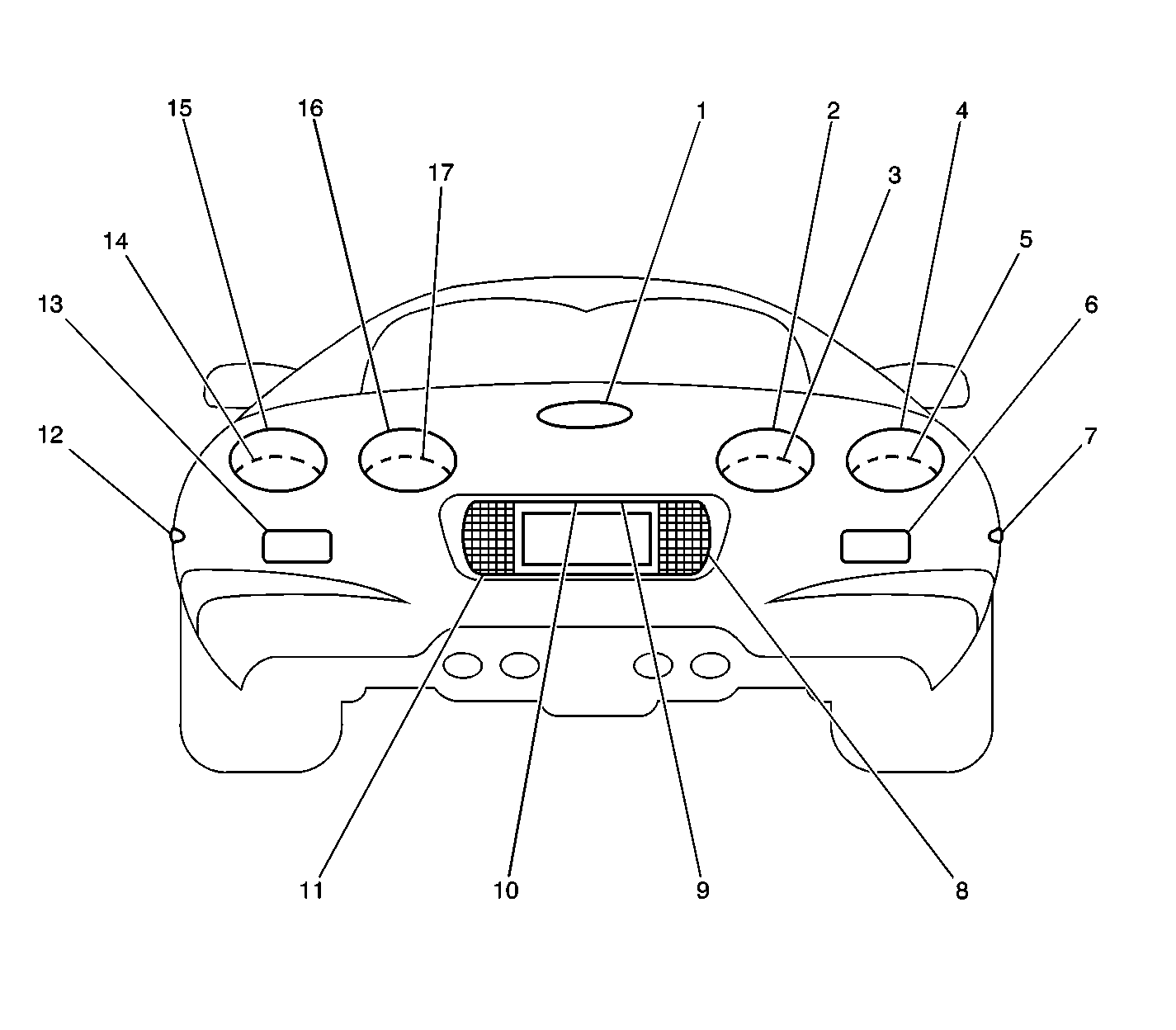

Figure 2:

Outside Rear End of the Vehicle
Object Number: 531016 Size: LF
(1)Center High Mounted Stop Lamp (CHMSL)
(2)RR Tail/Stop/Turn Signal Lamp (Domestic) RR Tail/Stop Lamp (Export)
(3)RR Turn Signal Lamp (Japan), RR Backup Lamp (Europe)
(4)RR Tail/Stop/Turn Signal Lamp (Domestic), RR Tail/Stop Lamp (Export)
(5)RR Turn Signal Lamp (Export)
(6)RR Fog Lamp (Europe)
(7)RR Side Marker Lamp
(8)RR Backup Lamp (Domestic and Japan)
(9)RR License Lamp
(10)LR License Lamp
(11)LR Backup Lamp (Domestic and Japan)
(12)LR Side Marker Lamp
(13)LR Fog Lamp (Europe)
(14)LR Turn Signal Lamp (Export)
(15)LR Tail/Stop/Turn Signal Lamp (Domestic), LR Tail/Stop Lamp (Export)
(16)LR Tail/Stop/Turn Signal Lamp (Domestic) LR Tail/Stop Lamp (Export)
(17)LR Turn Signal Lamp (Japan), LR Backup Lamp (Europe)

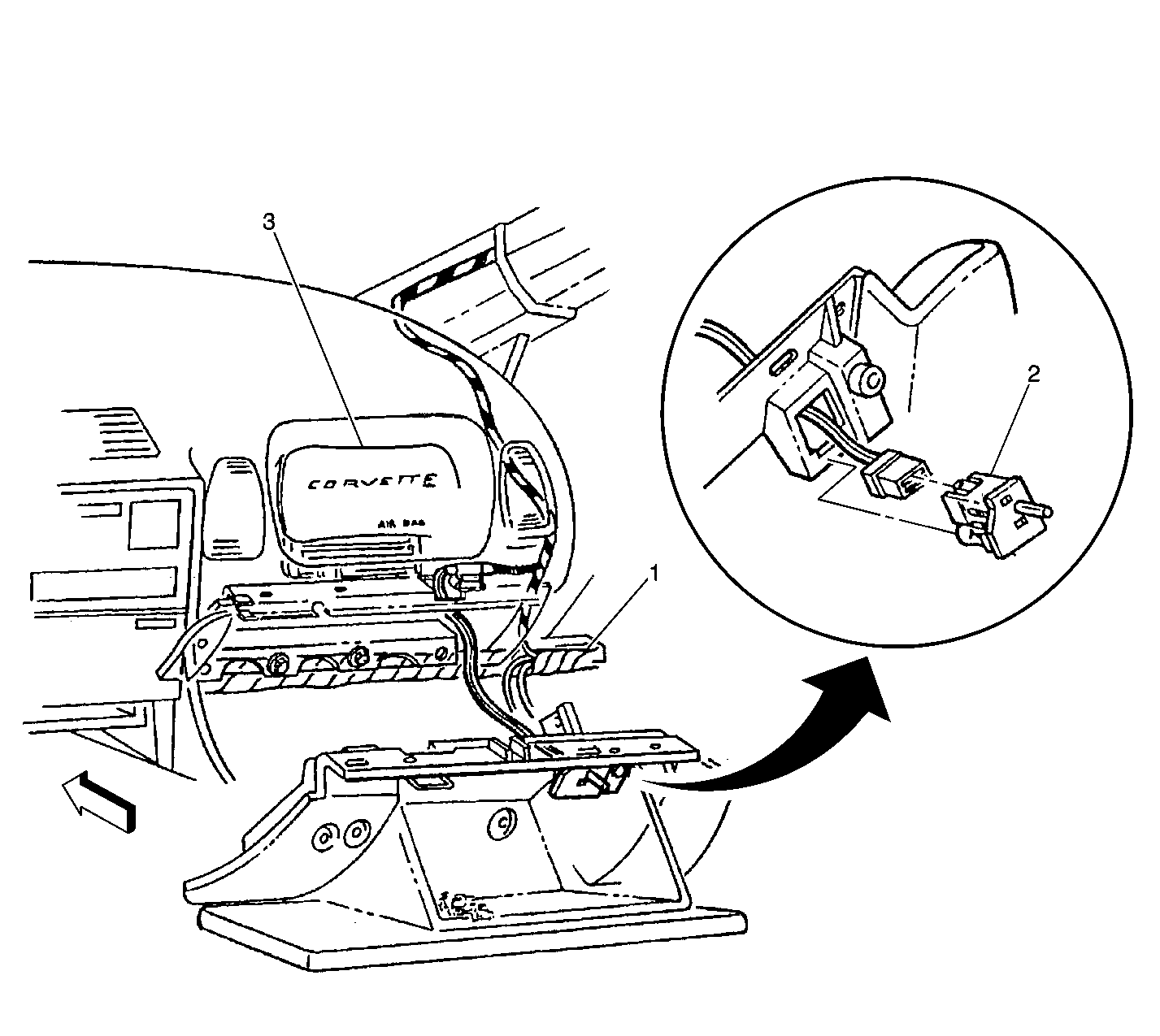

Figure 3:

RH side of Instrument Panel and Instrument Panel Compartment
Object Number: 187194 Size: LF
(1)Instrument Panel Harness
(2)Instrument Panel Compartment Lamp
(3)Inflatable Restraint Instrument Panel Module
Figure 4:

Inside the Vehicle, Instrument Panel, Center Console and RH Door
Object Number: 183764 Size: LF
(1)Hazard Warning Switch
(2)RH Door Switch
(3)Fuel Tank Filler Door Release Switch
(4)Electronic Accessory Plug
(5)Electronic Traction/Suspension Control Switch
(6)Cigar Lighter
(7)Ignition Switch
(8)Fog Lamp/Rear Compartment Lid Release Switch (Domestic), Front and Rear Fog Lamp Switches (Export)

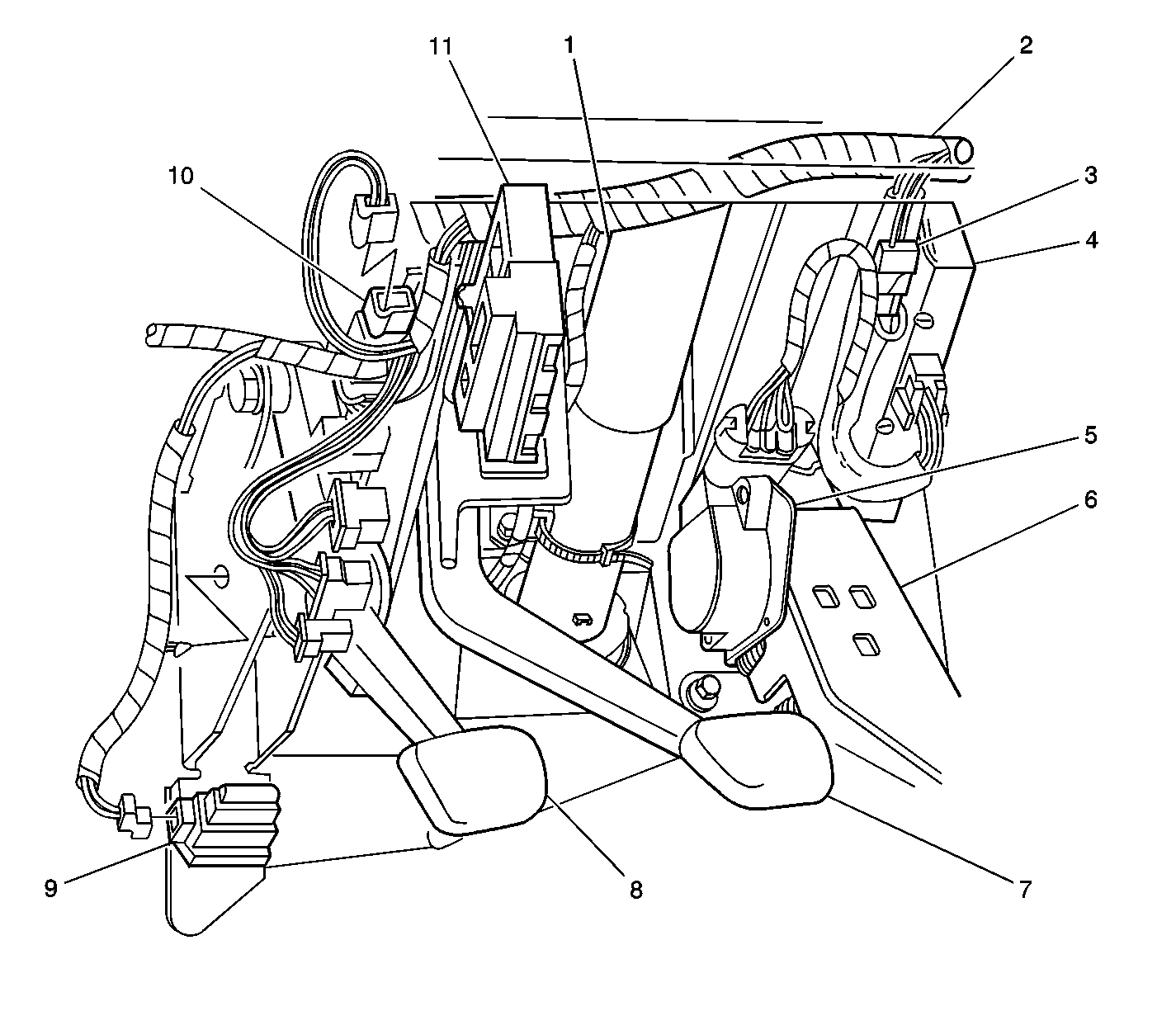

Figure 5:

Under the LH Side of the Instrument Panel
Object Number: 531019 Size: LF
(1)Steering Column
(2)Instrument Panel Harness
(3)Connector C213 -- Inline between the Instrument Panel Harness and the Steering Column Harness
(4)BOSE® Signal Processor
(5)Accelerator Pedal Position (APP) Sensor
(6)Accelerator Pedal
(7)Brake Pedal
(8)Clutch Pedal
(9)Clutch Pedal Position Switch
(10)Cruise Control Release Switch
(11)Stoplamp Switch

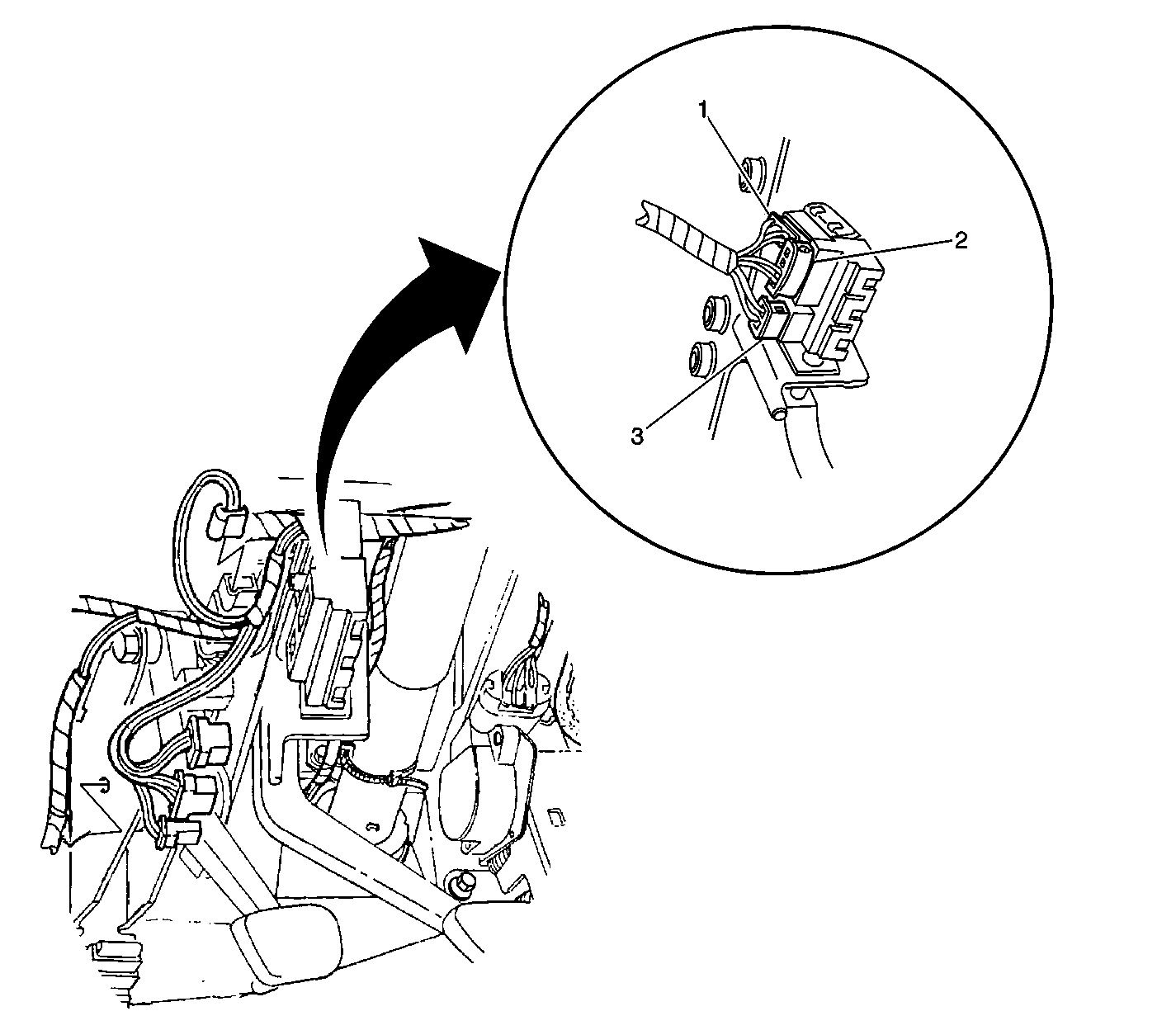

Figure 6:

Top of the Brake Pedal
Object Number: 531297 Size: LF
(1)Stoplamp Switch Connector C1
(2)Automatic Transmission Shift Lock Control Switch Connector
(3)Stoplamp Switch Connector C2
