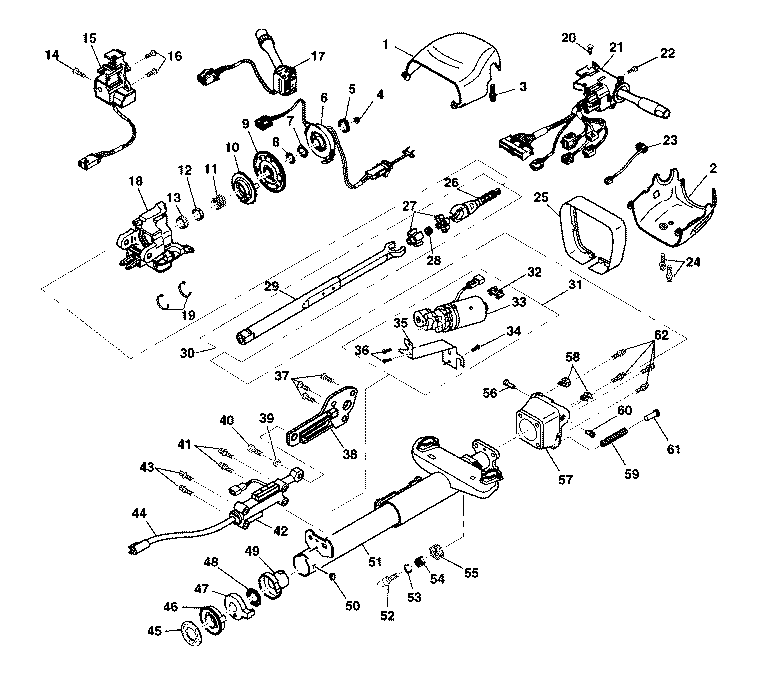

| (1) | Upper Trim Cover |
| (2) | Lower Trim Cover |
| (3) | TORX®
Head Screw |
| (4) | Flanged Prevailing Torque Nut |
| (5) | Retaining Ring |
| (6) | Inflatable Restraint Steering Wheel
Module Coil |
| (7) | Wave Washer |
| (8) | Bearing Retainer |
| (9) | Shaft Lock Shield Assembly |
| (10) | Turn
Signal Cancel Cam Assembly |
| (11) | Upper Bearing Spring |
| (12) | Upper Bearing Inner Race Seat |
| (13) | Inner
Race |
| (14) | Pan Head Tapping Screws |
| (15) | Electric Column Lock |
| (16) | Pan Head Tapping
Screws |
| (17) | Windshield Wiper and Washer Switch Assembly |
| (18) | Steering Column Tilt Head Assembly |
| (19) | Wire Harness Strap |
| (20) | Pan Head Tapping Screws |
| (21) | Turn Signal and Multifunction Switch
Assembly |
| (22) | Pan Head Tapping Screws |
| (23) | Telescoping Switch Assembly |
| (24) | Pan Head Tapping Screw |
| (25) | Steering Column Close Out Trim Cover |
| (26) | Race
and Upper Shaft Assembly |
| (27) | Centering Sphere |
| (28) | Joint Preload Spring |
| (29) | Lower Steering
Shaft Assembly |
| (30) | Steering Shaft Assembly |
| (31) | Telescope Motor and
Bracket Assembly |
| (32) | Connector Clip |
| (33) | Telescope Drive Motor Assembly |
| (34) | Pan Head Tapping Screws |
| (35) | Telescope Drive Bracket |
| (36) | Pan Head Tapping Screws |
| (37) | Flat
Head 6-Lobed Soc Tap Screw |
| (38) | Telescope Adapter Assembly |
| (39) | Telescope
Drive Ball |
| (40) | Telescope Drive Bolt |
| (41) | TORX® Head Screw |
| (42) | Telescope Actuator Assembly |
| (43) | TORX® Head Screw |
| (44) | Cable Assembly |
| (45) | Steering Shaft Seal |
| (46) | Sensor Retainer |
| (47) | Hi Resolution Steering Wheel Position Sensor Assembly |
| (48) | Lower Spring Retainer |
| (49) | Adapter and Bearing Assembly |
| (50) | Switch Housing Blocking Plug |
| (51) | Telebearing
and Jacket Assembly |
| (52) | Shoulder Bolt |
| (53) | Retaining Ring |
| (54) | Compression
Spring |
| (55) | Anti Rotation Ball |
| (56) | Pivot Pin |
| (57) | Steering Column Support Assembly |
| (58) | Tilt Bumper |
| (59) | Tilt Spring |
| (60) | Pivot Pin |
| (61) | Spring Guide |
| (62) | Support Screw |
