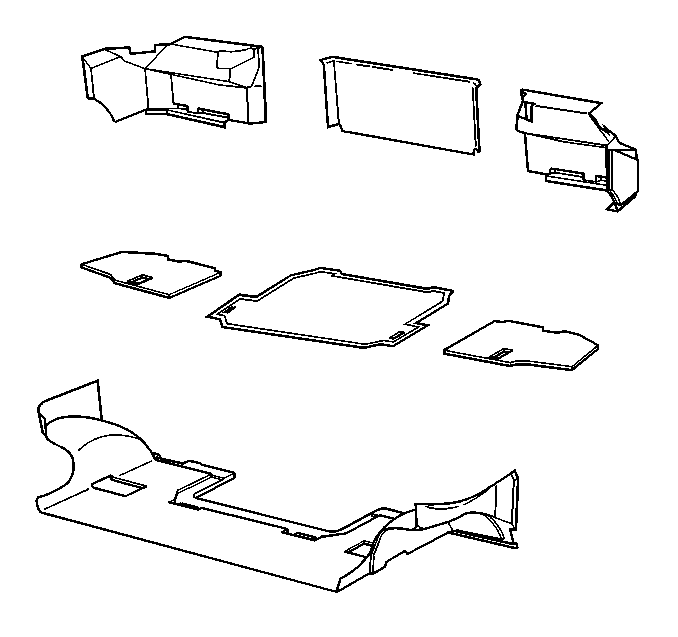

Rear Compartment Rear Center Trim Panel Carpet Replacement Convertible

1. Remove the cargo net, if equipped.
2. Remove the rear center stowage compartment cover.
3. Remove the rear side stowage compartment covers.



4. Remove the corner trim panels. Refer to Rear Corner Trim Panel Carpet Replacement .
5. Remove the center carpet panel.

1. Install the rear center carpet panel.
2. Position the fuel door manual release cable through the slot in the rear center carpet panel.
3. Install the rear corner carpet panels. Refer to Rear Corner Trim Panel Carpet Replacement .



4. Install the cargo net, if equipped.
5. Install the rear stowage compartment covers.

Rear Compartment Rear Center Trim Panel Carpet Replacement Coupe

1. Remove the rear side stowage compartment covers.
2. Remove the rear center stowage compartment cover.



3. Remove the corner carpet trim panels. Refer to Rear Corner Trim Panel Carpet Replacement .
4. Remove the center carpet trim panel.

1. Install the center carpet trim panel.
2. Install the corner carpet trim panels. Rear Corner Trim Panel Carpet Replacement .



3. Install the rear center compartment cover.
4. Install the rear side stowage compartment covers.

Rear Compartment Rear Center Trim Panel Carpet Replacement Hardtop

1. Remove the convenience net nuts.



2. Remove the cargo courtesy lamps.

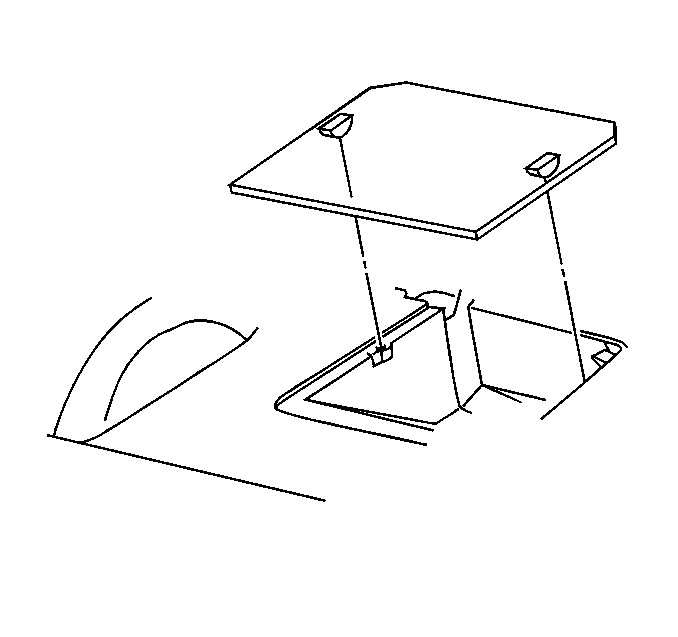

3. Remove the floor center stowage cover.



4. Pull the trim panel out from under the upper flange of the rear body panel.
5. Remove the rear trim panel.

1. Install the rear compartment rear trim panel to the studs on the rear body panel.
2. Route the manual release cable down behind the carpet trim panel and out through the slit in the trim panel into the floor stowage area.
3. Tuck the trim panel upper flange under the rim of the rear panel.
4. Install the convenience net installation nuts.



5. Install the cargo lamps.
6. Tuck the rear trim behind the sides of the floor carpet.



7. Install the floor center stowage cover.
