Release Systems Schematics. Chevrolet Corvette 2000

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Corvette 🢒 Body and Accessories 🢒 Body Rear End 🢒 Release Systems Schematics

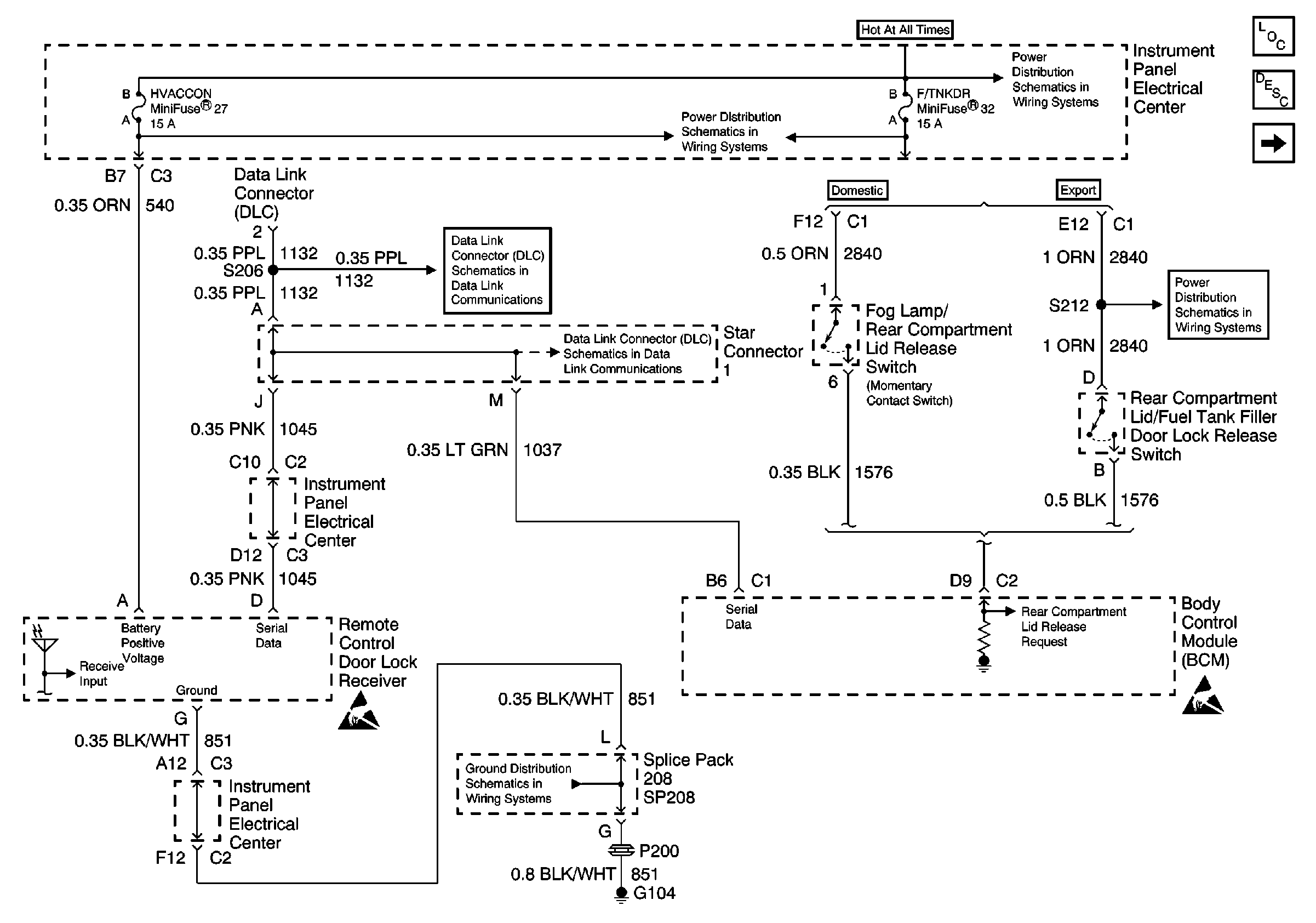

Figure 1:	Power, Ground and DLC Body Rear End Components Rear Compartment Lid Release Circuit Description Rear Compartment Lid Release (Hardtop/Convertible) Power Distribution Schematics Power Distribution Schematics Power Distribution Schematics Ground Distribution Schematics Data Link Connector Schematics Data Link Connector Schematics Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

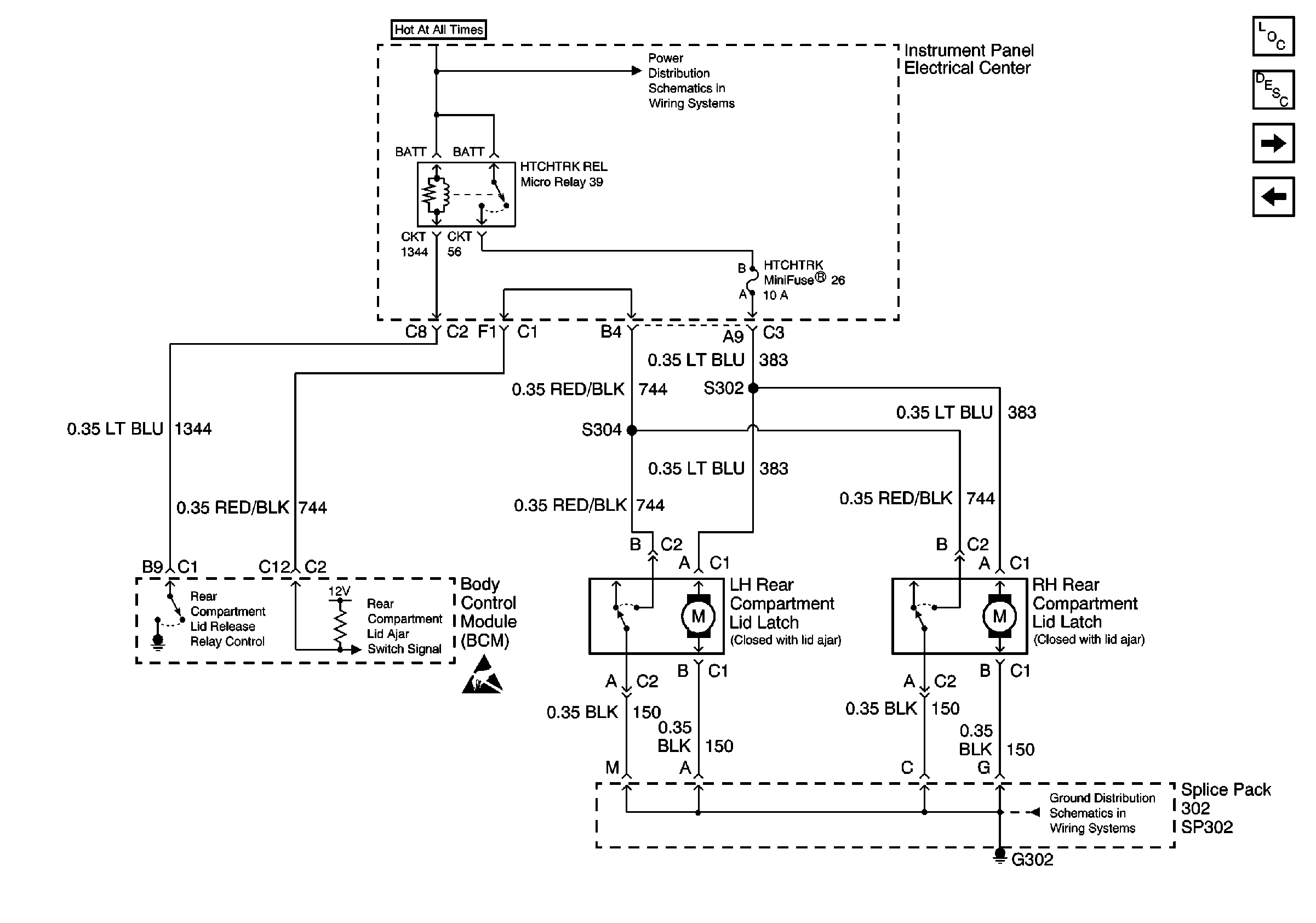

Figure 2:	Rear Compartment Lid Release (Hardtop/Convertable) Body Rear End Components Rear Compartment Lid Release Circuit Description Rear Compartment Lid Release (Coupe) Power, Ground and DLC Power Distribution Schematics Ground Distribution Schematics Handling ESD Sensitive Parts Notice

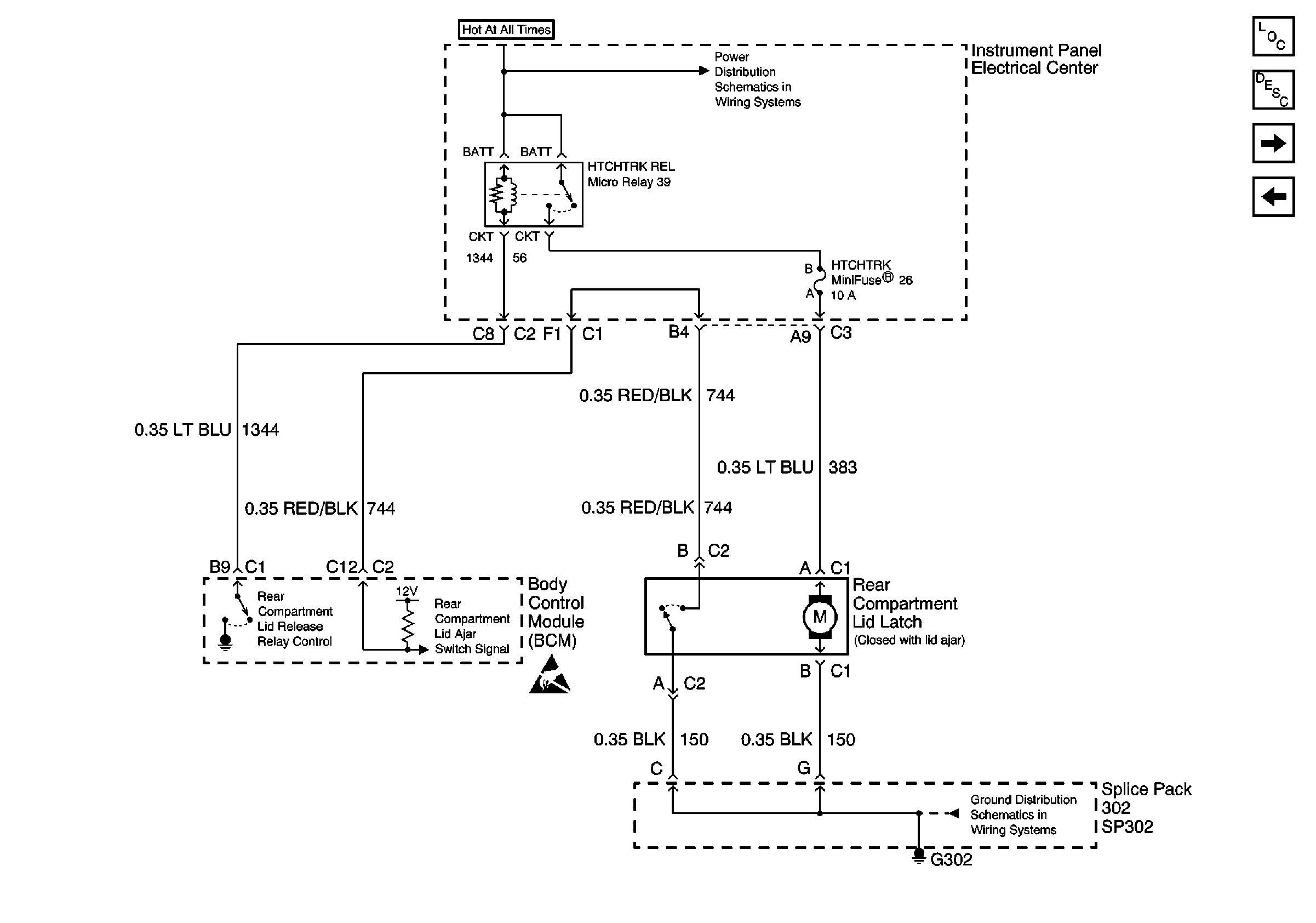

Figure 3:	Rear Compartment Lid Release (Coupe) Body Rear End Components Rear Compartment Lid Release Circuit Description Folding Top Control Rear Compartment Lid Release (Hardtop/Convertible) Power Distribution Schematics Ground Distribution Schematics Handling ESD Sensitive Parts Notice

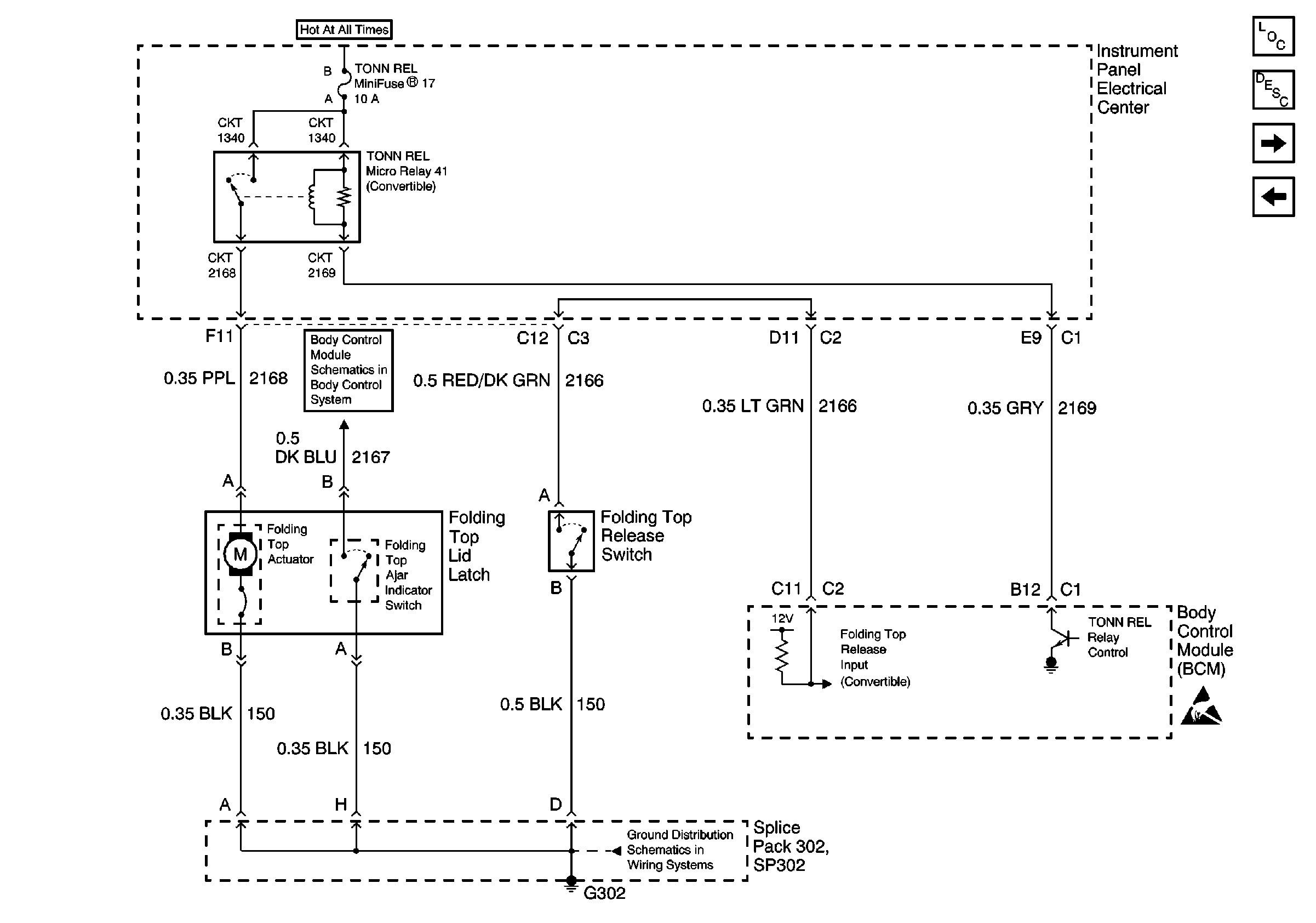

Figure 4:	Folding Top Control Body Rear End Components Folding Top Cover Release Circuit Description Fuel Tank Filler Door Release Rear Compartment Lid Release (Coupe) Ground Distribution Schematics Body Control System Schematics Handling ESD Sensitive Parts Notice

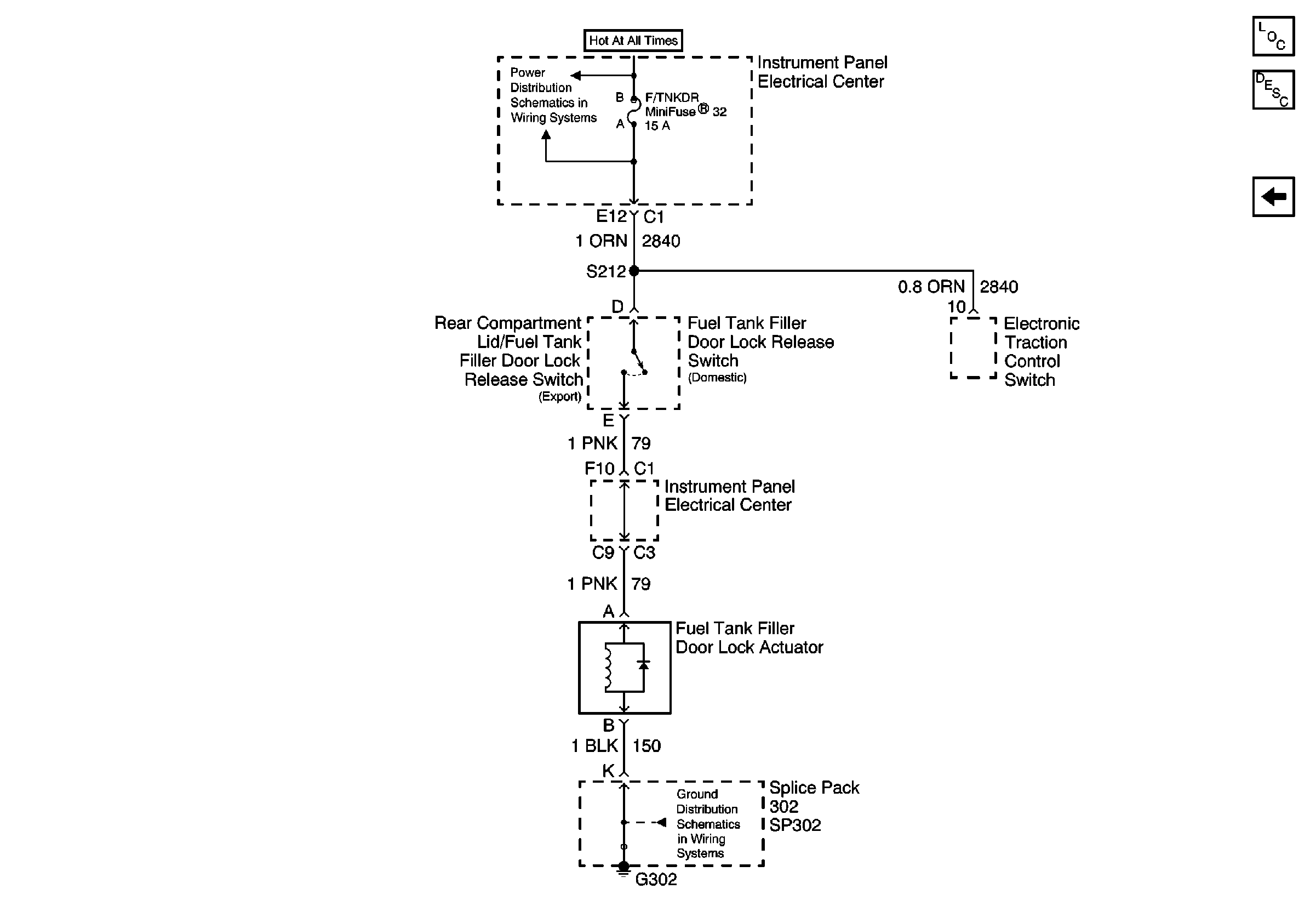

Figure 5:	Fuel Tank Filler Door Release Body Rear End Components Fuel Filler Door Release Circuit Description Folding Top Control Power Distribution Schematics Ground Distribution Schematics
