Engine Controls Component Views. Chevrolet Corvette 2001

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2001 🢒 Corvette 🢒 Engine 🢒 Engine Controls - 5.7L 🢒 Engine Controls Component Views

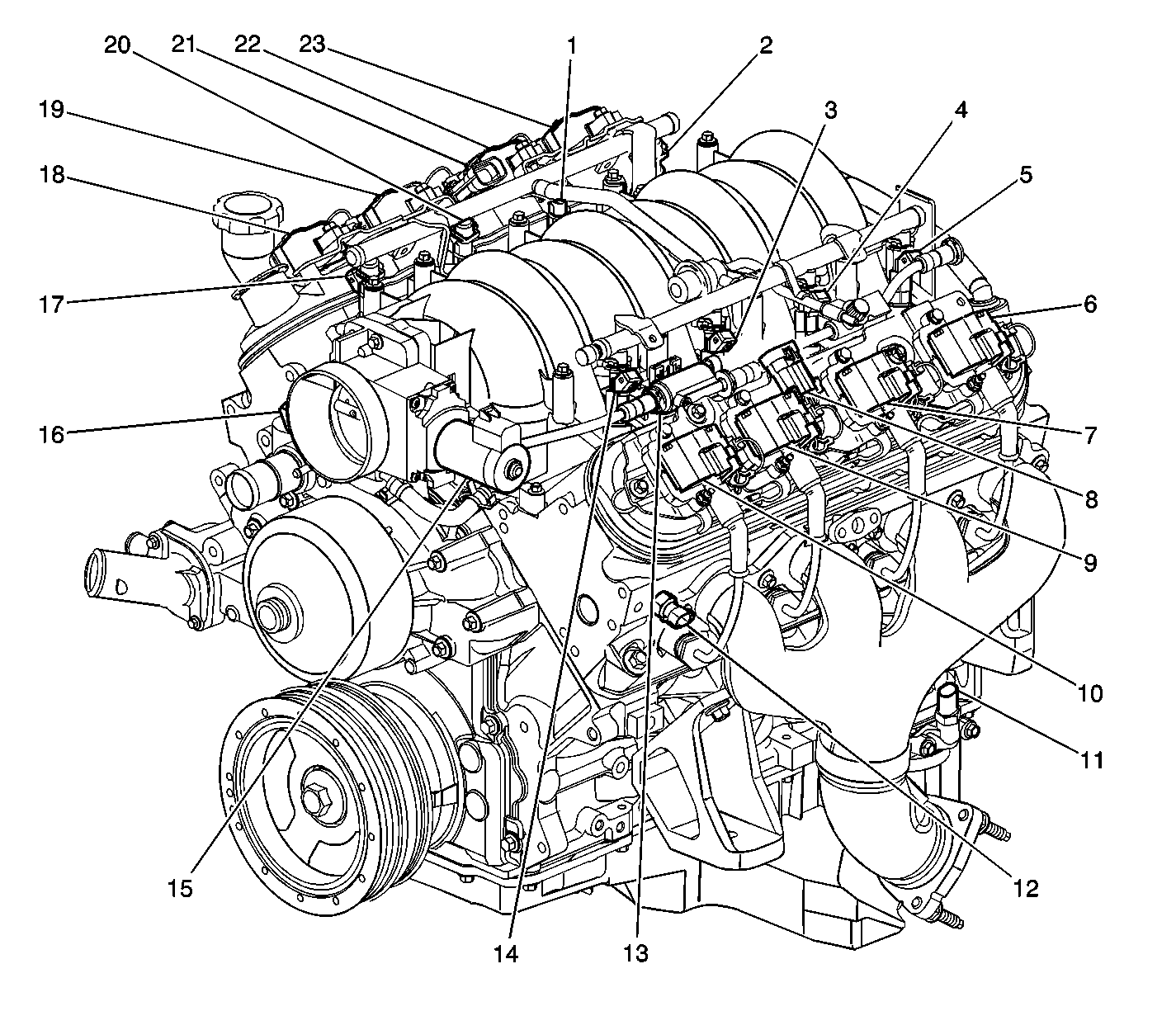

Figure 1:


(1)	Fuel Injector 6
(2)	Fuel Injector 8
(3)	Fuel Injector 3
(4)	Fuel Injector 5
(5)	Fuel Injector 7
(6)	Ignition Coil/Module 7
(7)	Ignition Coil/Module 5
(8)	C109
(9)	Ignition Coil/Module 3
(10)	Ignition Coil/Module 1
(11)	Engine Oil Temperature (EOT) Sensor
(12)	Engine Coolant Temperature (ECT) Sensor
(13)	Evaporative Emission (EVAP) Canister Purge Solenoid
(14)	Fuel Injector 1
(15)	Throttle Actuator Control (TAC) Motor
(16)	Throttle Position (TP) Sensor
(17)	Fuel Injector 2
(18)	Ignition Coil/Module 2
(19)	Ignition Coil/Module 4
(20)	Fuel Injector 4
(21)	C110
(22)	Ignition Coil/Module 6
(23)	Ignition Coil/Module 8

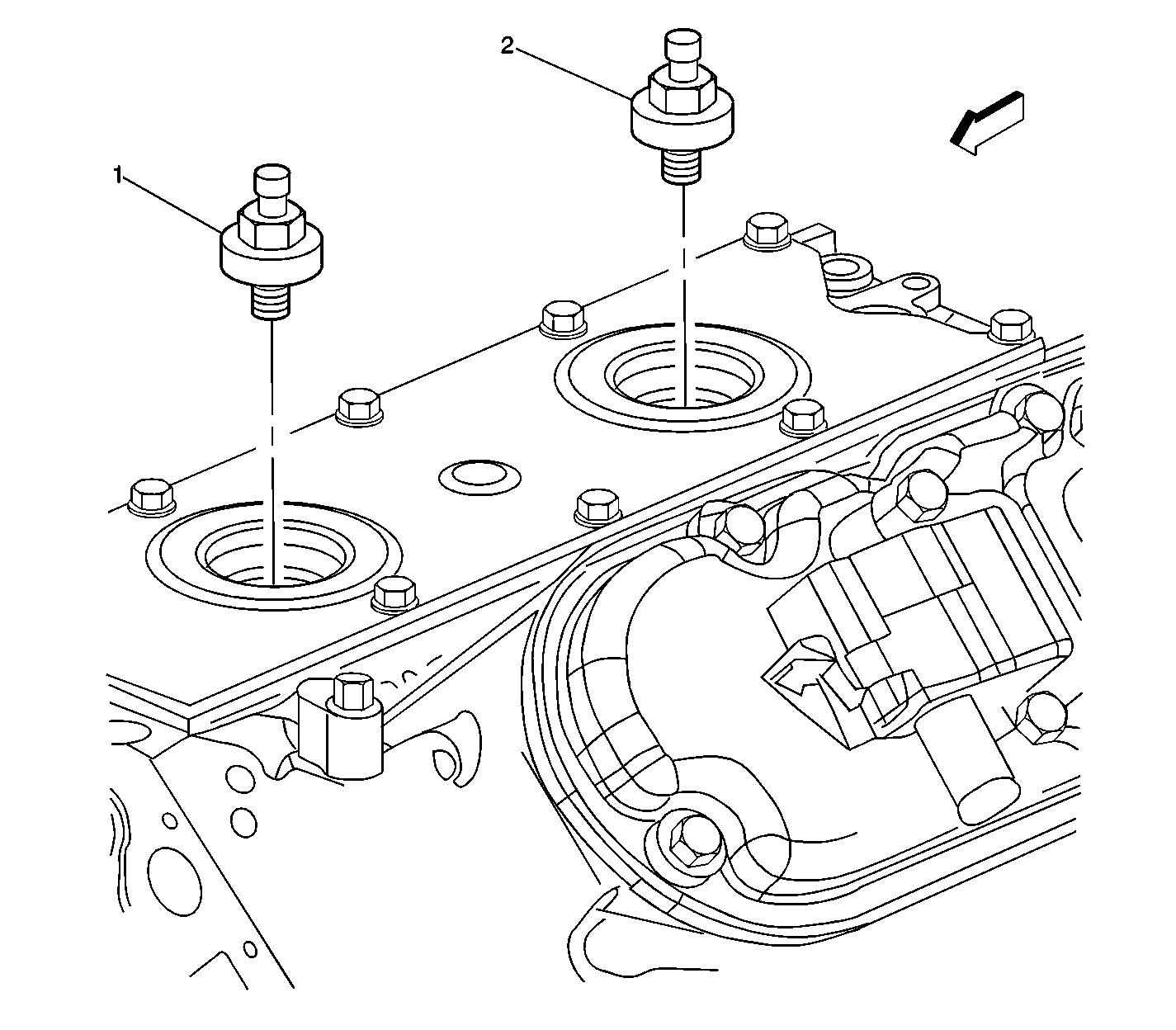

Figure 2:


(1)	Knock Sensor (KS) 1
(2)	Knock Sensor (KS) 2

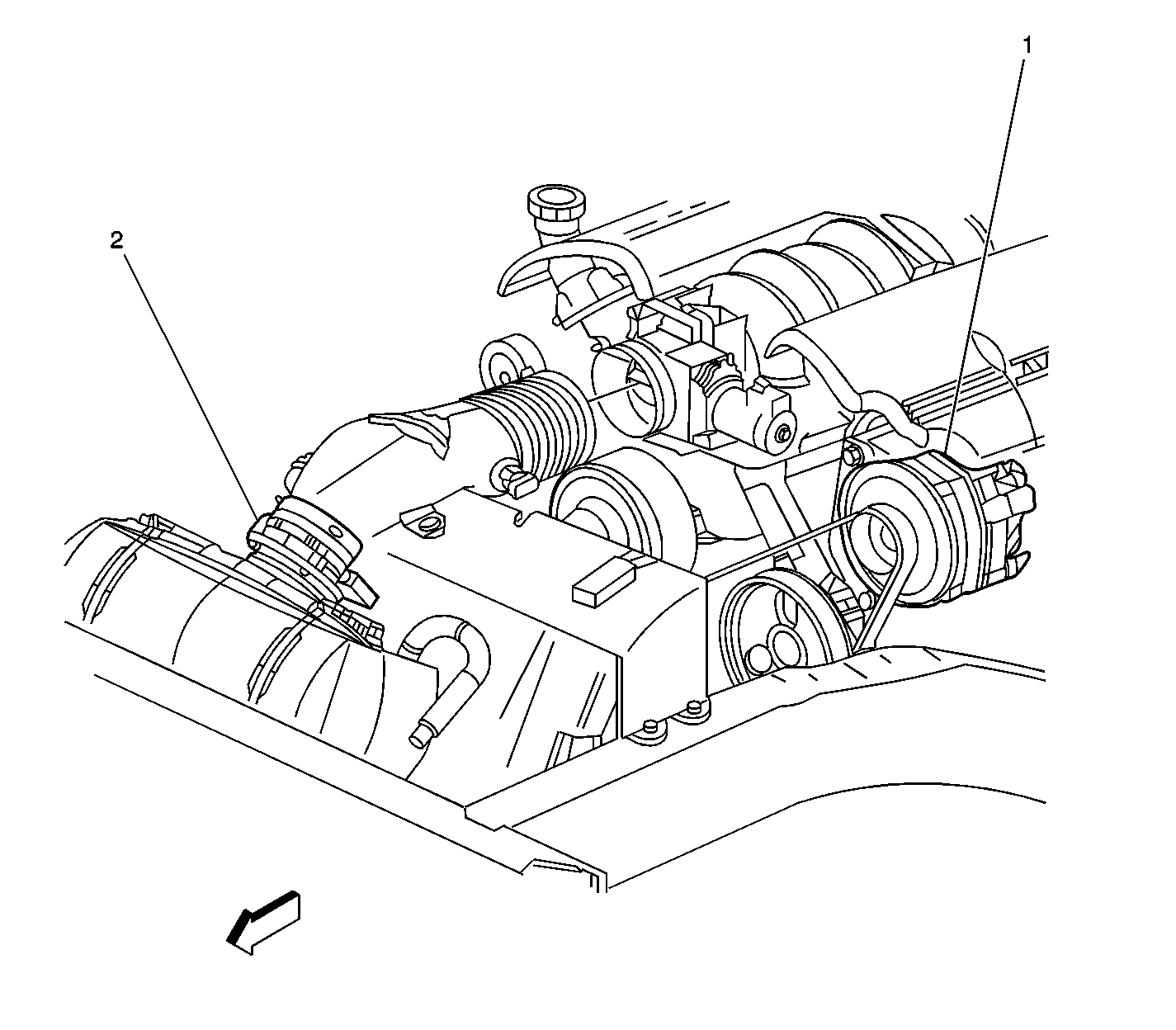

Figure 3:


(1)	Generator
(2)	Mass Air Flow (MAF) Sensor

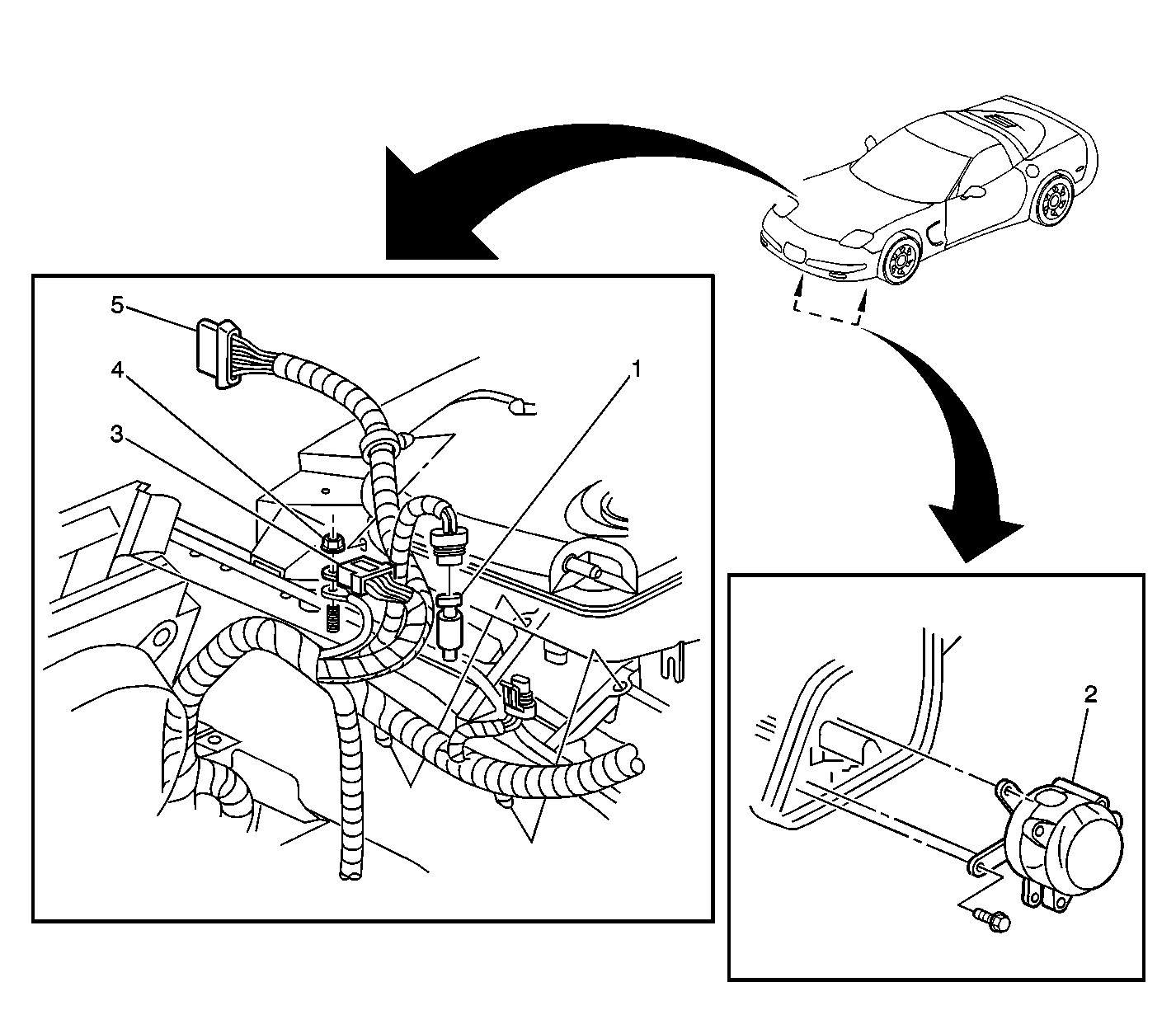

Figure 4:


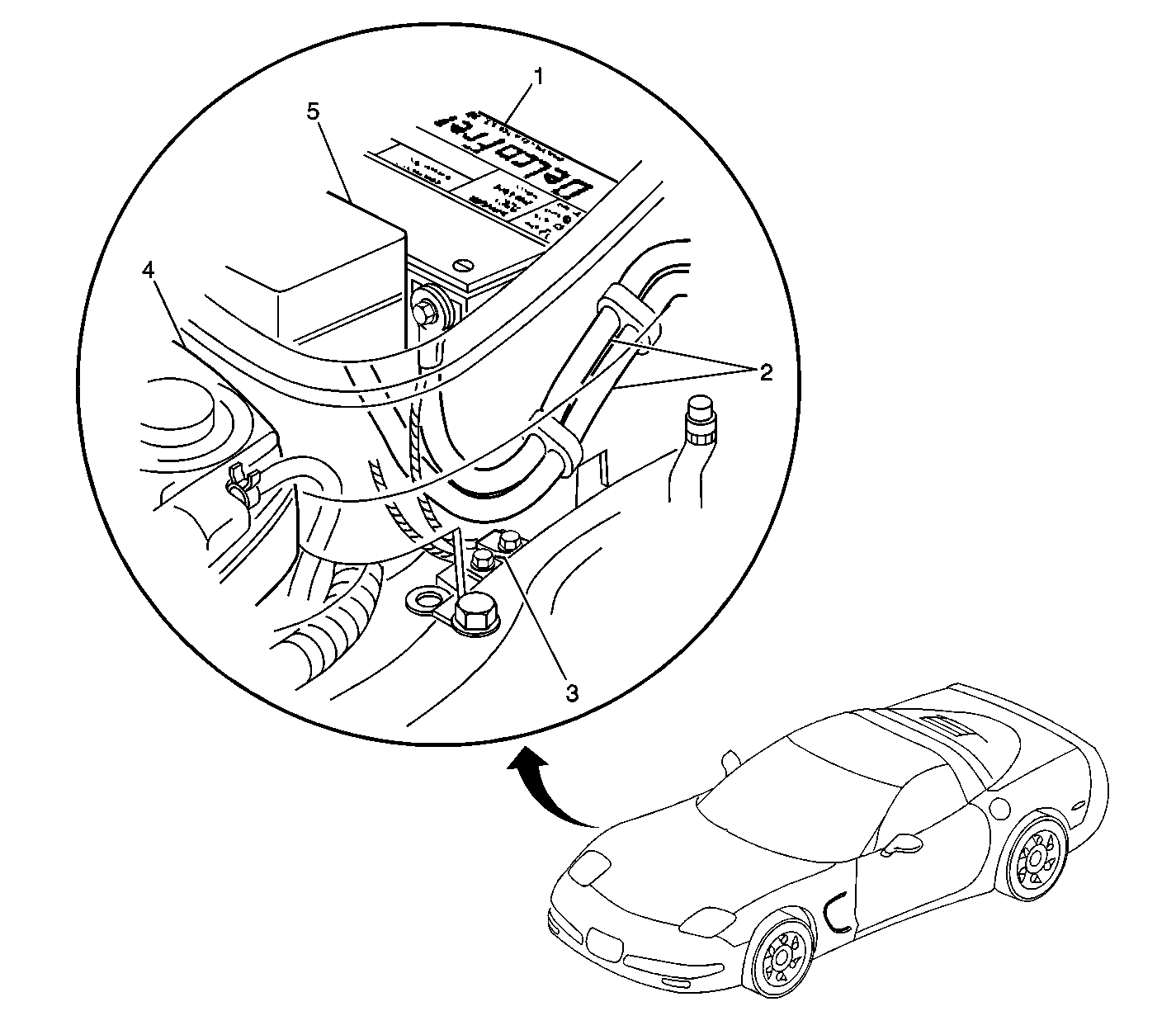

(1)	A/C Refrigerant Pressure Sensor
(2)	Secondary Air Injection (AIR) Pump
(3)	SP100
(4)	G102
(5)	Headlamp Door Assembly-Right Connector

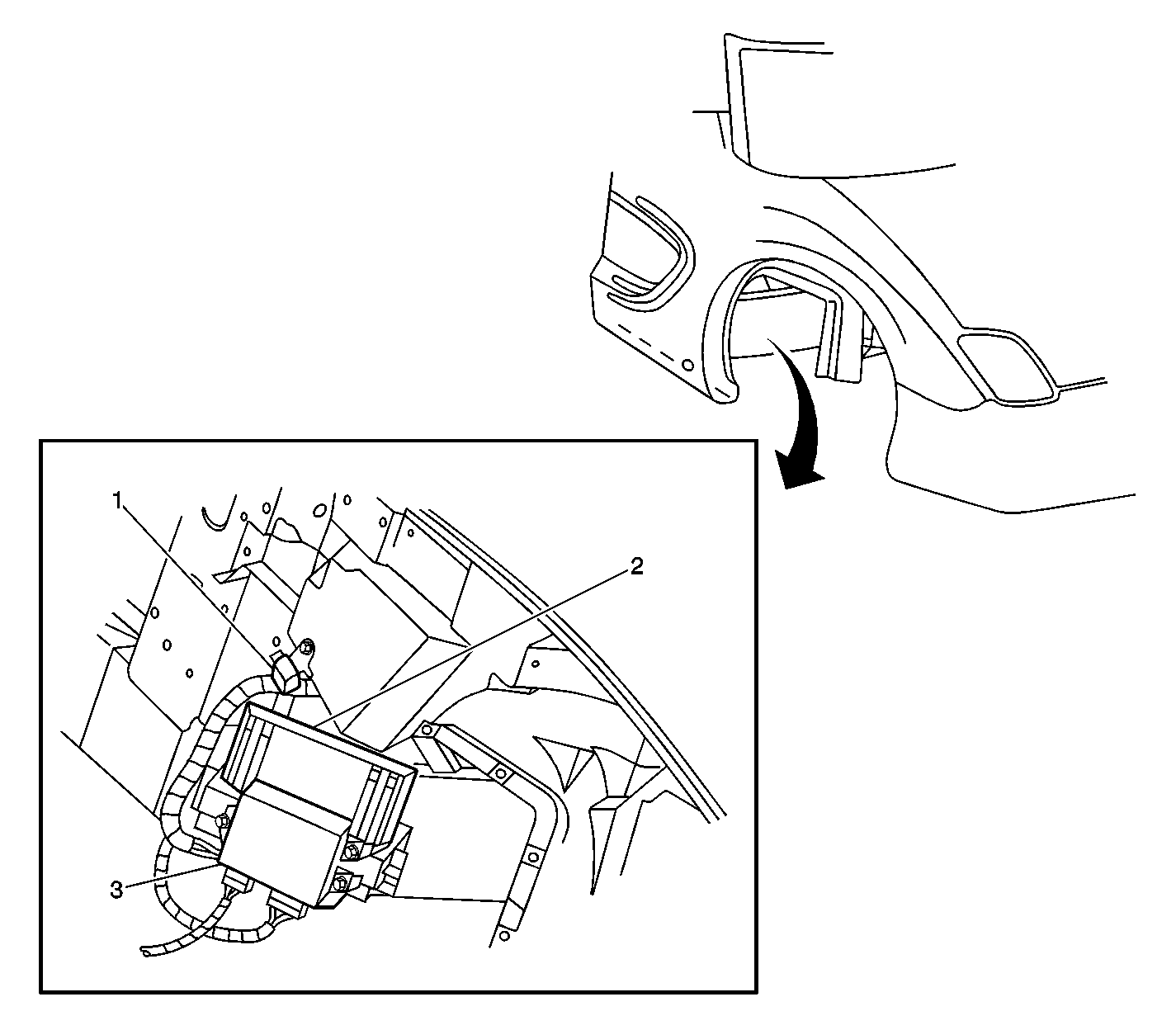

Figure 5:


(1)	Secondary Air Injection (AIR) Solenoid
(2)	Powertrain Control Module (PCM)
(3)	Throttle Actuator Control (TAC) Module

Figure 6:

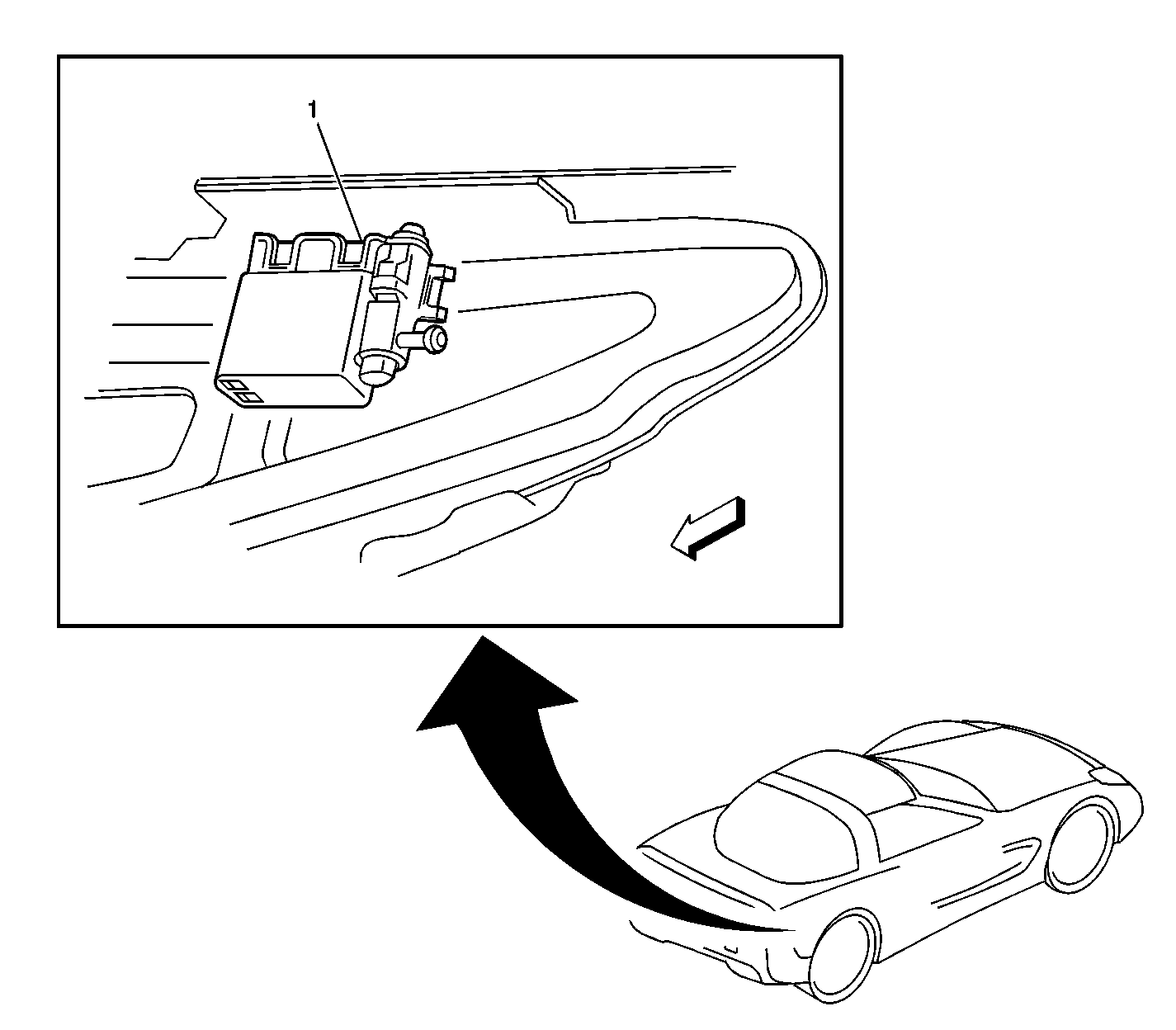

(1)	Evaporative Emission (EVAP) Canister Vent Solenoid

Figure 7:

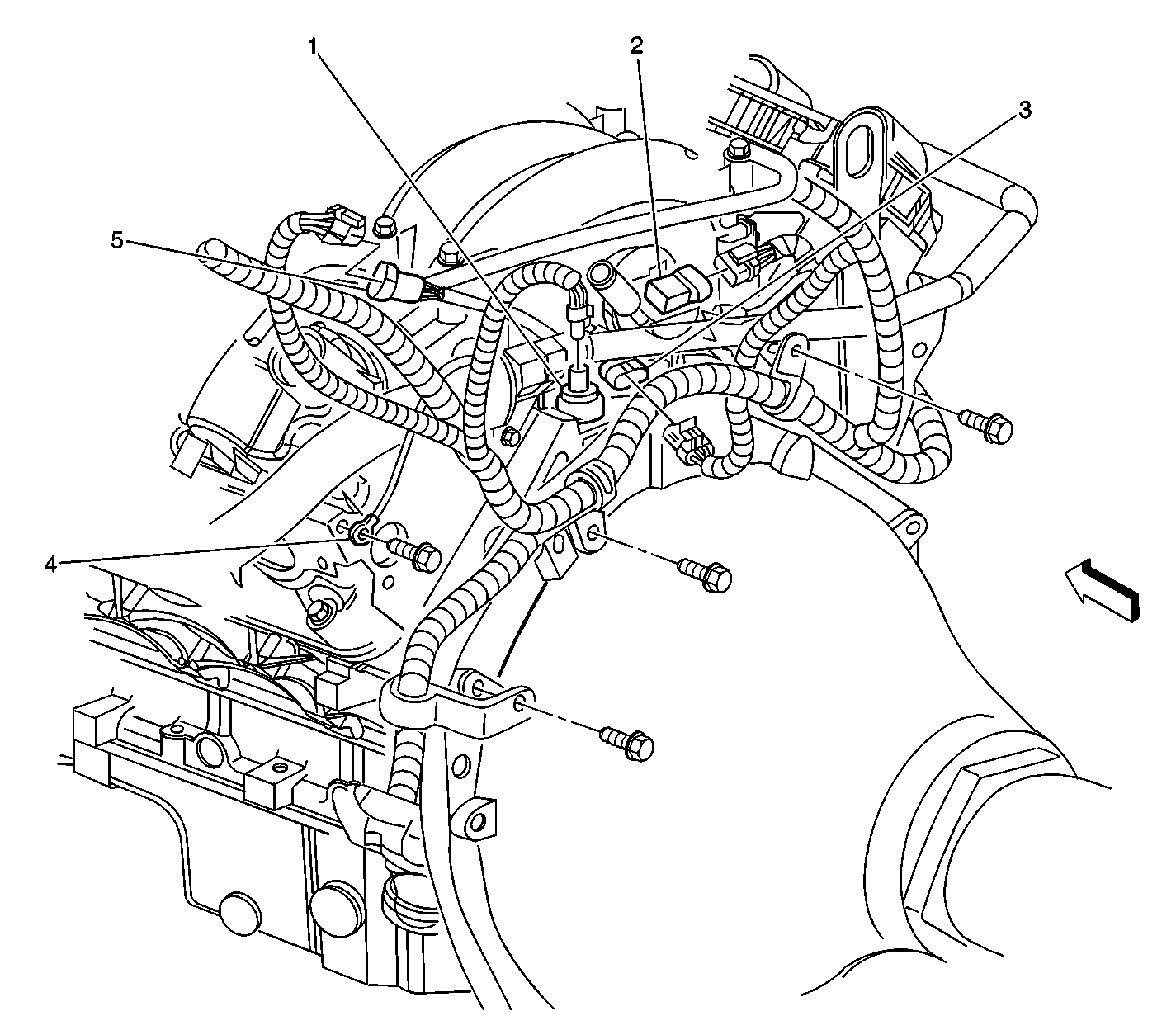

Figure 8:


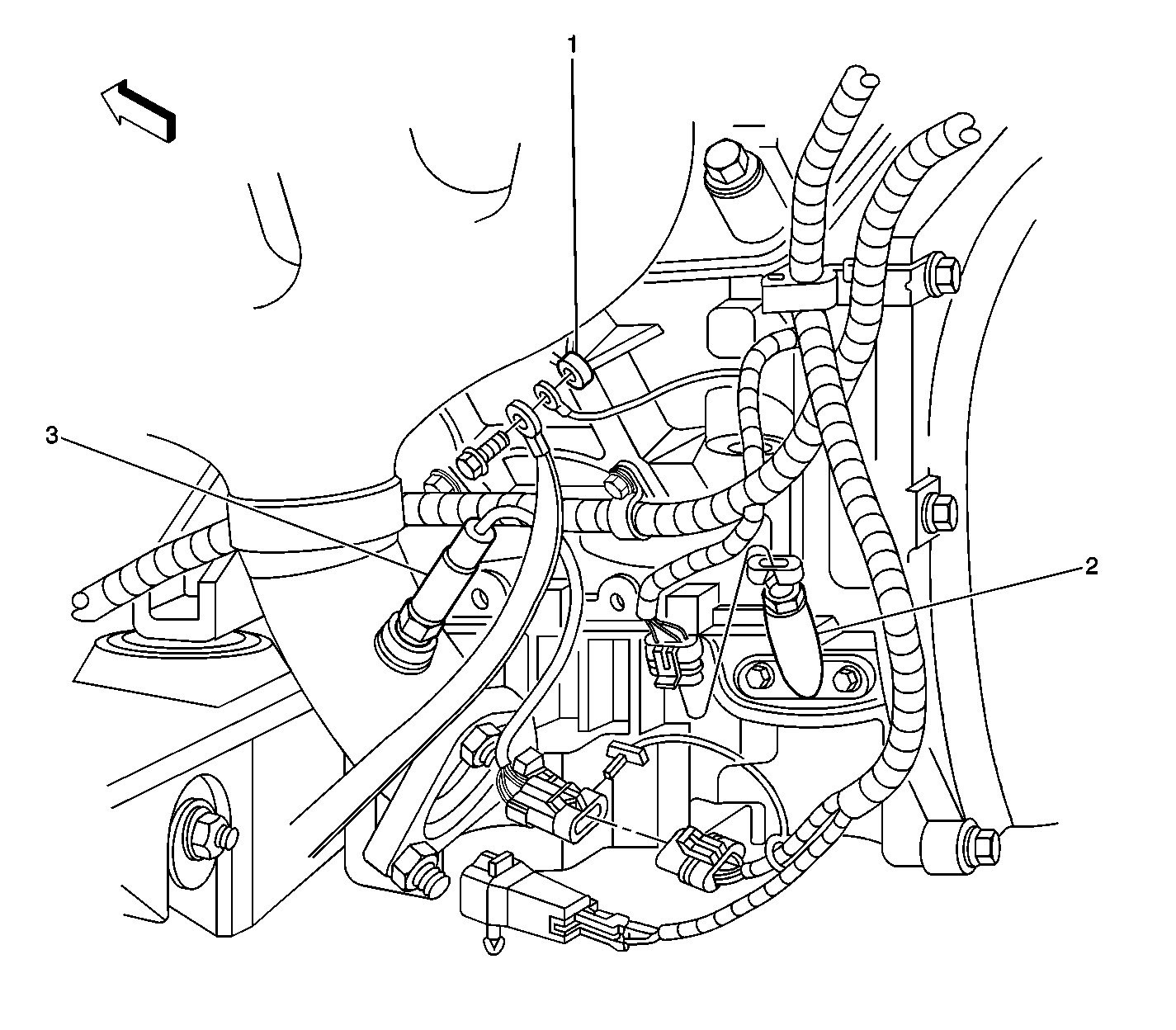

(1)	Engine Oil Pressure (EOP) Sensor
(2)	Manifold Absolute Pressure (MAP) Sensor
(3)	Camshaft Position (CMP) Sensor
(4)	G107
(5)	C112

Figure 9:

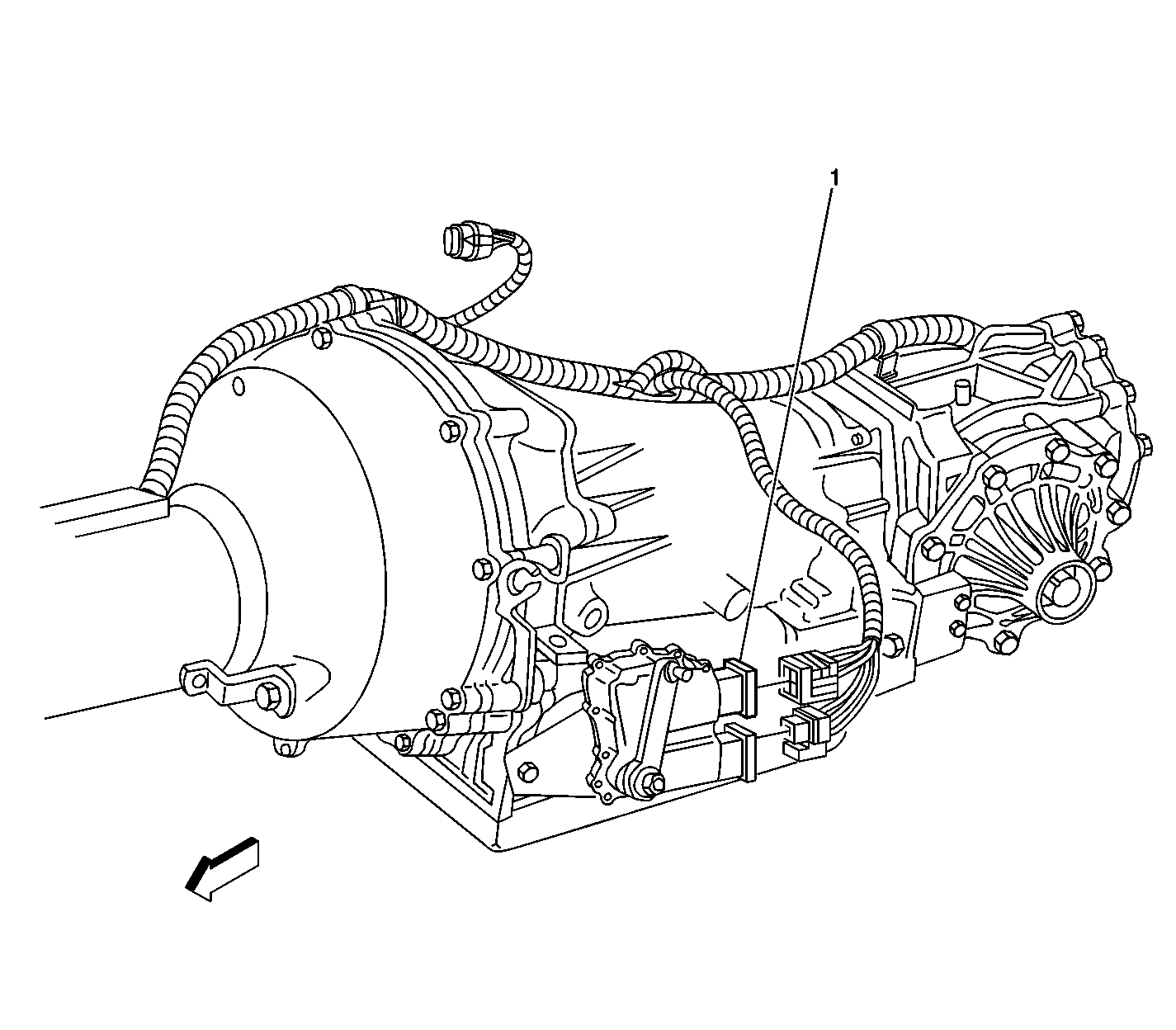

Figure 10:


(1)	Park/Neutral Position (PNP) Switch

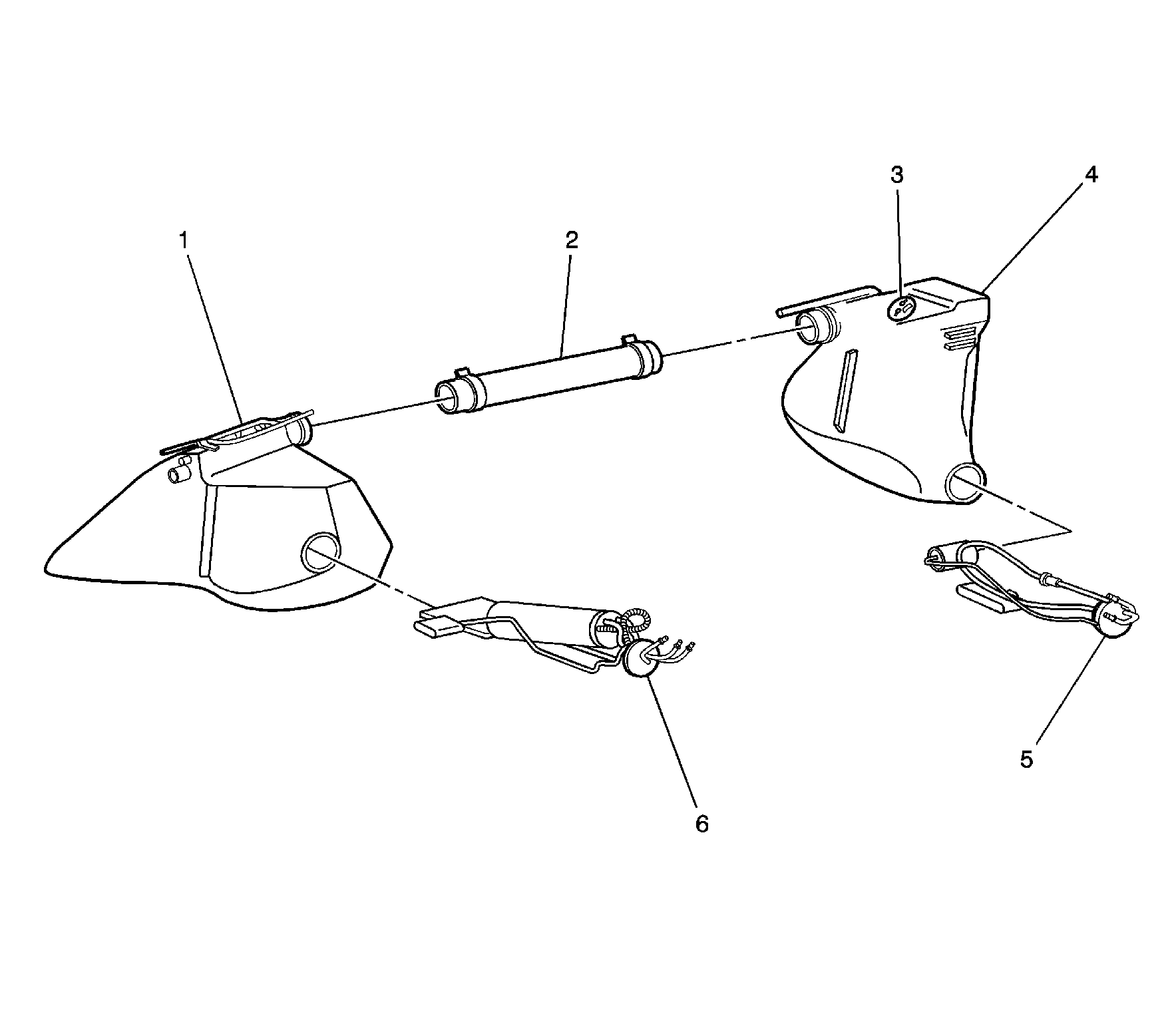

Figure 11:


(1)	Fuel Tank - Left
(2)	Fuel Tank Crossover Hose
(3)	Fuel Tank Pressure (FTP) Sensor
(4)	Fuel Tank - Right
(5)	Fuel Level Sensor - Right (w/o FFS)
(6)	Fuel Pump and Sender Assembly (w/o FFS)

Figure 12:


(1)	G105
(2)	Engine Oil Temperature (EOT) Sensor
(3)	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1

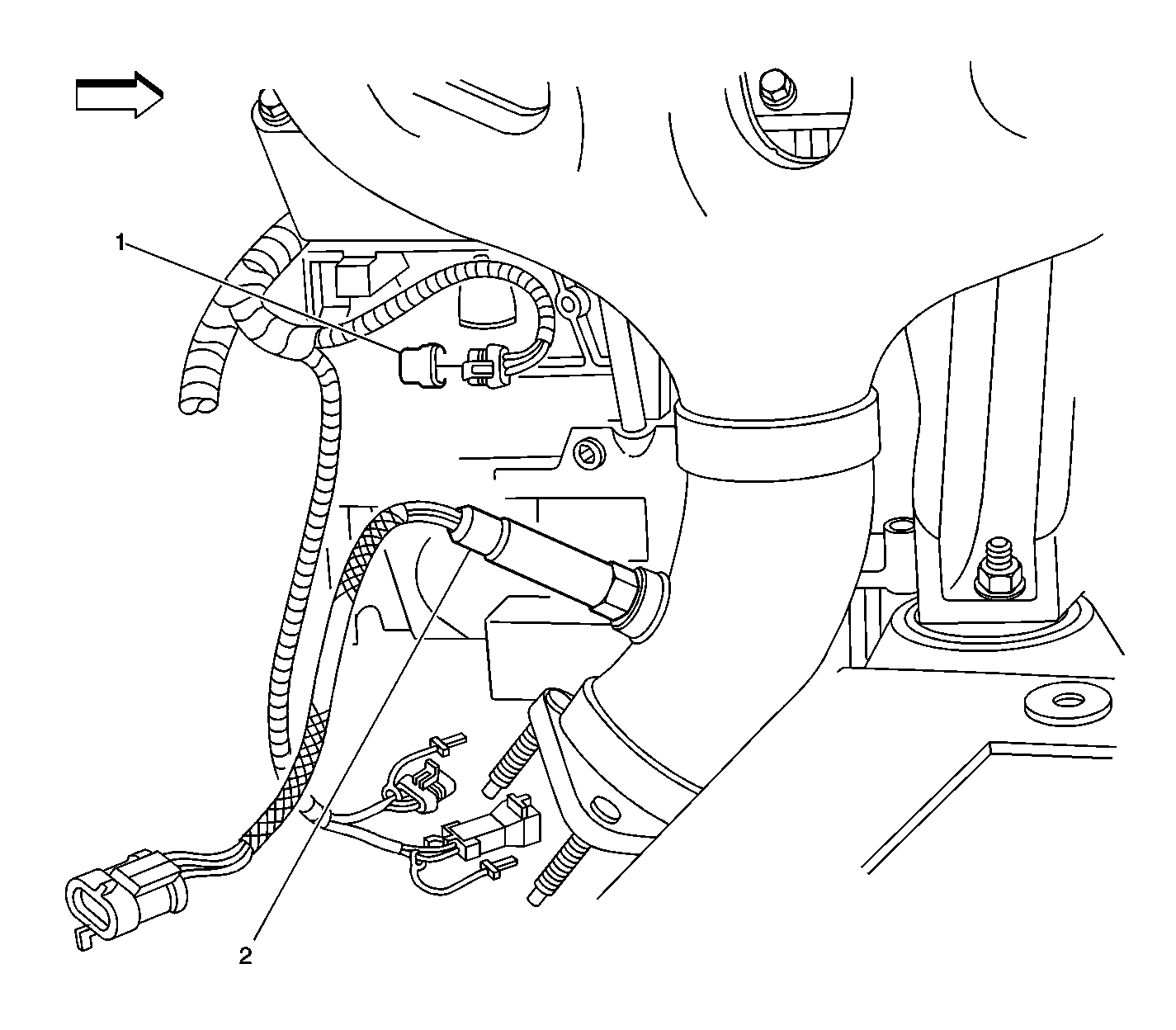

Figure 13:


(1)	Crankshaft Position (CKP) Sensor
(2)	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

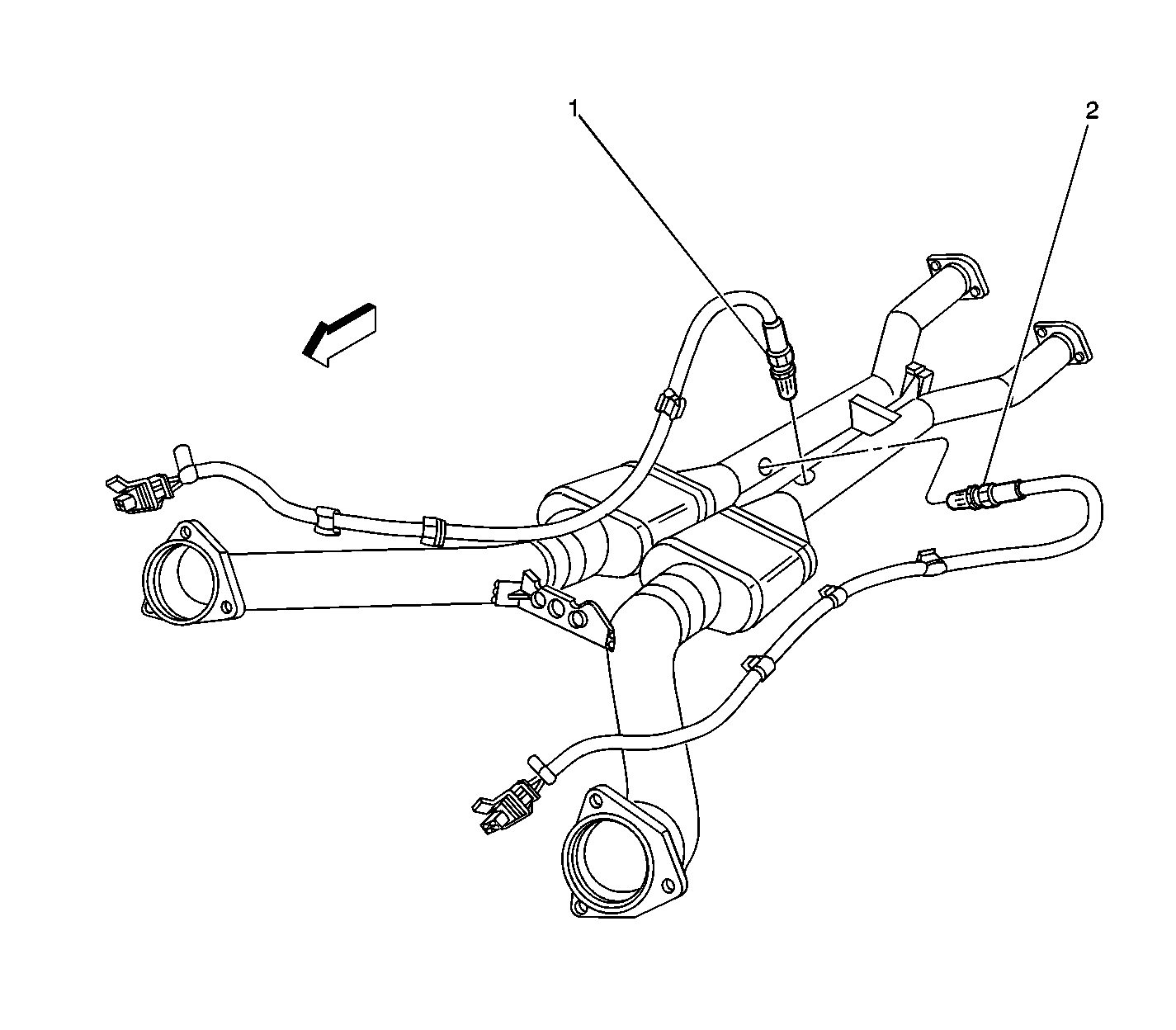

Figure 14:


(1)	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
(2)	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
