Instrument Cluster Schematics. Chevrolet Corvette 2001

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2001 🢒 Corvette 🢒 Engine 🢒 Engine Controls - 5.7L 🢒 Instrument Cluster Schematics

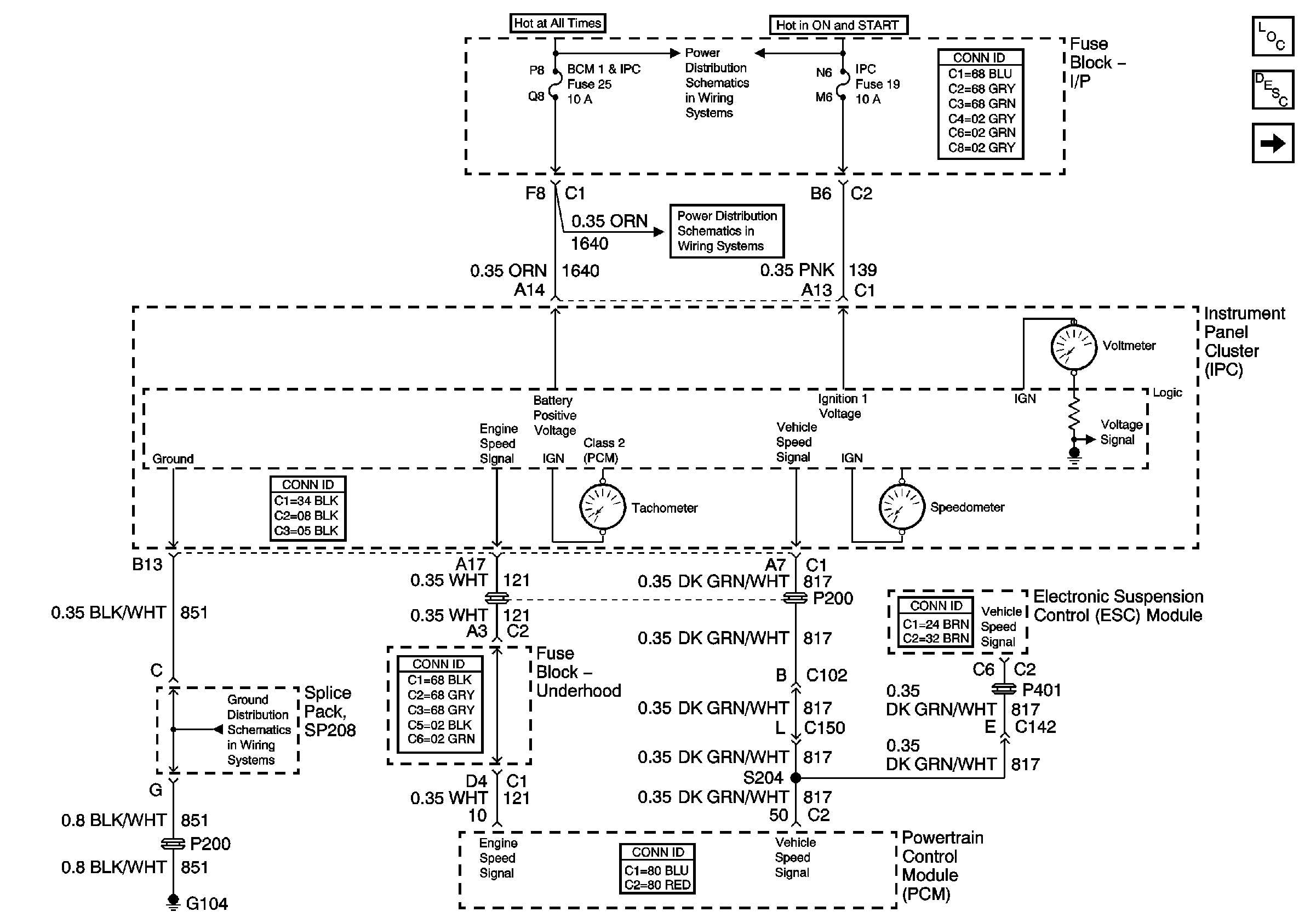

Figure 1:	Power, Ground, Tachometer and Speedometer Master Electrical Component List Instrument Cluster Description and Operation Indicators G104 Instrument Panel Electrical Center Fuses 15, 16, 13, 20 and 19 Power, Ground and DLC
Figure 2:	Indicators Master Electrical Component List Instrument Cluster Description and Operation Temperature, Fuel and Oil Pressure Gauges Power, Ground, Tachometer and Speedometer Star Connectors Power, Ground, DLC, MIL Control, Engine Cooling and HVAC 01 Y-Car: Manual Transmission Schematics Seat Belt and SIR Indicators 01 Y-Car: Brake Warning System Schematics 01 Y-Car: Cooling Fan Schematics 01 Y-Car: Wiper/Washer System (Pulse) Schematic Hazard Warning Switch and Turn Signal Switch Headlamp Control G201 G201

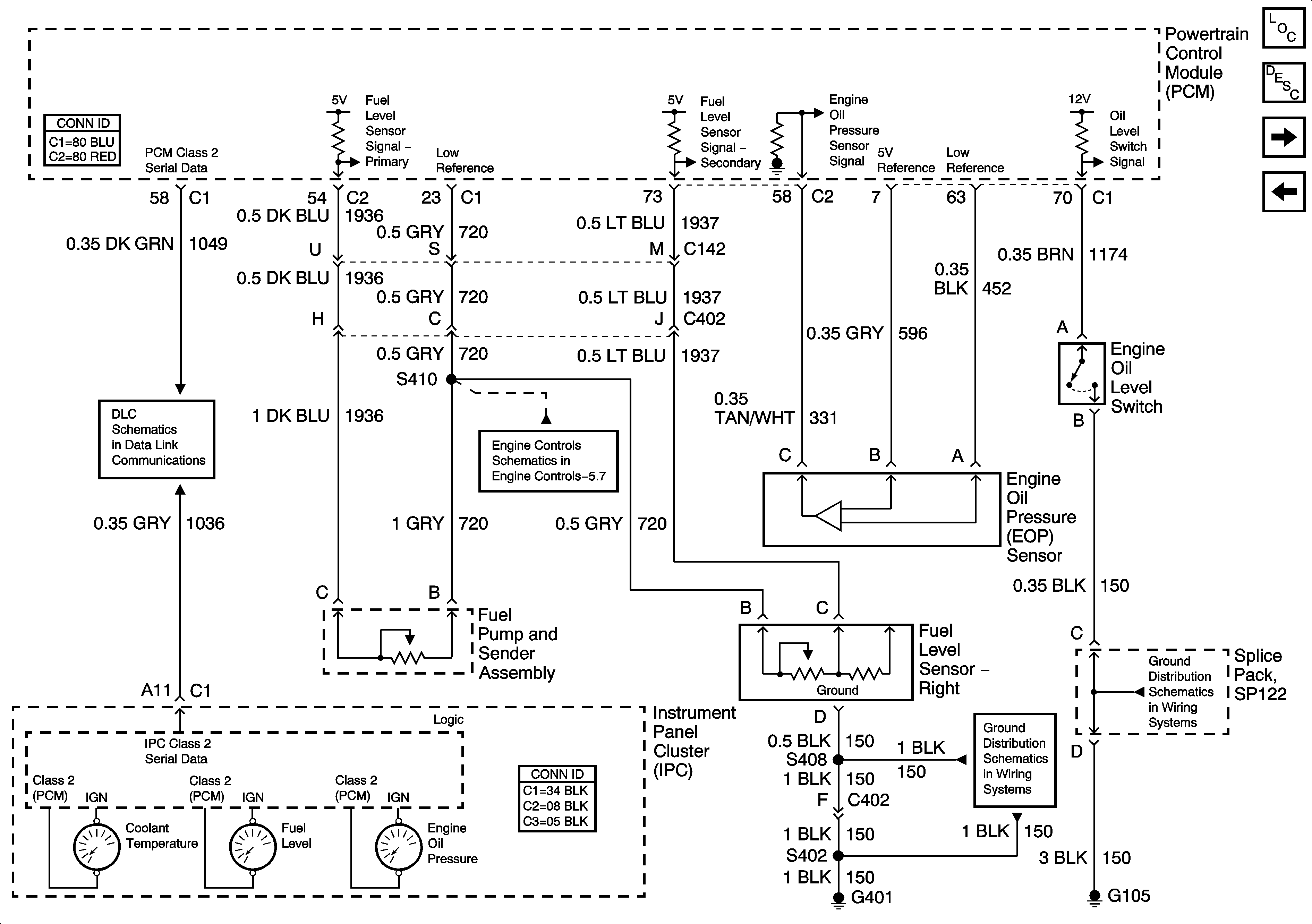

Figure 3:	Temperature, Fuel and Oil Pressure Gauges Master Electrical Component List Instrument Cluster Description and Operation Driver Information Center, Engine Oil Temperature Gauge Sensor and Dimmer Switch Indicators Star Connectors Fuel Pump and Fuel Tank Pressure Sensor G401 G106 and G105

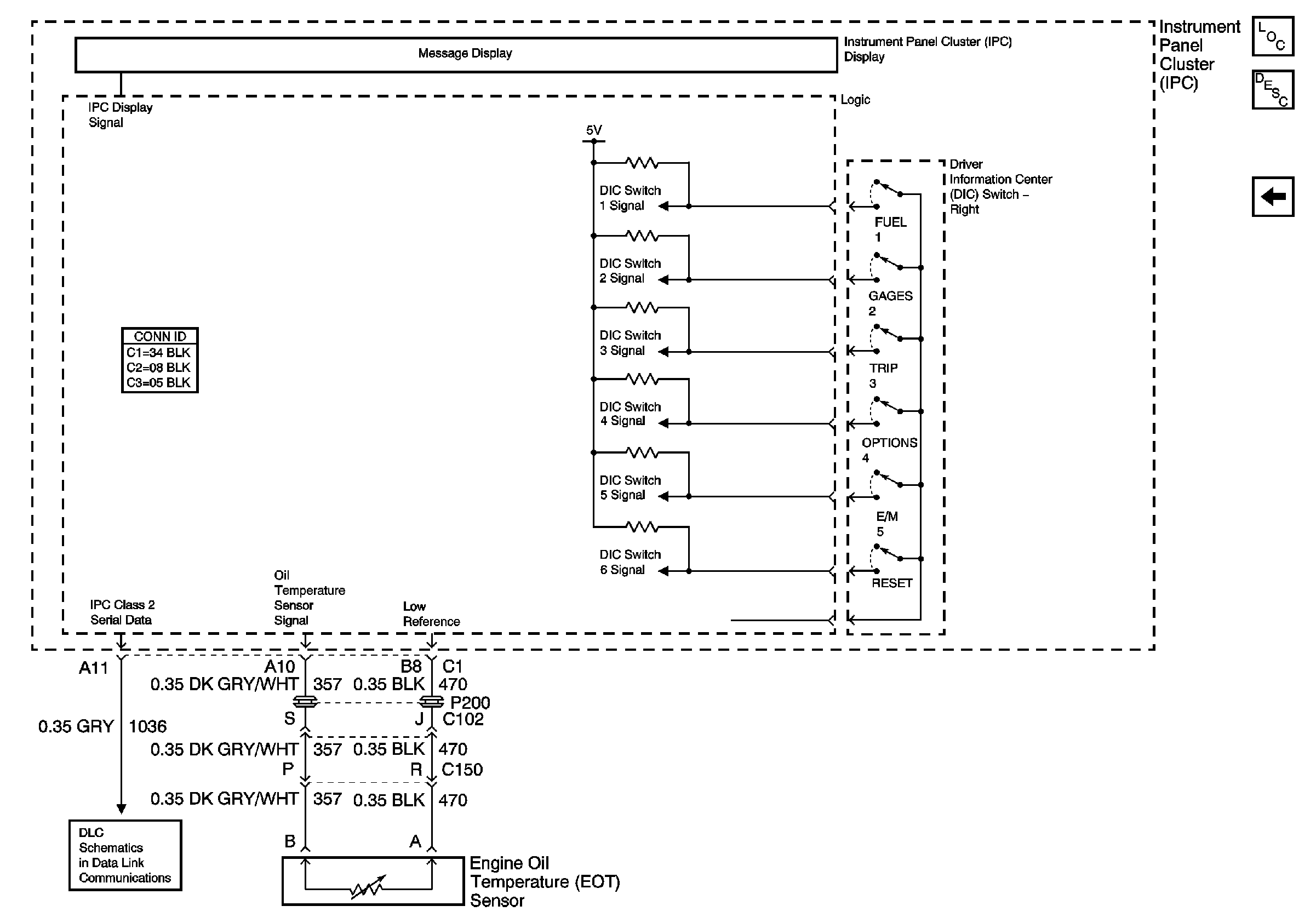

Figure 4:	Driver Information Center, Engine Oil Temperature Gauge Sensor and Dimmer Switch Master Electrical Component List Instrument Cluster Description and Operation Temperature, Fuel and Oil Pressure Gauges Fog Lamp Switch Headlamp Opening Door Actuator Control Module Inputs Fog Lamp Switch Star Connectors
