Ground Distribution Schematics. Chevrolet Corvette 2001

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2001 🢒 Corvette 🢒 Engine 🢒 Engine Controls - 5.7L 🢒 Ground Distribution Schematics

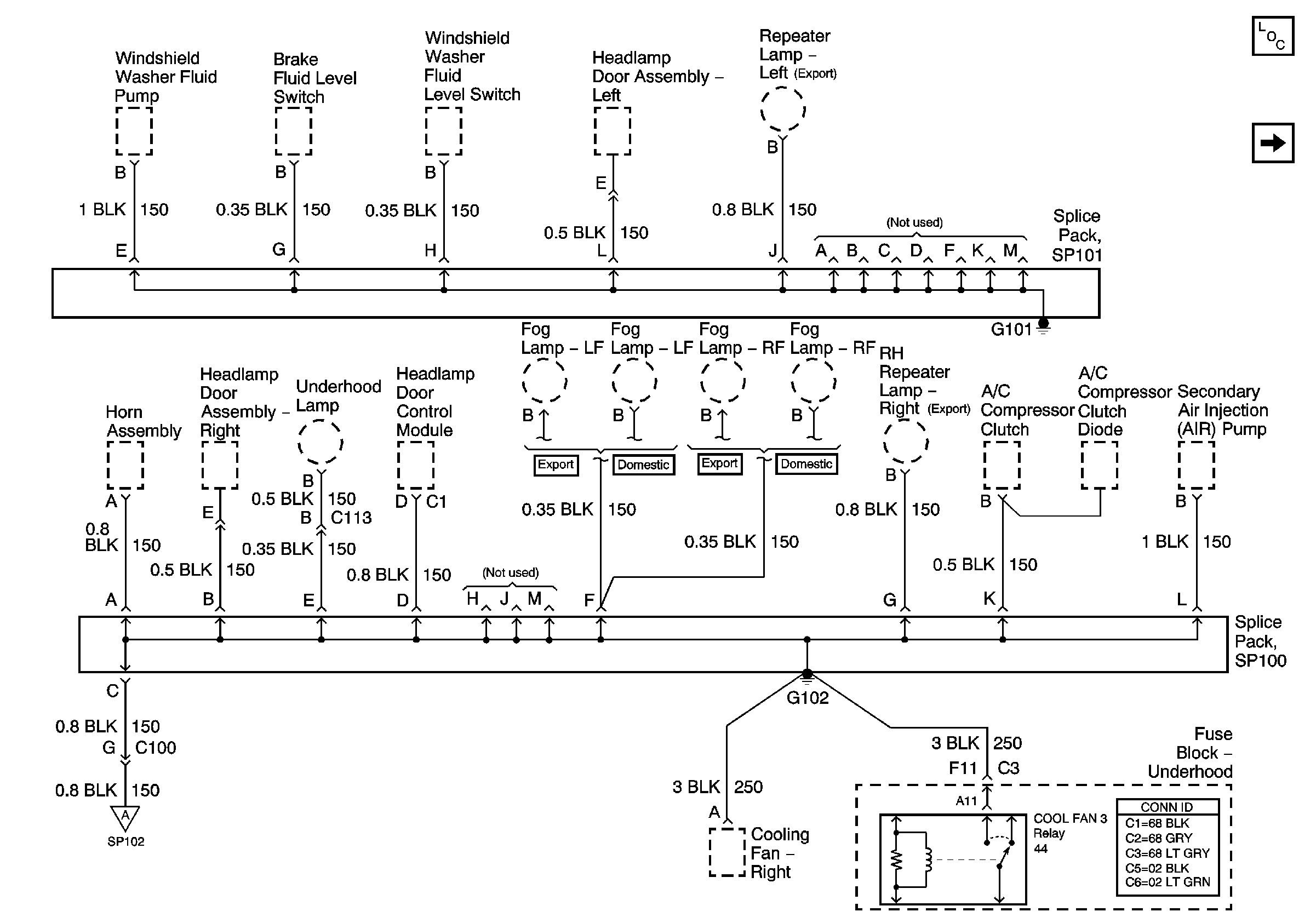

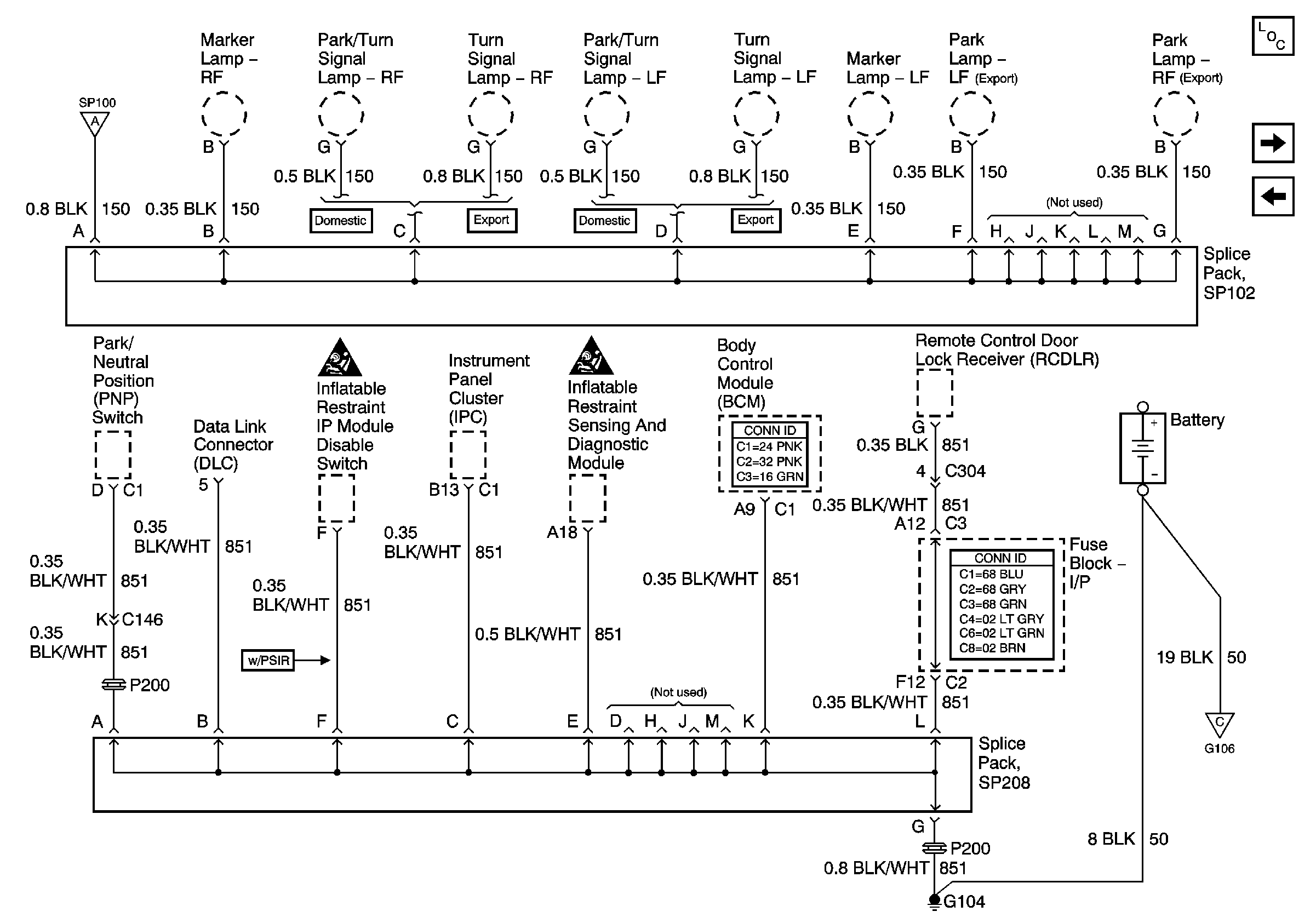

Figure 1:	G101 and G102 Master Electrical Component List G104 G104
Figure 2:	G104 Master Electrical Component List G106 and G105 G101 and G102 G101 and G102 G106 and G105 SIR Caution SIR Caution

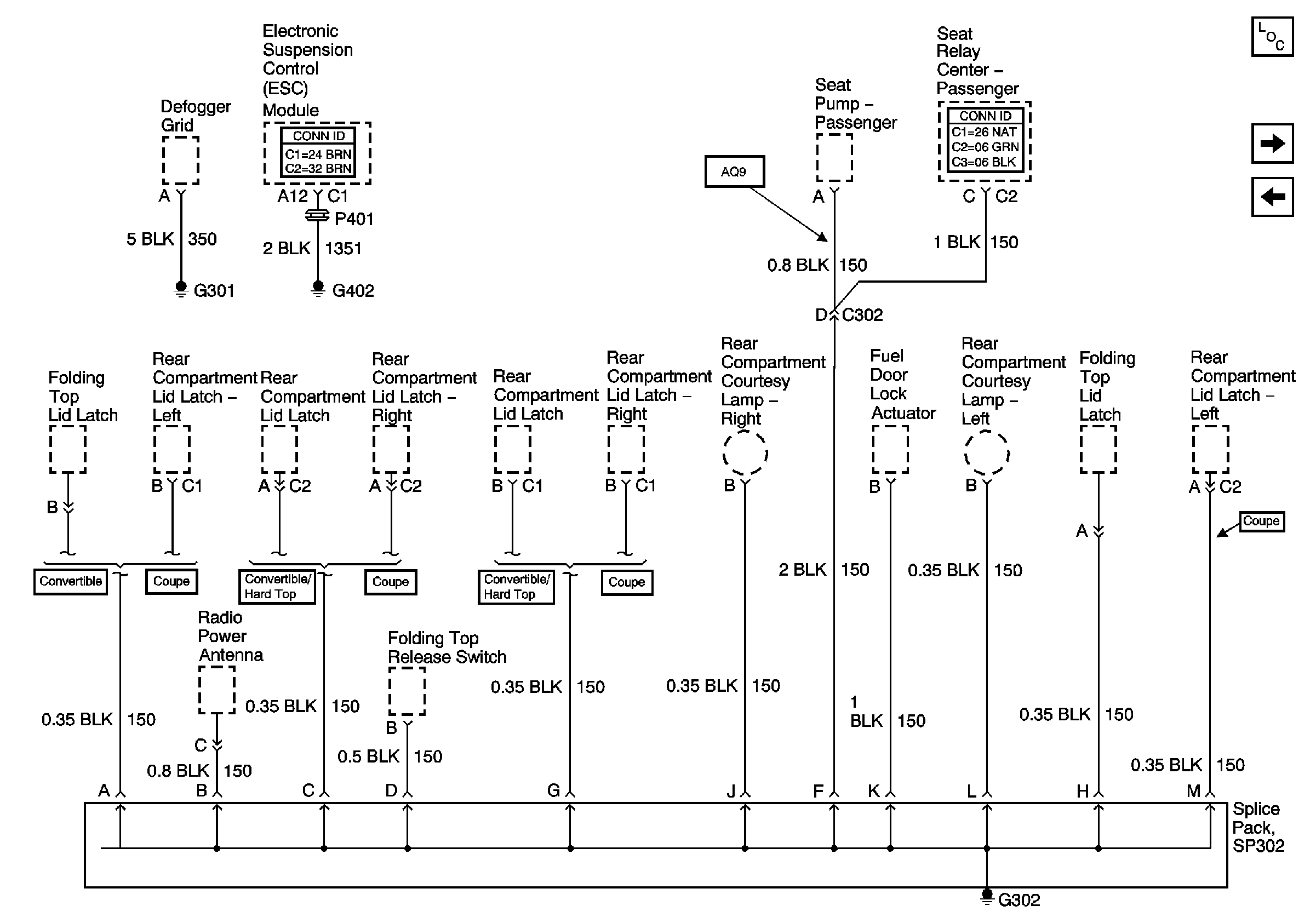

Figure 3:	G106 and G105 Master Electrical Component List G107,G108 and G103 G104 G104

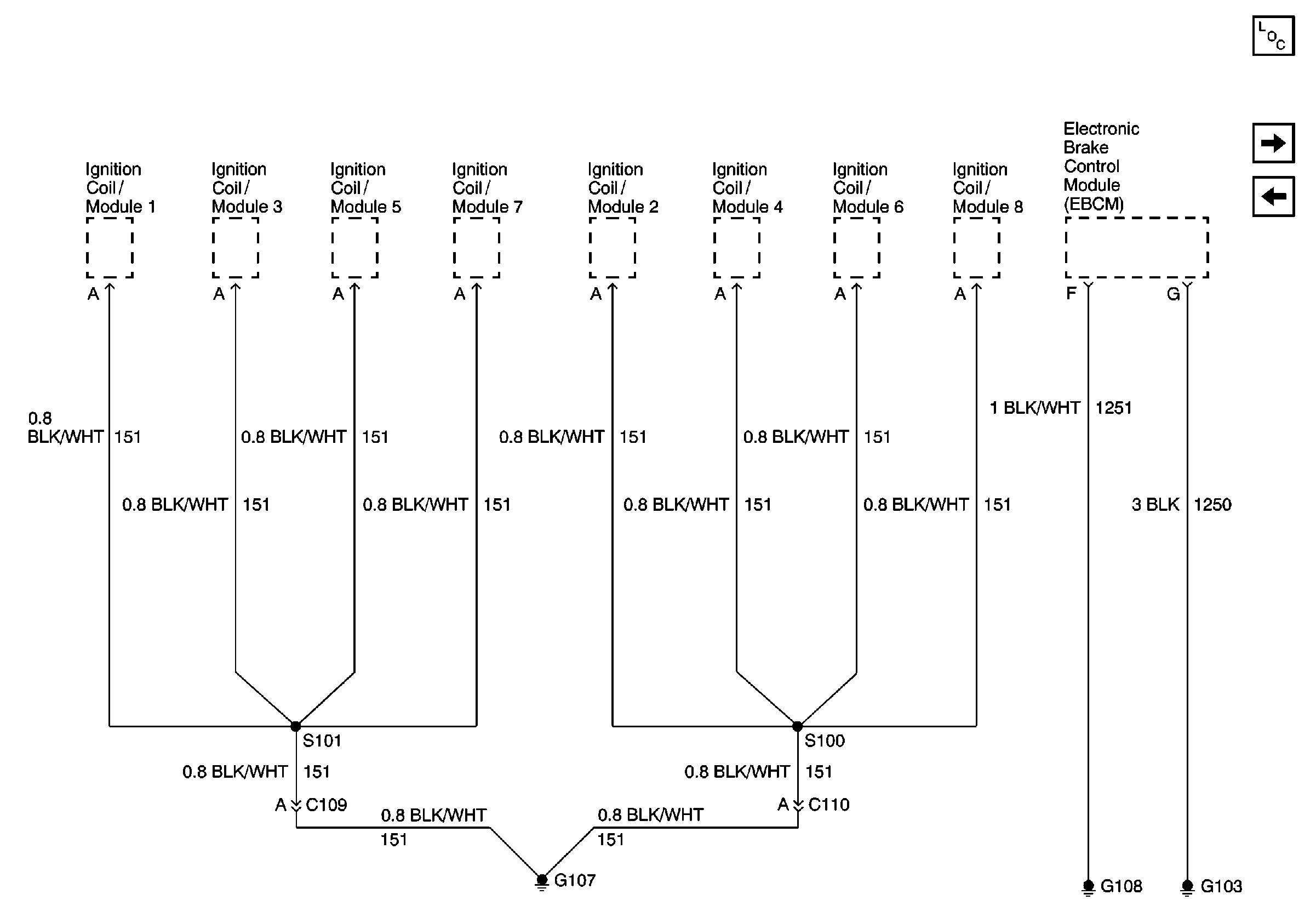

Figure 4:	G107, G108 and G103 Master Electrical Component List G201 G106 and G105
Figure 5:	G201 Master Electrical Component List G202 G107,G108 and G103

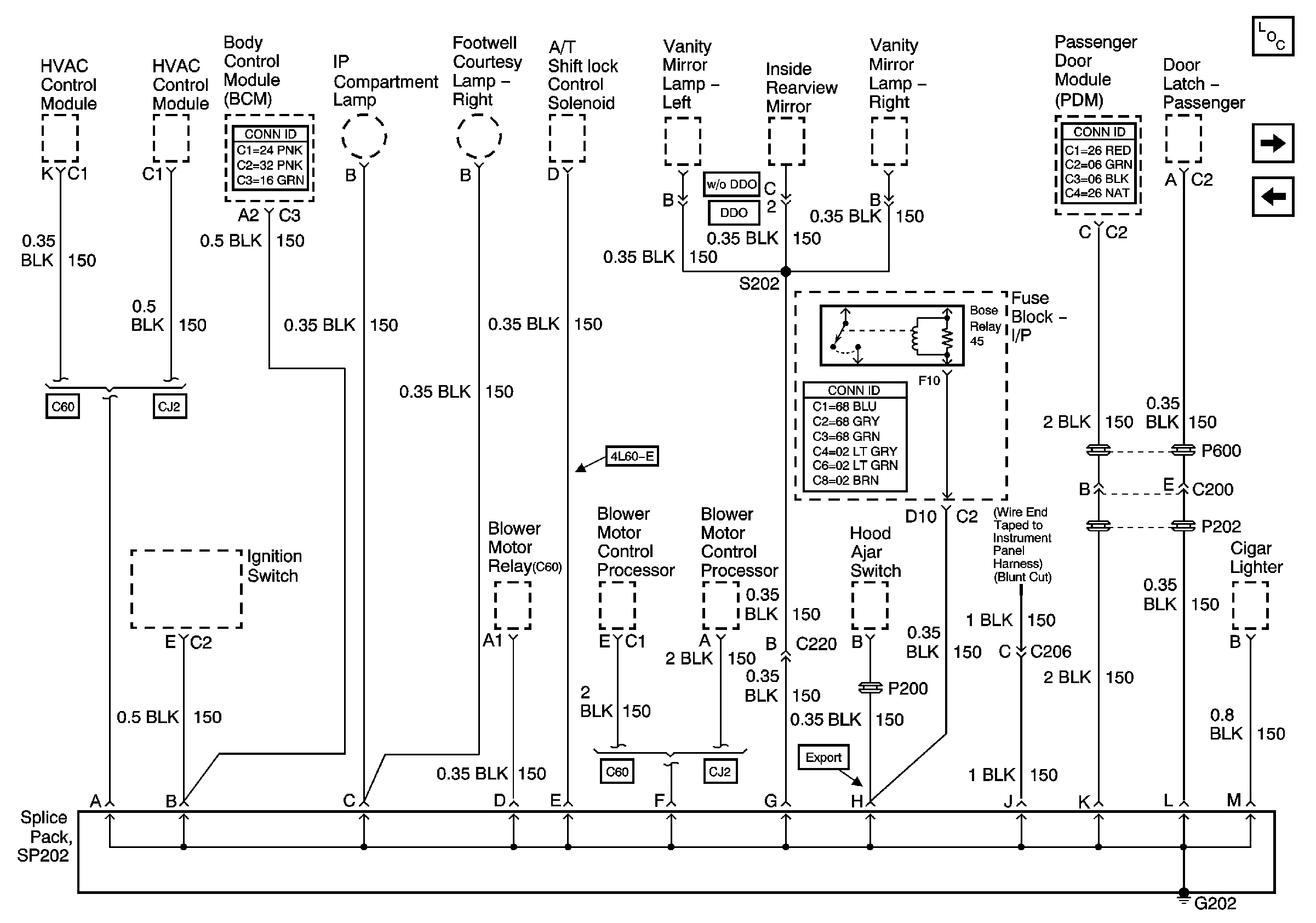

Figure 6:	G202 Master Electrical Component List G205 G201
Figure 7:	G205 Master Electrical Component List G301, G402 and G302 G202

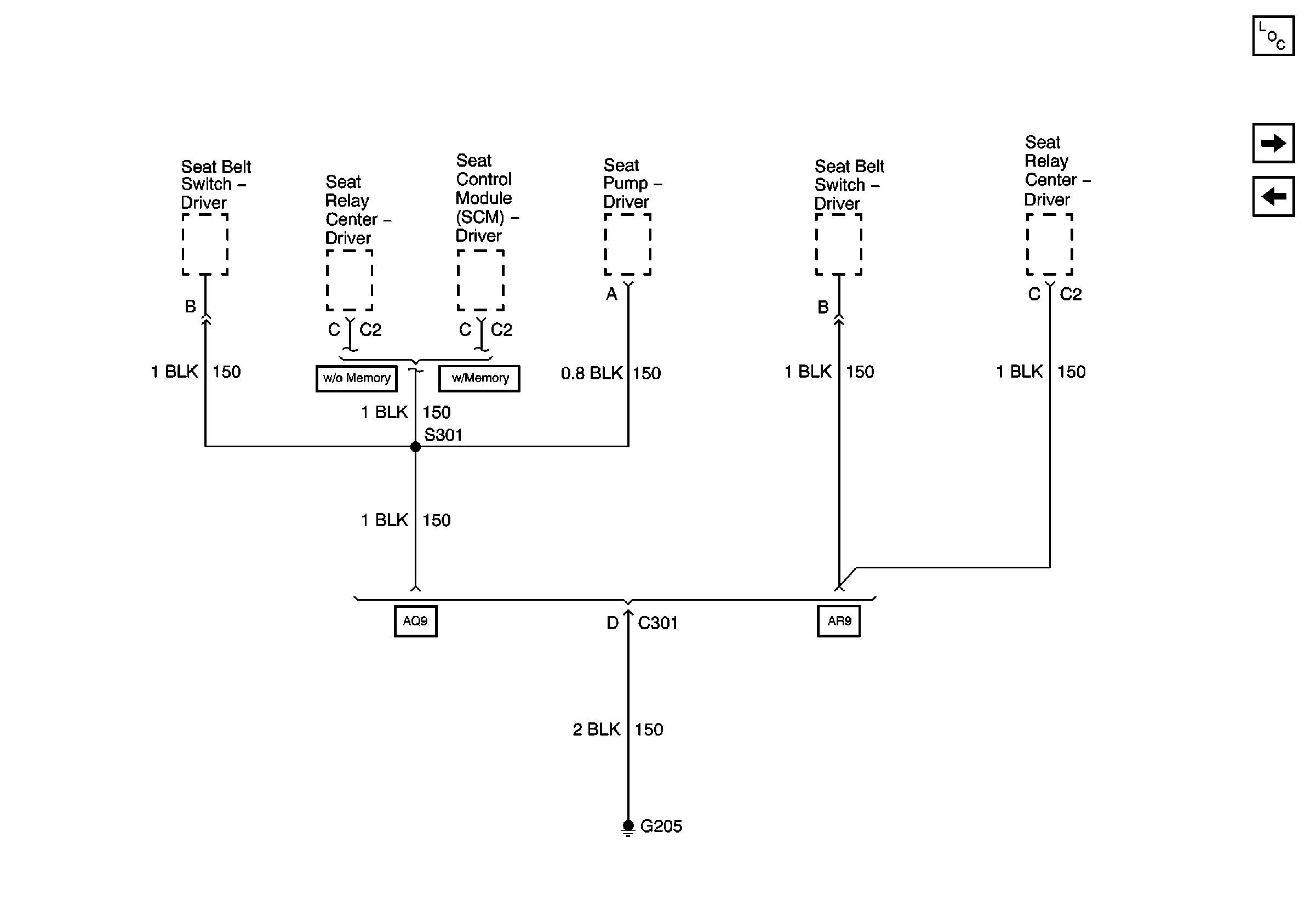

Figure 8:	G301, G402 and G302 Master Electrical Component List G401 G205

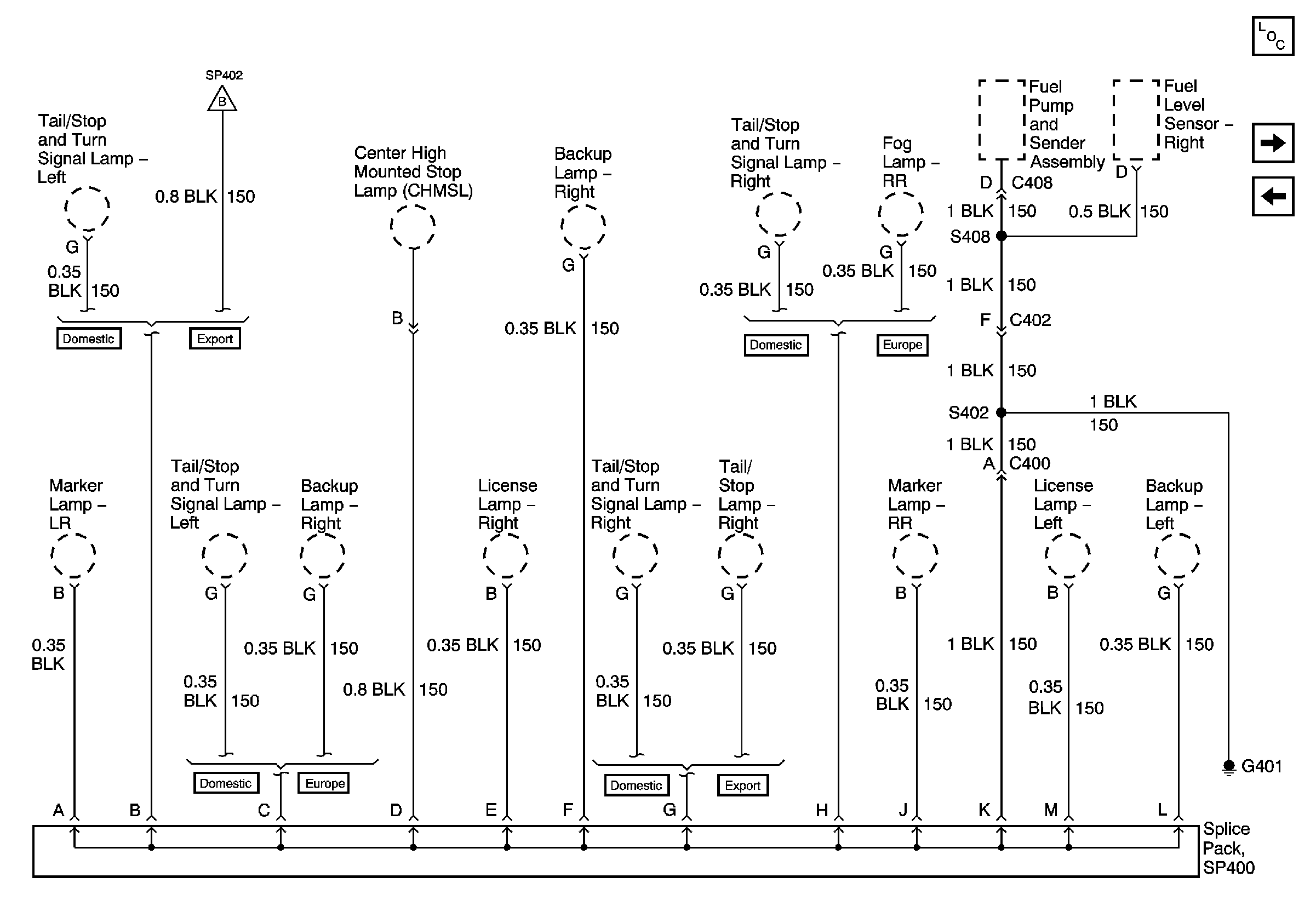

Figure 9:	G401 Master Electrical Component List SP402 (Japan) G301, G402 and G302 SP402 (Japan)

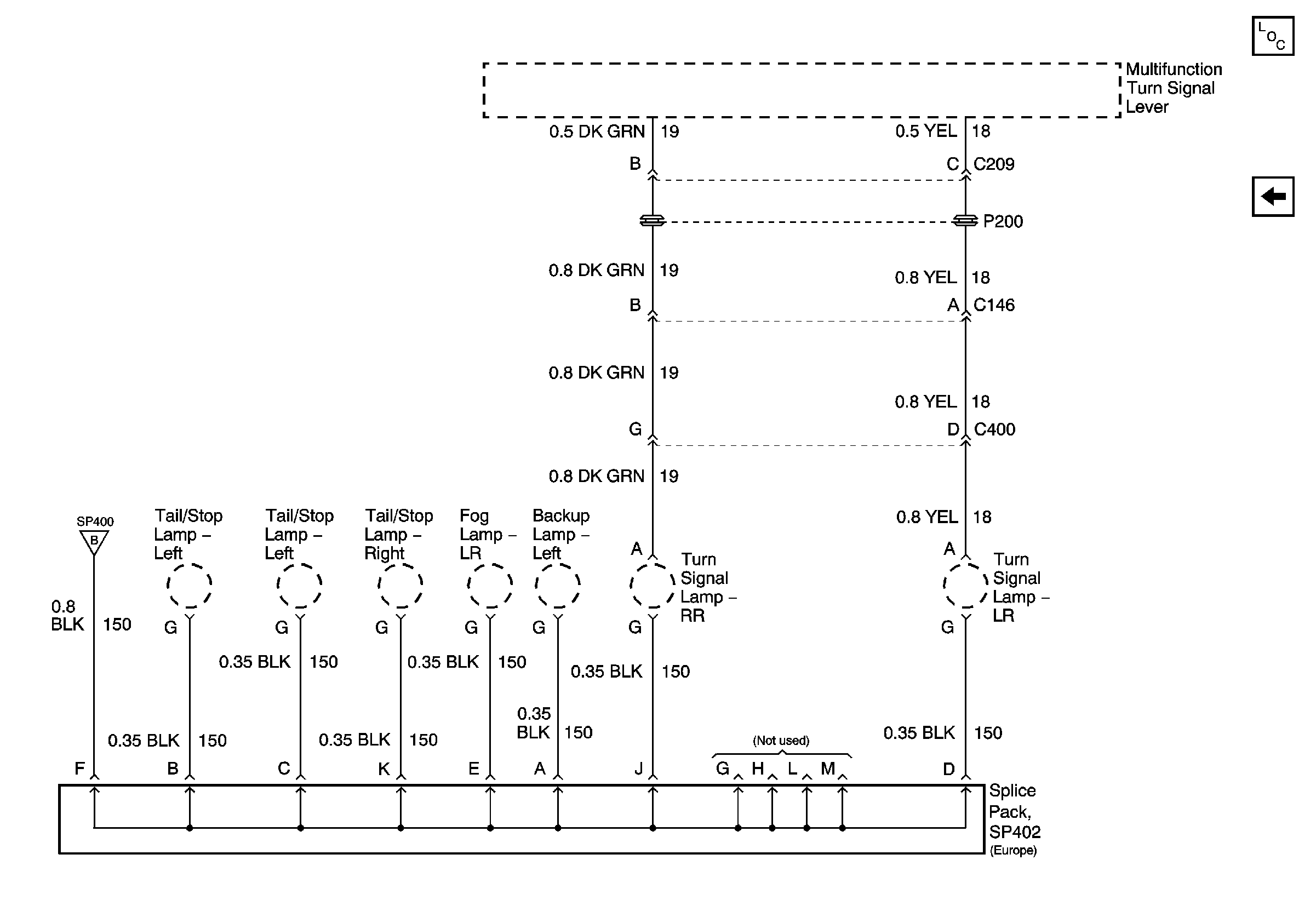

Figure 10:	SP402 (Japan) Master Electrical Component List SP402 (Europe) G401 G401 Power and Grounding Schematic Icons Power and Grounding Schematic Icons

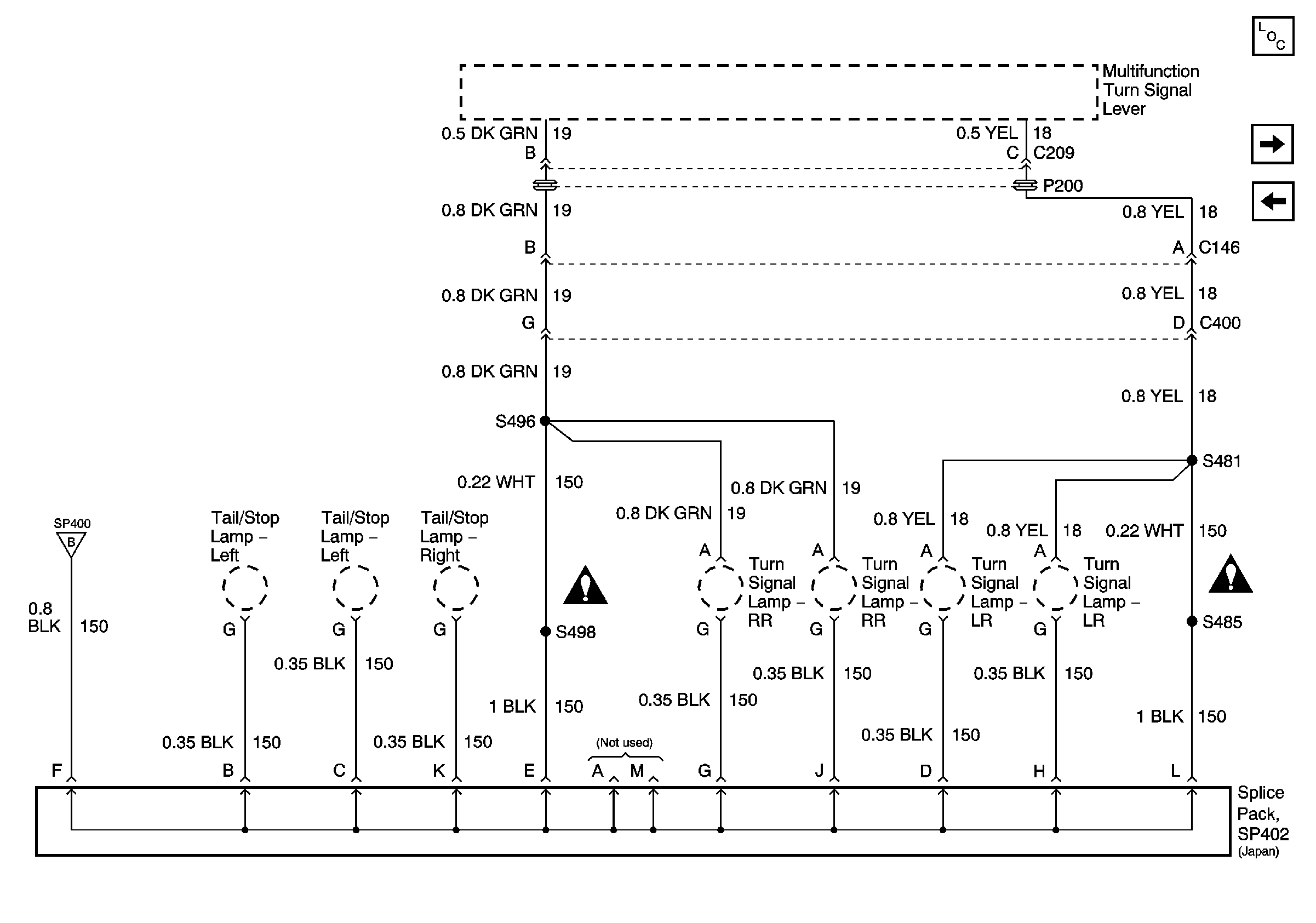

Figure 11:	SP402 (Europe) Master Electrical Component List SP402 (Japan) G401
