Removal Procedure

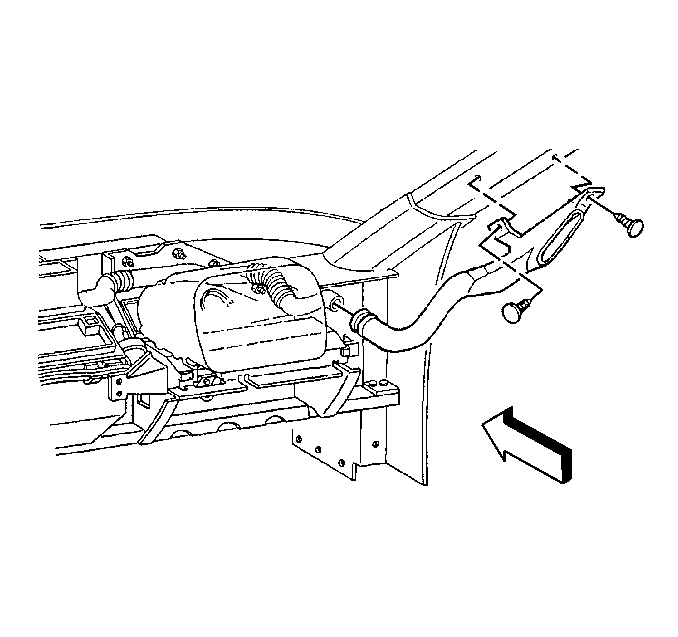

    Object Number: 95660 Size: SH
  1. Remove the I/P upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement in Instrument Panel, Gauges and Console.
  2. Remove the side window defogger upper outlet duct.
    3. 2.1. Remove the push-in retainers.
    2.2. Use a twisting motion to release the upper duct from the lower duct.

    Object Number: 95658 Size: SH
  3. Remove the side window defogger lower outlet duct.
    4. 3.1. Depress the duct retaining tabs and remove the duct from the passenger SIR bracket.
    3.2. Use a twisting motion to release the upper duct from the windshield defroster duct.

Installation Procedure

    Object Number: 95658 Size: SH
  1. Install the side window defogger lower outlet duct.
    2. 1.1. Use a twisting motion to secure the lower duct to the windshield defroster duct.
    1.2. Install the duct retaining tabs to the passenger SIR bracket.

    Object Number: 95660 Size: SH
  2. Install the side window defogger upper outlet duct.
    3. 2.1. Use a twisting motion to secure the upper duct to the lower duct.
    2.2. Install the push-in retainers.
  3. Install the I/P upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement in Instrument Panel, Gauges and Console.
