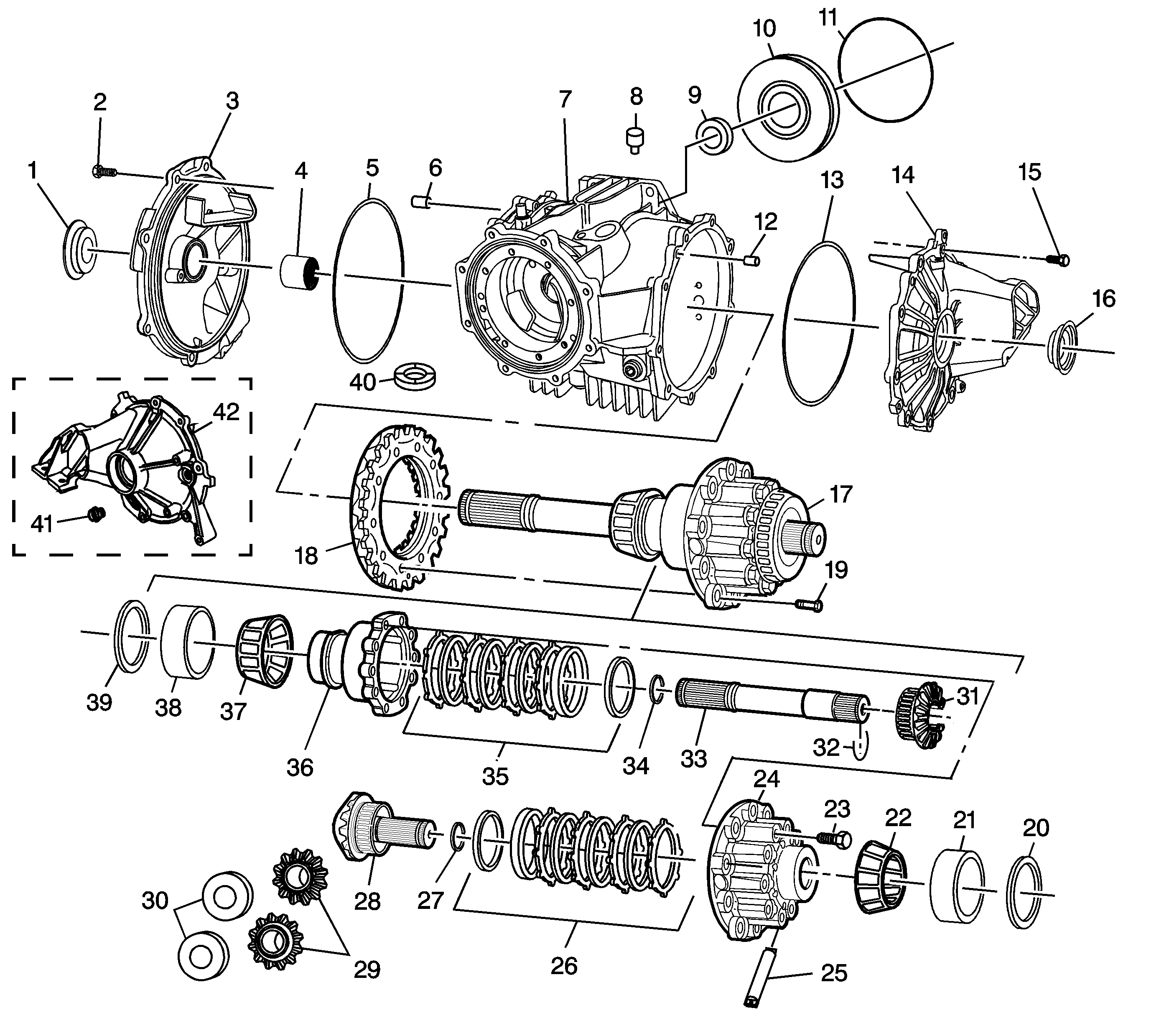

| (1) | Output Shaft
Oil Seal - Left |
| (2) | Bolt |
| (3) | Cover -
Left |
| (4) | Bushing |
| (5) | O-Ring |
| (6) | Dowel |
| (7) | Carrier |
| (8) | Vent |
| (9) | Oil Seal -
Automatic Transmission Only |
| (10) | Cover -
Automatic Transmission Only |
| (11) | O-Ring -
Automatic Transmission Only |
| (12) | Dowel |
| (13) | O-Ring |
| (14) | Cover -
Right |
| (15) | Bolt |
| (16) | Output Shaft
Oil Seal - Right |
| (17) | Differential
Case Assembly |
| (18) | Ring Gear |
| (19) | Bolt |
| (20) | Shim |
| (21) | Bearing
Cup |
| (22) | Bearing |
| (23) | Bolt |
| (24) | Differential
Case - Right |
| (25) | Cross
Pin |
| (26) | Clutch Pack -
Right |
| (27) | C-Clip |
| (28) | Gear and
Output Shaft - Right |
| (29) | Side Gears |
| (30) | Side Gear
Washers |
| (31) | Gear -
Left |
| (32) | C-Clip |
| (33) | Output
Shaft - Left |
| (34) | C-Clip |
| (35) | Clutch Pack -
Left |
| (36) | Differential
Case - Left |
| (37) | Bearing |
| (38) | Bearing
Cup |
| (39) | Shim |
| (40) | Magnet |
| (41) | Quick Connect |
| (42) | Cover -
Left - Model Dependent |
