Makes 🢒 Chevrolet 🢒 2005 🢒 Corvette 🢒 Body 🢒 Instrument Panel, Gages, and Console 🢒 Front Floor Console Compartment Door Lock Cylinder Replacement

Removal Procedure

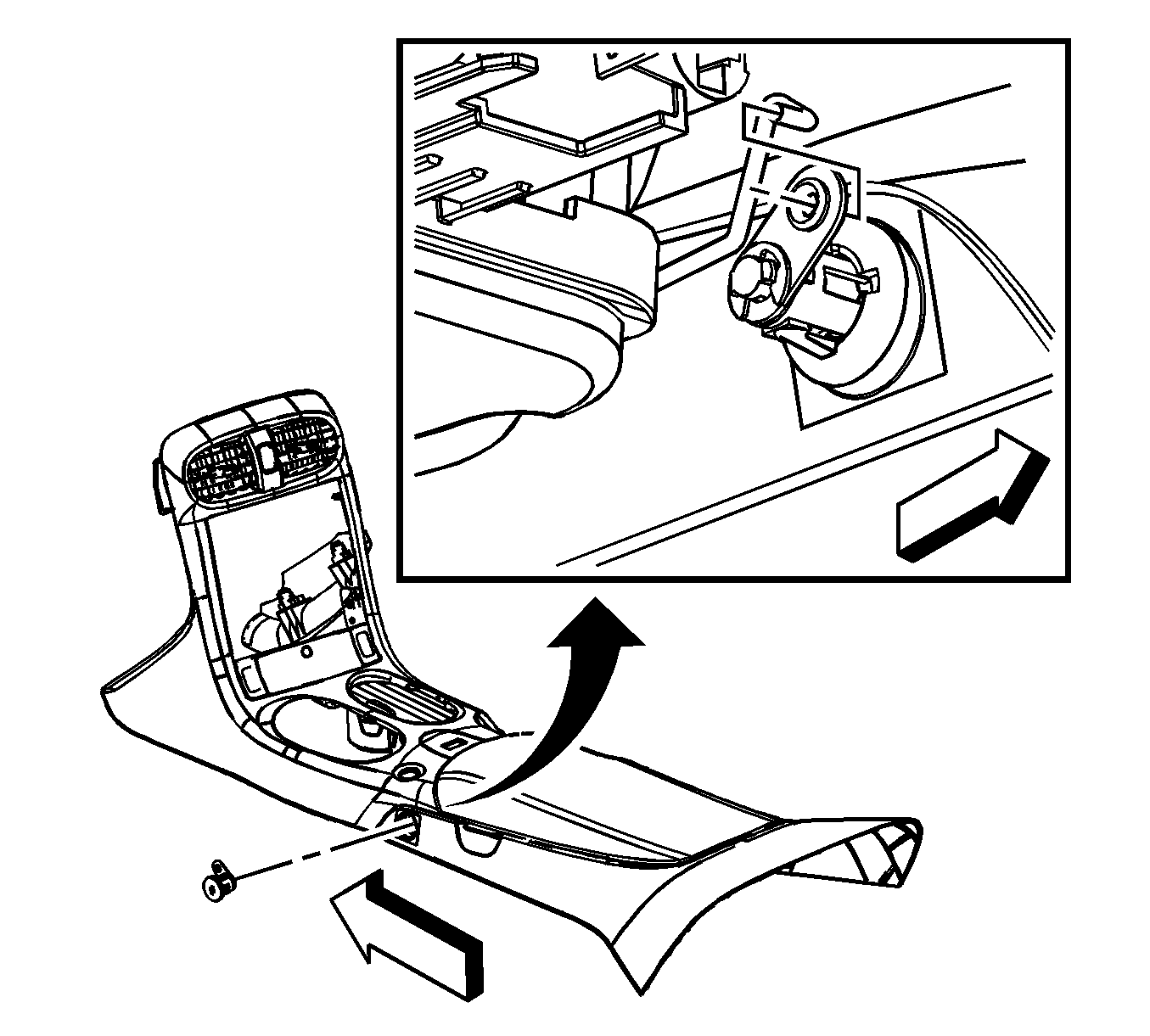

    Object Number: 1508892 Size: SH
  1. Remove the Lock cylinder rod.
  2. Remove the lock cylinder.
    3. • Squeeze the sides of the lock cylinder releasing the lock tabs.
    • Use a flat bladed tool to remove the lock cylinder from the console.

Installation Procedure

    Object Number: 1508892 Size: SH
  1. Position the lock cylinder within the opening of the console.
  2. Push inward until the lock tabs secure the lock cylinder to the console. An audible "click" noise should be heard.
  3. Connect the Lock cylinder rod.
