Makes 🢒 Chevrolet 🢒 2005 🢒 Corvette 🢒 Body 🢒 Roof 🢒 Manual Roof System Component Views

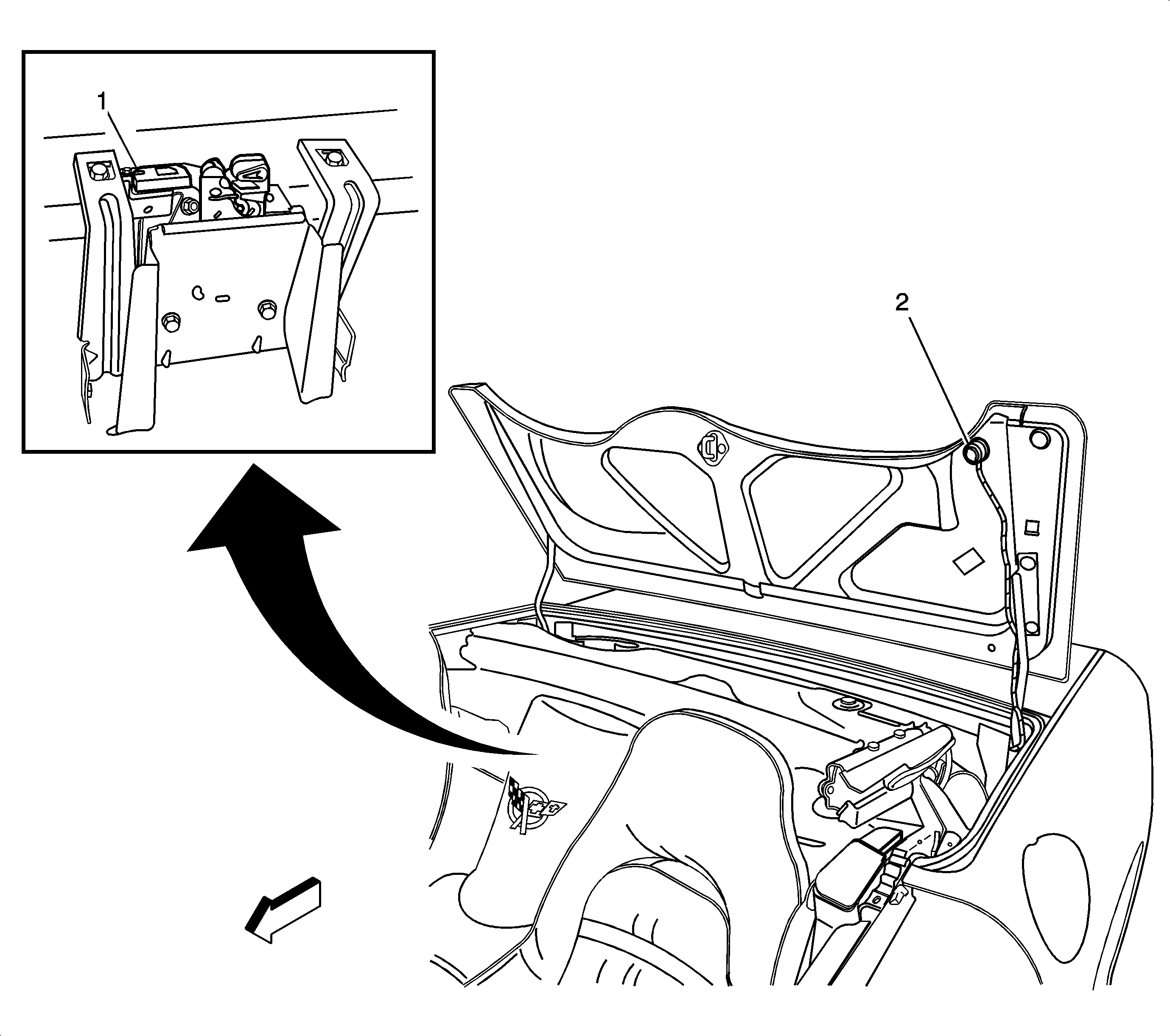

Figure 1:

Manual Folding Top Components
Object Number: 1580312 Size: LF
(1)Folding Top Cover Latch Actuator
(2)Folding Top Release Switch (w/o CM7)
Figure 2:

Folding Top Harness Routing Components
Object Number: 1479628 Size: LF
(1)Hydraulic Cylinder
(2)Header Latched Switch
(3)Hydraulic Cylinder
(4)Folding Top Cover Latch Actuator
(5)Hydraulic Cylinder
(6)Pump and Valve Assembly (CM7)
(7)Luggage Barrier Switch Connector (CM7)
(8)Actuator
(9)Folding Top Cover Pulldown Actuator (CM7)
(10)Folding Top Control Module (FTM) (CM7)
(11)Actuator
(12)Folding Top Cover Open Switch (CM7)
(13)Actuator
