For 1990-2009 cars only
| Table 1: | Brake Fluid Level Switch |
| Table 2: | Park Brake Switch |
| |||||||||
|---|---|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||||
Pin | Wire Color | Circuit No. | Function | ||||||
A | PU | 333 | Brake Fluid Level Sensor Signal | ||||||
B | BK | 1350 | Ground | ||||||
| |||||||||
|---|---|---|---|---|---|---|---|---|---|

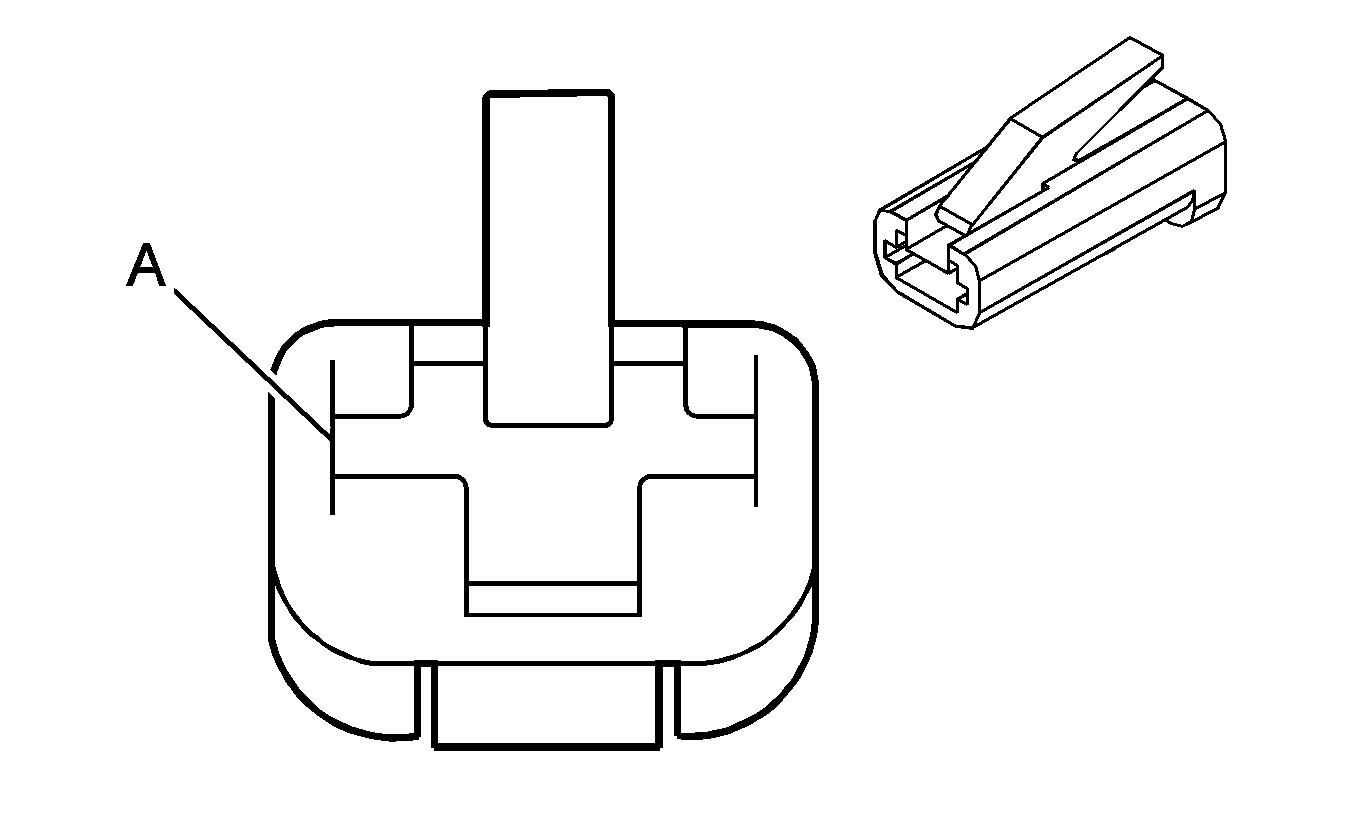

Connector Part Information |
| ||||||||
Pin | Wire Color | Circuit No. | Function | ||||||
A | L-BU | 1134 | Park Brake Switch Signal | ||||||
