Head Up Display Switch Replacement. Chevrolet Corvette 2008

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2008 🢒 Corvette 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Head Up Display Switch Replacement

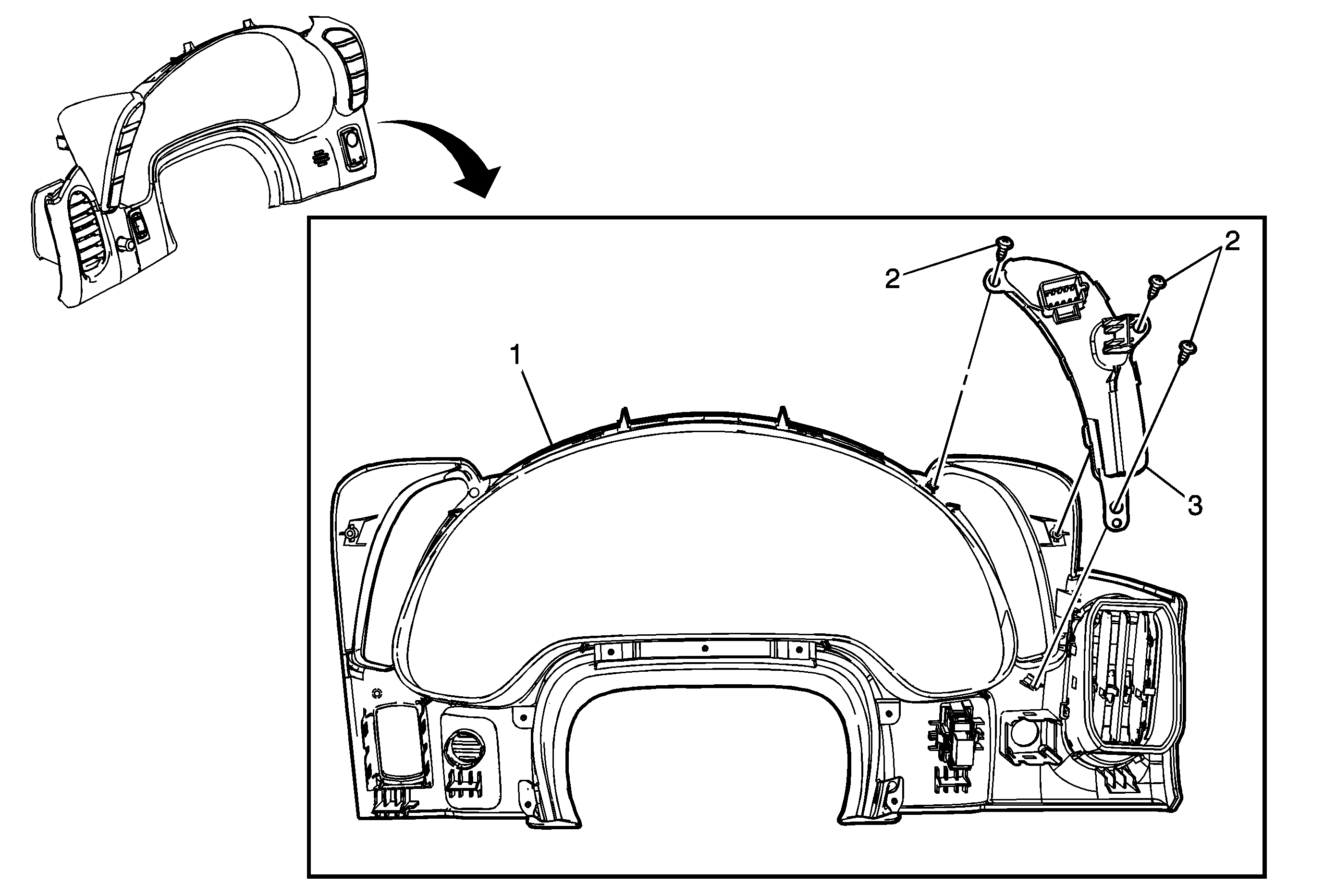

Callout	Component Name
1	Instrument Panel Cluster Trim Plate Refer to Instrument Cluster Trim Panel Replacement .
2	Heads Up Display Switch Screw (Qty: 3) Notice: Refer to Fastener Notice in the Preface section. Tighten 2 N·m (18 lb in)
3	Head Up Display Switch

Callout

Component Name

Instrument Panel Cluster Trim Plate

Heads Up Display Switch Screw (Qty: 3)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
2 N·m (18 lb in)

Head Up Display Switch
