Backup Lamp Replacement. Chevrolet Corvette 2008

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2008 🢒 Corvette 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Backup Lamp Replacement

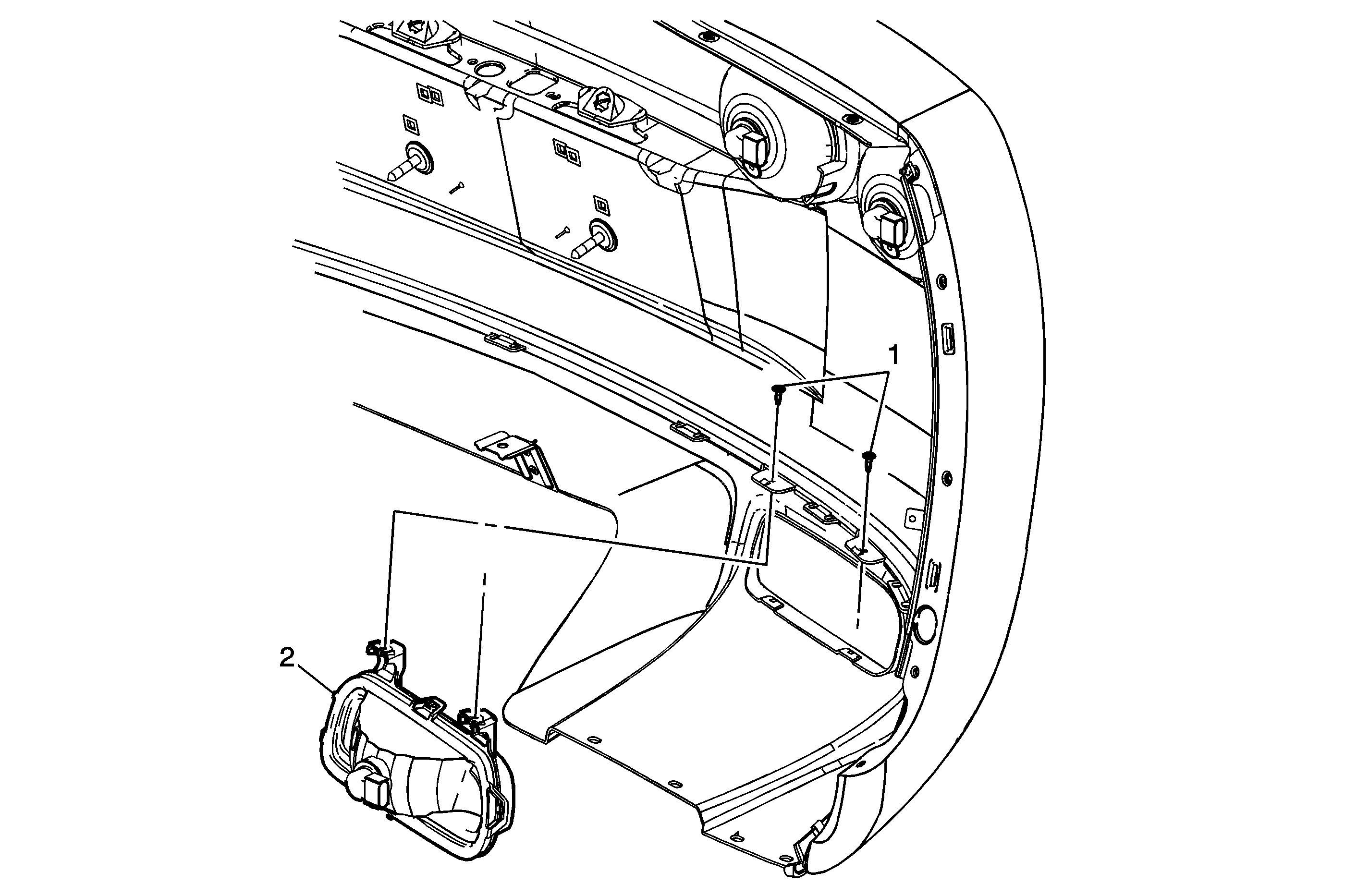

Callout	Component Name
Preliminary Procedure Remove the rear fascia extension. Refer to Rear Bumper Fascia Extension Replacement .
1	Backup Lamp Screw (Qty: 2) Notice: Refer to Fastener Notice in the Preface section. Tighten 2 N·m (18 lb in)
2	Backup Lamp Tip Twist the bulb socket and pull inward to replace the bulb.

Callout

Component Name

Remove the rear fascia extension. Refer to Rear Bumper Fascia Extension Replacement .

Backup Lamp Screw (Qty: 2)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
2 N·m (18 lb in)

Backup Lamp

Tip
Twist the bulb socket and pull inward to replace the bulb.
