Figure 1:

Left Sunshade


(1)	Garage Door Opener

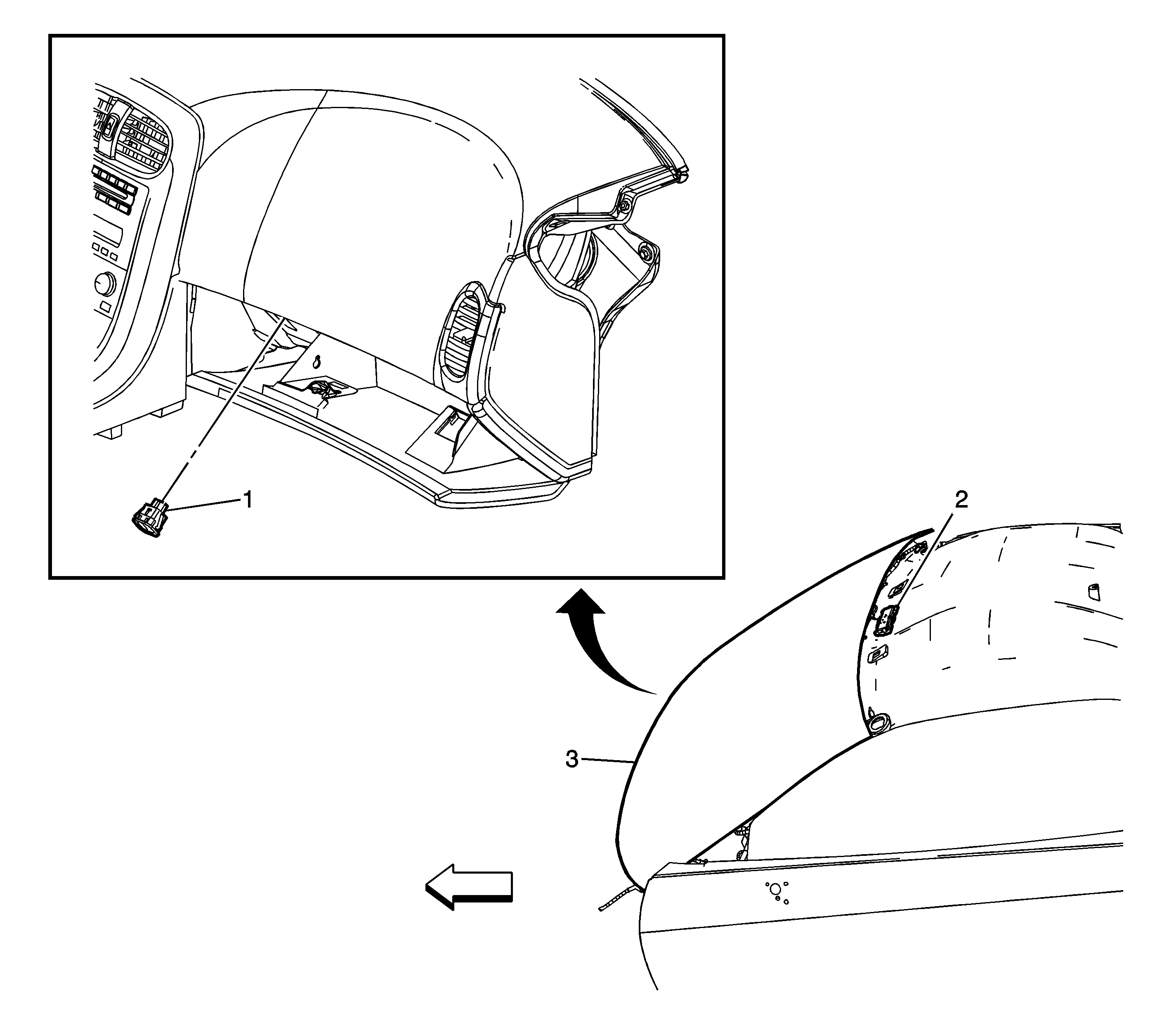

Figure 2:

Front Top Center of Headliner


(1)	Intrusion Sensor Defeat Switch (UA2)
(2)	Intrusion Sensor (UA2)
(3)	Windshield

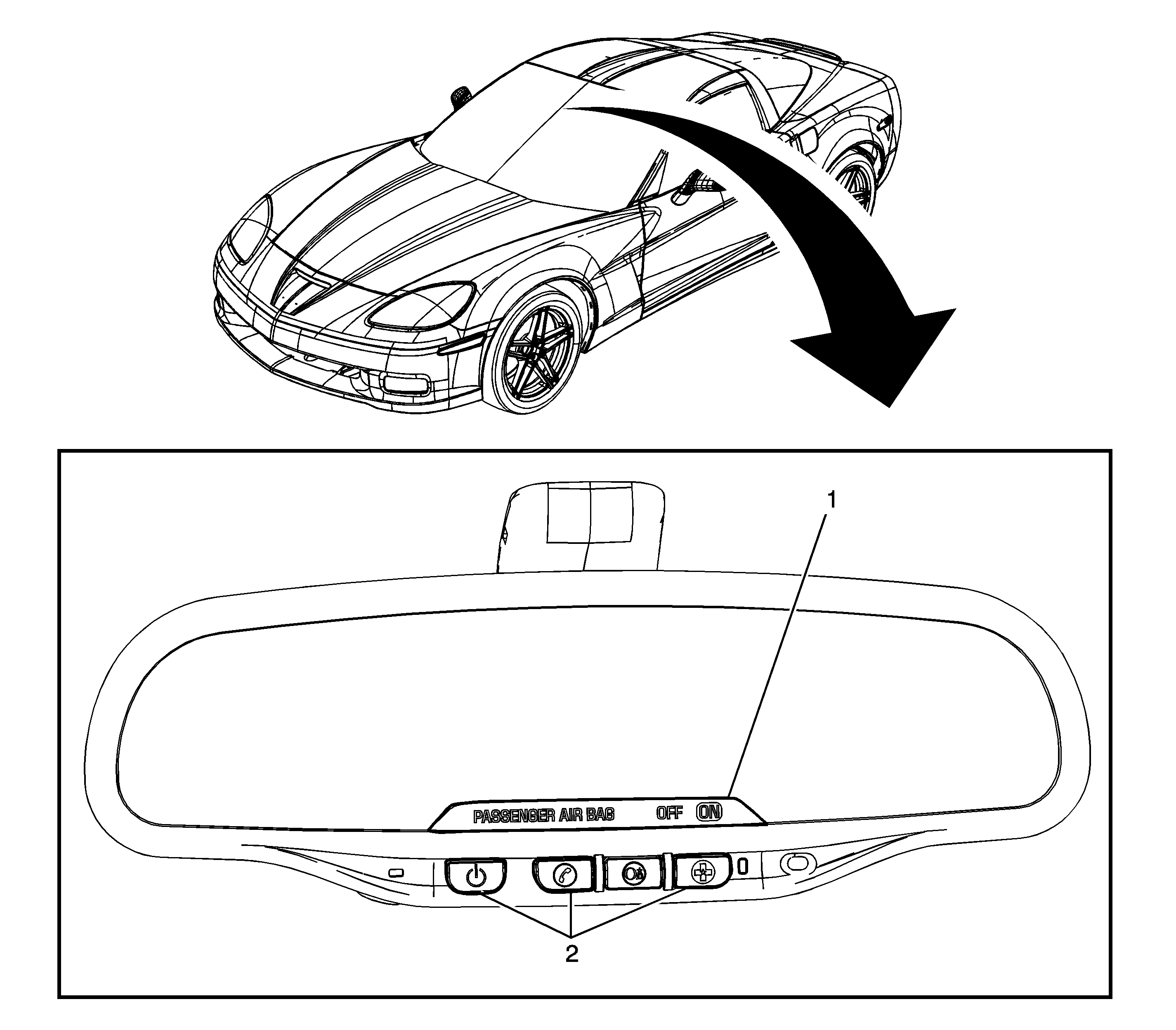

Figure 3:

Inside Rearview Mirror


(1)	Inside Rearview Mirror (ISRVM)
(2)	Onstar Button Assembly

Figure 4:

Entertainment Components


(1)	Speaker - Center I/P
(2)	Radio
(3)	Windshield Frame
(4)	Speaker - Right Subwoofer
(5)	Speaker - Right Front
(6)	Audio Amplifier
(7)	Speaker - Right Rear
(8)	Vehicle Communication Interface Module (VCIM) (Except CO5/CM7 with UE1)
(9)	Digital Radio Receiver (Except CO5/CM7 with U2K)
(10)	Speaker - Left Rear
(11)	Speaker - Left Subwoofer
(12)	Speaker - Left Front
(13)	Cellular Telephone Microphone

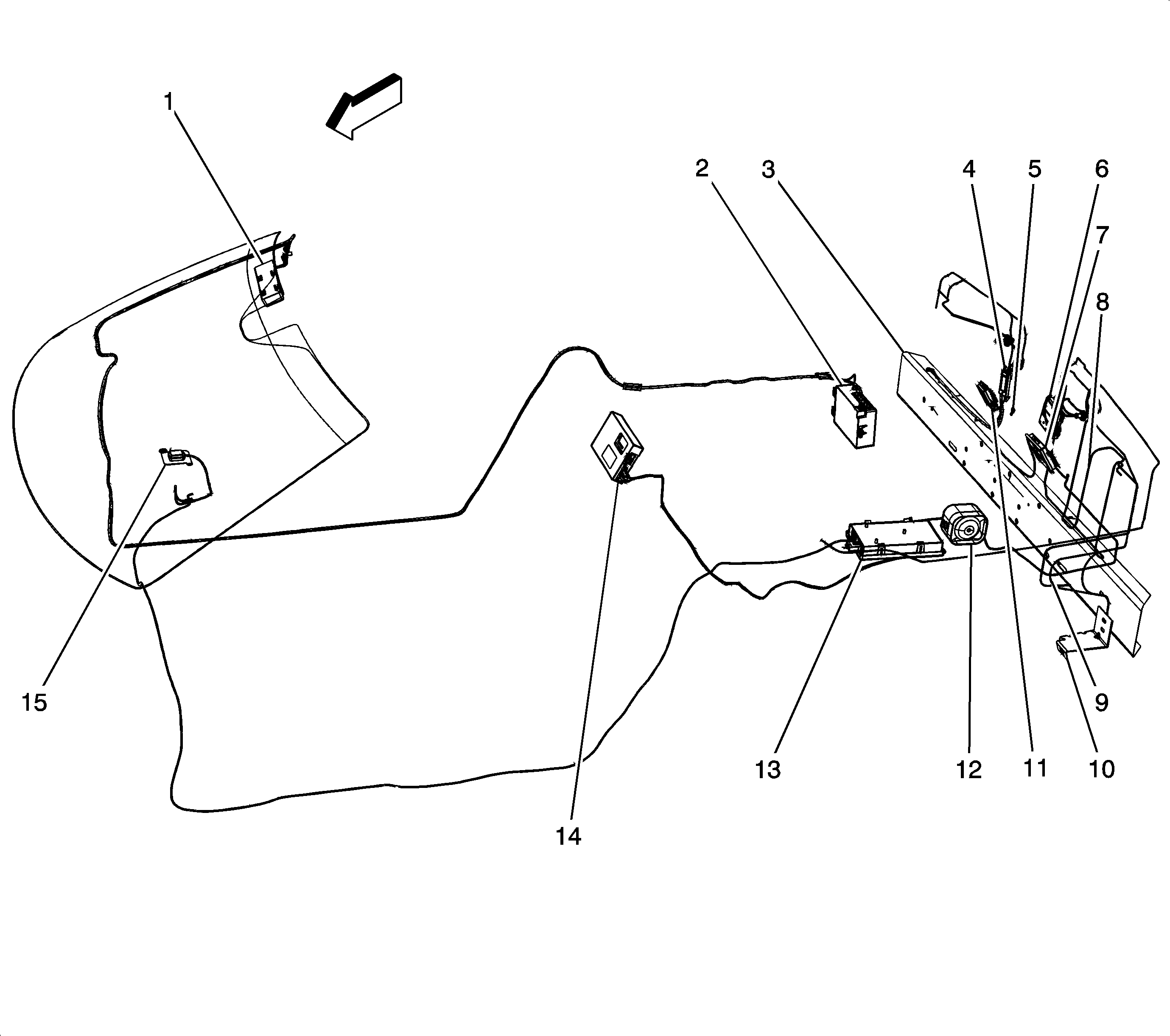

Figure 5:

Antennas and Antenna Modules


(1)	Cellular and Navigational Antenna (UE1)
(2)	Vehicle Communication Interface Module (VCIM) (UE1)
(3)	Radio Antenna Module - Case Ground
(4)	Radio Antenna Module - Right (CO5/CM7)
(5)	Radio Antenna Module - Case Ground
(6)	Vehicle Communication Interface Module (VCIM)
(7)	Radio Antenna Module - Left (Except CO5/CM7)
(8)	Antenna (CO5/CM7)
(9)	Antenna (Except CO5/CM7)
(10)	Antenna Ground
(11)	Radio Antenna Module - Right (Except CO5/CM7)
(12)	Theft Deterrent Alarm Siren (UA2)
(13)	Digital Radio Receiver (Except CO5/CM7)
(14)	Digital Radio Receiver (CO5/CM7)
(15)	Navigation Antenna (U3U)

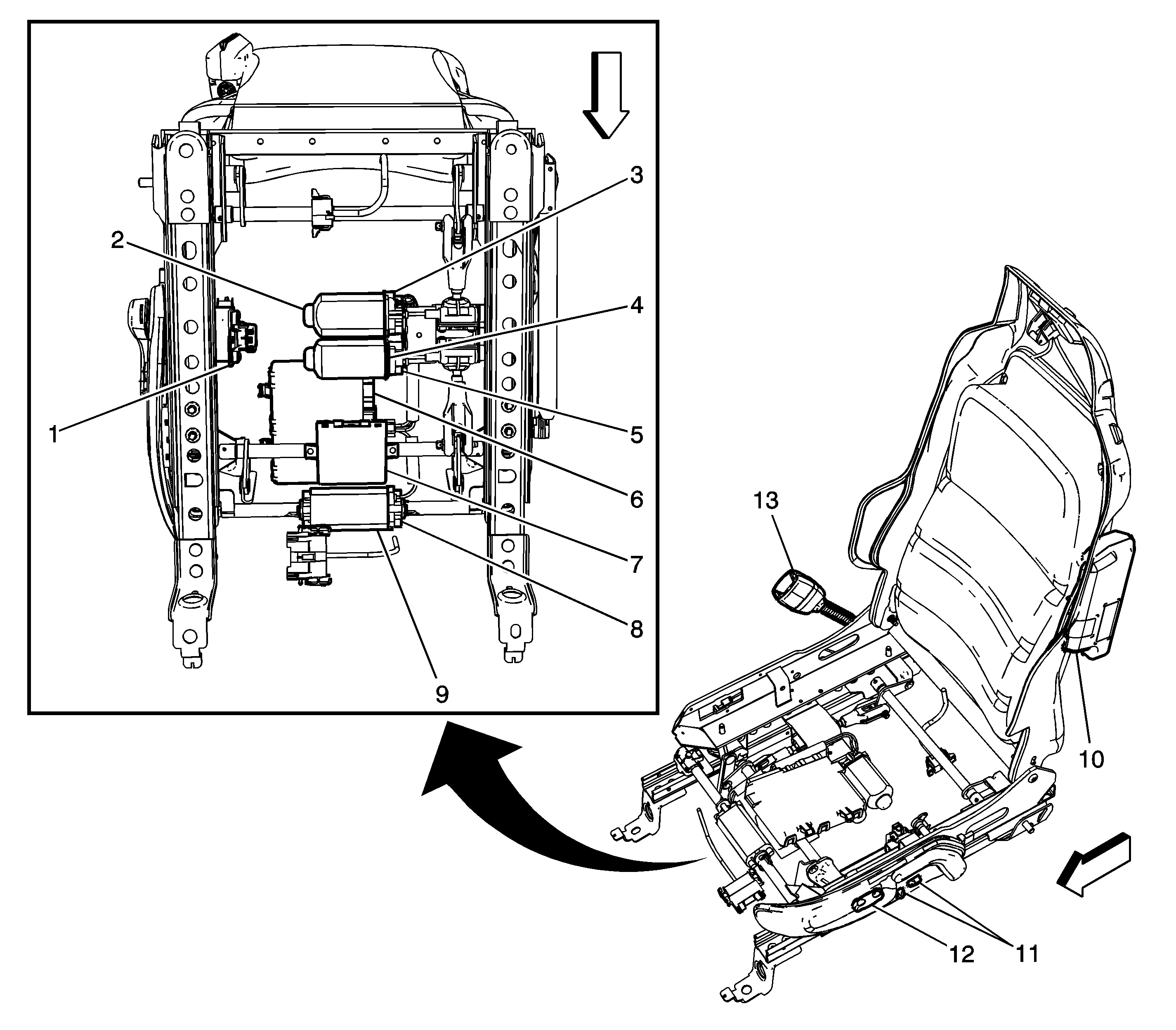

Figure 6:

Driver Seat Components


(1)	Inflatable Restraint Seat Position Sensor - Driver
(2)	Seat Rear Vertical Motor - Driver
(3)	Seat Rear Vertical Motor Position Sensor (AAB) - Driver
(4)	Seat Front Vertical Motor - Driver
(5)	Seat Front Vertical Motor Position Sensor (AAB) - Driver
(6)	Memory Seat Module - Driver (AAB)
(7)	Heated Seat Control Module - Driver (KA1)
(8)	Seat Horizontal Motor Position Sensor (AAB) - Driver
(9)	Seat Horizontal Motor - Driver
(10)	Inflatable Restraint Side Impact Module - Left (AJ7)
(11)	Seat Lumbar Adjuster Switch - Driver
(12)	Seat Adjuster Switch - Driver
(13)	Seat Belt Pretensioner - Driver

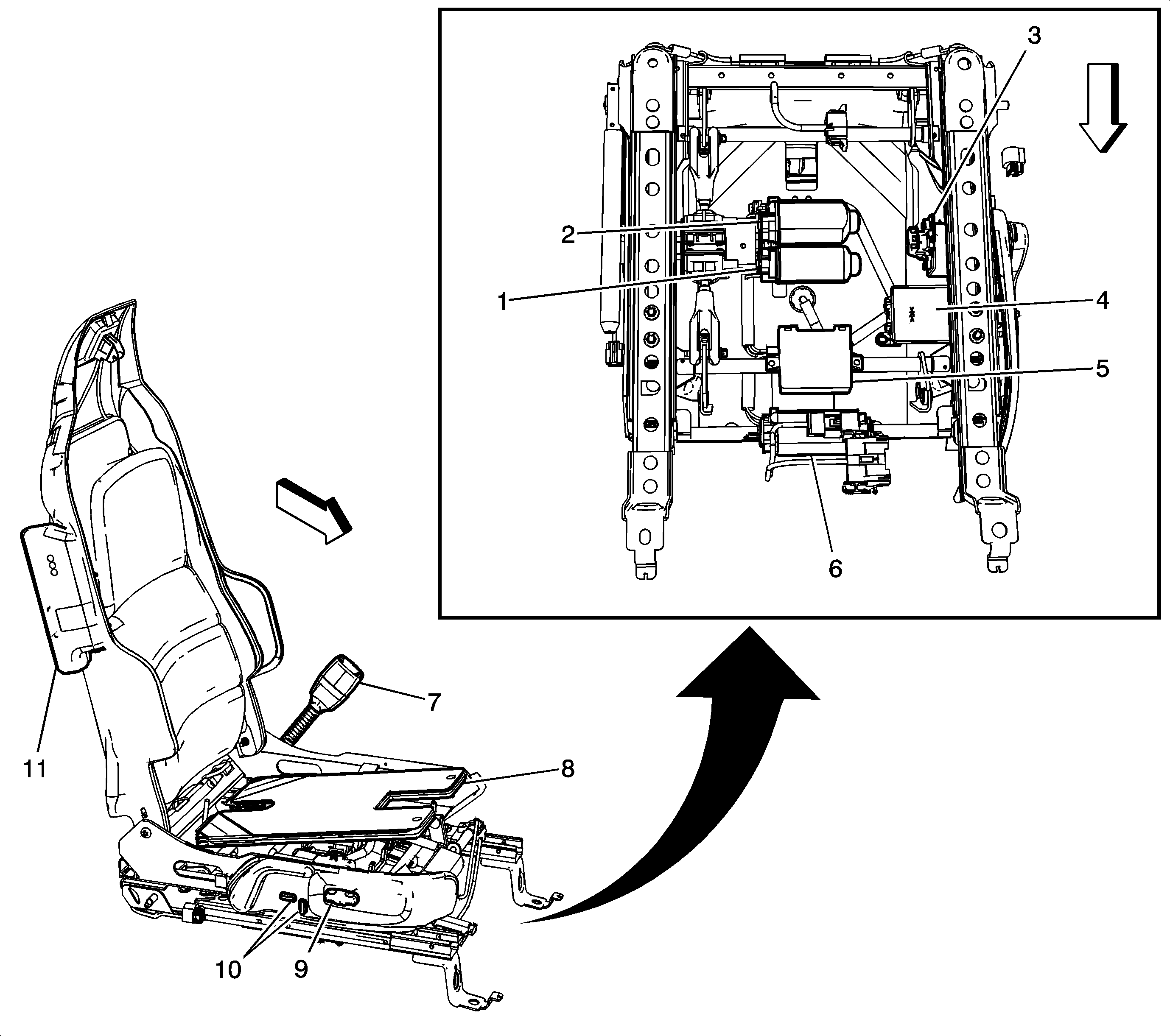

Figure 7:

Passenger Seat Components


(1)	Seat Front Vertical Motor - Passenger (AG2)
(2)	Seat Rear Vertical Motor - Passenger (AG2)
(3)	Inflatable Restraint Seat Position Sensor - Passenger
(4)	Inflatable Restraint Front Passenger Presence System (PPS) Module
(5)	Heated Seat Control Module - Passenger (KA1)
(6)	Seat Horizontal Motor - Passenger (AG2)
(7)	Seat Belt Pretensioner - Passenger
(8)	Heated Seat Element - Passenger Cushion
(9)	Seat Adjuster Switch - Passenger
(10)	Seat Lumbar Switch - Passenger
(11)	Inflatable Restraint Side Impact Module - Right (AJ7)

Figure 8:

Folding Top Components - 1 of 2


(1)	Folding Top Cover Actuator
(2)	Folding Top Stowage Compartment Lid Latch Pulldown Actuator (CM7)

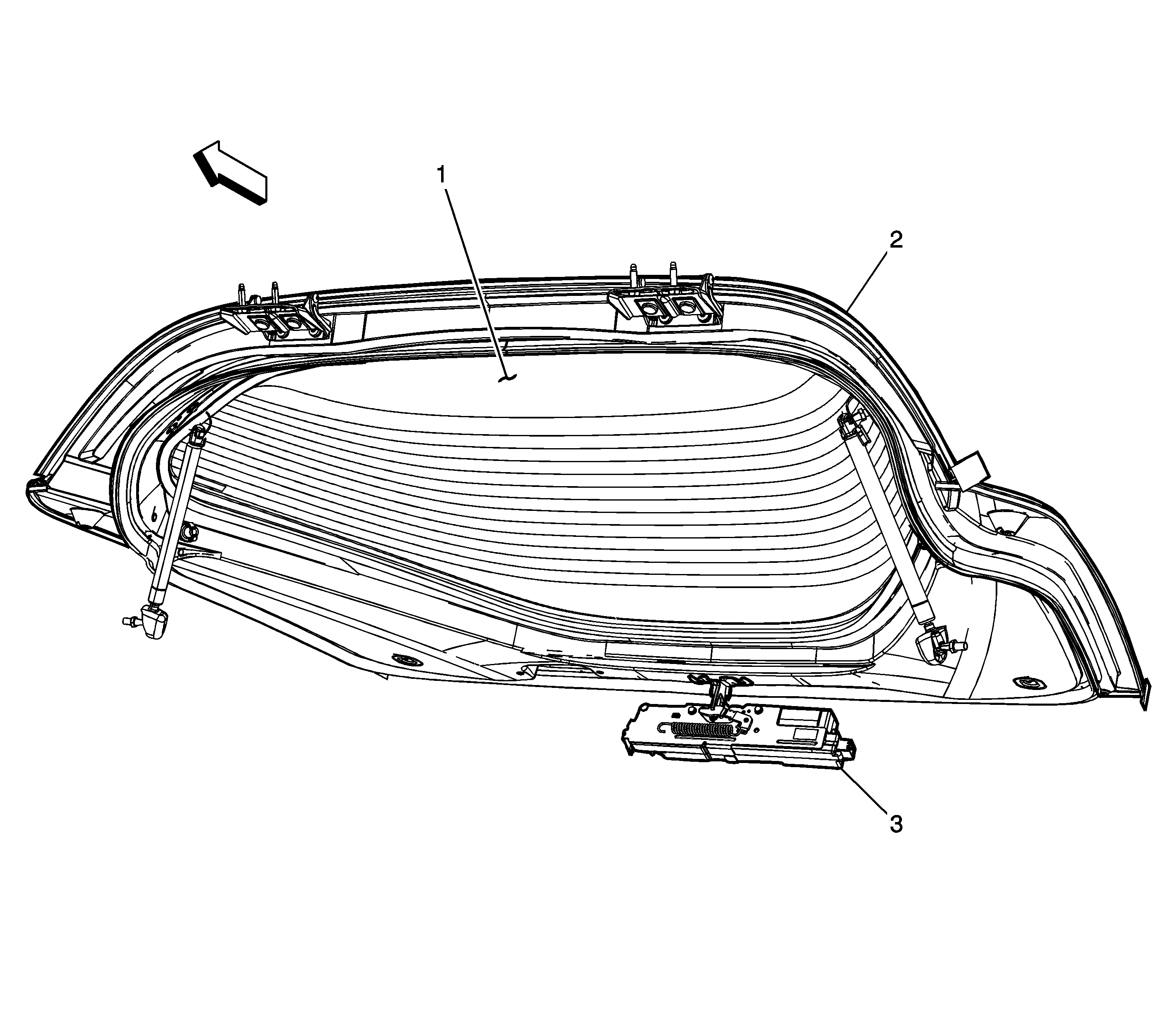

Figure 9:

Rear Window (Except CO5/CM7)


(1)	Rear Window Defogger Grid
(2)	Rear Compartment Lid
(3)	Rear Compartment Lid Pulldown Actuator

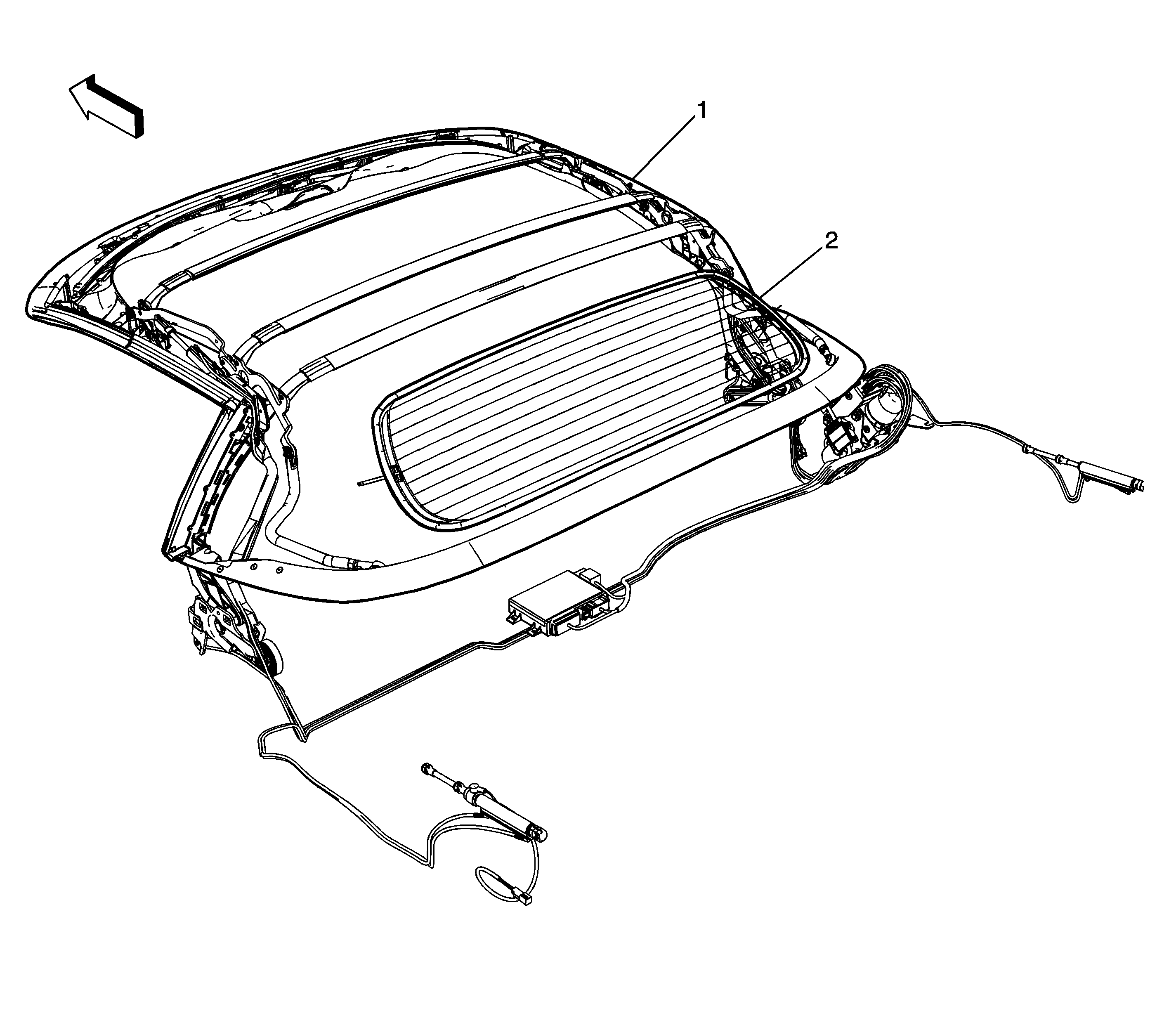

Figure 10:

Rear Window (CM7)


(1)	Power Folding Top
(2)	Rear Window Defogger Grid

Figure 11:

Folding Top Components - 2 of 2


(1)	Folding Top Open Position Switch (CM7)
(2)	Folding Top Cover
(3)	Folding Top Pump/Motor Assembly (CM7)
(4)	Folding Top Luggage Barrier Switch (CM7)

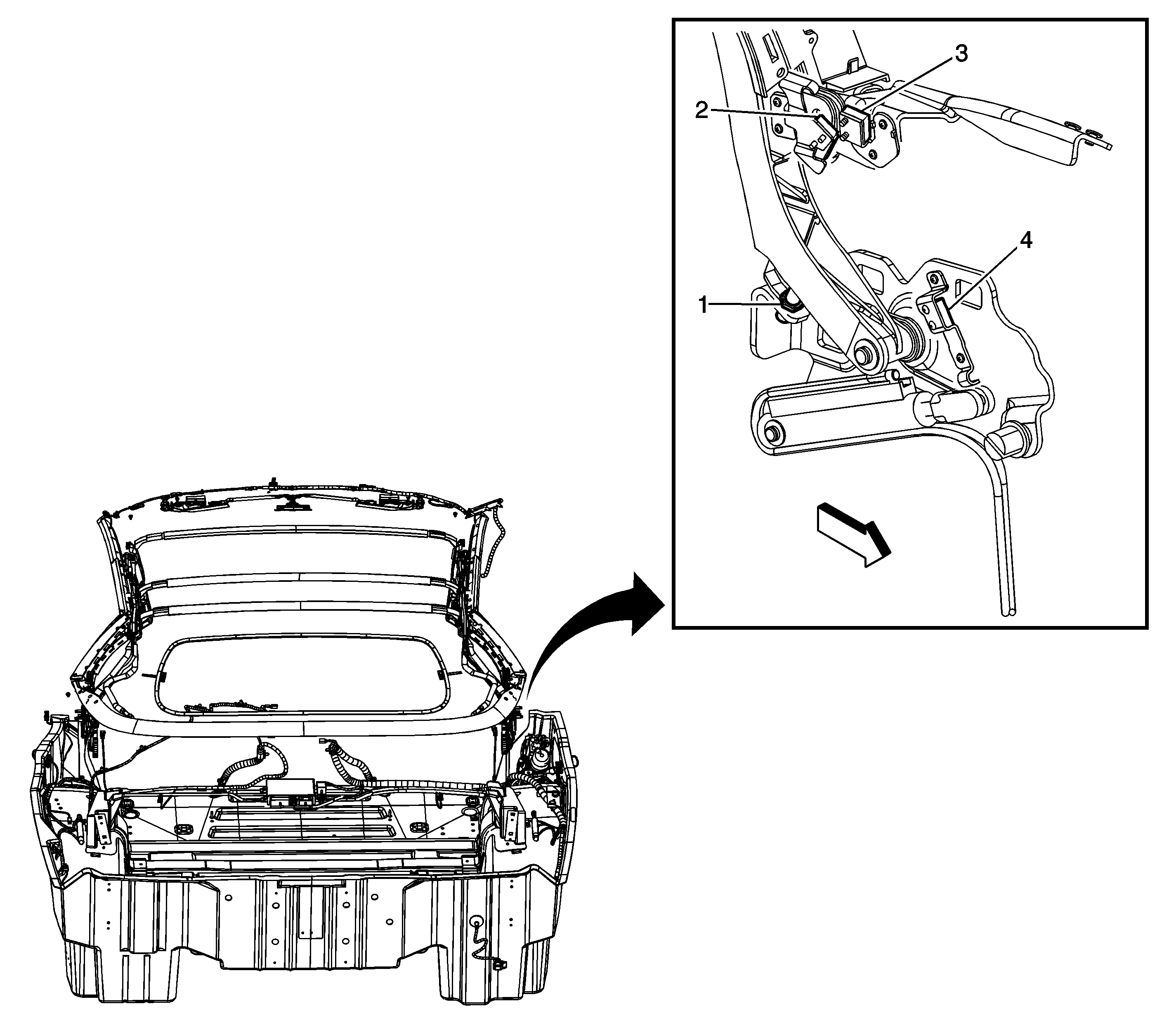

Figure 12:

Right Side of Power Folding Top (CM7)


(1)	Folding Top Closed Position Switch
(2)	Folding Top 5 Bow Lowered Switch
(3)	Folding Top 5 Bow Raised Switch
(4)	Folding Top Open Position Switch

Figure 13:

Folding Top Harness Routing Components


(1)	Hydraulic Cylinder
(2)	Folding Top Front Latch Switch
(3)	Hydraulic Cylinder
(4)	Folding Top Cover Actuator
(5)	Hydraulic Cylinder
(6)	Folding Top Pump/Motor Assembly (CM7)
(7)	Folding Top Luggage Barrier Switch Connector (CM7)
(8)	Actuator
(9)	Folding Top Stowage Compartment Lid Latch Pulldown Actuator (CM7)
(10)	Folding Top Control Module (FTM) (CM7)
(11)	Actuator
(12)	Folding Top Open Position Switch (CM7)
(13)	Actuator
