Removal Procedure
  1. Open the hood.

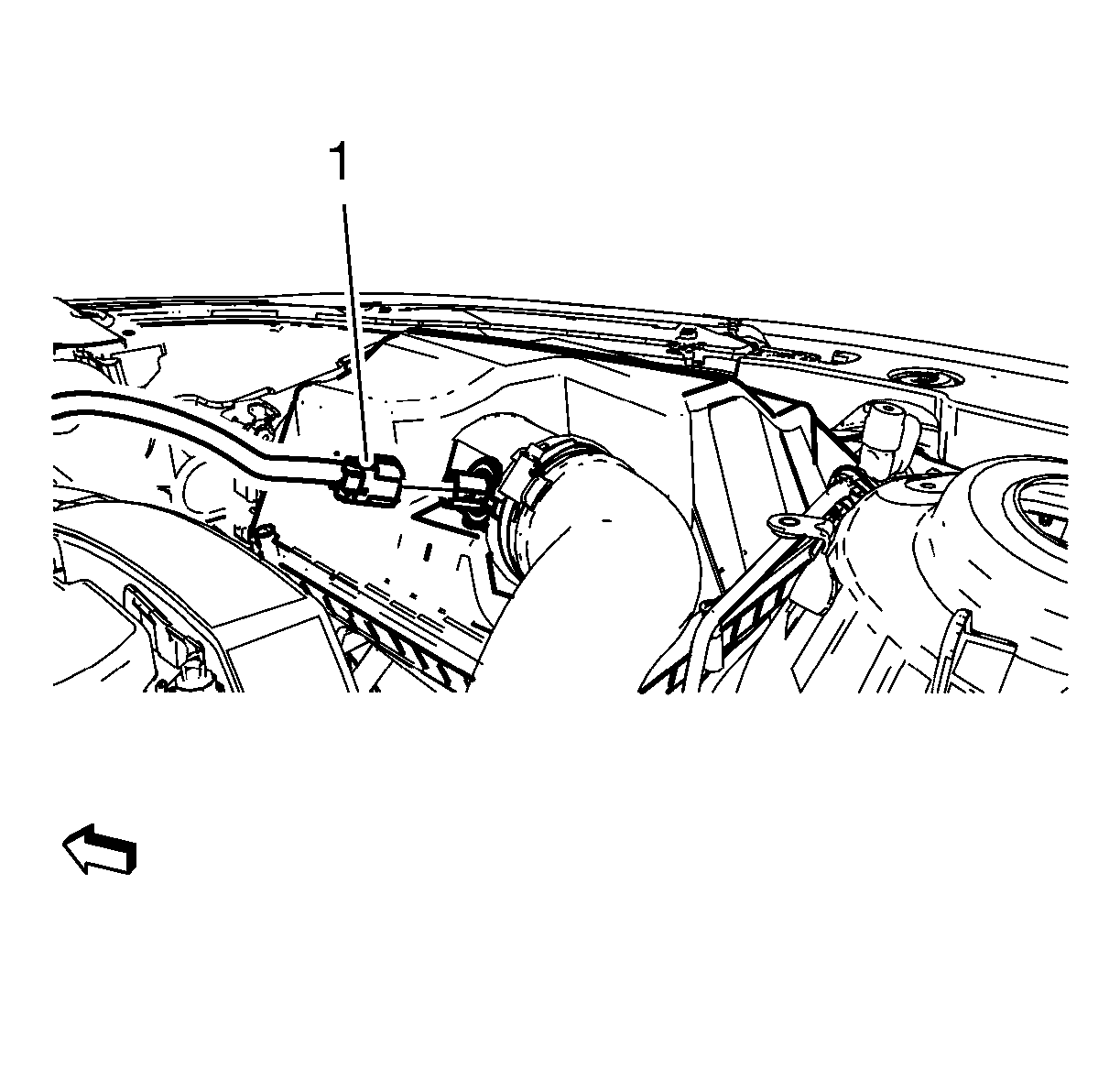

    2. Object Number: 2027620 Size: SH
  2. Disconnect the intake air temperature sensor wiring harness plug (1).
  3. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement.

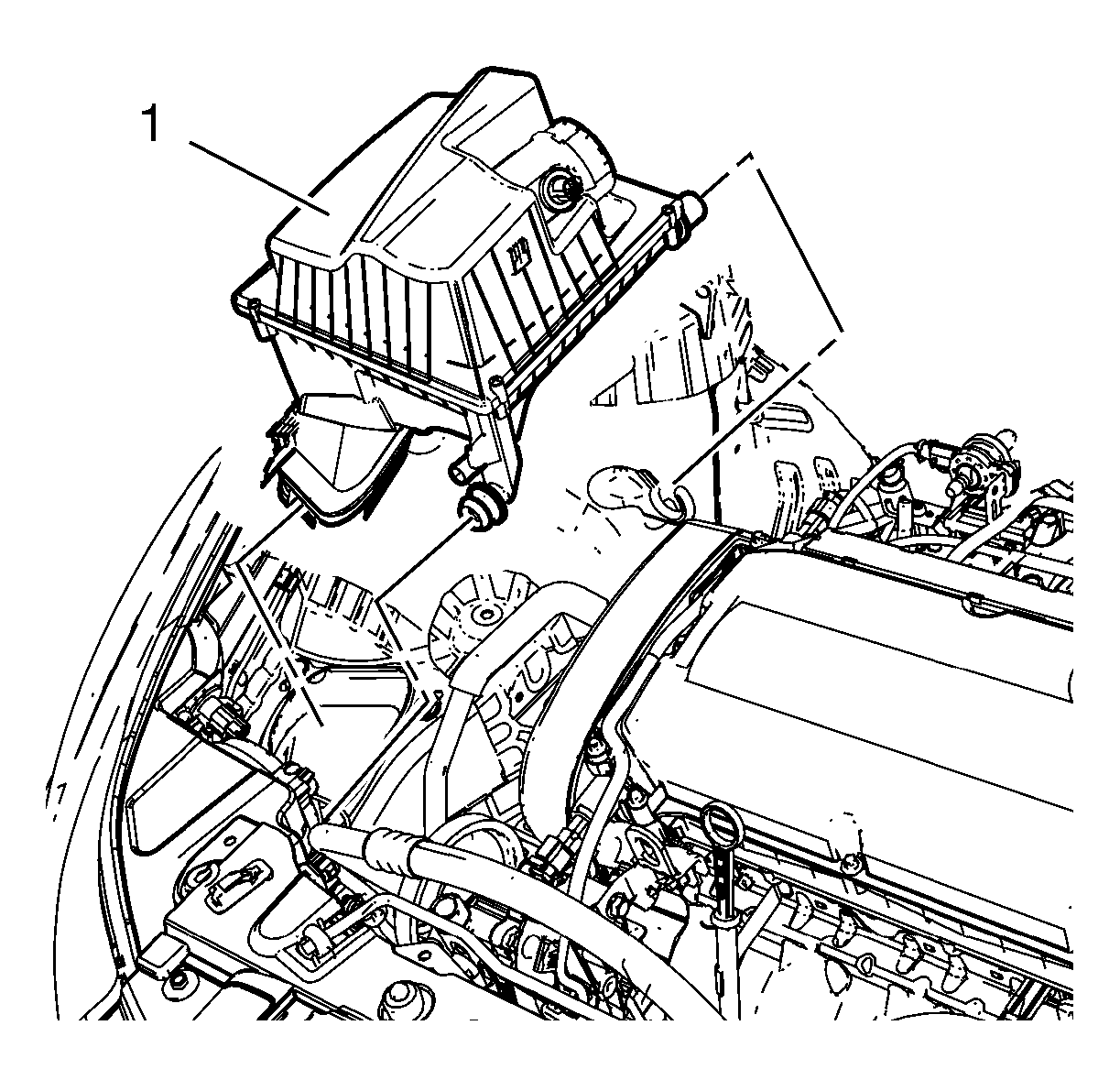

    4. Object Number: 2027600 Size: SH
  4. Remove the air cleaner assembly (1).
    5. • Unclip the air cleaner inlet duct
    • Unclip the fluid reservoir hose

Installation Procedure

    Object Number: 2027600 Size: SH
  1. Install the air cleaner assembly (1).
    2. • Clip in the fluid reservoir hose
    • Clip in the air cleaner inlet duct
  2. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement.

    3. Object Number: 2027620 Size: SH
  3. Connect the intake air temperature sensor wiring harness plug (1).
  4. Close the hood.
