Makes 🢒 Chevrolet 🢒 2008 🢒 Epica 🢒 Engine 🢒 Engine Cooling 🢒 Cooling System Component Views

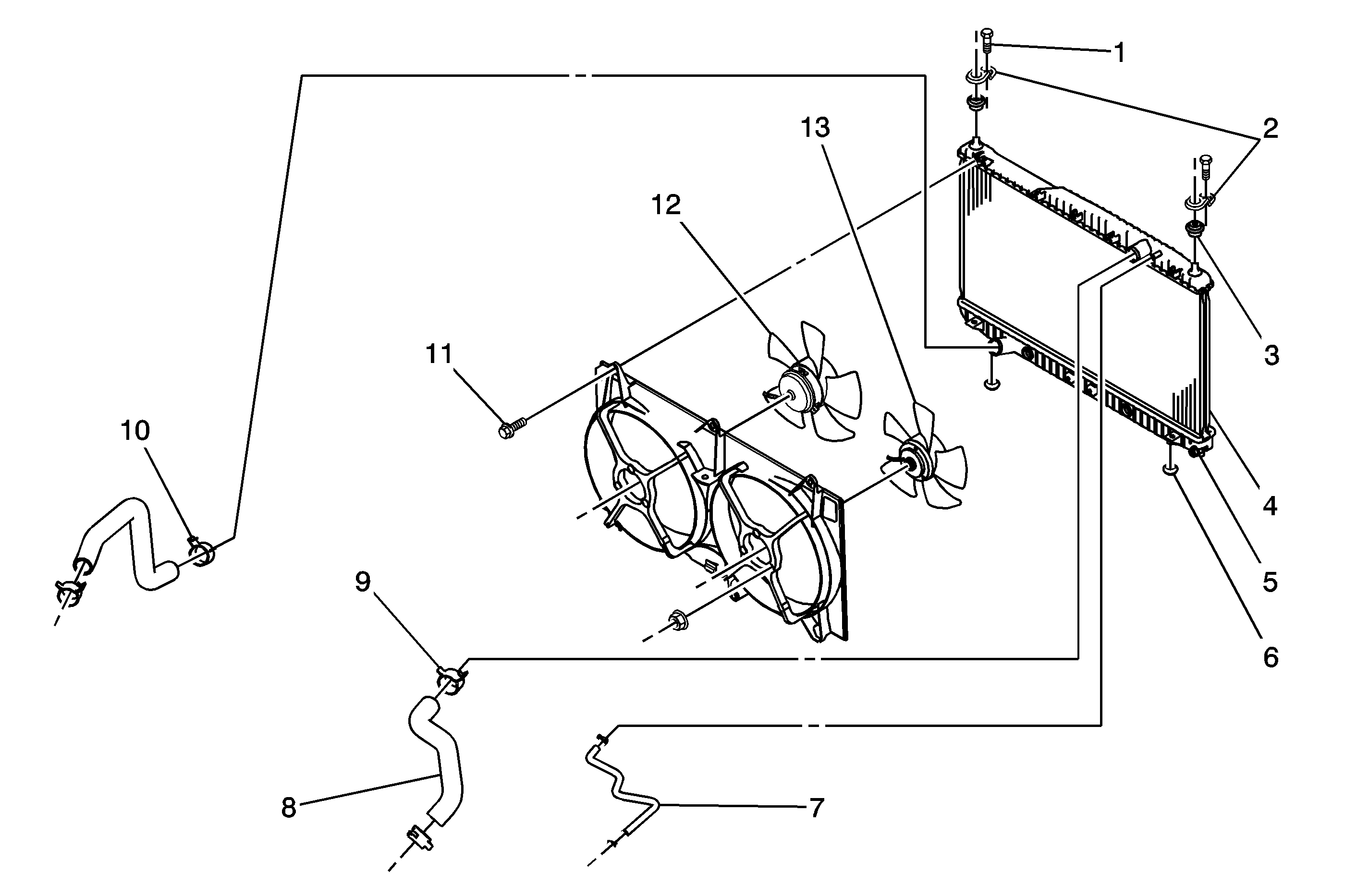

Figure 1:

Radiator and Fan - 2.0L and 2.5L Gasoline Engines
Object Number: 1257063 Size: MF
(1)Radiator Retaining Bolts
(2)Radiator Bracket
(3)Upper Radiator Bumper
(4)Radiator
(5)Drain Plug
(6)Radiator Bumper
(7)Radiator Surge Tank Hose
(8)Upper Radiator Hose
(9)Spring Clamp
(10)Spring Clamp
(11)Fan Assembly Mounting Bolts
(12)Cooling Fan - Main
(13)Cooling Fan - Auxiliary

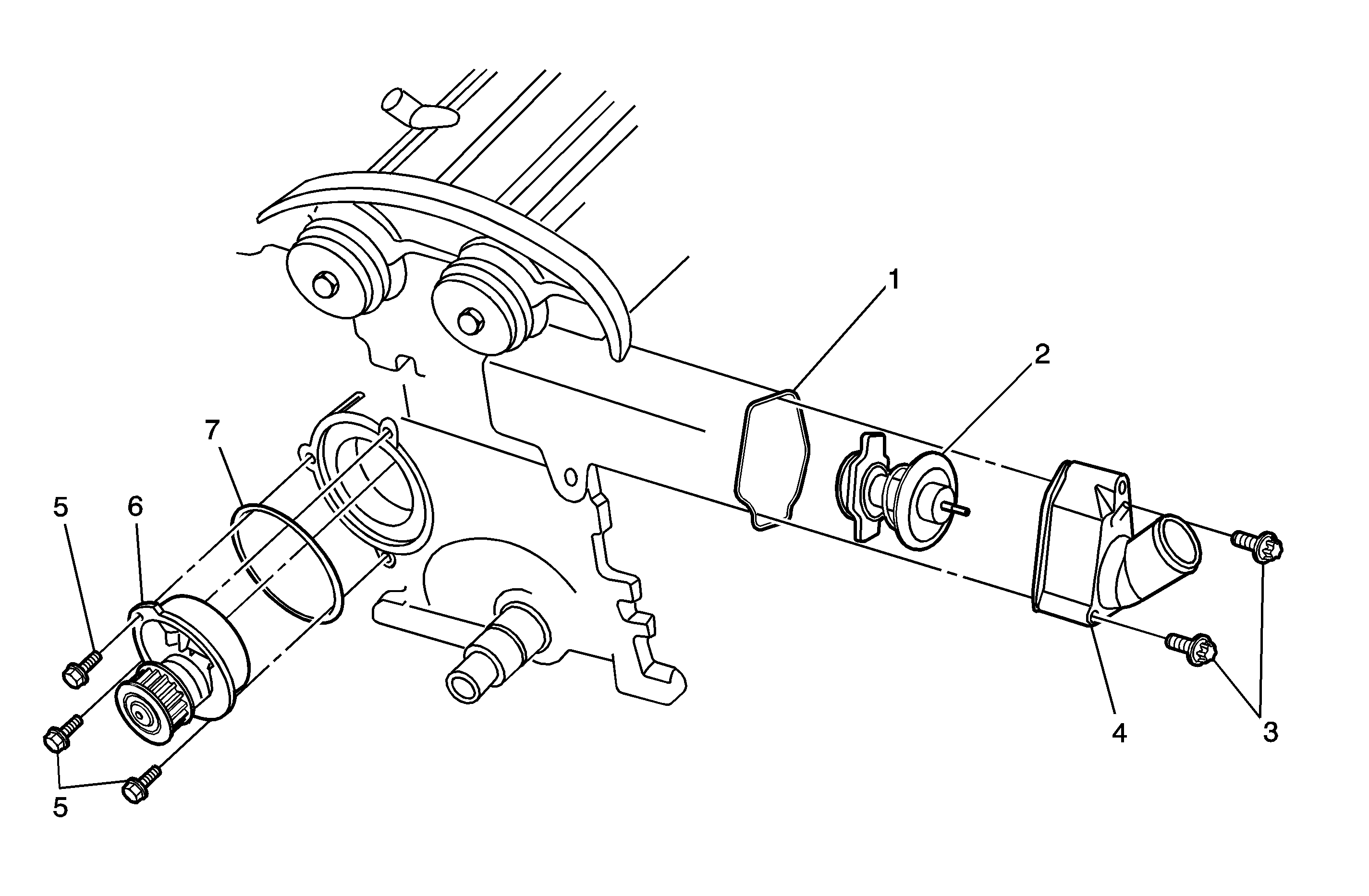

Figure 2:

Coolant Pump/Thermostat - 2.0L Gasoline Engine
Object Number: 1257066 Size: MF
(1)O-Ring Seal
(2)Thermostat
(3)Thermostat Housing Mounting Bolt
(4)Thermostat Housing
(5)Coolant Pump Mounting Bolt
(6)Coolant Pump
(7)Ring Seal

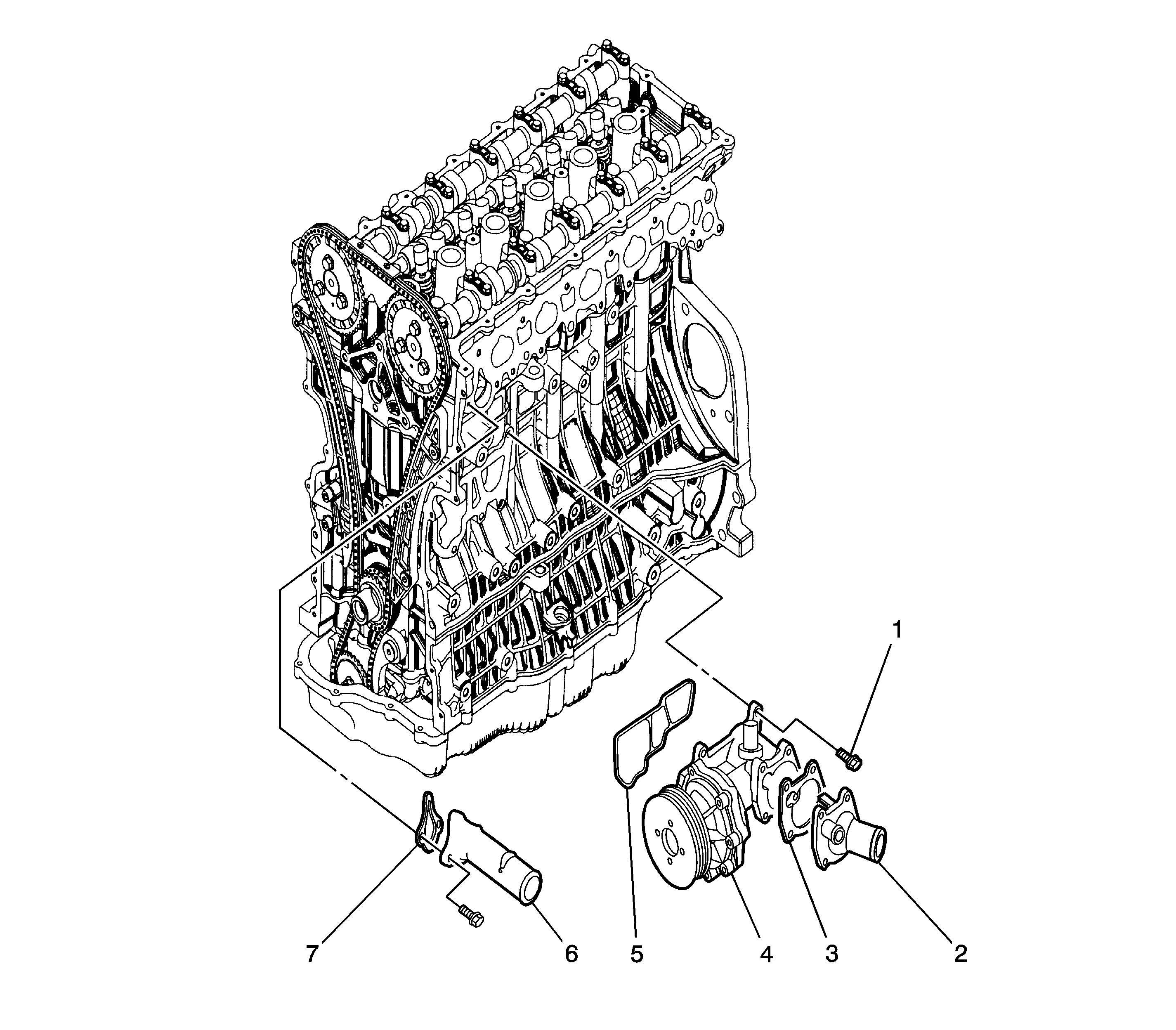

Figure 3:

Coolant Pump/Thermostat - 2.5L Gasoline Engine
Object Number: 1372473 Size: LF
(1)Coolant Pump Mounting Bolt
(2)Thermostat
(3)Thermostat Seal Ring
(4)Coolant Pump
(5)Coolant Pump Rubber Seal
(6)Coolant Outlet Port
(7)Coolant Outlet Port Gasket

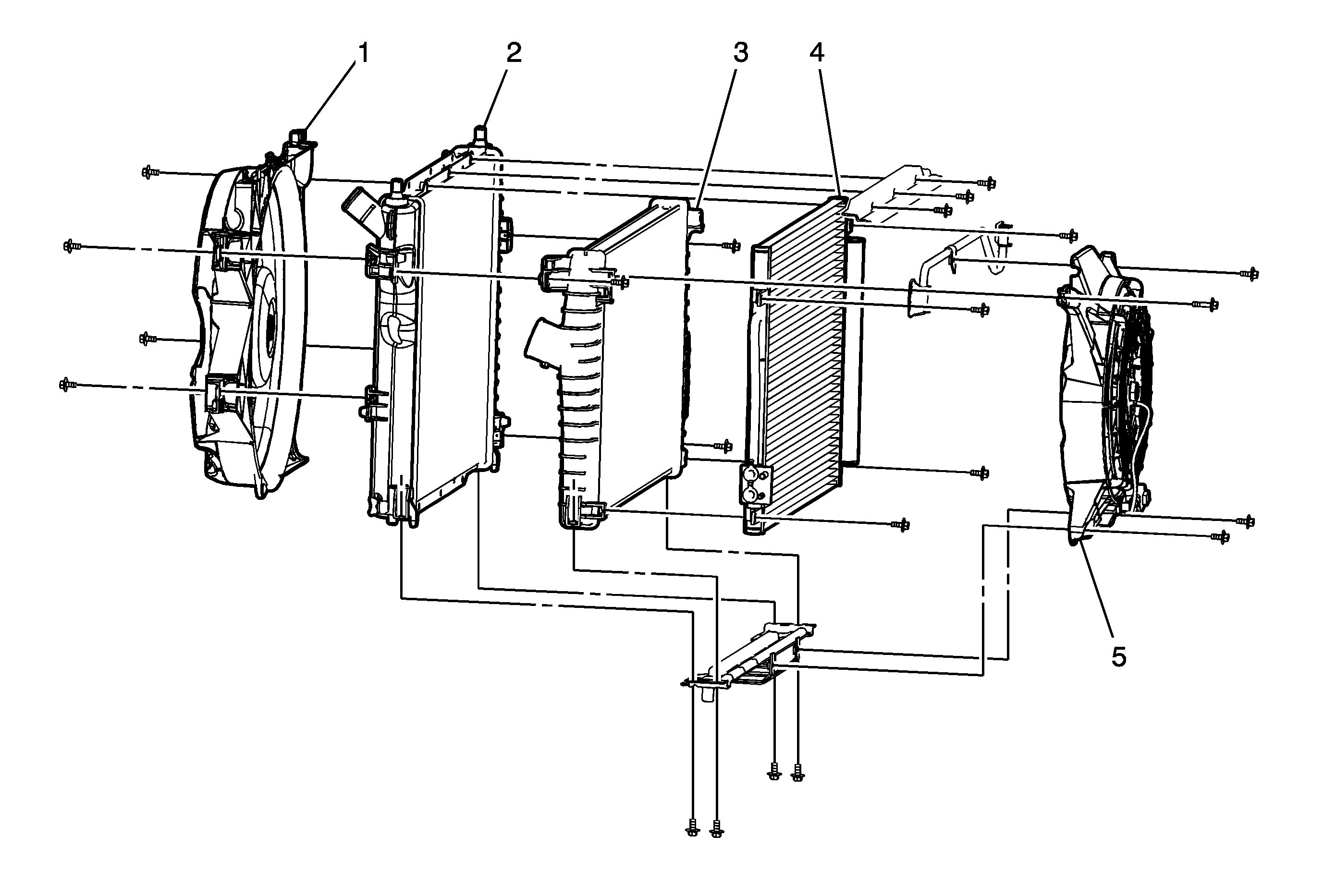

Figure 4:

Radiator and Fan - 2.0L Diesel Engine
Object Number: 1865055 Size: MF
(1)Main Cooling Fan Motor
(2)Radiator
(3)Charge Air Cooler
(4)Condenser
(5)Auxiliary Cooling Fan Motor
Figure 5:

Water Pump and Thermostat - 2.0L Diesel Engine
Object Number: 1820479 Size: MF
(1)Water Pump
(2)Water Pump Gasket
(3)Thermostat Housing
(4)Thermostat Gasket
(5)Thermostat
(6)T-MAP Sensor
(7)Intake Manifold
(8)Coolant Temperature Sensor

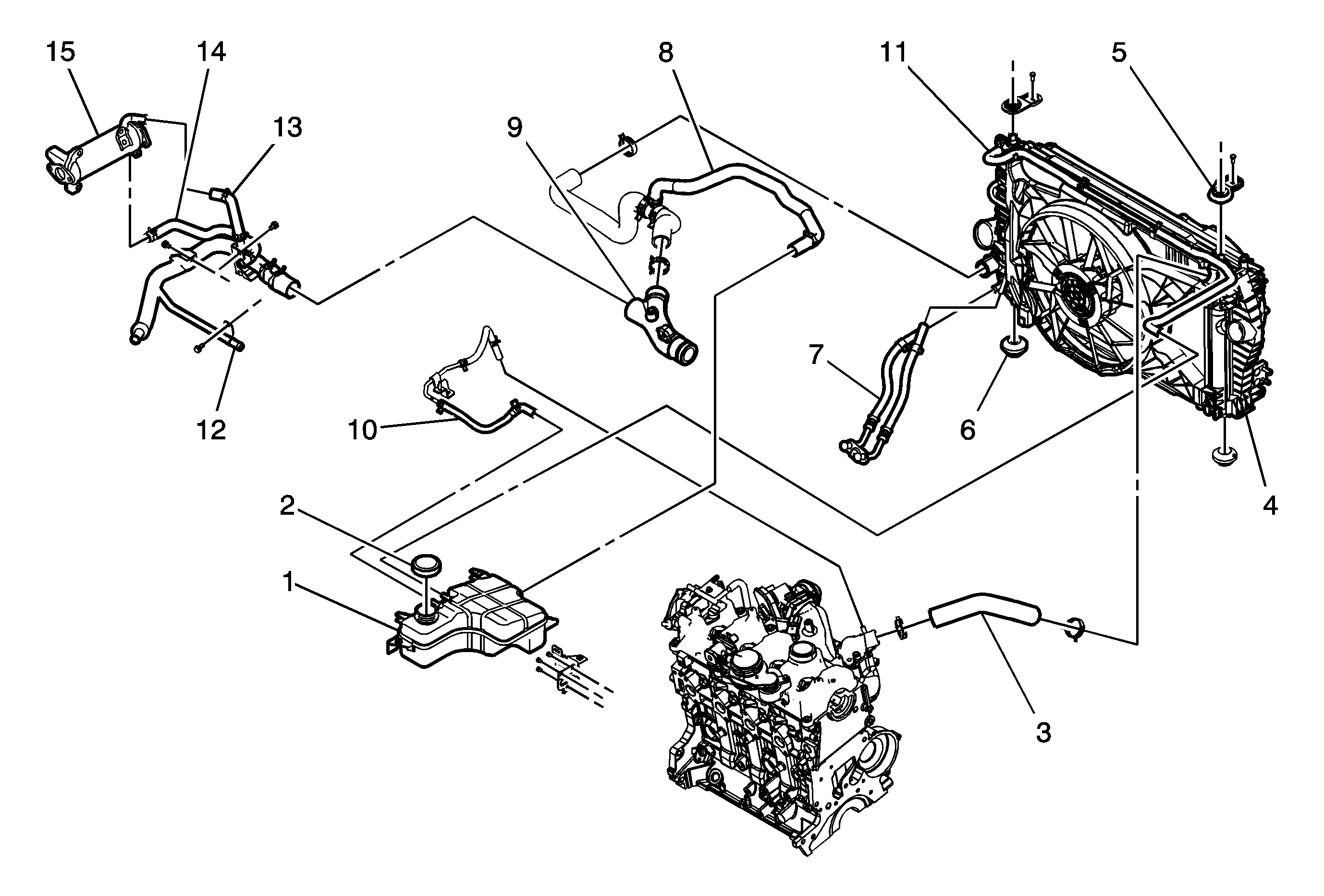

Figure 6:

Cooling Path - 2.0L Diesel Engine
Object Number: 1863829 Size: MF
(1)Surge Tank
(2)Surge Tank Cap
(3)Radiator Inlet Hose
(4)Cooling Radiator Fan Module (CRFM)
(5)Radiator Upper Bracket
(6)Radiator Lower Bracket
(7)Transaxle Cooling Pipes
(8)Radiator Outlet Assembly Hose
(9)Water Pipe
(10)Surge Tank Hose
(11)Surge Tank Inlet Hose
(12)Water Pipe
(13)EGR Cooler Outlet Hose
(14)EGR Cooler Inlet Hose
(15)EGR Cooler
