Removal Procedure
  1. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

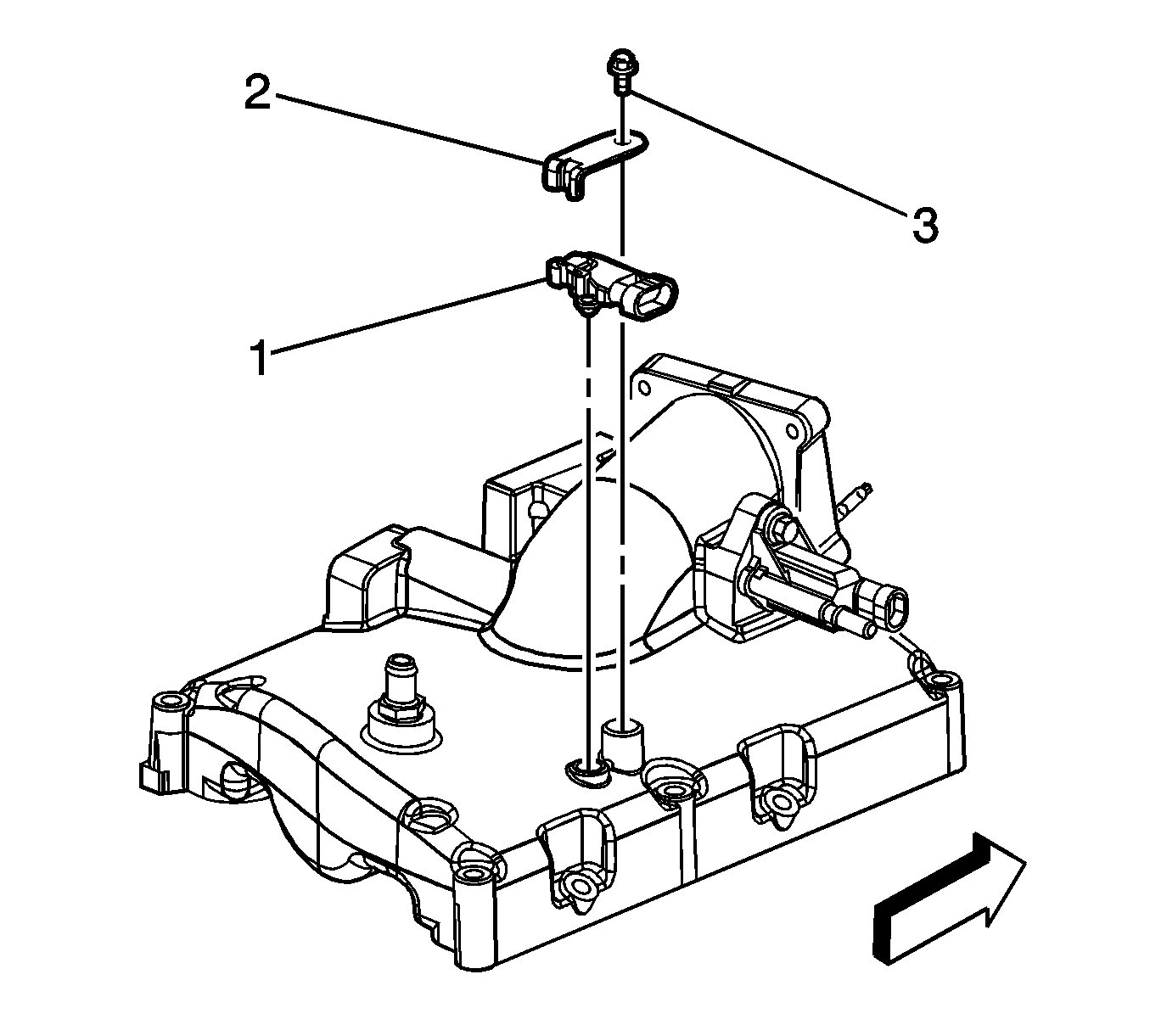

    2. Object Number: 1087786 Size: SH
  2. Remove the MAP sensor retaining bolt (3) and bracket (2).
  3. Remove the MAP sensor (1) and the MAP sensor port seal if it is still retained in the intake manifold.

Installation Procedure

    Object Number: 1087786 Size: SH
  1. Install the MAP sensor (1) to the intake manifold.

    2. Notice: Refer to Fastener Notice in the Preface section.

  2. Install the MAP sensor retaining bracket (2) and bolt (3).

    3. Tighten
    Tighten the bolt to 10 N·m (89 lb in).

  3. Connect the MAP sensor electrical connector.
