Connector 1: Cooling Fan - Left
Connector 2: Cooling Fan - Right
Connector 3: Cooling Fan S/P Relay

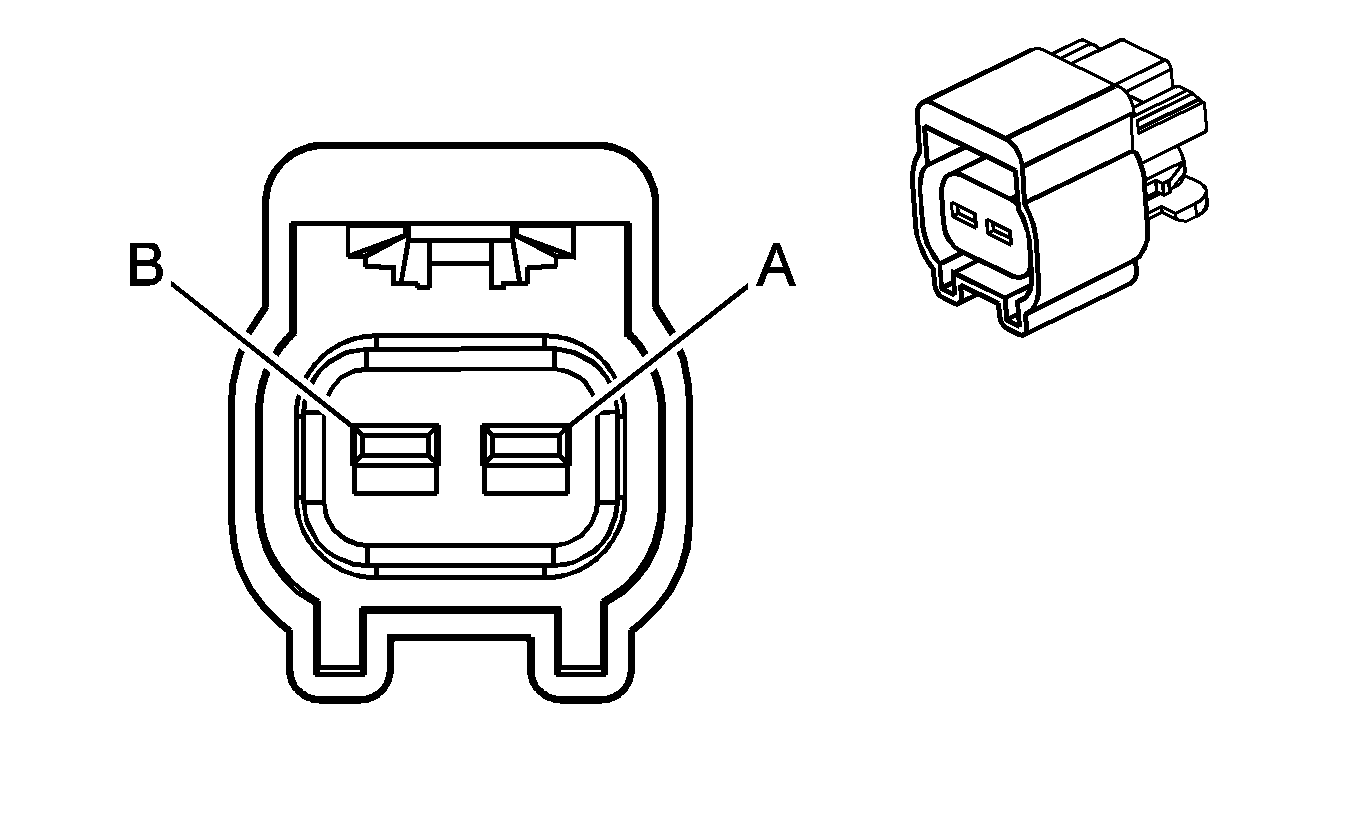

Cooling Fan - Left
Object Number: 1658769 Size: CH

Connector Part Information

  • OEM: 13517349
  • Service: See Catalog
  • Description: 2-Way F GT 280 Series Sealed (BK)

Cooling Fan - Left

Pin

Wire Color

Circuit No.

Function

A

L-BU

409

Cooling Fan Motor Supply Voltage (Low)

B

WH

504

Cooling Fan Motor Low Reference

Cooling Fan - Right
Object Number: 1658769 Size: CH

Connector Part Information

  • OEM: 13517349
  • Service: See Catalog
  • Description: 2-Way F GT 280 Series Sealed (BK)

Cooling Fan - Right

Pin

Wire Color

Circuit No.

Function

A

GY

532

Cooling Fan Motor Supply Voltage (High)

B

BK

150

Ground

Cooling Fan S/P Relay
Object Number: 535919 Size: CH

Connector Part Information

  • OEM: 12110539
  • Service: 15306045
  • Description: 5-Way F Metri-Pack 280 Series, Flexlock (BK)

Cooling Fan S/P Relay

Pin

Wire Color

Circuit No.

Function

30

WH

504

Cooling Fan Motor Low Reference

85

RD/WH

4040

Battery Positive Voltage

86

D-BU

473

High Speed Cooling Fan Relay Control

87

BK

150

Ground

87A

GY

532

Cooling Fan Motor Supply Voltage (High)
